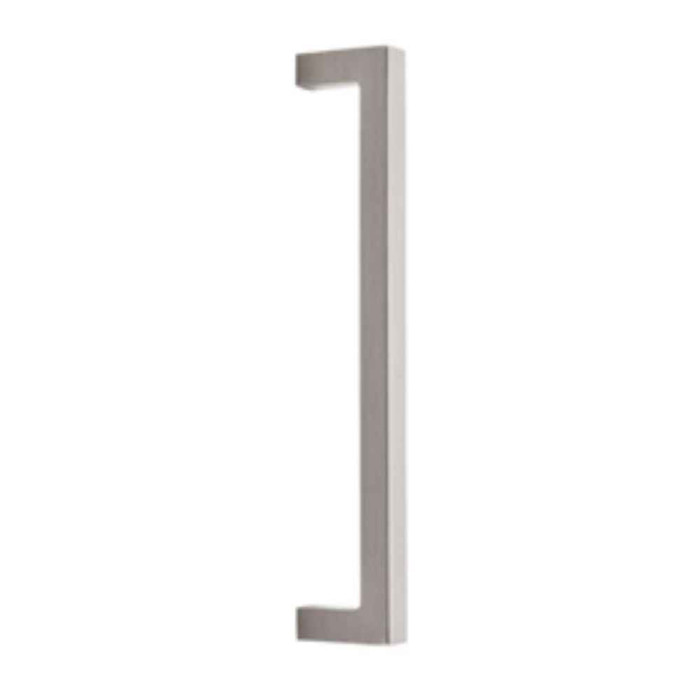

Trimco AP722 1" Square End Posts Architectural Ladder Pull

Trimco AP722 1" Square End Posts Architectural Ladder Pull

(No reviews yet) Write a Review

Model: TRI-AP722E-128-4.605
From the AP700 Series Collection
$568.64
$493.02
Selected Mounting is
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$568.64
$493.02
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

TRIMCO AP722 1" SQUARE END POSTS ARCHITECTURAL LADDER PULL OVERVIEW

AP722 1" Square End Posts Architectural Ladder Pull. 1" Square End Posts.

Trimco’s AP700 Series Square & Rectangular Ladder Pulls are precision crafted for beauty and ultimate durability. Offered with a multitude of material sizes, these pulls can be the architectural highlight of your design.

Buy the TRIMCO AP722 Series today to add a stylish hardware for your home!

TRIMCO AP700 SQUARE END POSTS ARCHITECTURAL LADDER PULL PRODUCT FEATURES

  • Manufactured from stainless steel, bronze, brass or aluminum for long lasting durability.
  • Flexibility in design from material sizes and orientation to standoff locations (end or bridge).
  • Wide range of lengths available from 12″ to over 9′.
  • Additional options for door thickness, leather wrapping and engraving.
  • Available in most architectural finishes.
  • ADA Compliant.
  • Optional: Engraving for Singe Pulls or Back to Back (BTB) Pulls
  • Optional: Leather Wrapped
  • If a price is not shown for a particular finish, it may be available at the special price or by special quotation if quantaties warrant. Minimum quantities may apply.

TRIMCO AP722 SERIES COLOR VARIATIONS

Trimco AP722 1" Square End Posts Architectural Pull Bright Brass (605)
Trimco AP722 1" Square End Posts Architectural Pull Satin Brass (606)
Trimco AP722 1" Square End Posts Architectural Pull Bright Bronze (611)
Trimco AP722 1" Square End Posts Architectural Pull Satin Bronze (612)
Trimco AP722 1" Square End Posts Architectural Pull Oil Rubbed Bronze (613)
Trimco AP722 1" Square End Posts Architectural Pull Dark Oxidized Satin Bronze (613E)
Trimco AP722 1" Square End Posts Architectural Pull Matte Black (622)
Trimco AP722 1" Square End Posts Architectural Pull Bright Chrome (625)
Trimco AP722 1" Square End Posts Architectural Pull Satin Chrome (626)
Trimco AP722 1" Square End Posts Architectural Pull Satin Aluminum (628)
Trimco AP722 1" Square End Posts Architectural Pull Bright Stainless Steel (629)
Trimco AP722 1" Square End Posts Architectural Pull Satin Stainless Steel (630)
Trimco AP722 1" Square End Posts Architectural Pull Bright Stainless Steel (316P)
Trimco AP722 1" Square End Posts Architectural Pull Satin Stainless Steel (316S )
Trimco AP722 1" Square End Posts Architectural Pull Healthy Hardware Steralloy Silver (710CU)

APPLICATIONS

  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Hospitality
  • Multifamily & Mixed-Use
  • Retail & Strip Malls

TRIMCO AP700 SERIES COLLECTION

Trimco AP711 3/4" Square Bridge Posts Architectural Ladder Pull
Trimco AP712 3/4" Square End Posts Architectural Ladder Pull
Trimco AP721 1" Square Bridge Posts Architectural Ladder Pull
Trimco AP722 1" Square End Posts Architectural Ladder Pull
Trimco AP731 1-1/4" Square Bridge Posts Architectural Ladder Pull
Trimco AP732 1-1/4" Square End Posts Architectural Ladder Pull
Trimco AP751 1/2" (F) x 1-1/4" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP752 1/2" (F) x 1-1/4" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP753 1-1/4" (F) x 1/2" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP754 1-1/4" (F) x 1/2" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP761 1" (F) x 1-1/2" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP762 1" (F) x 1-1/2" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP763 1-1/2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP764 1-1/2" (F) x 1" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP771 1" (F) x 2" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP772 1" (F) x 2" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP773 2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP774 2" (F) x 1" (D) Rectangular End Posts Architectural Ladder Pull

RESOURCES & DOWNLOADS

Manufacturer Resources

Product Specs

ADA Compliant:
Yes
Commercial/Residential:
Commercial
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Door Pulls
Series:
AP700 Series
Subcategory:
Door Pulls, Push and Pull Plates
Fasteners:
Wood and Machine Screws
Product Dimension:
1" Diameter
Product Category:
Door Trim and Accessories
Product Substrate:
Stainless Steel
Collection:
AP700 Series
Department:
Door Hardware

Trimco TRI-AP722E-128-4.605 – Frequently Asked Questions

1) Is the Trimco AP722 pull ADA compliant?
Yes, the AP722 is ADA compliant. A ladder pull is an operable part that needs no tight grasping, pinching or wrist twisting, which is why this style gets specified on accessible entries in schools, healthcare and government work.
2) What is the bar size on the Trimco AP722, and how does it differ from the AP721?
The AP722 uses 1 inch square stock with end posts, meaning the standoffs sit at the two ends of the bar. The AP721 is the same 1 inch square material with bridge posts, where the standoffs come off the back of the bar rather than the ends. Same grip, different look and different door prep. If you want a heavier bar in the same square profile, the AP732 is 1-1/4 inch square end post; lighter is the AP712 at 3/4 inch square end post.
3) I want a square long door pull but my doors are only 1/2 inch thick glass. Will the AP722 work?
No. The AP722 is built for door thicknesses of 1-3/8, 1-3/4, 2 or 2-1/4 inches, so a 1/2 inch leaf is below the range entirely. The Sure-Loc square long door pull, single sided, covers 1/2 inch to 2-1/4 inch doors and is the square profile alternative for a thin leaf.
4) I need a straight pull for a 2-1/4 inch thick door - what works besides the Trimco AP722?
The Trimco AP722 is built to door thickness, with 1-3/8 inch, 1-3/4 inch, 2 inch and 2-1/4 inch options. For the same 2-1/4 inch opening from another brand, the Sure-Loc Square Long Door Pull, Single-Sided is rated for doors 1/2 inch to 2-1/4 inch thick and carries the same square bar profile. The Deltana OHP620 off-set handle pull is a back-to-back set built for 1-1/8 inch to 1-3/8 inch doors, so it does not reach a 2-1/4 inch leaf.
5) What is the difference between E-Mount and G-Mount on Trimco AP700 ladder pulls?
Those are the two mounting configurations you pick from on the AP722. Mounting is a required selection at order time along with length, finish and door thickness, so the pull ships built for the arrangement you name. Get it settled with whoever is drilling the door before the order goes in, because the door prep follows the mounting choice.
6) What lengths does the Trimco AP722 square ladder pull come in?
Six stock lengths: 12, 18, 24, 36, 48 and 60 inches. The 12 and 18 inch sizes suit a single-leaf entry or an interior door; 36 to 60 inch pulls are what you see on storefront and glass front pairs where the pull is meant to read as part of the elevation. The AP700 family is made in lengths past 9 feet if the drawing calls for something longer than 60 inches.
7) What finishes can I get the Trimco AP722 ladder pull in to match the rest of my door hardware?
Eleven finishes are orderable: 605 bright brass, 606 satin brass, 609 satin brass blackened and clear coated, 611 bright bronze, 612 satin bronze, 613 oil rubbed bronze, 613E dark oxidized satin bronze, 622 matte black, 628 satin aluminum, 629 bright stainless and 630 satin stainless. Those are BHMA finish numbers, so 630 on the pull is the same designation as 630 on your hinges, closers and exit devices, which is how you standardize an opening across brands.
8) I need a 1 inch diameter commercial door pull. What else is there besides the Trimco AP722?
In round stock rather than square, the ABH AB3300 is a straight flat end pull at 1 inch diameter, and the Ives 8103HD is a 1 inch round heavy duty straight pull with through bolt mounting. If you want an offset instead of a straight ladder, look at the Ives 8169 C style offset at 1 inch diameter or the ABH AB3310 offset flat end. The AP722 is the one to keep if the drawing calls for a square profile, since the others named here are round.
9) For a high traffic commercial entrance, how does the Trimco AP722 compare to the Ives heavy duty pulls?
The AP722 is a commercial stainless steel ladder pull, ADA compliant, in 1 inch square section. The Ives 8103HD is a heavy duty straight pull, 1 inch round with through bolt mounting, and the Ives 8102HD is a heavy duty straight pull on a 3/4 inch round bar with 1-1/2 inch clearance. The difference at the door is section and grip: square bar on the Trimco, round bar on the Ives, with the 8102HD dropping to 3/4 inch. The ABH AB7200 is another route - solid stainless steel flat end pull at 7/8 inch diameter with through-bolt mounting.
10) Is there a simpler alternative to a Trimco AP722 for a single interior door where I only need one 12 inch pull?
Yes. The AP722 is a made-to-order architectural pull specified by length, door thickness, finish and E-Mount or G-Mount post style. When the job is one leaf and one short pull, the Deltana SSP1210 is a fixed 12 inch contemporary pull supplied single side, and the Sure-Loc Round Long Door Pull, Single-Sided offers concealed or thru-bolt mounting without a separate mounting selection. Both are single-sided, so if the opening needs a matching pull on the reverse face you are ordering two.
11) The Trimco AP722 is straight - what should I use if the opening needs an offset pull?
The AP722 is a straight ladder pull on square end posts, so the bar runs parallel to the door face along its full 12 inch to 60 inch length. Where the opening needs the grip standing clear of the face, the Ives 8169 is a C style offset solid pull at 1 inch diameter, the same nominal bar size as the AP722, and the Ives 8145EZHD is a 45 degree offset pull that is ADA compliant. The ABH AB3310 offset flat end pull and ABH AB3330 offset round end pull, the latter with custom length options, are also offset designs. Note the AP722 is itself ADA compliant, so switching to an offset is a clearance and grip decision, not a code one.
12) I need pulls on both faces of a glass or wood entry - is the Trimco AP722 the right call or is a back-to-back set easier?
The AP722 is ordered to a specific door thickness of 1-3/8 inch, 1-3/4 inch, 2 inch or 2-1/4 inch, which is how a through-mounted pair lands correctly on both faces. Purpose-built back-to-back sets in the same length class include the Deltana SSPOBB24 24 inch back-to-back modern offset pulls and the Deltana SSPORBB24 24 inch back-to-back round offset pulls, both fixed at 24 inches, and the Sure-Loc Knurled Long Door Pull, Double-Sided. The AP722 gives you length and finish selection the fixed-length sets do not; the Deltana sets give you an offset profile the straight AP722 does not.
13) Does the Trimco AP722 come with mounting screws?
Wood and machine screws are supplied with the AP722. Which set you use depends on the leaf, machine screws into a metal door or into tapped posts, wood screws into a wood door.
14) Do I need a back to back pair of AP722 pulls, or can I use one on a push pull opening?
The AP722 is configured per order, and Trimco offers engraving for single pulls or back to back sets, so both arrangements are made. On a pair of doors or a push pull opening you typically run pull to pull through the leaf; on a single door with a closer you may only need one side. Decide that before ordering, because it drives the mounting selection and the door prep.
15) Can I get the Trimco AP722 with a leather wrapped grip or engraved?
Both are available on the AP700 series. Leather wrapping is an option on the bar, and engraving can be done on single pulls or on back to back sets. These are specified at order time, not added later, so they go on the order with the length, finish, mounting and door thickness.
16) What is the shortest Trimco AP722 pull, and is a 12 inch pull enough for an interior office door?
12 inches is the shortest AP722. On an interior door with a light closer that is a normal grab length and gives a full hand plus room. Where the door is heavy, exterior, or has a strong closer, most specs move up to 24 or 36 inches so two hands or an off center grip still work. All six lengths, 12 through 60 inches, use the same 1 inch square stock.
17) What should I specify if I need a ladder pull longer than a standard catalog length?
The Trimco AP722 covers 12 inch, 18 inch, 24 inch, 36 inch, 48 inch and 60 inch, and Trimco's AP700 Series ladder pulls are made in lengths from 12 inches to over 9 feet. If the run you need falls between listed sizes, the ABH AB3330 offset round end pull is offered with custom length options. Bear in mind the AB3330 is an offset profile while the AP722 is a straight square bar, so a custom length there changes the look of the opening.
18) I want a textured grip instead of a smooth square bar - what is the alternative to a Trimco AP722?
The AP722 is a smooth 1 inch square bar in stainless steel. For a textured grip, the Sure-Loc Knurled Long Door Pull is offered single-sided with thru-bolt mounting and double-sided as a pair. Knurling changes the hand feel and appearance rather than the mounting approach; the AP722 stays with the square section and its E-Mount or G-Mount post arrangement.
