Trimco AP731 1-1/4" Square Bri...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$795.64
$689.84

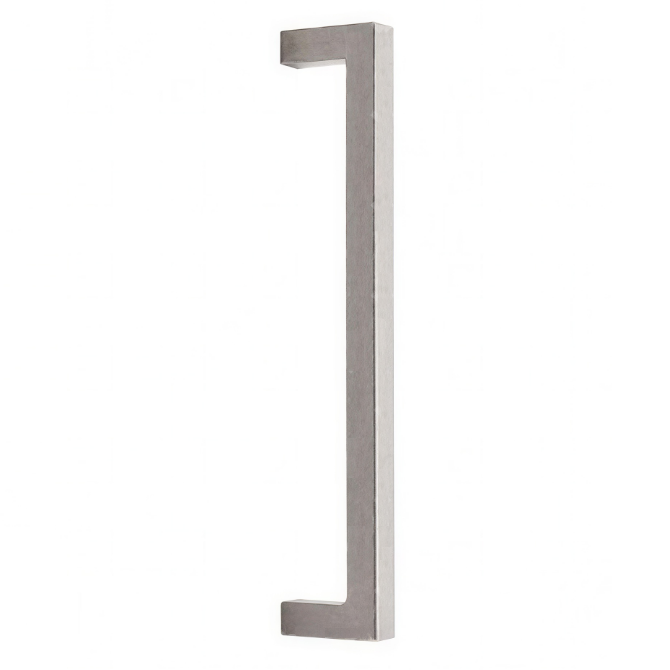

Trimco AP731 1-1/4" Square Bridge Posts Architectural Ladder Pull

Trimco AP731 1-1/4" Square Bridge Posts Architectural Ladder Pull

(No reviews yet) Write a Review

Model: TRI-AP731E-128-4.605
From the AP700 Series Collection
$795.64
$689.84
Selected Mounting is
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$795.64
$689.84
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

TRIMCO AP731 1-1/4" SQUARE BRIDGE POSTS ARCHITECTURAL LADDER PULL OVERVIEW

AP731 1-1/4" Square Bridge Posts Architectural Ladder Pull. 1-1/4" Square Bridge Posts.

Trimco’s AP700 Series Square & Rectangular Ladder Pulls are precision crafted for beauty and ultimate durability. Offered with a multitude of material sizes, these pulls can be the architectural highlight of your design.

Buy the TRIMCO AP731 Series today to add a stylish hardware for your home!

TRIMCO AP700 SQUARE BRIDGE POSTS ARCHITECTURAL LADDER PULL PRODUCT FEATURES

  • Manufactured from stainless steel, bronze, brass or aluminum for long lasting durability.
  • Flexibility in design from material sizes and orientation to standoff locations (end or bridge).
  • Wide range of lengths available from 12″ to over 9′.
  • Additional options for door thickness, leather wrapping and engraving.
  • Available in most architectural finishes.
  • ADA Compliant.
  • Optional: Engraving for Singe Pulls or Back to Back (BTB) Pulls
  • Optional: Leather Wrapped
  • If a price is not shown for a particular finish, it may be available at the special price or by special quotation if quantaties warrant. Minimum quantities may apply.

TRIMCO AP731 SERIES COLOR VARIATIONS

Trimco AP731 1-1/4" Square Bridge Posts Architectural Pull Bright Brass (605)
Trimco AP731 1-1/4" Square Bridge Posts Architectural Pull Satin Brass (606)
Trimco AP731 1-1/4" Square Bridge Posts Architectural Pull Bright Bronze (611)
Trimco AP731 1-1/4" Square Bridge Posts Architectural Pull Satin Bronze (612)
Trimco AP731 1-1/4" Square Bridge Posts Architectural Pull Oil Rubbed Bronze (613)
Trimco AP731 1-1/4" Square Bridge Posts Architectural Pull Dark Oxidized Satin Bronze (613E)
Trimco AP731 1-1/4" Square Bridge Posts Architectural Pull Matte Black (622)
Trimco AP731 1-1/4" Square Bridge Posts Architectural Pull Bright Chrome (625)
Trimco AP731 1-1/4" Square Bridge Posts Architectural Pull Satin Chrome (626)
Trimco AP731 1-1/4" Square Bridge Posts Architectural Pull Satin Aluminum (628)
Trimco AP731 1-1/4" Square Bridge Posts Architectural Pull Bright Stainless Steel (629)
Trimco AP731 1-1/4" Square Bridge Posts Architectural Pull Satin Stainless Steel (630)
Trimco AP731 1-1/4" Square Bridge Posts Architectural Pull Bright Stainless Steel (316P)
Trimco AP731 1-1/4" Square Bridge Posts Architectural Pull Satin Stainless Steel (316S )
Trimco AP731 1-1/4" Square Bridge Posts Architectural Pull Healthy Hardware Steralloy Silver (710CU)

APPLICATIONS

  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Hospitality
  • Multifamily & Mixed-Use
  • Retail & Strip Malls

TRIMCO AP700 SERIES COLLECTION

Trimco AP711 3/4" Square Bridge Posts Architectural Ladder Pull
Trimco AP712 3/4" Square End Posts Architectural Ladder Pull
Trimco AP721 1" Square Bridge Posts Architectural Ladder Pull
Trimco AP722 1" Square End Posts Architectural Ladder Pull
Trimco AP731 1-1/4" Square Bridge Posts Architectural Ladder Pull
Trimco AP732 1-1/4" Square End Posts Architectural Ladder Pull
Trimco AP751 1/2" (F) x 1-1/4" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP752 1/2" (F) x 1-1/4" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP753 1-1/4" (F) x 1/2" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP754 1-1/4" (F) x 1/2" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP761 1" (F) x 1-1/2" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP762 1" (F) x 1-1/2" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP763 1-1/2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP764 1-1/2" (F) x 1" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP771 1" (F) x 2" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP772 1" (F) x 2" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP773 2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP774 2" (F) x 1" (D) Rectangular End Posts Architectural Ladder Pull

RESOURCES & DOWNLOADS

Manufacturer Resources

Product Specs

ADA Compliant:
Yes
Commercial/Residential:
Commercial
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Door Pulls
Series:
AP700 Series
Subcategory:
Door Pulls, Push and Pull Plates
Fasteners:
Wood and Machine Screws
Product Dimension:
1-1/4" Diameter
Product Category:
Door Trim and Accessories
Product Substrate:
Stainless Steel
Collection:
AP700 Series
Department:
Door Hardware

Trimco TRI-AP731E-128-4.605 – Frequently Asked Questions

1) What does "bridge post" mean on the Trimco AP731 ladder pull, and how is it different from the AP732?
Bridge posts means the standoffs come off the back of the bar inboard of the ends, so the bar runs past the mounting points and the ends are free. The AP732 is the same 1-1/4 inch square bar with end posts instead, where the standoffs sit at the extreme ends of the bar. Same material size, different look and different hole locations on the door, so decide this before the door is drilled.
2) Will the Trimco AP731 pull work on a 1-3/8 inch wood door as well as a 1-3/4 inch commercial door?
Yes. Door thickness is an ordering option on the AP731, offered for 1-3/8, 1-3/4, 2 and 2-1/4 inch doors. The through-bolt length is built to the thickness you specify, so order the thickness that matches the actual leaf rather than trimming fasteners on site. 1-3/4 inch is the standard commercial leaf and 1-3/8 the common interior thickness.
3) What lengths does the Trimco AP731 square ladder pull come in?
Stock lengths are 12, 18, 24, 36, 48 and 60 inches on the 1-1/4 inch square bar. The AP700 Series as a family runs from 12 inches to over 9 feet, so if you need a full-height glass-front pull beyond 60 inches that is a made-to-length order rather than one of the standard sizes. For a storefront entrance pair, 36 or 48 inches is the usual call.
4) Is the Trimco AP731 pull ADA compliant for an accessible entrance?
Trimco lists the AP731 as ADA compliant. It is a ladder-style pull, so it needs no grasping, pinching or wrist twisting to operate, which is the behavior the requirement is aimed at. It is specified as commercial-grade hardware, which is where accessible-entrance work lives.
5) Is there a square long pull option for doors thinner than 1-3/8 inches, since the AP731 starts there?
The AP731 is built for 1-3/8 inch doors and up. For a thinner leaf, the Sure-Loc square long door pull, single-sided, is listed for 1/2 inch to 2-1/4 inch thick doors, which covers glass and thin panel applications the Trimco thickness options do not. Deltana's OHP620 back-to-back offset handle set covers 1-1/8 to 1-3/8 inch doors.
6) What is the closest square ladder pull to the Trimco AP731 from another brand?
The Sure-Loc Square Long Door Pull, Single-Sided is the nearest square-profile alternative, and it is rated for doors from 1/2 inch to 2-1/4 inch thick. The Trimco AP731 uses 1-1/4 inch square material on bridge posts, and is ordered by door thickness in 1-3/8, 1-3/4, 2 and 2-1/4 inch. Both cover a 2-1/4 inch door; the Trimco is specified to a fixed thickness at order time rather than adjusted across a range.
7) I want a round bar pull instead of a square one - what should I look at?
The Trimco AP731 is a square-section pull using 1-1/4 inch square material. For a round profile, the Ives 8103HD is a heavy duty straight pull in 1 inch round with through-bolt mounting, and the Ives 8102HD is a heavy duty straight pull with a 3/4 inch round bar and 1-1/2 inch clearance. The Sure-Loc Round Long Door Pull, Single-Sided is another round option and offers concealed or thru-bolt mounting.
8) What is E-Mount versus G-Mount on the Trimco AP700 ladder pulls?
Those are the two mounting configurations you pick when ordering the AP731. The mounting option, along with the door thickness you specify, determines the fastening setup, and the pull ships with wood and machine screws. Pick the mounting based on whether you are pulling on a single side or pairing pulls back to back, and keep it consistent across openings in the same building so the door preps match.
9) What is the Trimco AP731 pull made of, and which finish holds up on an exterior door?
The substrate is stainless steel. Finish choices run 605 bright brass, 606 satin brass, 609 satin brass blackened and clear coated, 611 bright bronze, 612 satin bronze, 613 oil rubbed bronze, 613E dark oxidized satin bronze, 622 matte black, 628 satin aluminum, 629 bright stainless and 630 satin stainless. For a weather-exposed entrance, 630 satin stainless is the low-maintenance pick since it hides handprints and does not rely on a coating; 613 oil rubbed bronze is a living finish and will change with handling.
10) What are the alternatives to a Trimco AP731 ladder pull if I want an offset or short pull instead?
A ladder pull is for long vertical grip on an entrance leaf. If you want a short offset pull, the Ives 8145EZHD is a 45 degree offset pull listed as ADA compliant and heavy duty, and the Ives 8169 is a C-style offset solid pull at 1 inch diameter. For a straight bar in a smaller section, the Ives 8103HD is 1 inch round with through-bolt mounting and the ABH AB3300 is a 1 inch diameter straight flat end pull. On the decorative side, Deltana's SSPOBB24 is a 24 inch back-to-back modern offset set.
11) Will the same AP731 pull cover every door in my building if some leaves are thicker than others?
Visually yes, but you order per opening. The 1-1/4 inch square bar, the bridge post layout and the finish stay identical across the AP731 range, so a fleet of doors looks consistent. What changes door to door is the thickness you specify (1-3/8, 1-3/4, 2 or 2-1/4 inch) and the length. Count your leaves by thickness, then order the matching quantity in one finish so the whole building reads the same.
12) Is the Deltana SSP1210 a substitute for a 12 inch AP731?
They are different builds. The Deltana SSP1210 is a 12 inch contemporary pull supplied single side. The Trimco AP731 is a 1-1/4 inch square architectural ladder pull available in 12, 18, 24, 36, 48 and 60 inch lengths and ordered to a specific door thickness. If you need a single 12 inch decorative pull the Deltana covers it; if you are matching a square ladder pull program across several lengths, stay on the AP731.
13) What do I order if I need a back-to-back pair on a glass or all-glass style entry at 24 inches?
The Deltana SSPOBB24 is a 24 inch back-to-back modern offset pull set, and the Deltana SSPORBB24 is the 24 inch back-to-back round offset version; both ship as a matched pair for the two faces. The Trimco AP731 is offered in a 24 inch length as well, in 1-1/4 inch square material with bridge posts and with back-to-back engraving offered as an option.
14) Can I get the Trimco AP731 engraved or leather wrapped for a hotel entrance?
Both are options on the AP700 pulls. Engraving is available for single pulls or back-to-back (BTB) pairs, which is how push/pull or room identification gets put on the bar itself, and leather wrapping is offered on the grip. Trimco lists hospitality along with commercial and industrial buildings, government and military facilities, multifamily and mixed-use, and retail as the intended applications.
