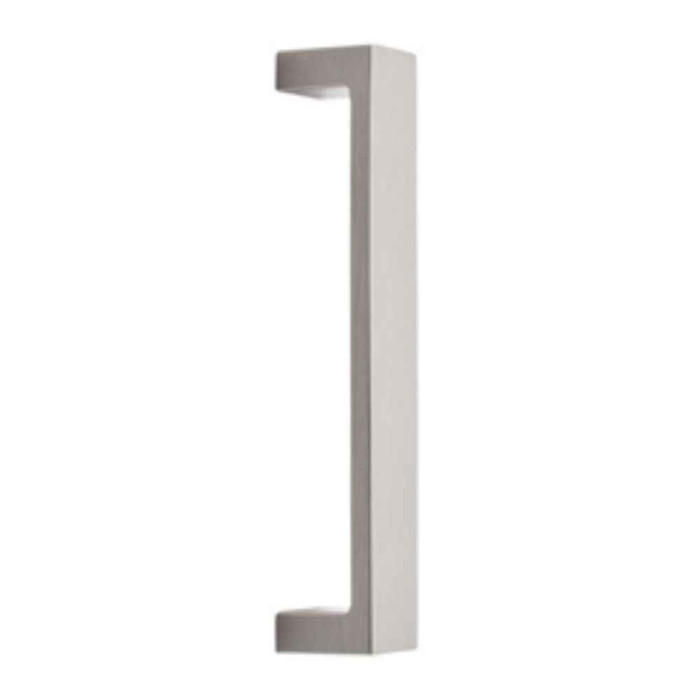

Trimco AP753 1-1/4" (F) x 1/2" (D) Rectangular Bridge Posts Architectural Ladder Pull

Trimco AP753 1-1/4" (F) x 1/2" (D) Rectangular Bridge Posts Architectural Ladder Pull

(No reviews yet) Write a Review

Model: TRI-AP753E-128-4.605
From the AP700 Series Collection
$618.58
$536.32
Selected Mounting is
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$618.58
$536.32
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

TRIMCO AP753 1-1/4" (F) X 1/2" (D) RECTANGULAR BRIDGE POSTS ARCHITECTURAL LADDER PULL OVERVIEW

AP753 1-1/4" (F) x 1/2" (D) Rectangular Bridge Posts Architectural Ladder Pull. 1-1/4" (F) x 1/2" (D) Rectangular Bridge Posts.

Trimco’s AP700 Series Square & Rectangular Ladder Pulls are precision crafted for beauty and ultimate durability. Offered with a multitude of material sizes, these pulls can be the architectural highlight of your design.

Buy the TRIMCO AP753 Series today to add a stylish hardware for your home!

TRIMCO AP700 RECTANGULAR BRIDGE POSTS ARCHITECTURAL LADDER PULL PRODUCT FEATURES

  • Manufactured from stainless steel, bronze, brass or aluminum for long lasting durability.
  • Flexibility in design from material sizes and orientation to standoff locations (end or bridge).
  • Wide range of lengths available from 12″ to over 9′.
  • Additional options for door thickness, leather wrapping and engraving.
  • Available in most architectural finishes.
  • ADA Compliant.
  • Optional: Engraving for Singe Pulls or Back to Back (BTB) Pulls
  • Optional: Leather Wrapped
  • If a price is not shown for a particular finish, it may be available at the special price or by special quotation if quantaties warrant. Minimum quantities may apply.

TRIMCO AP753 SERIES COLOR VARIATIONS

Trimco AP753 1-1/4" (F) x 1/2" (D) Rectangular Bridge Posts Architectural Pull Bright Brass (605)
Trimco AP753 1-1/4" (F) x 1/2" (D) Rectangular Bridge Posts Architectural Pull Satin Brass (606)
Trimco AP753 1-1/4" (F) x 1/2" (D) Rectangular Bridge Posts Architectural Pull Bright Bronze (611)
Trimco AP753 1-1/4" (F) x 1/2" (D) Rectangular Bridge Posts Architectural Pull Satin Bronze (612)
Trimco AP753 1-1/4" (F) x 1/2" (D) Rectangular Bridge Posts Architectural Pull Oil Rubbed Bronze (613)
Trimco AP753 1-1/4" (F) x 1/2" (D) Rectangular Bridge Posts Architectural Pull Dark Oxidized Satin Bronze (613E)
Trimco AP753 1-1/4" (F) x 1/2" (D) Rectangular Bridge Posts Architectural Pull Matte Black (622)
Trimco AP753 1-1/4" (F) x 1/2" (D) Rectangular Bridge Posts Architectural Pull Bright Chrome (625)
Trimco AP753 1-1/4" (F) x 1/2" (D) Rectangular Bridge Posts Architectural Pull Satin Chrome (626)
Trimco AP753 1-1/4" (F) x 1/2" (D) Rectangular Bridge Posts Architectural Pull Satin Aluminum (628)
Trimco AP753 1-1/4" (F) x 1/2" (D) Rectangular Bridge Posts Architectural Pull Bright Stainless Steel (629)
Trimco AP753 1-1/4" (F) x 1/2" (D) Rectangular Bridge Posts Architectural Pull Satin Stainless Steel (630)
Trimco AP753 1-1/4" (F) x 1/2" (D) Rectangular Bridge Posts Architectural Pull Bright Stainless Steel (316P)
Trimco AP753 1-1/4" (F) x 1/2" (D) Rectangular Bridge Posts Architectural Pull Satin Stainless Steel (316S )
Trimco AP753 1-1/4" (F) x 1/2" (D) Rectangular Bridge Posts Architectural Pull Healthy Hardware Steralloy Silver (710CU)
Trimco AP753 1-1/4" (F) x 1/2" (D) Rectangular Bridge Posts Architectural Pull Special Finish (SF)

APPLICATIONS

  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Hospitality
  • Multifamily & Mixed-Use
  • Retail & Strip Malls

TRIMCO AP700 SERIES COLLECTION

Trimco AP711 3/4" Square Bridge Posts Architectural Ladder Pull
Trimco AP712 3/4" Square End Posts Architectural Ladder Pull
Trimco AP721 1" Square Bridge Posts Architectural Ladder Pull
Trimco AP722 1" Square End Posts Architectural Ladder Pull
Trimco AP731 1-1/4" Square Bridge Posts Architectural Ladder Pull
Trimco AP732 1-1/4" Square End Posts Architectural Ladder Pull
Trimco AP751 1/2" (F) x 1-1/4" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP752 1/2" (F) x 1-1/4" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP753 1-1/4" (F) x 1/2" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP754 1-1/4" (F) x 1/2" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP761 1" (F) x 1-1/2" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP762 1" (F) x 1-1/2" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP763 1-1/2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP764 1-1/2" (F) x 1" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP771 1" (F) x 2" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP772 1" (F) x 2" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP773 2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP774 2" (F) x 1" (D) Rectangular End Posts Architectural Ladder Pull

RESOURCES & DOWNLOADS

Manufacturer Resources

Product Specs

ADA Compliant:
Yes
Commercial/Residential:
Commercial
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Door Pulls
Series:
AP700 Series
Subcategory:
Door Pulls, Push and Pull Plates
Fasteners:
Wood and Machine Screws
Product Category:
Door Trim and Accessories
Product Substrate:
Stainless Steel
Collection:
AP700 Series
Department:
Door Hardware

Trimco TRI-AP753E-128-4.605 – Frequently Asked Questions

1) What door thicknesses can the Trimco AP753 ladder pull be ordered for?
The AP753 is built to the door it mounts on, and you pick the thickness when you order: 1-3/8, 1-3/4, 2, or 2-1/4 inches. That matters because the through-bolt hardware is sized to the door, so ordering the wrong thickness means the fasteners won't land right. 1-3/4 is the standard commercial leaf; 1-3/8 covers older interior wood doors, and the 2 and 2-1/4 options cover heavy custom and storefront-style leaves.
2) What is the difference between the Trimco AP753 and the AP754?
Same bar, different standoffs. The AP753 uses bridge posts, where the mounting posts attach to the underside of the bar in from the ends, so the bar runs past the post on both ends. The AP754 is the end-post version of the same 1-1/4 inch (F) x 1/2 inch (D) rectangular profile, with the posts at the extreme ends. It is purely how the pull looks and where the holes fall in the door, so match whichever prep or design intent you already have.
3) What lengths does the Trimco AP753 ladder pull come in?
Stock lengths are 12, 18, 24, 36, 48, and 60 inches. For glass front and full-height entrance work Trimco's AP700 rectangular pulls go well beyond that, with the range running from 12 inches to over 9 feet, so a taller pull than 60 inches is a made-to-order length rather than a stocked size.
4) Is there a simpler square long pull if the Trimco AP753 door thickness options don't cover my door?
The AP753 is ordered for 1-3/8, 1-3/4, 2, or 2-1/4 inch doors. For thinner leaves, the Sure-Loc Square Long Door Pull is a single-sided square pull covering 1/2 inch to 2-1/4 inch thick doors, which picks up the thin-door range. Deltana's OHP620 offset handle pull is a back-to-back set for 1-1/8 to 1-3/8 inch doors, and the Deltana SSPOBB24 is a 24 inch back-to-back modern offset pull if you want a matched pair on both faces.
5) What do I have to specify when ordering a Trimco AP753 pull?
Four things, all required: length (12, 18, 24, 36, 48, or 60 inches), finish code, door thickness (1-3/8, 1-3/4, 2, or 2-1/4 inches), and mounting type (E-Mount or G-Mount). On top of that, engraving and leather wrapping are optional extras, and finishes outside the standard list can be handled as a special finish (SF) where quantities warrant.
6) The opening needs an offset pull, not a straight ladder pull. What are my options?
The Trimco AP753 is a straight ladder pull on bridge posts, so it will not give you an offset grip. For offset geometry, the Ives 8145EZHD is a 45 degree offset pull with heavy duty mounting hardware and is ADA compliant, and the Ives 8169 is a C style offset solid pull at 1 inch diameter with heavy duty mounting. The ABH AB3310 is an offset flat end pull handle and the ABH AB3330 is an offset round end pull with custom length options. On the decorative side, Deltana SSPOBB24 is a 24 inch back-to-back modern offset pull set and SSPORBB24 is the round offset version.
7) If the ADA compliance is what I am buying on, what else besides the Trimco AP753 is stated as ADA compliant?
The Trimco AP753 is listed as ADA compliant across the AP700 rectangular ladder pull range. Among the alternatives, the Ives 8145EZHD 45 degree offset pull is also called out as ADA compliant and comes with heavy duty mounting hardware, so it is the option to look at if you need an offset grip and still need the ADA call-out.
8) I need a pull longer than 24 inches - which options actually go that long?
The Trimco AP753 runs 12, 18, 24, 36, 48 and 60 inch lengths, with the AP700 range described as available from 12 inches to over 9 feet. Among the alternatives, the ABH AB3330 offset round end pull is offered with custom length options. The Deltana SSP1210 is a fixed 12 inch pull and the Deltana SSPOBB24 and SSPORBB24 are fixed 24 inch sets, so they will not reach past 24 inches.
9) What do the E-Mount and G-Mount options mean on the Trimco AP700 pulls?
Mounting is a required choice on the AP753: E-Mount or G-Mount. It sets how the posts fasten through the leaf, which is why it is ordered together with the door thickness. Pick the one that matches your substrate and whether the opposite face takes a matching back-to-back pull or a push plate.
10) Does the Trimco AP753 come with mounting screws?
Fasteners supplied with the pull are wood and machine screws. Confirm the screw type suits your leaf, wood doors take the wood screws and metal or prepped doors take the machine screws into tapped posts or sex bolts, and order the pull for the correct door thickness so the fastener length is right.
11) What is the AP753 pull made of, and which finish holds up best in a high-traffic entrance?
Stainless steel is the substrate for this pull, and Trimco's AP700 rectangular pulls are produced in stainless, bronze, brass, or aluminum depending on finish. For heavy public traffic, 630 satin stainless is the workhorse, it hides handling marks and wear far better than the bright finishes. 629 bright stainless and 626 satin chrome show fingerprints; 613 oil rubbed bronze and 613E dark oxidized satin bronze are living finishes that will change with hand contact over time.
12) Can I get the Trimco AP753 in matte black or oil rubbed bronze to match the rest of my hardware?
Both are available. The orderable finish list runs 605 bright brass, 606 satin brass, 609 satin brass blackened and clear coated, 611 bright bronze, 612 satin bronze, 613 oil rubbed bronze, 613E dark oxidized satin bronze, 622 matte black, 628 satin aluminum, 629 bright stainless, and 630 satin stainless. If you are standardizing a building, order every opening in one finish code at the same time, brass and bronze finishes vary batch to batch.
13) I need a back-to-back pull on a glass or storefront door. Does the AP753 work?
The AP753 is a single pull, so a back-to-back application is two pulls ordered to the same door thickness and mounting so the through-fasteners meet. Trimco also offers engraving as an option on either single pulls or back-to-back (BTB) pulls, and leather wrapping if you want a softer grip on a hospitality or lobby entrance.
14) What else could I use instead of a Trimco AP753 if I just need a heavy-duty commercial pull?
If the square-edge architectural look isn't the driver, round-bar commercial pulls cover the same job. The Ives 8103HD is a heavy duty straight pull in 1 inch round with through-bolt mounting, and the Ives 8102HD is a 3/4 inch round bar with 1-1/2 inch clearance. The Ives 8145EZHD is a 45 degree offset pull with heavy duty mounting hardware and is ADA compliant, useful where an offset grip suits the opening better than a straight ladder bar. ABH's AB3300 is a 1 inch diameter straight flat end pull, and the AB7200 is solid stainless at 7/8 inch with through-bolt mounting.
15) Is there a simpler single-length pull if I only need a 12 inch pull on one side of the door?
The Trimco AP753 does come in a 12 inch length among sizes running 12, 18, 24, 36, 48 and 60 inches, but it is a made-to-order architectural pull with door thickness, mounting and finish all selected at order. If you want a fixed single-side pull without those choices, the Deltana SSP1210 is a 12 inch contemporary pull supplied single side. The Sure-Loc Round, Square and Knurled Long Door Pulls are also single-sided catalog pulls.
16) Will a Cal-Royal PUL-175 work in place of a Trimco AP753?
No - they do different jobs. The Cal-Royal PUL-175 is a night latch cylinder pull, 3-1/2 inch height in stainless steel, used at a cylinder on a latch application. The Trimco AP753 is a full-length architectural ladder pull on bridge posts, offered from 12 inches up to 60 inches. If you need a grip for a storefront or entrance door, the AP753 or another long pull is the right family, not the cylinder pull.
17) Is the Trimco AP753 the right pull for a residential entry door?
It will physically work, but the AP700 series is commercial trim, aimed at commercial and industrial buildings, government and military facilities, hospitality, multifamily and mixed-use, and retail. For a residential door where the look matters more than a 9 foot bar, the cast bronze Emtek 8 inch pulls (Art Nouveau, Arts and Crafts, Baden, Brisbane) or the Deltana SSP1210 12 inch contemporary single-side pull are a closer fit in scale.
