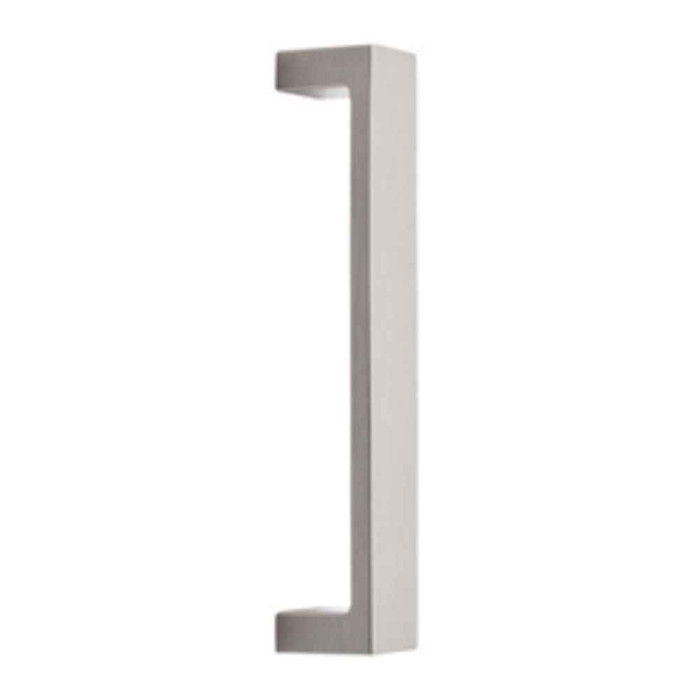

Trimco AP763 1-1/2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder Pull

Trimco AP763 1-1/2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder Pull

(No reviews yet) Write a Review

Model: TRI-AP763E-128-4.605
From the AP700 Series Collection
$690.08
$598.30
Selected Mounting is
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$690.08
$598.30
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

TRIMCO AP763 1-1/2" (F) X 1" (D) RECTANGULAR BRIDGE POSTS ARCHITECTURAL LADDER PULL OVERVIEW

AP763 1-1/2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder Pull. 1-1/2" (F) x 1" (D) Rectangular Bridge Posts.

Trimco’s AP700 Series Square & Rectangular Ladder Pulls are precision crafted for beauty and ultimate durability. Offered with a multitude of material sizes, these pulls can be the architectural highlight of your design.

Buy the TRIMCO AP763 Series today to add a stylish hardware for your home!

TRIMCO AP700 RECTANGULAR BRIDGE POSTS ARCHITECTURAL LADDER PULL PRODUCT FEATURES

  • Manufactured from stainless steel, bronze, brass or aluminum for long lasting durability.
  • Flexibility in design from material sizes and orientation to standoff locations (end or bridge).
  • Wide range of lengths available from 12″ to over 9′.
  • Additional options for door thickness, leather wrapping and engraving.
  • Available in most architectural finishes.
  • ADA Compliant.
  • Optional: Engraving for Singe Pulls or Back to Back (BTB) Pulls
  • Optional: Leather Wrapped
  • If a price is not shown for a particular finish, it may be available at the special price or by special quotation if quantaties warrant. Minimum quantities may apply.

TRIMCO AP751 SERIES COLOR VARIATIONS

Trimco AP763 1-1/2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder PullBright Brass (605)
Trimco AP763 1-1/2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder PullSatin Brass (606)
Trimco AP763 1-1/2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder PullSatin Brass, blackened, relieved, clear coated (609)
Trimco AP763 1-1/2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder PullBright Bronze (611)
Trimco AP763 1-1/2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder PullSatin Bronze (612)
Trimco AP763 1-1/2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder PullOil Rubbed Bronze (613)
Trimco AP763 1-1/2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder PullDark Oxidized Satin Bronze (613E)
Trimco AP763 1-1/2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder PullMatte Black (622)
Trimco AP763 1-1/2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder PullSatin Aluminum (628)
Trimco AP763 1-1/2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder PullBright Stainless Steel (629)
Trimco AP763 1-1/2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder PullSatin Stainless Steel (630)

APPLICATIONS

  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Hospitality
  • Multifamily & Mixed-Use
  • Retail & Strip Malls

TRIMCO AP700 SERIES COLLECTION

Trimco AP711 3/4" Square Bridge Posts Architectural Ladder Pull
Trimco AP712 3/4" Square End Posts Architectural Ladder Pull
Trimco AP721 1" Square Bridge Posts Architectural Ladder Pull
Trimco AP722 1" Square End Posts Architectural Ladder Pull
Trimco AP731 1-1/4" Square Bridge Posts Architectural Ladder Pull
Trimco AP732 1-1/4" Square End Posts Architectural Ladder Pull
Trimco AP751 1/2" (F) x 1-1/4" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP752 1/2" (F) x 1-1/4" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP753 1-1/4" (F) x 1/2" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP754 1-1/4" (F) x 1/2" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP761 1" (F) x 1-1/2" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP762 1" (F) x 1-1/2" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP763 1-1/2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP764 1-1/2" (F) x 1" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP771 1" (F) x 2" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP772 1" (F) x 2" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP773 2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP774 2" (F) x 1" (D) Rectangular End Posts Architectural Ladder Pull

RESOURCES & DOWNLOADS

Manufacturer Resources

Product Specs

ADA Compliant:
Yes
Commercial/Residential:
Commercial
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Door Pulls
Series:
AP700 Series
Subcategory:
Door Pulls, Push and Pull Plates
Fasteners:
Wood and Machine Screws
Product Category:
Door Trim and Accessories
Product Substrate:
Stainless Steel
Collection:
AP700 Series
Department:
Door Hardware

Trimco TRI-AP763E-128-4.605 – Frequently Asked Questions

1) What is the difference between the Trimco AP763 and the AP764 ladder pull?
Both are 1-1/2 inch face by 1 inch deep rectangular ladder pulls in Trimco's AP700 Series. The AP763 uses bridge posts, where the standoffs come off the back of the bar inboard of the ends, so the tubing runs past the mounting points. The AP764 is the same material size with end posts, where the standoffs are at the extreme ends. It is purely a standoff location choice, and it changes the look and the hole pattern on the door, not the grip size.
2) Do I have to specify door thickness when ordering the Trimco AP763 pull?
Yes. The AP763 is built for the door it is going on, and thickness is an ordering choice: 1-3/8, 1-3/4, 2, and 2-1/4 inches. Pick the one that matches your leaf. The standard commercial door is 1-3/4 inches; 1-3/8 is the common older interior thickness, and 2 and 2-1/4 cover thick entry and glass-clad doors.
3) Is the Trimco AP763 pull ADA compliant for a public entrance?
Yes, the AP763 is ADA compliant. It is a commercial-rated pull, used on commercial and industrial buildings, government and military facilities, hospitality, multifamily and mixed-use, and retail. That makes it usable on an accessible entrance where the door also meets the opening force and closer requirements for the opening.
4) What is a square-profile alternative to the Trimco AP763 ladder pull for a door up to 2-1/4 inches thick?
The Sure-Loc Square Long Door Pull PL-1SQ is a single-sided square-profile long pull rated for 1/2 inch to 2-1/4 inch thick doors. The Trimco AP763 is a rectangular 1-1/2 inch face by 1 inch deep ladder pull, and its door thickness options run 1-3/8, 1-3/4, 2 and 2-1/4 inches, so both reach the same 2-1/4 inch maximum; the difference is the AP763's rectangular bar section and bridge post standoffs versus the Sure-Loc square bar.
5) If a round bar pull is specified instead of a rectangular one, what replaces the Trimco AP763?
The Ives 8103HD is a heavy duty straight door pull using a 1 inch round bar with through-bolt mounting, and the Ives 8102HD is a heavy duty straight pull with a 3/4 inch round bar and 1-1/2 inch clearance. The Trimco AP763 uses a rectangular section 1-1/2 inches across the face by 1 inch deep on bridge posts, so the round-bar Ives pulls change the grip section and the mounting method rather than the function.
6) I need an offset pull rather than a straight ladder pull. What are the options?
For an offset grip, the Ives 8145EZHD is a 45 degree offset door pull with heavy duty mounting hardware and is ADA compliant, the Ives 8169 is a C style offset solid pull at 1 inch diameter, and the ABH AB3310 is an offset flat end surface mount pull. The Trimco AP763 is a straight ladder pull with rectangular bridge posts and is also ADA compliant, so the choice is grip geometry, not code compliance.
7) What should I use instead of the Trimco AP763 on a thinner residential door around 1-1/8 inches?
The Deltana OHP620 off-set handle pull is furnished as a back-to-back set for doors 1-1/8 to 1-3/8 inches thick. The Trimco AP763 starts at a 1-3/8 inch door thickness option and goes up through 2-1/4 inches, so for anything below 1-3/8 inches the OHP620 covers the range.
8) What does E-Mount versus G-Mount mean on a Trimco AP700 ladder pull?
Those are the two mounting configurations you choose when ordering the AP763. E-Mount and G-Mount determine how the posts fasten through the door, which is why door thickness is also a required selection. Fasteners supplied are wood and machine screws. Settle the mounting style with whoever is prepping the door before the holes get drilled, since the two are not interchangeable after the fact.
9) What lengths does the Trimco AP763 ladder pull come in?
Six stock lengths: 12, 18, 24, 36, 48, and 60 inches. The AP700 Series as a family runs from 12 inches up past 9 feet, so if you need a length beyond 60 inches for a tall storefront or entry leaf, that is a special length request rather than a stock pick.
10) Can I match the Trimco AP763 to brass or bronze hardware already in the building?
Eleven architectural finishes are offered, so matching an existing set is usually possible: Bright Brass (605), Satin Brass (606), Satin Brass blackened and relieved with clear coat (609), Bright Bronze (611), Satin Bronze (612), Oil Rubbed Bronze (613), Dark Oxidized Satin Bronze (613E), Matte Black (622), Satin Aluminum (628), Bright Stainless Steel (629), and Satin Stainless Steel (630). Those are standard BHMA finish numbers, so you can read the code off your existing lever or lock and order the pull to match.
11) I need a back-to-back pull set for a glass or entry door. Is there a ready-made option?
The AP763 is engraved for single or back-to-back applications, so a BTB set is a Trimco ordering option. If you want a smaller prepackaged back-to-back set instead, the Deltana SSPOBB24 is a 24 inch back-to-back modern offset pair, the SSPORBB24 is the round offset version at the same length, and the Deltana OHP620 is a back-to-back offset handle set for 1-1/8 to 1-3/8 inch doors. Those Deltana sets are shorter and thinner doors only; for a 2 or 2-1/4 inch leaf the Trimco is the one that covers it.
12) Does the AP763 come with mounting hardware?
Fasteners supplied with the AP763 are wood and machine screws, matched to the mounting style and door thickness you specify. Because the pull is made for a stated thickness, order the thickness that matches the actual leaf rather than trimming or substituting screws on site.
13) What is the closest equivalent to the Trimco AP763 if only a 12 inch or 24 inch fixed-length pull is needed?
The Deltana SSP1210 is a 12 inch contemporary single-side pull, and the Deltana SSPOBB24 is a 24 inch back-to-back modern offset pull set. The Trimco AP763 is ordered in 12, 18, 24, 36, 48 and 60 inch lengths, so the two Deltana items land on its 12 inch and 24 inch sizes while the AP763 covers the longer runs as well.
14) Is the Cal-Royal PUL-175 a substitute for the Trimco AP763?
No. The Cal-Royal PUL-175 is a night latch cylinder pull, 3-1/2 inches high in stainless steel, used at a cylinder location rather than as a full-height grip. The Trimco AP763 is an architectural ladder pull in 12 through 60 inch lengths on rectangular bridge posts, so the two serve different purposes on the door.
15) Which pulls offer a through-bolt or concealed mounting option compared with the Trimco AP763?
The ABH AB7200 is a solid stainless steel flat end pull at 7/8 inch diameter with through-bolt mounting, the Ives 8103HD uses through-bolt mounting, and the Sure-Loc PL-1RD round long pull is offered with concealed or thru-bolt mounting. The Trimco AP763 is ordered with E-Mount or G-Mount posts and ships with wood and machine screws.
16) What is a double-sided back-to-back alternative to the Trimco AP763?
The Sure-Loc PL-2KN is a knurled long door pull in a double-sided configuration, and the Deltana SSPORBB24 is a 24 inch back-to-back round offset pull set. The Trimco AP763 is offered with optional engraving for single pulls or back to back pulls, so back-to-back is available either way; the peers differ in grip texture and profile.
17) If a custom length pull is required beyond standard sizes, what compares to the Trimco AP763?
The ABH AB3330 offset round end pull is offered with custom length options, and the ABH AB3300 straight flat end pull uses a 1.00 inch diameter bar. The Trimco AP763 is available in lengths from 12 inches to over 9 feet, so both routes reach long runs; the AB3330 is an offset round end profile while the AP763 is a straight rectangular bar on bridge posts.
18) What is the AP763 pull made of?
Stainless steel is the substrate on the AP763. The AP700 Series is produced in stainless steel, bronze, brass, or aluminum depending on the finish specified, and the finish code you order tells you which base metal you are getting.
19) Can I get the AP763 with engraving or a leather wrap?
Both are available as options on the AP763. Engraving can be done on single pulls or on back-to-back (BTB) pairs, and leather wrapping is offered on the bar. These are specified at order, not added later.
