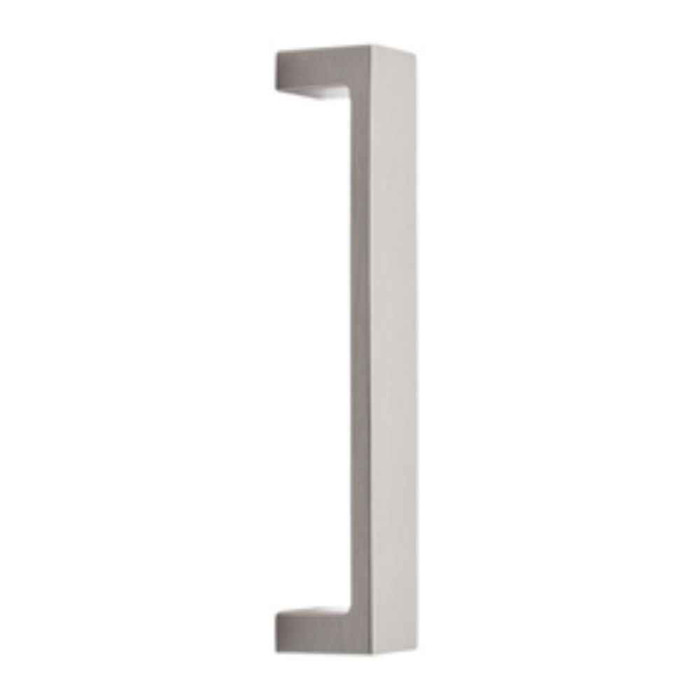

Trimco AP774 2" (F) x 1" (D) Rectangular End Posts Architectural Ladder Pull

Trimco AP774 2" (F) x 1" (D) Rectangular End Posts Architectural Ladder Pull

(No reviews yet) Write a Review

Model: TRI-AP774E-128-4.605
From the AP700 Series Collection
$673.06
$583.55
Selected Mounting is
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$673.06
$583.55
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

TRIMCO AP774 2" (F) X 1" (D) RECTANGULAR END POSTS ARCHITECTURAL LADDER PULL OVERVIEW

Trimco AP774 2" (F) x 1" (D) Rectangular End Posts Architectural Ladder Pull. 2" (F) x 1" (D) Rectangular End Posts.

Trimco’s AP700 Series Square & Rectangular Ladder Pulls are precision crafted for beauty and ultimate durability. Offered with a multitude of material sizes, these pulls can be the architectural highlight of your design.

Buy the TRIMCO AP774 Series today to add a stylish hardware for your home!

TRIMCO AP774 RECTANGULAR END POSTS ARCHITECTURAL LADDER PULL PRODUCT FEATURES

  • Manufactured from stainless steel, bronze, brass or aluminum for long lasting durability.
  • Flexibility in design from material sizes and orientation to standoff locations (end or bridge).
  • Wide range of lengths available from 12″ to over 9′.
  • Additional options for door thickness, leather wrapping and engraving.
  • Available in most architectural finishes.
  • ADA Compliant.
  • Optional: Engraving for Singe Pulls or Back to Back (BTB) Pulls
  • Optional: Leather Wrapped
  • If a price is not shown for a particular finish, it may be available at the special price or by special quotation if quantaties warrant. Minimum quantities may apply.

TRIMCO AP774 SERIES COLOR VARIATIONS

Trimco AP774 2" (F) x 1" (D) Rectangular End Posts Architectural PullBright Brass (605)
Trimco AP774 2" (F) x 1" (D) Rectangular End Posts Architectural PullSatin Brass (606)
Trimco AP774 2" (F) x 1" (D) Rectangular End Posts Architectural PullBright Bronze (611)
Trimco AP774 2" (F) x 1" (D) Rectangular End Posts Architectural PullSatin Bronze (612)
Trimco AP774 2" (F) x 1" (D) Rectangular End Posts Architectural PullOil Rubbed Bronze (613)
Trimco AP774 2" (F) x 1" (D) Rectangular End Posts Architectural PullDark Oxidized Satin Bronze (613E)
Trimco AP774 2" (F) x 1" (D) Rectangular End Posts Architectural PullMatte Black (622)
Trimco AP774 2" (F) x 1" (D) Rectangular End Posts Architectural PullSatin Aluminum (628)
Trimco AP774 2" (F) x 1" (D) Rectangular End Posts Architectural PullBright Stainless Steel (629)
Trimco AP774 2" (F) x 1" (D) Rectangular End Posts Architectural PullSatin Stainless Steel (630)

APPLICATIONS

  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Hospitality
  • Multifamily & Mixed-Use
  • Retail & Strip Malls

TRIMCO AP700 SERIES COLLECTION

Trimco AP711 3/4" Square Bridge Posts Architectural Ladder Pull
Trimco AP712 3/4" Square End Posts Architectural Ladder Pull
Trimco AP721 1" Square Bridge Posts Architectural Ladder Pull
Trimco AP722 1" Square End Posts Architectural Ladder Pull
Trimco AP731 1-1/4" Square Bridge Posts Architectural Ladder Pull
Trimco AP732 1-1/4" Square End Posts Architectural Ladder Pull
Trimco AP751 1/2" (F) x 1-1/4" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP752 1/2" (F) x 1-1/4" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP753 1-1/4" (F) x 1/2" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP754 1-1/4" (F) x 1/2" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP761 1" (F) x 1-1/2" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP762 1" (F) x 1-1/2" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP763 1-1/2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP764 1-1/2" (F) x 1" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP771 1" (F) x 2" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP772 1" (F) x 2" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP773 2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP774 2" (F) x 1" (D) Rectangular End Posts Architectural Ladder Pull

RESOURCES & DOWNLOADS

Manufacturer Resources

Product Specs

ADA Compliant:
Yes
Commercial/Residential:
Commercial
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Door Pulls
Series:
AP700 Series
Subcategory:
Door Pulls, Push and Pull Plates
Fasteners:
Wood and Machine Screws
Product Category:
Door Trim and Accessories
Product Substrate:
Stainless Steel
Collection:
AP700 Series
Department:
Door Hardware

Trimco TRI-AP774E-128-4.605 – Frequently Asked Questions

1) What door thicknesses does the Trimco AP774 ladder pull mount on?
The AP774 is ordered to the door thickness, with four choices: 1-3/8, 1-3/4, 2, and 2-1/4 inches. That matters because the through-bolt hardware is sized to the door, so you specify the thickness when you order rather than cutting or shimming on site. 1-3/4 inch is the standard commercial door; 1-3/8 covers lighter interior doors, and the 2 and 2-1/4 inch options handle heavy or clad doors.
2) What is a round-bar alternative to the Trimco AP774 ladder pull for a commercial entrance?
The Trimco AP774 uses 2 inch (F) by 1 inch (D) rectangular material with end posts, so it reads as a flat-faced architectural pull. If a round profile suits the opening better, the Ives 8103HD is a heavy duty straight door pull in 1 inch round bar with through bolt mounting, and the Ives 8102HD is a heavy duty straight pull using 3/4 inch round bar with 1-1/2 inch clearance. The ABH AB7200 is a solid stainless steel flat end pull handle at 7/8 inch diameter, also through-bolt mounted. All three are straight pulls like the AP774; the difference is bar shape and diameter rather than function.
3) I need an offset pull rather than a straight ladder pull - what should I look at instead of the Trimco AP774?
The AP774 is a straight ladder pull on end posts, so it does not offer an offset leg. For an offset, the Ives 8145EZHD is a 45 degree offset door pull with heavy duty mounting hardware and is ADA compliant, and the Ives 8169 is a C style offset solid pull at 1 inch diameter. The ABH AB3310 is an offset flat end pull handle in a commercial grade surface mount, and the ABH AB3330 offers offset round ends with custom length options. The AP774 itself is also ADA compliant if the straight profile works for the door.
4) Is a Deltana SSPOBB24 the same thing as a 24 inch Trimco AP774?
They are not interchangeable. The AP774 is ordered as a single pull with a specific door thickness (1-3/8, 1-3/4, 2 or 2-1/4 inch) and a choice of E-Mount or G-Mount, in lengths from 12 to 60 inches. The Deltana SSPOBB24 is a 24 inch back-to-back modern offset pull set, meaning it ships as a pair for both faces and uses an offset shape rather than a straight ladder bar. Deltana also lists the SSPORBB24 as a 24 inch back-to-back round offset set. If you want a single-face straight bar sized to your door thickness, stay with the AP774.
5) I have 1-1/8 inch glass-thin doors - is the Deltana OHP620 a better fit than the Trimco AP774?
For a thinner door, yes. The Deltana OHP620 off-set handle pull is a back-to-back set listed for 1-1/8 inch to 1-3/8 inch door thickness. The Trimco AP774 is ordered by door thickness in 1-3/8, 1-3/4, 2 and 2-1/4 inch, so 1-3/8 inch is its thinnest option and anything under that falls outside it. On standard 1-3/4 inch commercial doors the AP774 applies directly.
6) What is the difference between E-Mount and G-Mount on Trimco AP700 ladder pulls?
Those are the two mounting configurations offered on the AP774. Pick one at the time of order, since the post machining is done to suit. On the AP700 family the standoff location itself is also part of the design choice: the AP774 uses end posts, meaning the standoffs sit at the two ends of the bar, while the matching AP773 uses bridge posts set inboard from the ends.
7) What lengths does the Trimco AP774 pull come in?
Six stock lengths: 12, 18, 24, 36, 48, and 60 inches. The AP700 Series as a whole runs from 12 inches to over 9 feet, so if you need a full-height pull on a storefront or entry door beyond 60 inches, that is a custom length within the same series rather than a different product.
8) What finishes can I get the Trimco AP774 in to match existing hardware in my building?
Eleven finishes: 605 bright brass, 606 satin brass, 609 satin brass blackened and relieved with clear coat, 611 bright bronze, 612 satin bronze, 613 oil rubbed bronze, 613E dark oxidized satin bronze, 622 matte black, 628 satin aluminum, 629 bright stainless, and 630 satin stainless. If your other openings are specified by BHMA number, match on the number rather than the name, 630 satin stainless being the most common commercial standard.
9) Does the Trimco AP774 come with mounting screws?
Wood and machine screws are the fasteners for the AP774. Machine screws are what you use for a metal door or frame and for back-to-back pull sets; wood screws cover solid wood doors. Specify the door thickness on the order so the fastener length suits the leaf.
10) Is there a square long pull that covers a wider range of door thicknesses than the Trimco AP774?
The AP774 is built to one of four specified thicknesses, 1-3/8 through 2-1/4 inches. If your doors fall outside that, the Sure-Loc Square Long Door Pull (PL-1SQ) is a single-sided square pull listed for 1/2 inch through 2-1/4 inch doors, which covers thin glass-adjacent and panel doors the Trimco range does not.
11) Is the Trimco AP774 suitable for a high traffic commercial entrance or is it a residential pull?
Commercial. The AP774 is classed as commercial hardware and the AP700 ladder pulls are specified into commercial and industrial buildings, government and military facilities, hospitality, multifamily and mixed use, and retail. For a decorative residential entry the Emtek cast bronze 8 inch pulls, such as the Art Nouveau or Arts and Crafts, are the different category entirely.
12) Can I order the Trimco AP774 as a back-to-back pair for a glass or full-height entry door?
Yes, back-to-back (BTB) is a recognized configuration on the AP700 pulls, and the engraving option is offered specifically for single or BTB sets. Order to the door thickness (1-3/8 to 2-1/4 inches) so the machine screws that join the two bars through the leaf are the right length.
13) I want the same 2 inch by 1 inch look but with the posts set in from the ends. What do I order?
Order the Trimco AP773. It is the same 2 inch face by 1 inch deep rectangular profile as the AP774 but with bridge posts instead of end posts, so the standoffs land inboard and the bar runs past them. Same series, same finish range.
14) What is a simpler square-profile pull if the Trimco AP774 is more pull than the job needs?
The Sure-Loc PL-1SQ is a square long door pull, single-sided, rated for 1/2 inch to 2-1/4 inch thick doors, which covers a wider thickness range than the AP774's 1-3/8 through 2-1/4 inch options. Sure-Loc also lists the PL-1RD round long pull with concealed or thru-bolt mounting and the PL-1KN knurled long pull, single-sided. The AP774 differs in that it is a rectangular 2 inch (F) by 1 inch (D) architectural bar available in eleven architectural finishes from bright brass to satin stainless.
15) Will a Cal-Royal PUL-175 work where I was going to put a Trimco AP774?
No - they do different jobs. The Cal-Royal PUL-175 is a night latch cylinder pull, 3-1/2 inch height, in stainless steel construction, used at a rim cylinder to pull the door closed. The Trimco AP774 is a full-length architectural ladder pull, 12 to 60 inches, in a 2 inch (F) by 1 inch (D) rectangular bar on end posts. If the door needs a hand grip for pulling open, the AP774 is the correct part; the PUL-175 is cylinder trim.
16) What is the closest straight flat-end equivalent to the Trimco AP774 from another manufacturer?
The ABH AB3300 is the nearest in concept: a straight flat end pull handle at 1 inch diameter for commercial doors. The Trimco AP774 differs in cross-section - a 2 inch face by 1 inch depth rectangular bar with end posts rather than a round 1 inch section - and is offered in eleven architectural finishes including oil rubbed bronze, matte black and satin stainless, with a choice of E-Mount or G-Mount and four door thicknesses. Choose the AB3300 for a round commercial grab; choose the AP774 where the flat architectural face is specified.
17) If I want pulls on both faces of the door, do I order two Trimco AP774s or a back-to-back set from another brand?
The AP774 is ordered per door thickness with E-Mount or G-Mount, so a matched pair is assembled from the same series for a back-to-back application. If you would rather buy a factory back-to-back set, Deltana lists the SSPOBB24 as a 24 inch back-to-back modern offset pull and the SSPORBB24 as a 24 inch back-to-back round offset pull, and Sure-Loc lists the PL-2KN knurled long door pull in a double-sided version. Those peers are fixed in profile and length, while the AP774 spans 12 to 60 inches in a rectangular architectural bar.
18) What material is the Trimco AP774 pull made from?
Stainless steel is the substrate on the AP774. Trimco builds the AP700 ladder pulls in stainless, bronze, brass, or aluminum depending on the finish chosen, so a 605 bright brass or 613 oil rubbed bronze unit reflects that material rather than a plated stainless bar.
19) Can I get the AP774 ladder pull engraved or leather wrapped?
Both are options on the AP700 Series. Engraving is available for single pulls or for back-to-back (BTB) sets, which is how hotels and offices get PUSH/PULL or suite identification onto the bar itself. Leather wrapping is a separate option on the same pull.
