Trimco AP762 1" (F) x 1-1/2" (...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$608.36
$527.46

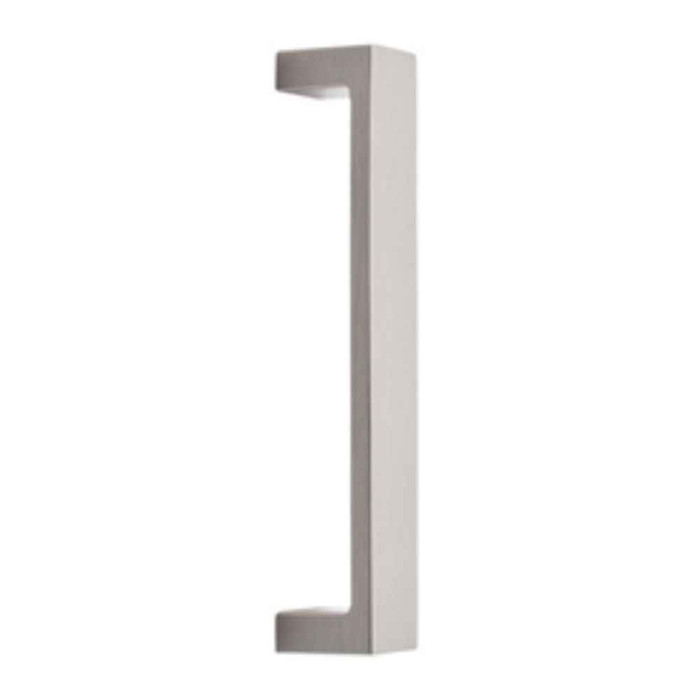

Trimco AP762 1" (F) x 1-1/2" (D) Rectangular End Posts Architectural Ladder Pull

Trimco AP762 1" (F) x 1-1/2" (D) Rectangular End Posts Architectural Ladder Pull

(No reviews yet) Write a Review

Model: TRI-AP762E-128-4.605
From the AP700 Series Collection
$608.36
$527.46
Selected Mounting is
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$608.36
$527.46
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

TRIMCO AP762 1" (F) X 1-1/2" (D) RECTANGULAR END POSTS ARCHITECTURAL LADDER PULL OVERVIEW

AP762 1" (F) x 1-1/2" (D) Rectangular End Posts Architectural Ladder Pull. 1" (F) x 1-1/2" (D) Rectangular End Posts.

Trimco’s AP700 Series Square & Rectangular Ladder Pulls are precision crafted for beauty and ultimate durability. Offered with a multitude of material sizes, these pulls can be the architectural highlight of your design.

Buy the TRIMCO AP762 Series today to add a stylish hardware for your home!

TRIMCO AP700 RECTANGULAR BRIDGE POSTS ARCHITECTURAL LADDER PULL PRODUCT FEATURES

  • Manufactured from stainless steel, bronze, brass or aluminum for long lasting durability.
  • Flexibility in design from material sizes and orientation to standoff locations (end or bridge).
  • Wide range of lengths available from 12″ to over 9′.
  • Additional options for door thickness, leather wrapping and engraving.
  • Available in most architectural finishes.
  • ADA Compliant.
  • Optional: Engraving for Singe Pulls or Back to Back (BTB) Pulls
  • Optional: Leather Wrapped
  • If a price is not shown for a particular finish, it may be available at the special price or by special quotation if quantaties warrant. Minimum quantities may apply.

TRIMCO AP762 SERIES COLOR VARIATIONS

Trimco AP762 1" (F) x 1-1/2" (D) Rectangular End Posts Architectural Pull Bright Brass (605)
Trimco AP762 1" (F) x 1-1/2" (D) Rectangular End Posts Architectural Pull Satin Brass (606)
Trimco AP762 1" (F) x 1-1/2" (D) Rectangular End Posts Architectural Pull Bright Bronze (611)
Trimco AP762 1" (F) x 1-1/2" (D) Rectangular End Posts Architectural Pull Satin Bronze (612)
Trimco AP762 1" (F) x 1-1/2" (D) Rectangular End Posts Architectural Pull Oil Rubbed Bronze (613)
Trimco AP762 1" (F) x 1-1/2" (D) Rectangular End Posts Architectural Pull Dark Oxidized Satin Bronze (613E)
Trimco AP762 1" (F) x 1-1/2" (D) Rectangular End Posts Architectural Pull Matte Black (622)
Trimco AP762 1" (F) x 1-1/2" (D) Rectangular End Posts Architectural Pull Bright Chrome (625)
Trimco AP762 1" (F) x 1-1/2" (D) Rectangular End Posts Architectural Pull Satin Chrome (626)
Trimco AP762 1" (F) x 1-1/2" (D) Rectangular End Posts Architectural Pull Satin Aluminum (628)
Trimco AP762 1" (F) x 1-1/2" (D) Rectangular End Posts Architectural Pull Bright Stainless Steel (629)
Trimco AP762 1" (F) x 1-1/2" (D) Rectangular End Posts Architectural Pull Satin Stainless Steel (630)
Trimco AP762 1" (F) x 1-1/2" (D) Rectangular End Posts Architectural Pull Bright Stainless Steel (316P)
Trimco AP762 1" (F) x 1-1/2" (D) Rectangular End Posts Architectural Pull Satin Stainless Steel (316S )
Trimco AP762 1" (F) x 1-1/2" (D) Rectangular End Posts Architectural Pull Healthy Hardware Steralloy Silver (710CU)
Trimco AP762 1" (F) x 1-1/2" (D) Rectangular End Posts Architectural Pull Special Finish (SF)

APPLICATIONS

  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Hospitality
  • Multifamily & Mixed-Use
  • Retail & Strip Malls

TRIMCO AP700 SERIES COLLECTION

Trimco AP711 3/4" Square Bridge Posts Architectural Ladder Pull
Trimco AP712 3/4" Square End Posts Architectural Ladder Pull
Trimco AP721 1" Square Bridge Posts Architectural Ladder Pull
Trimco AP722 1" Square End Posts Architectural Ladder Pull
Trimco AP731 1-1/4" Square Bridge Posts Architectural Ladder Pull
Trimco AP732 1-1/4" Square End Posts Architectural Ladder Pull
Trimco AP751 1/2" (F) x 1-1/4" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP752 1/2" (F) x 1-1/4" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP753 1-1/4" (F) x 1/2" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP754 1-1/4" (F) x 1/2" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP761 1" (F) x 1-1/2" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP762 1" (F) x 1-1/2" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP763 1-1/2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP764 1-1/2" (F) x 1" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP771 1" (F) x 2" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP772 1" (F) x 2" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP773 2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP774 2" (F) x 1" (D) Rectangular End Posts Architectural Ladder Pull

RESOURCES & DOWNLOADS

Manufacturer Resources

Product Specs

ADA Compliant:
Yes
Commercial/Residential:
Commercial
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Door Pulls
Series:
AP700 Series
Subcategory:
Door Pulls, Push and Pull Plates
Fasteners:
Wood and Machine Screws
Product Category:
Door Trim and Accessories
Product Substrate:
Stainless Steel
Collection:
AP700 Series
Department:
Door Hardware

Trimco TRI-AP762E-128-4.605 – Frequently Asked Questions

1) Is the Trimco AP762 pull ADA compliant for an entrance door?
Yes, the AP762 is ADA compliant. It's a ladder pull, so it operates with a closed fist and needs no tight grasping or wrist twisting, which is what the requirement turns on. It's a commercial-duty pull, used on office and institutional entrances, hospitality, multifamily and retail openings.
2) I need a door pull for an opening where a straight ladder pull will not work - what offset options are there?
The AP762 is a straight ladder pull on end posts and does not offer an offset shape. For openings that need the grip carried away from the post line, the Ives 8145EZHD is a 45 degree offset door pull with heavy duty mounting hardware and is ADA compliant, and the Ives 8169 is a C style offset solid pull at 1 inch diameter with heavy duty mounting. The ABH AB3310 is an offset flat end pull in commercial grade surface mount, and the ABH AB3330 is an offset round end pull with custom length options.
3) For an ADA compliant offset pull on a commercial opening, what are my choices besides the Trimco AP762?
The AP762 is ADA compliant and is offered in lengths from 12 to 60 inches with wood and machine screw fasteners. If an offset pull is required for the same opening, the Ives 8145EZHD is a 45 degree offset door pull that is ADA compliant and ships with heavy duty mounting hardware.
4) What should I use if I want a through-bolted stainless pull rather than the Trimco AP762?
The AP762 is stainless steel and mounts with wood and machine screws in either E-Mount or G-Mount. If the specification calls for through-bolting, the ABH AB7200 is a solid stainless steel flat end pull at 7/8 inch diameter with through-bolt mounting, and the Ives 8103HD is a heavy duty straight pull with a 1 inch round bar and through bolt mounting.
5) What is the difference between E-Mount and G-Mount on Trimco AP700 ladder pulls?
Those are the two mounting configurations offered on the AP762. Pick the one that matches how the pull is being attached to the leaf, and match it on both faces if you're doing a back-to-back set on a pair. The pull ships with wood and machine screws, so it can be fastened into either a wood or a metal door depending on which fastener the opening takes.
6) What lengths does the Trimco AP762 ladder pull come in?
Six stock lengths: 12, 18, 24, 36, 48 and 60 inches. On a glass front or full-height storefront leaf the 36 and 48 inch sizes are the usual picks because they give a tall grip zone that works for a range of user heights. For a standard flush door in a corridor, 12 or 18 inches is normally enough.
7) What is the difference between the Trimco AP762 and the AP761?
Same 1 inch (F) x 1-1/2 inch (D) rectangular bar on both. The difference is where the standoffs land: the AP762 has end posts, so the mounting posts sit at the extreme ends of the pull, while the AP761 uses bridge posts set inboard from the ends so the bar overhangs past each mount. It's an appearance and clearance decision, not a strength one. If the opening already has one style on adjacent doors, match it.
8) What is the AP762 pull made of, and will it hold up on a high traffic entrance?
Stainless steel. It's a solid bar pull specified for commercial and industrial buildings, government and military facilities, hospitality, multifamily and retail, which are the highest-cycle openings there are. The rectangular section, 1 inch by 1-1/2 inches, gives more resistance to twisting under a hard pull than a thin round bar of the same span.
9) I need a simpler commercial door pull than the Trimco AP762. What else is there?
For a plain straight pull rather than a full ladder pull, the Ives 8103HD is a heavy duty straight pull in 1 inch round bar with through-bolt mounting, and the Ives 8102HD is a heavy duty straight pull in 3/4 inch round bar with 1-1/2 inch clearance. The ABH AB3300 is a straight flat-end pull in 1 inch diameter. Those are short single pulls, not the 12 to 60 inch architectural bar the AP762 is, so use them where you want a grab handle rather than a design feature.
10) Do I order one Trimco AP762 pull or two for a back-to-back installation?
Each AP762 is specified as a single pull, so a door with a pull on both faces takes two, ordered in the same mounting style, length and door thickness. Trimco lists engraving for single pulls or back to back (BTB) pulls, so if you're engraving, say which arrangement it is. Compare that to a peer like the Deltana SSPOBB24, a 24 inch offset pull sold as a back-to-back set, where one order number covers both faces.
11) Is there a simpler flat end pull that covers the same commercial application as the Trimco AP762?
The ABH AB3300 is a straight flat end commercial door pull at 1.00 inch diameter, and the ABH AB7200 is a solid stainless steel flat end pull at 7/8 inch diameter with through-bolt mounting. Both are single-profile straight pulls without the AP762's range of door thickness options, finishes and 12 inch through 60 inch lengths, so they suit an opening where one size and one mounting are all that is needed.
12) What is the difference between ordering the Trimco AP762 and a Deltana back-to-back pull set?
The AP762 is ordered by door thickness, finish, mounting (E-Mount or G-Mount) and length from 12 to 60 inches, so a back-to-back application is configured through those selections. The Deltana SSPOBB24 is a 24 inch back-to-back modern offset pull set and the SSPORBB24 is the 24 inch back-to-back round offset version, each supplied as a matched pair at a fixed length. The Deltana SSP1210 is a 12 inch contemporary pull for a single side only.
13) Can the Cal-Royal PUL-175 be used in place of a Trimco AP762 ladder pull?
No. The Cal-Royal PUL-175 is a night latch cylinder pull at 3-1/2 inch height in stainless steel construction - it mounts around a rim cylinder to pull the door and is not a grip handle for general egress. The AP762 is an architectural ladder pull in lengths from 12 to 60 inches and is ADA compliant, so it serves as the pull the user grabs to open the door.
14) I need a pull longer than a standard catalog length - which options handle custom lengths?
The Trimco AP762 is ordered in 12, 18, 24, 36, 48 and 60 inch lengths across the AP700 Series. The ABH AB3330 offset round end pull is offered with custom length options if the opening calls for a dimension outside a standard run.
15) What finishes are available on the Trimco AP762 architectural pull?
Eleven: bright brass (605), satin brass (606), satin brass blackened and relieved with clear coat (609), bright bronze (611), satin bronze (612), oil rubbed bronze (613), dark oxidized satin bronze (613E), matte black (622), satin aluminum (628), bright stainless (629) and satin stainless (630). For a facility standardizing across many openings, 630 satin stainless is the workhorse, it hides handling marks and matches most commercial push plates and exit device trim.
16) Can I get the Trimco AP762 ladder pull longer than 60 inches or in bronze or brass instead of stainless?
Trimco's AP700 ladder pulls are made in lengths from 12 inches to over 9 feet, and in stainless steel, bronze, brass or aluminum. The stock AP762 configurations top out at 60 inches with eleven catalog finishes; longer bars, other base materials, and a special finish (SF) are handled as made-to-order. Leather wrapping and engraving, on a single pull or a back-to-back set, are also available as options.
17) Will the Trimco AP762 work on a residential entry door?
It's a commercial pull, and the shortest door thickness it's made for is 1-3/8 inches. That covers most residential entry leaves, but the finish palette and sizing are aimed at architectural work. For a decorative residential entry, a cast bronze pull like the Emtek Art Nouveau or Arts & Crafts 8 inch pull, or the Emtek Baden or Brisbane 8 inch pull, is a closer fit in scale and styling.
