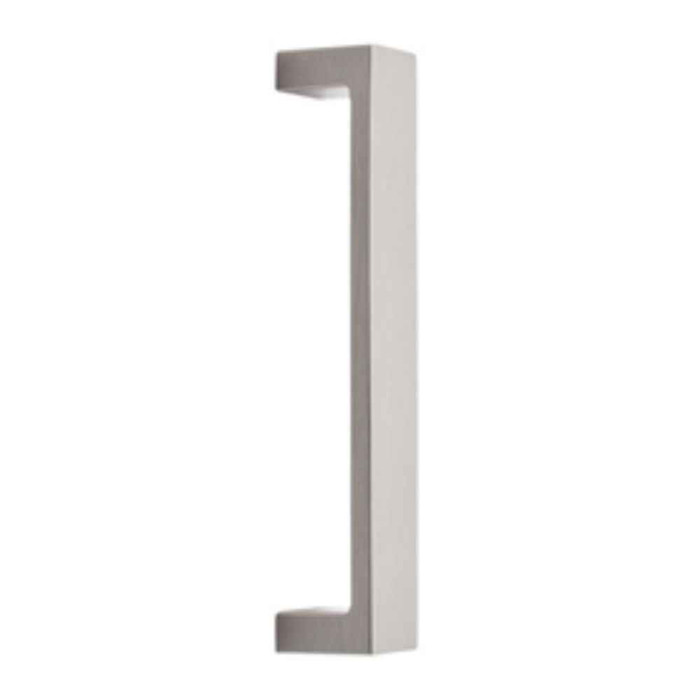

Trimco AP752 1/2" (F) x 1-1/4" (D) Rectangular End Posts Architectural Ladder Pull

Trimco AP752 1/2" (F) x 1-1/4" (D) Rectangular End Posts Architectural Ladder Pull

(No reviews yet) Write a Review

Model: TRI-AP752E-128-4.605
From the AP700 Series Collection
$544.80
$474.00
Selected Mounting is
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$544.80
$474.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

TRIMCO AP752 1/2" (F) X 1-1/4" (D) RECTANGULAR END POSTS ARCHITECTURAL LADDER PULL OVERVIEW

AP752 1/2" (F) x 1-1/4" (D) Rectangular End Posts Architectural Ladder Pull. 1/2" (F) x 1-1/4" (D) Rectangular End Posts.

Trimco’s AP700 Series Square & Rectangular Ladder Pulls are precision crafted for beauty and ultimate durability. Offered with a multitude of material sizes, these pulls can be the architectural highlight of your design.

Buy the TRIMCO AP752 Series today to add a stylish hardware for your home!

TRIMCO AP700 SQUARE BRIDGE POSTS ARCHITECTURAL LADDER PULL PRODUCT FEATURES

  • Manufactured from stainless steel, bronze, brass or aluminum for long lasting durability.
  • Flexibility in design from material sizes and orientation to standoff locations (end or bridge).
  • Wide range of lengths available from 12″ to over 9′.
  • Additional options for door thickness, leather wrapping and engraving.
  • Available in most architectural finishes.
  • ADA Compliant.
  • Optional: Engraving for Singe Pulls or Back to Back (BTB) Pulls
  • Optional: Leather Wrapped
  • If a price is not shown for a particular finish, it may be available at the special price or by special quotation if quantaties warrant. Minimum quantities may apply.

TRIMCO AP752 SERIES COLOR VARIATIONS

Trimco AP752 1/2" (F) x 1-1/4" (D) Rectangular End Posts Architectural Pull Bright Brass (605)
Trimco AP752 1/2" (F) x 1-1/4" (D) Rectangular End Posts Architectural Pull Satin Brass (606)
Trimco AP752 1/2" (F) x 1-1/4" (D) Rectangular End Posts Architectural Pull Bright Bronze (611)
Trimco AP752 1/2" (F) x 1-1/4" (D) Rectangular End Posts Architectural Pull Satin Bronze (612)
Trimco AP752 1/2" (F) x 1-1/4" (D) Rectangular End Posts Architectural Pull Oil Rubbed Bronze (613)
Trimco AP752 1/2" (F) x 1-1/4" (D) Rectangular End Posts Architectural Pull Dark Oxidized Satin Bronze (613E)
Trimco AP752 1/2" (F) x 1-1/4" (D) Rectangular End Posts Architectural Pull Matte Black (622)
Trimco AP752 1/2" (F) x 1-1/4" (D) Rectangular End Posts Architectural Pull Bright Chrome (625)
Trimco AP752 1/2" (F) x 1-1/4" (D) Rectangular End Posts Architectural Pull Satin Chrome (626)
Trimco AP752 1/2" (F) x 1-1/4" (D) Rectangular End Posts Architectural Pull Satin Aluminum (628)
Trimco AP752 1/2" (F) x 1-1/4" (D) Rectangular End Posts Architectural Pull Bright Stainless Steel (629)
Trimco AP752 1/2" (F) x 1-1/4" (D) Rectangular End Posts Architectural Pull Satin Stainless Steel (630)
Trimco AP752 1/2" (F) x 1-1/4" (D) Rectangular End Posts Architectural Pull Bright Stainless Steel (316P)
Trimco AP752 1/2" (F) x 1-1/4" (D) Rectangular End Posts Architectural Pull Satin Stainless Steel (316S )
Trimco AP752 1/2" (F) x 1-1/4" (D) Rectangular End Posts Architectural Pull Healthy Hardware Steralloy Silver (710CU)
Trimco AP752 1/2" (F) x 1-1/4" (D) Rectangular End Posts Architectural Pull Special Finish (SF)

APPLICATIONS

  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Hospitality
  • Multifamily & Mixed-Use
  • Retail & Strip Malls

TRIMCO AP700 SERIES COLLECTION

Trimco AP711 3/4" Square Bridge Posts Architectural Ladder Pull
Trimco AP712 3/4" Square End Posts Architectural Ladder Pull
Trimco AP721 1" Square Bridge Posts Architectural Ladder Pull
Trimco AP722 1" Square End Posts Architectural Ladder Pull
Trimco AP731 1-1/4" Square Bridge Posts Architectural Ladder Pull
Trimco AP732 1-1/4" Square End Posts Architectural Ladder Pull
Trimco AP751 1/2" (F) x 1-1/4" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP752 1/2" (F) x 1-1/4" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP753 1-1/4" (F) x 1/2" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP754 1-1/4" (F) x 1/2" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP761 1" (F) x 1-1/2" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP762 1" (F) x 1-1/2" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP763 1-1/2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP764 1-1/2" (F) x 1" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP771 1" (F) x 2" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP772 1" (F) x 2" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP773 2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP774 2" (F) x 1" (D) Rectangular End Posts Architectural Ladder Pull

RESOURCES & DOWNLOADS

Manufacturer Resources

Product Specs

ADA Compliant:
Yes
Commercial/Residential:
Commercial
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Door Pulls
Series:
AP700 Series
Subcategory:
Door Pulls, Push and Pull Plates
Fasteners:
Wood and Machine Screws
Product Category:
Door Trim and Accessories
Product Substrate:
Stainless Steel
Collection:
AP700 Series
Department:
Door Hardware

Trimco TRI-AP752E-128-4.605 – Frequently Asked Questions

1) What door thicknesses does the Trimco AP752 ladder pull mount on?
The AP752 is ordered to door thickness, with 1-3/8 inch, 1-3/4 inch, 2 inch and 2-1/4 inch options. Thickness is a build option on these pulls, not something you adjust in the field, so measure the leaf before you order. 1-3/4 inch is the standard commercial door; 1-3/8 inch covers older interior doors, and the 2 inch and 2-1/4 inch options handle heavy or clad entry doors.
2) Does the Trimco AP752 pull meet ADA requirements for door hardware?
Yes. The AP700 Series ladder pulls, including the AP752, are ADA compliant, which matters on the accessible entrances in government, healthcare, education and hospitality work. The full-length bar is operable with a closed fist and no tight grasping or wrist twisting.
3) If I need a round bar pull instead of the rectangular Trimco AP752, what should I use?
For a round profile, the Ives 8103HD is a heavy duty straight door pull with a 1 inch round bar and through bolt mounting, and the Ives 8102HD is a heavy duty straight pull with a 3/4 inch round bar and 1-1/2 inch clearance. The ABH AB3300 is a straight flat end pull handle at 1 inch diameter. All three give you a cylindrical grip where the AP752 gives a 1/2 inch by 1-1/4 inch rectangular section on end posts.
4) I need an offset pull, not a straight ladder pull like the AP752 - what are my options?
The AP752 is a straight ladder pull on rectangular end posts. If the opening needs an offset so the hand clears the frame or a panic device, the Ives 8145EZHD is a 45 degree offset pull with heavy duty mounting hardware and is ADA compliant, the Ives 8169 is a C style offset solid pull at 1 inch diameter with heavy duty mounting, and the ABH AB3310 is an offset flat end surface mount pull. The ABH AB3330 offers offset round ends with custom length options. The AP752 itself is also ADA compliant.
5) What lengths does the Trimco AP752 come in?
Stock lengths run 12, 18, 24, 36, 48 and 60 inches. The 12 and 18 inch sizes suit interior and cabinet-scale openings, 24 and 36 inch are the usual storefront and office door choices, and the 48 and 60 inch pulls are for full-height glass or monumental entrances. Trimco's AP700 ladder pull program goes well past 60 inches, over 9 feet, if the opening calls for it.
6) What does E-Mount versus G-Mount mean when ordering a Trimco AP752 pull?
Mounting is a required selection on the AP752, with E-Mount and G-Mount as the two choices. Confirm which one your opening needs before you order, because the post prep differs between them and the pull is built to that selection. Trimco publishes an AP700 end post mounting template for laying out the holes.
7) Does the Trimco AP752 ladder pull come with mounting screws?
Mounting hardware is wood and machine screws, supplied with the pull. Machine screws are what you will use into a metal or prepped door; wood screws cover solid wood applications. Glass doors need the appropriate glass-mount detail, which is not the standard screw pack.
8) Is the Trimco AP752 pull rated for high-traffic commercial doors or is it a residential item?
It is a commercial product. The AP752 is built from stainless steel and the AP700 program is specified into commercial and industrial buildings, government and military facilities, hospitality, multifamily and mixed-use, and retail. It will hold up on a main entrance far better than a decorative residential pull.
9) I need a long straight pull but not a square-profile one. What else is there besides the Trimco AP752?
If the rectangular architectural bar is not the look you want, the Ives 8103HD is a heavy duty straight pull on 1 inch round bar with through bolt mounting, and the Ives 8102HD uses a 3/4 inch round bar with 1-1/2 inch clearance. For an offset rather than straight pull, the Ives 8145EZHD is a 45 degree offset and is ADA compliant. On the round-bar side for lighter duty, Sure-Loc offers a Round Long Door Pull, single-sided, with concealed or thru-bolt mounting.
10) Which pulls come as a back-to-back set instead of ordering the AP752 by door thickness?
The Deltana SSPOBB24 is a 24 inch back-to-back modern offset pair, the SSPORBB24 is the 24 inch back-to-back round offset version, and the Deltana OHP620 is an off-set handle pull supplied as a back-to-back set for 1-1/8 inch to 1-3/8 inch doors. The Sure-Loc Knurled Long Door Pull is also offered double-sided. The Trimco AP752 is instead specified by the actual door thickness, with 1-3/8, 1-3/4, 2 and 2-1/4 inch options, and ships with wood and machine screws.
11) Is the Cal-Royal PUL-175 a substitute for a Trimco AP752 ladder pull?
No. The Cal-Royal PUL-175 is a night latch cylinder pull, 3-1/2 inches high in stainless steel, designed to sit over a rim cylinder on a narrow stile door. It is not a grip-length architectural pull. The Trimco AP752 is a straight ladder pull running 12 to 60 inches on rectangular end posts for commercial openings, and the two are not interchangeable.
12) What finishes can I get the Trimco AP752 architectural pull in?
Eleven finishes are offered: 605 bright brass, 606 satin brass, 609 satin brass blackened and relieved with clear coat, 611 bright bronze, 612 satin bronze, 613 oil rubbed bronze, 613E dark oxidized satin bronze, 622 matte black, 628 satin aluminum, 629 bright stainless and 630 satin stainless. 630 satin stainless is the one most commonly specified when you are matching existing commercial trim across a building.
13) Can I get the Trimco AP752 leather wrapped or engraved?
Both are available as options on the AP700 Series. Leather wrapping is offered on the bar, and engraving can be done on single pulls or on back-to-back pairs. Those are build-to-order choices, so they are specified when the pull is ordered rather than added later.
14) For a decorative bronze entry rather than a commercial ladder pull, what replaces the AP752?
The Emtek Art Nouveau 8 inch door pull is lost wax cast bronze and is ordered by handing, and the Emtek Baden and Brisbane 8 inch pulls give other decorative profiles. The Trimco AP752 is a commercial architectural pull with a plain rectangular section, though it is offered in bronze finishes including bright bronze, satin bronze, oil rubbed bronze and dark oxidized satin bronze.
