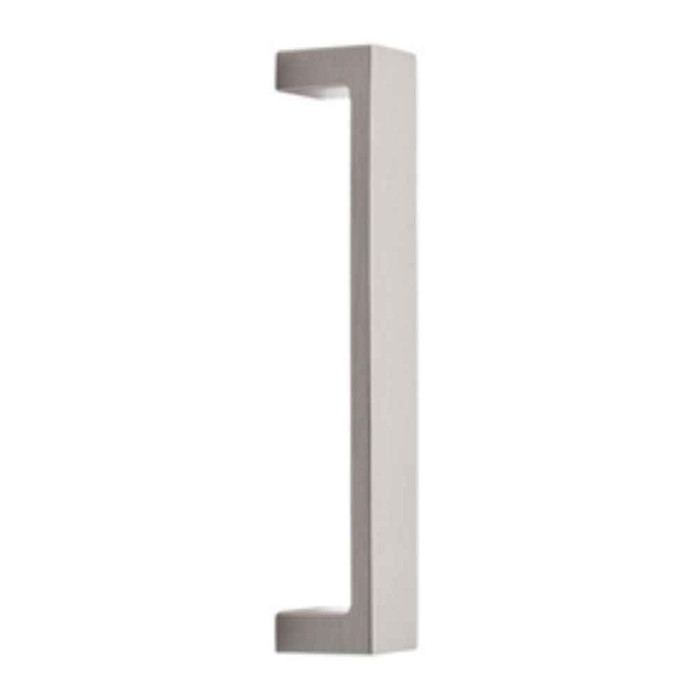

Trimco AP754 1-1/4" (F) x 1/2" (D) Rectangular End Posts Architectural Ladder Pull

Trimco AP754 1-1/4" (F) x 1/2" (D) Rectangular End Posts Architectural Ladder Pull

(No reviews yet) Write a Review

Model: TRI-AP754E-128-4.605
From the AP700 Series Collection
$544.80
$472.35
Selected Mounting is
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$544.80
$472.35
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

TRIMCO AP754 1-1/4" (F) X 1/2" (D) RECTANGULAR END POSTS ARCHITECTURAL LADDER PULL OVERVIEW

AP754 1-1/4" (F) x 1/2" (D) Rectangular End Posts Architectural Ladder Pull. 1-1/4" (F) x 1/2" (D) Rectangular End Posts.

Trimco’s AP700 Series Square & Rectangular Ladder Pulls are precision crafted for beauty and ultimate durability. Offered with a multitude of material sizes, these pulls can be the architectural highlight of your design.

Buy the TRIMCO AP754 Series today to add a stylish hardware for your home!

TRIMCO AP700 RECTANGULAR BRIDGE POSTS ARCHITECTURAL LADDER PULL PRODUCT FEATURES

  • Manufactured from stainless steel, bronze, brass or aluminum for long lasting durability.
  • Flexibility in design from material sizes and orientation to standoff locations (end or bridge).
  • Wide range of lengths available from 12″ to over 9′.
  • Additional options for door thickness, leather wrapping and engraving.
  • Available in most architectural finishes.
  • ADA Compliant.
  • Optional: Engraving for Singe Pulls or Back to Back (BTB) Pulls
  • Optional: Leather Wrapped
  • If a price is not shown for a particular finish, it may be available at the special price or by special quotation if quantaties warrant. Minimum quantities may apply.

TRIMCO AP754 SERIES COLOR VARIATIONS

Trimco AP754 1-1/4" (F) x 1/2" (D) Rectangular End Posts Architectural Pull Bright Brass (605)
Trimco AP754 1-1/4" (F) x 1/2" (D) Rectangular End Posts Architectural Pull Satin Brass (606)
Trimco AP754 1-1/4" (F) x 1/2" (D) Rectangular End Posts Architectural Pull Bright Bronze (611)
Trimco AP754 1-1/4" (F) x 1/2" (D) Rectangular End Posts Architectural Pull Satin Bronze (612)
Trimco AP754 1-1/4" (F) x 1/2" (D) Rectangular End Posts Architectural Pull Oil Rubbed Bronze (613)
Trimco AP754 1-1/4" (F) x 1/2" (D) Rectangular End Posts Architectural Pull Dark Oxidized Satin Bronze (613E)
Trimco AP754 1-1/4" (F) x 1/2" (D) Rectangular End Posts Architectural Pull Matte Black (622)
Trimco AP754 1-1/4" (F) x 1/2" (D) Rectangular End Posts Architectural Pull Bright Chrome (625)
Trimco AP754 1-1/4" (F) x 1/2" (D) Rectangular End Posts Architectural Pull Satin Chrome (626)
Trimco AP754 1-1/4" (F) x 1/2" (D) Rectangular End Posts Architectural Pull Satin Aluminum (628)
Trimco AP754 1-1/4" (F) x 1/2" (D) Rectangular End Posts Architectural Pull Bright Stainless Steel (629)
Trimco AP754 1-1/4" (F) x 1/2" (D) Rectangular End Posts Architectural Pull Satin Stainless Steel (630)
Trimco AP754 1-1/4" (F) x 1/2" (D) Rectangular End Posts Architectural Pull Bright Stainless Steel (316P)
Trimco AP754 1-1/4" (F) x 1/2" (D) Rectangular End Posts Architectural Pull Satin Stainless Steel (316S )
Trimco AP754 1-1/4" (F) x 1/2" (D) Rectangular End Posts Architectural Pull Healthy Hardware Steralloy Silver (710CU)
Trimco AP754 1-1/4" (F) x 1/2" (D) Rectangular End Posts Architectural Pull Special Finish (SF)

APPLICATIONS

  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Hospitality
  • Multifamily & Mixed-Use
  • Retail & Strip Malls

TRIMCO AP700 SERIES COLLECTION

Trimco AP711 3/4" Square Bridge Posts Architectural Ladder Pull
Trimco AP712 3/4" Square End Posts Architectural Ladder Pull
Trimco AP721 1" Square Bridge Posts Architectural Ladder Pull
Trimco AP722 1" Square End Posts Architectural Ladder Pull
Trimco AP731 1-1/4" Square Bridge Posts Architectural Ladder Pull
Trimco AP732 1-1/4" Square End Posts Architectural Ladder Pull
Trimco AP751 1/2" (F) x 1-1/4" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP752 1/2" (F) x 1-1/4" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP753 1-1/4" (F) x 1/2" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP754 1-1/4" (F) x 1/2" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP761 1" (F) x 1-1/2" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP762 1" (F) x 1-1/2" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP763 1-1/2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP764 1-1/2" (F) x 1" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP771 1" (F) x 2" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP772 1" (F) x 2" (D) Rectangular End Posts Architectural Ladder Pull
Trimco AP773 2" (F) x 1" (D) Rectangular Bridge Posts Architectural Ladder Pull
Trimco AP774 2" (F) x 1" (D) Rectangular End Posts Architectural Ladder Pull

RESOURCES & DOWNLOADS

Manufacturer Resources

Product Specs

ADA Compliant:
Yes
Commercial/Residential:
Commercial
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Door Pulls
Series:
AP700 Series
Subcategory:
Door Pulls, Push and Pull Plates
Fasteners:
Wood and Machine Screws
Product Category:
Door Trim and Accessories
Product Substrate:
Stainless Steel
Collection:
AP700 Series
Department:
Door Hardware

Trimco TRI-AP754E-128-4.605 – Frequently Asked Questions

1) What door thicknesses can the Trimco AP754 ladder pull be ordered for?
The AP754 is built to the door it mounts on, so thickness is an order option: 1-3/8, 1-3/4, 2, and 2-1/4 inches. Pick the one that matches the actual leaf, since the post and fastener length are sized to it rather than adjusted in the field.
2) What is the difference between the AP754 and the AP753?
Same bar profile, different standoff location. The AP754 uses end posts, where the mounting posts sit at the extreme ends of the bar. The AP753 is the bridge post version of the identical 1-1/4 inch (F) x 1/2 inch (D) rectangle, with the posts set inboard so the bar runs past them. End posts give a cleaner terminated look; bridge posts leave bar above and below the grip.
3) Will a Deltana OHP620 back-to-back pull work in place of the Trimco AP754 on a 1-3/4 inch door?
No. The Deltana OHP620 off-set back-to-back set is listed for 1-1/8 to 1-3/8 inch doors, so it stops short of a standard 1-3/4 inch commercial leaf. The AP754 is ordered for the specific thickness, including 1-3/4 inch, and is the one to use on that door.
4) What do I have to specify when ordering a Trimco AP754 ladder pull?
Four things decide the part: length (12, 18, 24, 36, 48, or 60 inches), finish, door thickness, and mounting style (E-Mount or G-Mount). Engraving and leather wrap are additional options on top of that. Screws for mounting, both wood and machine, come with the pull.
5) Is an offset pull a substitute for the Trimco AP754?
Not directly. The AP754 is a straight ladder pull with rectangular end posts, available in 12, 18, 24, 36, 48 and 60 inch lengths. Offset pulls change the hand position relative to the door face: the Ives 8145EZHD is a 45 degree offset pull with heavy duty mounting hardware and is ADA compliant, the Ives 8169 is a C style offset solid pull in 1 inch diameter, and the ABH AB3310 is an offset flat end pull. The AP754 is also ADA compliant, so if ADA is the driver rather than the offset geometry, the straight ladder pull still answers it.
6) What should I use for a back-to-back pull pair instead of the Trimco AP754?
The AP754 is ordered by door thickness in 1-3/8, 1-3/4, 2 and 2-1/4 inch and by mounting style, E-Mount or G-Mount. If you want a pre-configured back-to-back set, the Deltana SSPOBB24 is a 24 inch back-to-back modern offset pull pair, the Deltana SSPORBB24 is a 24 inch back-to-back round offset pair, and the Sure-Loc Knurled Long Door Pull is offered double-sided. The Deltana OHP620 is an off-set handle pull back-to-back set for doors 1-1/8 inch to 1-3/8 inch thick, so it covers thinner doors than the AP754's range.
7) What lengths does the Trimco AP754 ladder pull come in?
Six stock lengths: 12, 18, 24, 36, 48, and 60 inches. The AP700 Series as a whole runs from 12 inches to over 9 feet, so if the opening calls for something longer than 60 inches it falls into custom territory.
8) What is the difference between E-Mount and G-Mount on the Trimco AP700 pulls?
Mounting is the choice between the two ways the posts anchor to the door, and it is a required selection on the AP754 along with length, finish, and thickness. E-Mount and G-Mount are the two options. Whichever you choose, the pull ships with wood and machine screws for fastening.
9) What finishes can I get the Trimco AP754 ladder pull in to match the rest of my openings?
Eleven orderable finishes: 605 bright brass, 606 satin brass, 609 satin brass blackened and relieved with clear coat, 611 bright bronze, 612 satin bronze, 613 oil rubbed bronze, 613E dark oxidized satin bronze, 622 matte black, 628 satin aluminum, 629 bright stainless, and 630 satin stainless. If you are standardizing a building, 630 satin stainless is the usual match to commercial lever and exit hardware.
10) Is the Trimco AP754 heavy enough for a high traffic commercial entrance?
It is a commercial-rated pull, with stainless steel as the substrate on the stocked configurations. Trimco also builds the AP700 Series in bronze, brass, and aluminum. Typical applications are commercial and industrial buildings, government and military facilities, hospitality, multifamily and mixed-use, and retail.
11) I need a simple offset commercial door pull, not an architectural ladder pull. What else is there?
The AP754 is a long ladder-style bar and is priced and configured as architectural trim. If you just need a functional offset pull, the Ives 8145EZHD is a 45 degree offset heavy duty pull that is ADA compliant, and the Ives 8169 is a C style offset solid pull at 1 inch diameter. For a straight bar instead, the Ives 8103HD is a 1 inch round with through bolt mounting.
12) Is there a square-profile long pull alternative to the Trimco AP754 for a thick door?
Yes. The Sure-Loc Square Long Door Pull (PL-1SQ) is a single-sided square pull listed for 1/2 inch through 2-1/4 inch thick doors, which covers the same upper thickness range the AP754 reaches. If you prefer round bar, the Sure-Loc PL-1RD is the round version and offers concealed or thru-bolt mounting.
13) I need a custom length pull. Does anything besides the Trimco AP754 offer that?
The AP754 is stocked in 12, 18, 24, 36, 48 and 60 inch lengths with a wide range of architectural finishes including 605 bright brass, 613 oil rubbed bronze, 622 matte black and 630 satin stainless. For an alternative with custom length options, the ABH AB3330 is an offset round end pull offered with custom length options. The geometry differs: AB3330 has round ends and an offset, where the AP754 is a straight rectangular bar on end posts.
14) Can I get the Trimco AP754 engraved or leather wrapped?
Both are available as options on the AP700 Series. Engraving can be done on single pulls or on back-to-back (BTB) pairs, which is how hospitality and corporate jobs get room numbers or logos onto the bar. Leather wrapping is a separate option on the grip.
