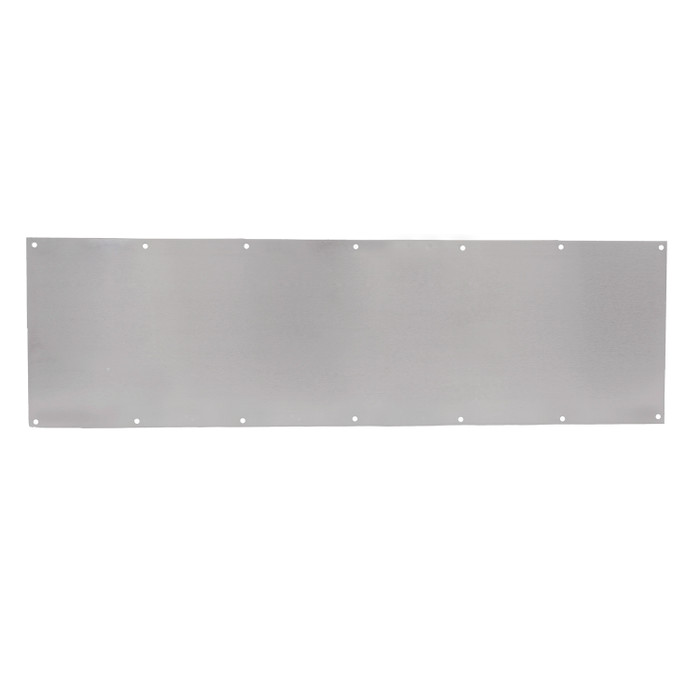

K Series Door, Wall & Frame Protection Plates
- Trimco’s Protection Plates are offered with many value-added standard features as well as custom options to meet job specifications. Trimco’s Protection Plates are manufactured in the U.S.A. from stainless steel, bronze or brass and include pencil bevel on all four edges standard. Other options include heavy bevel, countersinking and custom cutouts. Multiple material options create an offering that is flexible for most any application.
Applications:
- Office Buildings
- K-12 Schools
- Hospitality
- Retail & Strip Malls
- Commercial & Industrial Buildings
Features:
- Manufactured in the United States.
- Heavy duty .050" stainless steel, brass, bronze oraluminum material standard. Other materials including.038", .062", .125" and custom options available.
- Pencil beveled on all four sides standard.
- Stretcher plates include heavy bevel, countersinkand oval head screws standard.
- Custom cutouts, sizes and shapes available.
Specifications: Material Options:
- BR – Brass
- BZ – Bronze
- AI – Aluminum
- SS – Stainless Steel
- Warranty:
- Limited Lifetime Warranty
Series: KA038:
- Armor plate, .038", 17"-48" high
- KA050:
- Armor plate, .050", 17"-48" high
- KA064:
- Armor plate, .064", 17"-48" high
- K0038:
- Kick plate, .038", 7"-16" high
- K0050:
- Kick plate, .050", 7"-16" high
- K0064:
- Kick plate, .064", 7"-16" high
- K0125:
- Kick plate, .125", 7"-16" high
- KM038:
- Mop plate, .038", 6" high or less
- KM050:
- Mop plate, .050", 6" high or less
- KM064:
- Mop plate, .064", 6" high or less
- KS050:
- Stretcher plate, .050", countersunk & heavy B4E
- KS038:
- Stretcher plate, .038", countersunk & heavy B4E
- K6000:
- Plastic kick plate, 1/8", 4" -48" high
Finishes:
- 605 - Polished Brass
- 606 - Satin Brass, Dull
- 612 - Satin Bronze
- 613 - Oil Rubbed Bronze
- 628 - Satin Aluminum, Clear Anodized
- 629 - Polished Stainless Steel
- 630 - Satin Stainless Steel
- SPEC - Special Options Available
Options:
- HB - Heavy
- C - Sunk
- Cut - Louvre
- Cut - Mortise
- Cut - Rosette
- RC - Round Corner
- Adhesive - Tape Mounted
Manufacturer Resources
Product Specs
- Series:
- K0050
- ADA Compliant:
- Yes
- Product Group:
- Door Trim and Accessories
- Product Subgroup:
- Mop Plate , Door Armor and Protection Plates
- Product Type:
- Kick Plate
- Subcategory:
- Kick Plate, Door Armor and Protection Plates
- Commercial/Residential:
- Commercial
- Product Substrate:
- Stainless Steel
- Product Category:
- Door Trim and Accessories
- Department:
- Door Hardware
Trimco K0050-34X34-628-CSK – Frequently Asked Questions
1) What does the C option mean on a Trimco K0050 kick plate, and do screws come with it?
The C designation is countersinking. On the K0050 kick plate the mounting holes are drilled and countersunk at the factory so flat or oval head screws sit flush with the face of the plate, which is what you want on a push side where a carts or a mop can catch a proud screw head. Screw type is an order option: TEK screws or TORX screws. If you are fastening into a hollow metal door with no prepped holes, TEK screws are the self-drilling choice; TORX gives you a tamper-resistant drive in a public corridor.
2) Do I need a kick plate, a mop plate, or an armor plate?
Height is what separates them in Trimco's K line. Mop plates (KM series) are 6 inches high or less and take the bucket and mop damage at the very bottom of the door. Kick plates like the K0050 run 7 to 16 inches high and take the foot and cart traffic on the push side. Armor plates (KA series) run 17 to 48 inches and are for doors taking real abuse, gurneys, hand trucks, loading traffic. If you are protecting a door up to the lock rail, that is armor plate territory, not a kick plate.
3) How thick is the metal on a Trimco K0050 kick plate?
The K0050 is .050 inch material. That is Trimco's standard heavy duty gauge for protection plates. Within the same K family, .038 inch is the lighter option (K0038) and .125 inch is the heaviest (K0125), all in the same 7 to 16 inch high kick plate range. For an office corridor or a retail entry, .050 is the usual pick; for a receiving door or a kitchen door taking cart impact, step up to .125.
4) Is a Trimco K0050 kick plate stainless steel or can I get it in brass or bronze?
The K0050 as stocked is stainless steel. Trimco makes the K protection plate line in stainless steel, brass, bronze and aluminum, and the finish choices offered here are 613 Oil Rubbed Bronze, 622 Matte Black, 628 Clear Anodize and 630 Satin Stainless Steel. If you are matching existing satin stainless lever trim and push plates in an office building, 630 is the match. 622 Matte Black is the one to pair with black hardware packages.
5) Can I install a Trimco kick plate without drilling the door?
Adhesive tape mounting is offered as an option on the K protection plate line, which is the route when you cannot drill, for example a fire rated door where the owner will not accept new penetrations, or an aluminum storefront leaf. Screw mounting through countersunk holes is the stronger fix and is what holds up on a door taking cart impact. Tape mounted plates are best on lower traffic doors and clean, flat, fully cured surfaces.
6) Are Trimco K0050 kick plates ADA compliant for a school or healthcare corridor?
Yes, the K0050 is listed ADA compliant, and it is a commercial grade plate. Trimco calls out K-12 schools, hospitality, office, retail and commercial and industrial buildings as applications for the K protection plate line. For a facility standardizing across many openings, the practical move is picking one finish and one height, 630 satin stainless at 8x34 for 36 inch leaves, and repeating it building wide.
7) What is the difference between the standard pencil bevel and the heavy bevel option on a Trimco kick plate?
Pencil bevel on all four edges is standard on the K plates, a light radius that takes the sharpness off the edge. Heavy bevel (HB) is a wider bevel option, and it is what Trimco puts on its stretcher plates as standard along with countersinking. The heavy bevel is the choice where hands or carts run along the edge of the plate, or where you want the transition to the door face less abrupt.
8) Is there a Trimco kick plate that fits a door taller than a standard 34 or 36 inch leaf?
Width options on the K0050 run from 4 inches up to 34 inches in the second dimension, with pairings including 10x40, 8x40, 8x38 and 34x34. Beyond what is offered, Trimco makes custom sizes, shapes and cutouts on the K protection plate line, so an odd leaf width or a nonstandard opening is a custom plate rather than a stock one.
