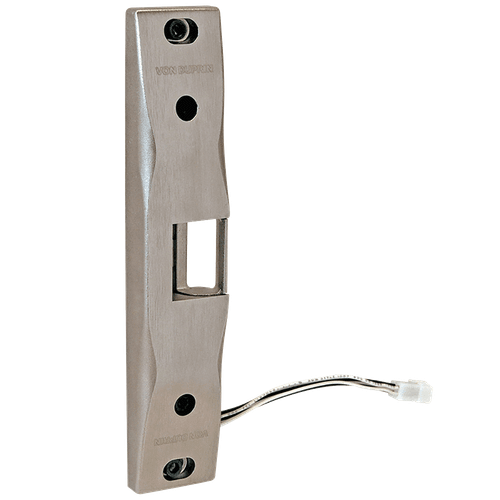

Von Duprin 6300 Surface Mounted Electric Strike for Rim Exit Devices
Model: VON-6300
6300 SeriesThe 6300 Series electric door strike is designed for installation speed and convenience. It can be used with most Rim Exit Devices as a no-cut solution for storefronts and other...
Von Duprin
Starting at
$1,150.00
$604.00
HES 9500 Electric Strikes for Rim Exit Devices, Surface Mounted
Model: HES-9500
HES 9500 Electric Strike, Surface Mounted
Works with rim exit devices up to 3/4" throw Pullman latchbolt
The durable, fire rated surface mounted solution.
The HES 9500 Series Electric Strike is a...
HES
Starting at
$755.37
$433.24
HES 9800 Surface Mounted Electric Strike with Starwheel and Interlocking Rim Exit Devices
Model: HES-9800
HES 9800 SURFACE MOUNTED ELECTRIC STRIKE
Works with Adams Rite® Starwheeland Interlocking rim exit devices
The HES 9800 Series is a low-profile, surface mounted electric strike designed to...
HES
Starting at
$771.72
$461.47
Enhanced 4850 Electric Strike
- 1/2" Surface mounted electric strike for Rim Panic Devices.
- The most flexible electric strike for use with surface mounted rim exit devices with up to 1” (6 different thicknesses altogether).
Enhanced 4850 Features:
- 1/2” thick Surface Mount electric strike comes with 1/4” and two (2) 1/16” Spacers plates -- the most versatile rim panic strike provides the flexibility of 6 different sizes!
- The electric strike Cavity is completely open -- which means the 4850 allows for an incremental depth up to a 1" throw -- competitor backplates do not allow for this versatility.
- Comes with Trines Patented 6-Pin Anchoring System
- Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.
- Fail-safe/Fail-secure (field selectable).
- Grade 1 Electric Strike -- 1,000,000+ Life cycles -- 1,500+ lbs. Holding Force
- No cutting or worrying about voltage means you are always prepared.
- Everyday Low Current Draw
- For a fire rated rim panic strike use the 4800F
Enhanced 4850 Electrical Characteristics: (DC Only)
| Voltage | Amps | Wire Color | Duty | Sound |
|---|---|---|---|---|
| 12DC | 0.218 | Red & Blue | Intm./Cont. | Silent |
| 16DC | 0.290 | Red & Blue | Intm./Cont. | Silent |
| 24DC | 0.195 | Brown & Blue | Intm./Cont. | Silent |
Downloadable content:
Manufacturer Resources
Product Specs
- Series:
- 4850
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Electric Strikes
- Product Type:
- Electric Strikes for Rim Exit Devices
- Subcategory:
- Electric Strikes
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Outdoor Rated:
- No
- Lock Type:
- Exit Device
- Fail-Safe/Fail-Secure:
- Fail-Secure
- Product Voltage:
- 12/24 VAC/DC
- Face Plate:
- 9"
- Fire Rating:
- No
- Product Category:
- Electronic Access Controls
Trine 4850-32D – Frequently Asked Questions
1) What doors and panic devices work with the Trine 4850 electric strike?
The 4850 is designed for rim panic exit devices on hollow metal doors. It works with most standard rim exit devices that have a 1/2" latch projection. Verify your exit device latch dimensions before ordering.
2) Is this strike suitable for high-security applications?
The 4850 is built for commercial duty applications. For high-security needs, verify the strike meets your facility's security requirements and consider pairing with appropriate access control systems.
3) What voltage does the Trine 4850 require?
Standard Trine electric strikes typically operate on 12VDC or 24VDC. Check the product specifications or label for your specific voltage requirements. Always use a properly rated power supply.
4) How is this strike mounted to the door frame?
The 4850 surface mounts directly to the door frame face. Use the provided template for proper positioning. Secure with appropriate fasteners for your frame material. No mortising required.
5) Can this strike be field-reversed for different door handing?
Most Trine strikes have specific handing. Verify if your application requires right-hand or left-hand configuration when ordering. Some models offer field-reversible keepers.
6) What finish options are available for the 4850?
Trine strikes typically come in satin chrome, dark bronze, or other standard finishes. Match the finish to your existing door hardware for a professional appearance.
7) Does this strike meet fire door requirements?
Check the product listing for UL fire rating information. Fire door applications require properly listed hardware. Verify all components meet local fire code requirements.
8) What tools are needed for installation?
Basic installation requires a drill, appropriate drill bits, screwdriver, level, and measuring tape. Low-voltage wiring tools may be needed for electrical connections. Follow manufacturer installation instructions.
9) How do I adjust the strike if the door doesn't latch properly?
Check keeper alignment with the exit device latch. Minor adjustments can often be made by loosening mounting screws and repositioning. Ensure proper latch projection and door alignment.
10) Are replacement parts available for the 4850?
Trine typically offers replacement keepers, faceplates, and other components. Contact the manufacturer or check with your supplier for specific part availability and numbers.
11) What similar Trine models should I consider?
Other Trine rim strike models may offer different features or mounting options. Browse our Trine products or electric strikes category for alternatives.
12) Will this work in outdoor or high-moisture environments?
Check the product specifications for environmental ratings. Outdoor installations may require weatherproof housings or strikes specifically rated for exterior use. Protect electrical connections from moisture.
