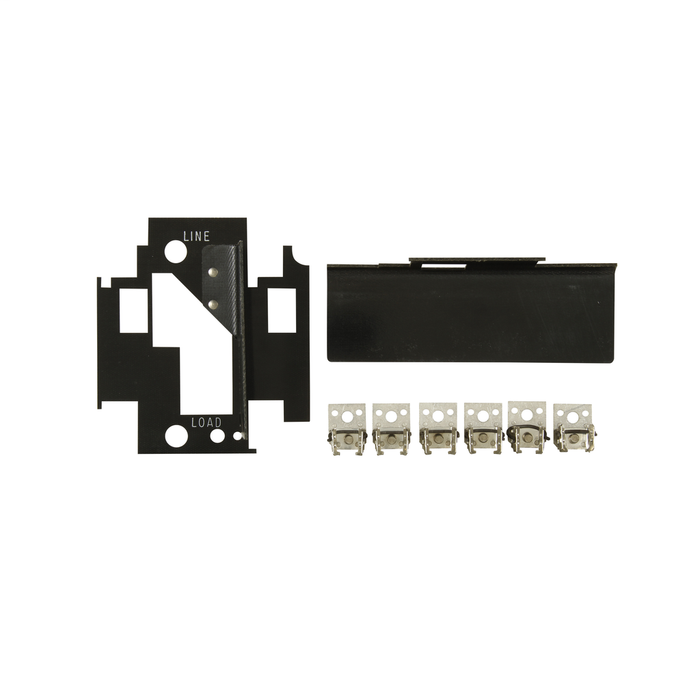

Eaton Visi-Flex Disconnect Switch Fuse Clip Kit, 30A/600V
The Eaton Visi-Flex Disconnect Switch Fuse Clip Kit is a replacement component engineered for Visi-Flex DE-ION disconnect switches, providing a fuse clip rating of 30A at 600 Vac and accepting Class K or H fuses. This kit includes the fuse clips and Micarta barriers needed to restore or upgrade the fuse-holding provisions of a Visi-Flex switch, and it is compatible with Model A or T trip configurations. Electrical contractors and maintenance teams rely on this Eaton kit to keep Visi-Flex disconnect switches operating safely and to code.
Key Features
- Fuse Class Provision: Accepts Class K or H fuses for flexible overcurrent protection selection.
- Fuse Clip Rating: Rated 30A at 600 Vac for reliable, code-compliant fuse retention.
- Non-Rejection Fuse Compatibility: Will also accept non-rejection type current limiting fuses, expanding fuse options for the installation.
- Included Components: Kit includes fuse clips and Micarta barriers for complete, ready-to-install replacement hardware.
- Type: Fuse clip kit designed as a direct component for Visi-Flex disconnect switch assemblies.
- Used With: Purpose-built for Visi-Flex DE-ION disconnect switches.
- Trip Type Compatibility: Compatible with Model A or T trip disconnect switch configurations.
Technical Specifications
- Fuse Class Provision: Class K or H fuses
- Fuse Clip Rating: 30A at 600 Vac
- Type: Fuse clip kit
- Used With: Visi-Flex DE-ION disconnect switches
- Trip Type: Model A or T trip
- Notes: Includes fuse clips and Micarta barriers; will also accept non-rejection type current limiting fuses.
Typical Applications
- Commercial and Industrial Electrical Distribution Equipment
- Visi-Flex DE-ION Disconnect Switch Maintenance and Retrofit
- Fuse Holder Replacement in Existing Disconnect Switches
- Motor Control Centers and Power Distribution Assemblies
- Panelboard and Switchgear Fuse Provisioning
Why Eaton?
Eaton engineers the Visi-Flex fuse clip kit with Micarta barriers and a 30A at 600 Vac fuse clip rating to deliver dependable, code-compliant overcurrent protection for Visi-Flex DE-ION disconnect switches. Compatibility with Class K or H fuses, non-rejection type current limiting fuses, and Model A or T trip configurations gives electrical professionals a flexible, dependable replacement component for keeping critical disconnect switch equipment in reliable working order.
Manufacturer Resources
Spec Sheet
Product Specs
- Fuse Class Provision:
- Class K or H fuses
- Fuse Clip Rating:
- 30A at 600 Vac
- Product Type:
- Fuse Clip
- Used With:
- Visi-Flex DE-ION disconnect switches
- Trip Type:
- Model A or T trip
- Department:
- Electrical
- Voltage Rating:
- 600V
- Amperage Rating:
- 30A
- Series:
- Visi-Flex
- Product Group:
- Circuit Protection
- Product Subgroup:
- Fuse Holders & Blocks
- Product Weight:
- 0.85 lb
- Product Height:
- 3.7 in
- Product Width:
- 6 in
- Product Length:
- 7.5 in
Eaton 313C590G10 – Frequently Asked Questions
1) What switches does the Eaton Visi-Flex fuse clip kit 313C590G10 fit?
It is built for Eaton Visi-Flex DE-ION disconnect switches, and it works with either Model A or Model T trip configurations. The orderable part number is 313C590G10. It is a component kit, not a standalone fuse holder, so it only goes into a Visi-Flex switch assembly.
2) My Visi-Flex disconnect has burned or loose fuse clips. Is this the right repair part?
That is exactly what this kit is for. It restores the fuse-holding provisions of a Visi-Flex DE-ION switch with new clips and Micarta barriers, so the switch can go back into service rather than being replaced whole. Match the switch rating first: these clips are 30A at 600 Vac, so a 60A or 100A Visi-Flex switch needs a different kit.
3) Can I use this 30A fuse clip kit on a 480V or 600V industrial system?
Yes on both counts. The clip rating is 30A at 600 Vac, so any system at or below 600 volts is within rating, including 480V three-phase distribution. The 30 amp limit is the one that usually catches people out, not the voltage.
4) Where do fuse clip kits like this get used in a facility?
Typical spots are motor control centers, power distribution assemblies, panelboards and switchgear where Visi-Flex DE-ION disconnect switches provide the fused disconnecting means. Maintenance and retrofit work on existing switches is the main call for it rather than new construction.
