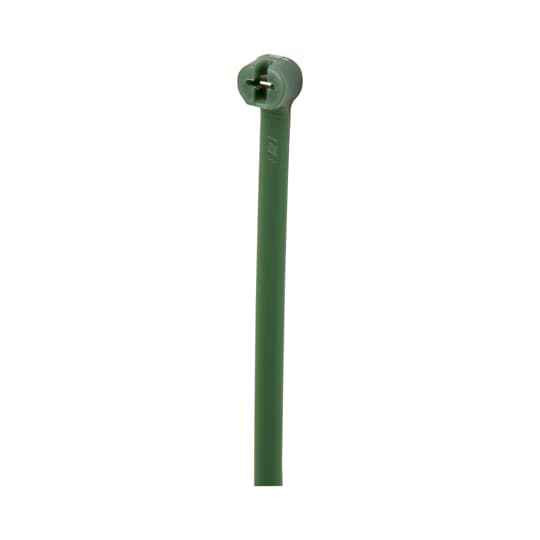

Ty-Rap Heat-Reactive Cable Ties

Ty-Rap Heat-Reactive Cable Ties with Stainless Steel Barb - 30 lb Tensile Strength

(No reviews yet) Write a Review

Model: TY-TYHR525M-5

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,000.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Ty-Rap Heat-Reactive Cable Ties with Stainless Steel Barb - 30 lb Tensile Strength

Professional Heat-Reactive Cable Management Solution

Ty-Rap heat-reactive cable ties deliver reliable cable management with advanced thermal response technology. These professional-grade plastic cable ties feature a stainless steel barb locking mechanism and 30 lb tensile strength for secure bundling applications. The heat-reactive design provides enhanced performance in temperature-sensitive environments with 0.05 inch thickness for versatile installation requirements.

Professional Features & Benefits

  • 30 lb Tensile Strength: Provides secure holding power for demanding cable management applications requiring reliable bundle integrity.
  • Heat-Reactive Technology: Responds to temperature changes for enhanced performance in thermal cycling environments and temperature-sensitive installations.
  • Stainless Steel Barb Lock: Delivers corrosion-resistant locking mechanism for long-term reliability and secure cable retention.
  • 0.05 Inch Thickness: Offers optimal balance of strength and flexibility for various cable bundle sizes and installation configurations.
  • Green Color Coding: Enables easy identification and organization in complex wiring systems and maintenance applications.
  • HB Flammability Rating: Meets UL94 HB standards for appropriate fire safety performance in electrical applications.

Technical Specifications

  • Brand Label: Ty-Rap
  • Effective Date: 20190109
  • Flammability According To Ul94: HB
  • Idea Granular Category Code Igcc: 5034 >> Cable ties
  • Lock Type: Stainless Steel Barb
  • Product Color: Green
  • Product Name: PLASTIC CABLE TIE
  • Product Type: Heat Reactive
  • Tensile Strength: 30 lb133 N
  • Thickness: 0.05 in1.3 mm
  • Department: Elecrtical

Professional Applications

  • Electrical Panel Organization
  • Industrial Cable Management
  • Commercial Wiring Systems
  • Temperature-Sensitive Installations
  • Maintenance and Service Applications
  • Color-Coded System Identification
  • Professional Electrical Contracting

Why Choose Ty-Rap Quality?

Ty-Rap cable ties provide proven reliability with professional-grade materials and engineering. The heat-reactive technology and stainless steel barb construction ensure long-term performance in demanding electrical applications, backed by UL94 HB flammability compliance for appropriate safety standards.

Manufacturer Resources

Product Specs

Brand Label:
Ty-Rap
Effective Date:
20190109
Flammability According To Ul94:
HB
Idea Granular Category Code Igcc:
5034 >> Cable ties
Lock Type:
Stainless Steel Barb
Product Color:
Green
Product Name:
PLASTIC CABLE TIE
Product Type:
Heat Reactive
Tensile Strength:
30 lb133 N
Thickness:
0.05 in1.3 mm
Department:
Electrical

Ty-Rap TY-TYHR525M-5 – Frequently Asked Questions

1) What lengths do the Ty-Rap TYHR heat-reactive cable ties come in?
Three lengths: 185mm (TYHR525M-5), 342mm (TYHR527M-5) and 360mm (TYHR528M-5). All three share the same 30 lb tensile rating and stainless steel barb, so pick the length by bundle circumference, not by strength.
2) How much load will a 30 lb cable tie actually hold?
The Ty-Rap TYHR ties are rated at 30 lb (133 N) minimum loop tensile strength. That is a light-to-medium duty rating, fine for bundling control wiring, branch-circuit conductors and data cable in a panel. For heavy feeder bundles or anything carrying weight vertically, step up to a higher tensile tie.
3) Why a stainless steel barb instead of an all-plastic pawl on a cable tie?
The metal barb bites into the strap rather than relying on a molded plastic ratchet, so it holds grip as the nylon relaxes with heat and age, and the stainless itself resists corrosion. On the Ty-Rap TYHR ties the lock type is a stainless steel barb, which is the reason these survive thermal cycling in panels and outdoor enclosures better than a plastic-pawl tie.
4) Are heat-reactive cable ties the right choice for an installation that sees temperature swings?
That is the case they are built for. The Ty-Rap heat-reactive construction is intended for thermal cycling and temperature-sensitive installations, and the stainless barb keeps the loop locked as the nylon expands and contracts rather than slipping a ratchet tooth. For a static indoor bundle at room temperature, a standard tie does the same job.
5) What does the green color on these cable ties mean, and can I get other colors?
Ty-Rap TYHR ties in this range are green only. Contractors use green for ground conductors or as a plant-specific circuit code, so if you are color-coding a system keep the green assigned to one function and order a different color family for the rest.
