Ty-Rap High Colored Performance Fluoropolymer Cable Ties — ETFE

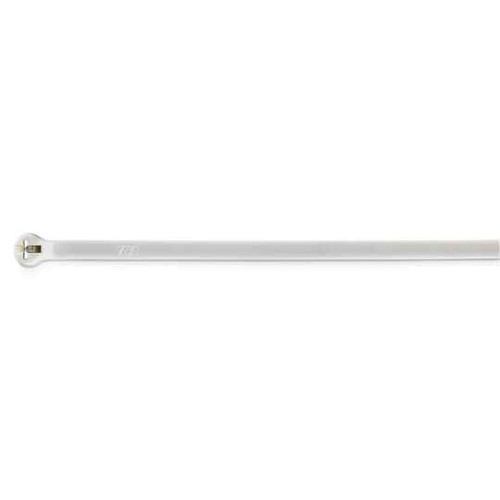

Ty-Rap High Performance ETFE Fluoropolymer Cable Ties 185.67mm Radiation Resistant

(No reviews yet) Write a Review

Model: TY-TYZ27M

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4,157.14
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Ty-Rap High Performance ETFE Fluoropolymer Cable Ties 185.67mm Radiation Resistant

Professional Grade Radiation Resistant Cable Management Solution

Ty-Rap high performance ETFE fluoropolymer cable ties deliver exceptional reliability for demanding applications requiring radiation resistance and extreme temperature performance. These professional-grade cable ties feature stainless steel barb locking mechanism and operate reliably from -46°C to +150°C, making them ideal for harsh environment cable management where standard ties cannot perform.

Professional Features & Benefits

  • Radiation Resistant ETFE Material: Provides superior performance in high-radiation environments where standard materials fail
  • Extreme Temperature Range (-46°C to +150°C): Maintains reliable performance across wide temperature variations for versatile applications
  • Stainless Steel Barb Lock: Delivers secure 222N minimum holding force for dependable long-term cable retention
  • 45mm Maximum Bundle Diameter: Accommodates large cable bundles for comprehensive wire management solutions
  • UL Listed (E49405): Meets rigorous safety standards for professional electrical installations
  • V-0 Flammability Rating: Provides enhanced fire safety performance for critical applications
  • 4.14mm Band Width: Optimized width provides secure grip without cable damage

Technical Specifications

  • Band Closure: Steel nose
  • Band Width: 4.14mm
  • Brand Label: Ty-Rap
  • Brand Name: Ty-Rap
  • Etim: EC000046 Cable tie
  • Flammability According To Ul94: V-0
  • Halogen Free: N
  • Idea Granular Category Code Igcc: 5034 >> Cable ties
  • Igcc: 5037 Cable Ties & Wraps
  • Inner Dimensions Inches: 11.3x8.8x5.1
  • Inner Quantity: 1000
  • Length Belt Tape Tie: 185.67mm
  • Lock Mechanism: Stainless Steel Barb
  • Lock Type: Stainless Steel Barb
  • Material Quality: Other
  • Max Bundle Diameter: 45mm
  • Mil Approval: N
  • Min Holding Force: 222N
  • Operating Temperature: -46-+150°C
  • Outer Dimensions Inches: 20x11.95x9.9
  • Outer Quantity: 5000
  • Product Color: Other
  • Product Details: Radiation Resistant
  • Product Length: 7.31 in ; 185.67 mm
  • Product Model: Internal toothing
  • Product Name: NYLON CABLE TIES AND ACCESSORIES
  • Product Type: Radiation Resistant
  • Product Width: 0.163 in ; 4.14 mm
  • Reflective Fluorescent: N
  • Rohs Date: 9AKK107991A8362
  • Solvable Fastener: N
  • Standard: UL E49405
  • Surface Protection: Untreated
  • Text Strip: None
  • Tie Thickness: 1.57mm
  • Transparent: N
  • Ul Approval: Y
  • Unspsc: 39121703 Cable ties
  • Uv Stable Acc Astm D6779: N
  • Vg Approval: N
  • Weight Uom: 4.38 lbs. per 1000
  • Department: Elecrtical

Professional Applications

  • Nuclear Facilities and Radiation Environments
  • Aerospace and Defense Applications
  • Medical Equipment and Imaging Systems
  • Industrial Process Control Systems
  • High-Temperature Manufacturing Environments
  • Research Laboratory Installations
  • Critical Infrastructure Cable Management

Why Choose Ty-Rap Quality?

Ty-Rap delivers proven reliability with UL listed performance and V-0 flammability rating for professional installations. The stainless steel barb locking mechanism and ETFE fluoropolymer construction ensure dependable service in the most demanding environments where radiation resistance and extreme temperature performance are essential.

Manufacturer Resources

Spec Sheet

Product Specs

Band Closure:
Steel nose
Band Width:
4.14mm
Brand Label:
Ty-Rap
Brand Name:
Ty-Rap
Etim:
EC000046 Cable tie
Flammability According To Ul94:
V-0
Halogen Free:
N
Idea Granular Category Code Igcc:
5034 >> Cable ties
Igcc:
5037 Cable Ties & Wraps
Inner Dimensions Inches:
11.3x8.8x5.1
Inner Quantity:
1000
Length Belt Tape Tie:
185.67mm
Lock Mechanism:
Stainless Steel Barb
Lock Type:
Stainless Steel Barb
Material Quality:
Other
Max Bundle Diameter:
45mm
Mil Approval:
N
Min Holding Force:
222N
Operating Temperature:
-46-+150°C
Outer Dimensions Inches:
20x11.95x9.9
Outer Quantity:
5000
Product Color:
Other
Product Details:
Radiation Resistant
Product Length:
7.31 in ; 185.67 mm
Product Model:
Internal toothing
Product Name:
NYLON CABLE TIES AND ACCESSORIES
Product Type:
Radiation Resistant
Product Width:
0.163 in ; 4.14 mm
Reflective Fluorescent:
N
Rohs Date:
9AKK107991A8362
Solvable Fastener:
N
Standards:
UL E49405
Surface Protection:
Untreated
Tie Thickness:
1.57mm
Transparent:
N
Ul Approval:
Y
Unspsc:
39121703 Cable ties
Uv Stable Acc Astm D6779:
N
Vg Approval:
N
Weight Uom:
4.38 lbs. per 1000
Department:
Electrical
Product Material:
Fluoropolymer ETFE

Ty-Rap TY-TYZ27M – Frequently Asked Questions

1) What temperature range can these ETFE cable ties handle?
Rated -46 C to +150 C, which is why they get specified around steam lines, process equipment, and high-temperature manufacturing where a standard nylon tie goes brittle or relaxes. The locking barb is stainless steel, so the mechanism itself doesn't soften at the top of that range.
2) What lengths and pack sizes do these Ty-Rap ETFE ties come in?
Four lengths, 3.6, 7.3, 13.4 and 14.8 inches, each in Bulk Pack or Standard Pack. Bulk part numbers run TYZ23M, TYZ25M, TYZ27M and TYZ28M; the standard-pack equivalents are TYZ523M, TYZ525M, TYZ527M and TYZ528M. Order by the part number, not the length alone, so you get the pack configuration you expect.
3) Can these ties be released and reused after installation?
No, they are not a releasable fastener. The stainless steel barb engages the internal toothing on the band one way, so removal means cutting the tie off. Plan on replacements for anything you expect to open up regularly.
4) Why pick an ETFE fluoropolymer tie over a standard nylon 6/6 cable tie?
Two reasons: radiation and heat. The ETFE construction is specified for radiation-resistant duty, nuclear plants, imaging and research labs, and holds to +150 C. Standard nylon ties are cheaper and UV-stable in the black weather-resistant version, so for ordinary indoor or exterior electrical work they're the better buy. Go to ETFE only when the environment actually demands it.
5) How many ties per carton, and what do they weigh for freight?
Inner quantity is 1000 pieces and outer quantity is 5000. Weight runs 4.38 lbs per 1000 ties. Inner carton measures 11.3 x 8.8 x 5.1 inches and the outer 20 x 11.95 x 9.9 inches, useful if you're planning stockroom shelf space for a standardized MRO item.
