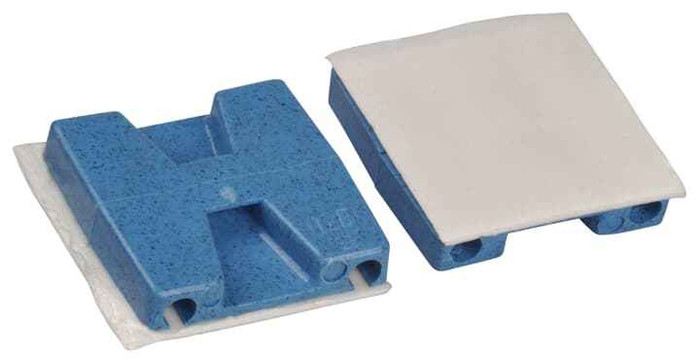

Ty-Rap TC Detectable Low Profile Plates

Ty-Rap TC Detectable Low Profile Cable Tie Mounting Plates - 4-Way Self-Adhesive with Metal Detection

(No reviews yet) Write a Review

Model: TY-TC342A-NDT

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,000.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Ty-Rap TC Detectable Low Profile Cable Tie Mounting Plates

Professional detectable mounting solution for secure cable management

Ty-Rap TC Detectable Low Profile Mounting Plates provide reliable cable tie attachment points with advanced metal and X-ray detection capabilities. These blue self-adhesive mounting bases feature 4-way configuration and 28.58mm dimensions, designed for professional cable management applications requiring detectable components. The low profile design ensures secure mounting while maintaining compatibility with 4.8mm cable tie widths.

Professional Features & Benefits

  • Metal & X-ray Detectable: Special detectable material enables location with standard detection equipment for enhanced safety and compliance in food processing and pharmaceutical environments.
  • Self-Adhesive Mounting: Convenient adhesive backing provides quick installation without drilling or mechanical fasteners, reducing installation time and labor costs.
  • 4-Way Configuration: Multiple entrance points offer versatile cable routing options and secure tie attachment from different directions.
  • Low Profile Design: 6.35mm height minimizes space requirements while providing robust mounting platform for cable management systems.
  • Temperature Rated Performance: -32 to +150 °F operating range ensures reliable performance across diverse environmental conditions.
  • Precision Dimensions: 28.58mm length and width provide optimal compatibility with standard cable tie systems and mounting requirements.
  • Professional Blue Color: High-visibility blue finish aids in identification and compliance with color-coding requirements in industrial applications.

Technical Specifications

  • Brand Label: Ty-Rap
  • Brand Name: Ty-Rap
  • Effective Date: 20120920
  • Etim: EC000449 Mounting base and -element for cable ties
  • Idea Granular Category Code Igcc: 5065 >> Cable tie mounts
  • Igcc: 5065 Cable tie mounts
  • Inner Dimensions Inches: 13x12x7
  • Inner Quantity: 1000
  • Material Quality: Other
  • Mounting Method: Self-Adhesive
  • Mounting Type: Self-Adhesive
  • Number Of Entrances: 4
  • Outer Dimensions Inches: 15.37x15.5x12.37
  • Outer Quantity: 5000
  • Process Temperature Rating: -32 to +150 °F
  • Product Color: Blue
  • Product Details: 2-Way
  • Product Height: 6.35mm
  • Product Length: 28.58mm
  • Product Type: Mounting Base
  • Product Width: 28.58mm
  • Special Features: Detectable with metal and X-ray detection equipment.
  • Special Functions: Detectable with metal and X-ray detection equipment.
  • Suitable For Cable Tie Width To: 4.8mm
  • Type Of Fastening: Self-adhesive
  • Unspsc: 39121717 Cable tie mounts
  • Weight Uom: 1.1 lbs. per 100
  • Department: Elecrtical

Professional Applications

  • Food Processing Facilities requiring detectable components
  • Pharmaceutical Manufacturing environments
  • Clean Room cable management systems
  • Industrial control panel organization
  • Equipment rack cable routing
  • Machinery wiring harness attachment
  • Process control system installations

Why Choose Ty-Rap Quality?

Ty-Rap delivers proven reliability in cable management solutions with professional-grade materials and precision manufacturing. The detectable feature set and temperature rating ensure dependable performance in demanding industrial environments where component traceability and safety compliance are essential.

Manufacturer Resources

Spec Sheet

Product Specs

Brand Label:
Ty-Rap
Brand Name:
Ty-Rap
Effective Date:
20120920
Etim:
EC000449 Mounting base and -element for cable ties
Idea Granular Category Code Igcc:
5065 >> Cable tie mounts
Igcc:
5065 Cable tie mounts
Inner Dimensions Inches:
13x12x7
Inner Quantity:
1000
Material Quality:
Other
Mounting Method:
Self-Adhesive
Installation Category:
Self-Adhesive
Number Of Entrances:
4
Outer Dimensions Inches:
15.37x15.5x12.37
Outer Quantity:
5000
Process Temperature Rating:
-32 to +150 °F
Product Color:
Blue
Product Details:
2-Way
Product Height:
6.35mm
Product Length:
28.58mm
Product Type:
Mounting Base
Product Width:
28.58mm
Special Features:
Detectable with metal and X-ray detection equipment.
Special Functions:
Detectable with metal and X-ray detection equipment.
Suitable For Cable Tie Width To:
4.8mm
Type Of Fastening:
Self-adhesive
Unspsc:
39121717 Cable tie mounts
Weight Uom:
1.1 lbs. per 100
Department:
Electrical

Ty-Rap TY-TC342A-NDT – Frequently Asked Questions

1) Why would I use a detectable blue cable tie mount instead of a standard nylon one?
Detectability. The TC base is made to be found with metal and X-ray detection equipment, which is what food processing, pharmaceutical and clean room programs require so a broken fragment can be caught before it reaches product. The blue color adds visual contrast against food and equipment. On a control panel or an equipment rack with no contamination program, a standard nylon mount does the same mechanical job.
2) Do I need to drill the panel to install these mounting plates?
No drilling. Fastening is self-adhesive, so the plate sticks to a clean prepared surface with no screw hole and no mechanical fastener. That is the reason to pick it on painted enclosures, stainless machine skins, or anywhere you cannot breach a wash-down surface or a sealed panel.
3) Can I run cable in more than one direction off a single Ty-Rap TC mount?
Yes. The base has four entrances, so you can orient the tie along either axis of the plate and route a bundle through without re-siting the mount. Handy when a harness turns a corner on a machine frame.
4) What temperature range can the Ty-Rap TC detectable mount handle?
Rated -32 to +150 degrees F. That covers unheated plant areas and warm process rooms, but it rules out the mount for oven surfaces, steam lines, or anything running above 150 F, and for blast freezers colder than -32 F.
5) What is the difference between the NDT and PDT versions of the TC detectable mount?
They are two different detectable material formulations of the same plate. The NDT material is offered as TC342A-NDT in 1000-piece quantity and TC5342A-NDT in 100-piece quantity; the PDT material is offered as TC5342A-PDT in 100 pieces. If a facility's contamination control program already specifies one of the two materials, order to match it rather than mixing them on the same line.
6) How are these cable tie mounts packaged, and how much does a carton weigh?
Quantities run 100 pieces or 1000 pieces depending on the part number, with 1000 per inner carton and 5000 per outer. Inner carton measures 13x12x7 inches, outer 15.37x15.5x12.37 inches. Product weight works out to 1.1 lbs per 100 pieces, so a full 5000-piece outer is light freight for its size.
