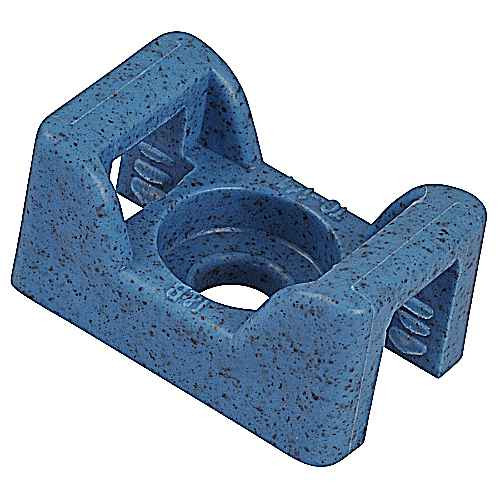

Ty-Rap TC14X Detectable Saddle Support Mounting Bases

Ty-Rap TC14X Detectable Saddle Support Cable Tie Mounting Base with Metal Detection

(No reviews yet) Write a Review

Model: TY-TC5141-PDT

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,000.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Ty-Rap TC14X Detectable Saddle Support Cable Tie Mounting Base with Metal Detection

Professional detectable mounting solution for secure cable management

The Ty-Rap TC14X Detectable Saddle Support Cable Tie Mounting Base delivers reliable cable management with advanced detection capabilities. This blue plastic mounting base features metal and X-ray detection compatibility, making it ideal for applications requiring traceability and contamination prevention. With screw mounting design and temperature rating from -40 to +185°F, this professional-grade base ensures secure cable tie installation across demanding environments.

Professional Features & Benefits

  • Metal & X-ray Detection: Detectable with metal and X-ray detection equipment for enhanced traceability and contamination control in sensitive applications.
  • Wide Temperature Range: -40 to +185°F operating range provides reliable performance in extreme temperature conditions.
  • Precise Mounting: 3.8mm diameter mounting hole with screw fastening ensures secure, permanent installation.
  • Optimized Dimensions: 17.02mm length x 11.1mm width x 8.38mm height provides compact yet robust mounting platform.
  • Cable Tie Compatibility: Suitable for cable ties up to 4.8mm width for versatile bundling applications.
  • Professional Blue Color: High-visibility blue finish aids in identification and system organization.

Technical Specifications

  • Brand Label: Ty-Rap
  • Brand Name: Ty-Rap
  • Diameter Mounting Hole: 3.8mm
  • Effective Date: 20120926
  • Etim: EC000449 Mounting base and -element for cable ties
  • Idea Granular Category Code Igcc: 5065 >> Cable tie mounts
  • Igcc: 5065 Cable tie mounts
  • Inner Dimensions Inches: 8x4x1
  • Inner Quantity: 100
  • Material Quality: Other
  • Mounting Method: Screw
  • Mounting Type: Screw
  • Outer Dimensions Inches: 9.25x9.25x4.75
  • Outer Quantity: 500
  • Process Temperature Rating: -40 to +185 °F
  • Product Color: Blue
  • Product Details: Saddle Support Base
  • Product Height: 8.38mm
  • Product Length: 17.02mm
  • Product Name: PLASTIC MOUNTING BASE
  • Product Type: Saddle Support Base
  • Product Width: 11.1mm
  • Special Features: Detectable with metal and X-ray detection equipment.
  • Special Functions: Detectable with metal and X-ray detection equipment.
  • Suitable For Cable Tie Width To: 4.8mm
  • Type Of Fastening: Other
  • Unspsc: 39121717 Cable tie mounts
  • Weight Uom: 1.25 lbs. per 1000
  • Department: Elecrtical

Professional Applications

  • Food Processing Facilities requiring metal detection compliance
  • Pharmaceutical Manufacturing with contamination control requirements
  • Medical Device Assembly environments
  • Clean Room Cable Management systems
  • Industrial Automation with traceability needs
  • Quality Control Manufacturing processes
  • Laboratory Equipment installations

Why Choose Ty-Rap Quality?

Ty-Rap delivers professional-grade cable management solutions with proven reliability across demanding applications. The TC14X Detectable Saddle Support Base combines robust plastic construction with advanced detection capabilities, ensuring both secure mounting performance and compliance with strict contamination control protocols.

Manufacturer Resources

Spec Sheet

Product Specs

Brand Label:
Ty-Rap
Brand Name:
Ty-Rap
Diameter Mounting Hole:
3.8mm
Effective Date:
20120926
Etim:
EC000449 Mounting base and -element for cable ties
Idea Granular Category Code Igcc:
5065 >> Cable tie mounts
Igcc:
5065 Cable tie mounts
Inner Dimensions Inches:
8x4x1
Inner Quantity:
100
Material Quality:
Other
Mounting Method:
Screw
Installation Category:
Screw
Outer Dimensions Inches:
9.25x9.25x4.75
Outer Quantity:
500
Process Temperature Rating:
-40 to +185 °F
Product Color:
Blue
Product Details:
Saddle Support Base
Product Height:
8.38mm
Product Length:
17.02mm
Product Name:
PLASTIC MOUNTING BASE
Product Type:
Saddle Support Base
Product Width:
11.1mm
Special Features:
Detectable with metal and X-ray detection equipment.
Special Functions:
Detectable with metal and X-ray detection equipment.
Suitable For Cable Tie Width To:
4.8mm
Type Of Fastening:
Other
Unspsc:
39121717 Cable tie mounts
Weight Uom:
1.25 lbs. per 1000
Department:
Electrical

Ty-Rap TY-TC5141-PDT – Frequently Asked Questions

1) What makes the Ty-Rap TC14X saddle mounting base suitable for a food plant with metal detection on the line?
The TC14X saddle support base is detectable with both metal and X-ray detection equipment, and it is molded in blue so a fragment stands out against product. That combination is what food, pharmaceutical and clean room plants require for foreign-object control: if a base or a piece of one goes into the line, the detector catches it and the color makes a visual find easier.
2) What screw size do I need to mount the TC14X base, and does it come with hardware?
Mounting is by screw through a 3.8mm hole, roughly 5/32 inch, so a #6 screw is the usual fit. Fasteners are not part of the base, so order screws (or screws and anchors, depending on the substrate) separately. There is no adhesive pad option here; this is a through-hole screw mount only.
3) Can these detectable bases be used in a washdown area or a freezer?
The process temperature rating runs -40 to +185 degrees F, so cold storage and freezer rooms are within range, as are hot washdown and oven-adjacent zones up to 185 F. Above that, the plastic base is out of spec.
4) What is the difference between the N-type and P-type Ty-Rap TC14X detectable bases?
Both widths, 11.1mm and 14.2mm, are offered in an N-type (NDT) and a P-type (PDT) version: TC5141-NDT and TC5141-PDT in the 11.1mm width, TC5142-NDT and TC5142-PDT in the 14.2mm. The suffix is the base style designation, so order by the exact part number your spec or your existing installation calls out rather than by width alone.
5) Should I use a detectable saddle base or a standard nylon cable tie mount?
Use the detectable TC14X where a dropped or broken piece of plastic would be a contamination event: food processing, pharmaceutical and medical device assembly, clean rooms, and any line with metal detection or X-ray inspection at the end. A standard non-detectable mount is fine for electrical rooms, panels and general industrial runs where nothing passes an inspection head. The detectable version costs you nothing in function, it simply adds the metal and X-ray signature and the blue color.
6) Is the TC14X an adhesive-back mount I can stick to stainless equipment?
No. The TC14X saddle support base is a screw-mount part with a 3.8mm through hole and no adhesive backing, so the surface has to be drilled and tapped or take a self-tapping screw. On stainless equipment where drilling is not allowed, you need a different mount style, an adhesive-backed detectable base.
7) How are Ty-Rap TC14X detectable bases packaged for a large plant job?
Two pack sizes cover it: 100-piece standard packs and 500-piece bulk packs, in both the 11.1mm and 14.2mm widths. The inner carton holds 100 and the outer holds 500, so a single outer carton covers a 500-point run without splitting orders. Part numbers to specify include TC141-NDT (100 pc, 11.1mm) and TC142-NDT (500 pc, 14.2mm).
