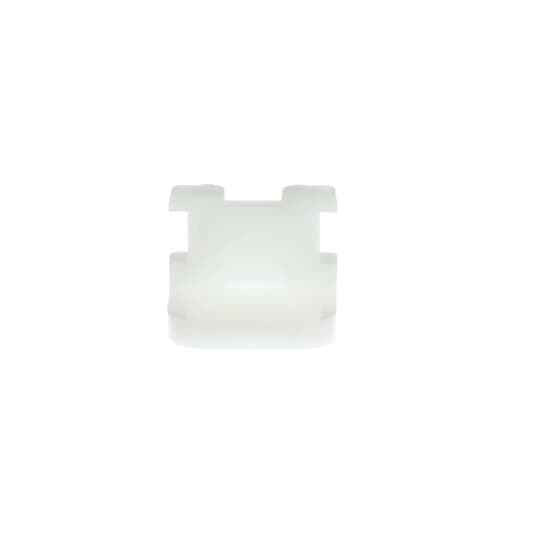

Ty-Rap Screw-Mounted Cable Tie Support Base

Professional Right-Angle Bundle Support for Secure Cable Management

The Ty-Rap Screw-Mounted Cable Tie Support Base delivers reliable right-angle bundle support for professional cable management applications. Constructed from durable Nylon/Polyamide 6.6 material in natural color, this screw-mounted base provides secure attachment through #4 mounting holes and operates effectively across a wide temperature range of -40 to +185 °F for versatile installation environments.

Professional Features & Benefits

  • Right-Angle Bundle Support Design: Provides optimal cable routing and organization at 90-degree angles for clean, professional installations.
  • Screw-Mounted Installation: Secure attachment method with #4 mounting holes ensures reliable fastening to bulkheads, walls, and mounting surfaces.
  • Wide Temperature Rating: -40 to +185 °F operating range enables use in diverse environmental conditions from cold storage to heated equipment areas.
  • Durable Nylon Construction: Nylon/Polyamide 6.6 material provides excellent strength, chemical resistance, and long-term durability.
  • Military Specification Compliance: Meets Military Specification requirements as a support at holes in bulkheads and walls for demanding applications.
  • Natural Color Finish: Clean, professional appearance that blends with most installation environments.

Technical Specifications

  • Brand Label: Ty-Rap
  • Effective Date: 19680612
  • Idea Granular Category Code Igcc: 5065 >> Cable tie mounts
  • Mounting Holes: #4
  • Mounting Type: Screw
  • Process Temperature Rating: -40 to +185 °F
  • Product Color: Natural
  • Product Material: Nylon/Polyamide 6.6
  • Product Name: TY-RAP FASTENING
  • Product Type: Right-Angle Bundle Support
  • Special Functions: This style meets Military Specification requirements as a support at holes in bulkheads and walls.
  • Department: Elecrtical

Professional Applications

  • Industrial Control Panels and Electrical Enclosures
  • Commercial Building Cable Management Systems
  • Marine and Military Installation Support
  • Telecommunications Equipment Mounting
  • Manufacturing Facility Wire Routing
  • Data Center Cable Organization
  • Aerospace and Defense Applications

Why Choose Ty-Rap Quality?

Ty-Rap cable tie support bases provide proven reliability with durable Nylon/Polyamide 6.6 construction and Military Specification compliance. The wide temperature rating and secure screw-mounting design ensure dependable performance across demanding professional applications.

Manufacturer Resources

Product Specs

Brand Label:
Ty-Rap
Effective Date:
19680612
Idea Granular Category Code Igcc:
5065 >> Cable tie mounts
Mounting Holes:
#4
Installation Category:
Screw
Process Temperature Rating:
-40 to +185 °F
Product Color:
Natural
Product Material:
Nylon/Polyamide 6.6
Product Name:
TY-RAP FASTENING
Product Type:
Right-Angle Bundle Support
Special Functions:
This style meets Military Specification requirements as a support at holes in bulkheads and walls.
Department:
Electrical

Ty-Rap TYRAP-TC-MSB – Frequently Asked Questions

1) What screw size do I need for the Ty-Rap TC106 cable tie mounting base?
The TC106 base takes a #4 screw through its mounting holes. Pick the fastener to suit the substrate (sheet metal screw into a panel, machine screw and nut through a bulkhead), but the hole is sized for #4 hardware, so bring those on the truck before you start the run.
2) Will a nylon cable tie support base hold up in an unheated warehouse or outdoor equipment cabinet?
Rated -40 to +185 degrees F, so cold storage, unconditioned warehouse space and heated equipment areas are all inside the band. The body is Nylon/Polyamide 6.6, which handles that swing without going brittle at the low end. Note the color is natural, not black, so it is not a UV-stabilized part for long-term direct sunlight.
3) Is this Ty-Rap base approved for supporting wire where it passes through a hole in a bulkhead?
Yes. Ty-Rap states this style meets Military Specification requirements as a support at holes in bulkheads and walls, which is why it turns up on marine, defense and aerospace harness work rather than just general panel wiring.
4) Does the Ty-Rap support base come with the cable tie or the mounting screw?
No. It is the base only. You supply the #4 screw and the cable tie that straps the bundle into the support. Order those as separate line items so the crew is not short on the job.
5) Screw-mounted or adhesive cable tie mount, which should I spec?
Go screw-mounted like this Ty-Rap base wherever there is vibration, heat cycling, or a bundle with real weight on it, and wherever you can get a fastener into the surface. Adhesive mounts are for finished surfaces you cannot drill, and they lose grip as temperature climbs. This one is mechanically fastened through #4 holes and rated to +185 degrees F, so the hold does not depend on a bond line.
