Ty-Rap TC101/TC103 Cable Tie Mounting Bases - 5.2mm Hole, #10 Screw Mount, Polyamide PA Construction

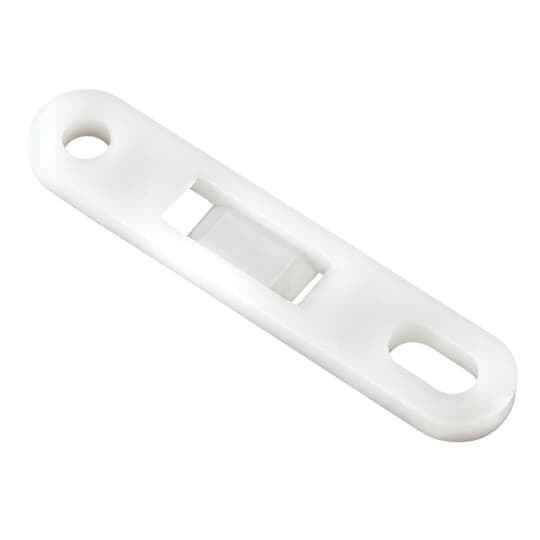

Ty-Rap TC101/TC103 Cable Tie Mounting Bases

Professional Cable Management Mounting Solutions

Ty-Rap TC101/TC103 Cable Tie Mounting Bases deliver reliable cable management solutions with durable polyamide PA construction and #10 screw mounting capability. These professional mounting bases feature 5.2mm diameter mounting holes and accommodate cable ties up to 4.8mm width, providing versatile installation options for organized cable routing and bundle management applications.

Professional Features & Benefits

• 5.2mm Mounting Hole: Provides precise fit with #10 screws for secure and stable mounting in various applications.
• Polyamide PA Material: Delivers excellent durability and chemical resistance for long-lasting performance in demanding environments.
• 4.8mm Cable Tie Compatibility: Accommodates standard cable tie widths for versatile bundle management and organization.
• Temperature Rating -40 to +185°F: Ensures reliable operation across extreme temperature conditions from freezing to high-heat environments.
• Natural Color Finish: Provides clean, professional appearance that blends with most installation environments.
• Single-Bundle Design: Optimized for individual cable bundle management with efficient space utilization.
• Compact 50mm x 12.7mm x 3.2mm Profile: Minimizes installation footprint while maintaining structural integrity and mounting strength.

Technical Specifications

• Brand Label: Ty-Rap
• Brand Name: Ty-Rap
• Diameter Mounting Hole: 5.2mm
• Effective Date: 19680612
• Etim: EC000449 Mounting base and -element for cable ties
• For Maximum Bundle Diameter: 1mm
• Idea Granular Category Code Igcc: 5065 >> Cable tie mounts
• Igcc: 5065 Cable tie mounts
• Inner Quantity: 1000
• Material Quality: Polyamide PA
• Mount Size: #10 Screw
• Mounting Method: Screw
• Mounting Type: Screw
• Outer Dimensions Inches: 18.5x11.1x8.1
• Outer Quantity: 10000
• Process Temperature Rating: -40 to +185 °F
• Product Color: Natural colour
• Product Details: Single-Bundle
• Product Height: 3.2mm
• Product Length: 50mm
• Product Name: TY-RAP FASTENING
• Product Type: Mounting Base
• Product Width: 12.7mm
• Rohs Date: 9AKK107992A8808
• Special Features: These nylon bases provide a mounting range for bundles from 1/4 to 4 inches in diameter. One mounti
• Special Functions: These nylon bases provide a mounting range for bundles from 1/4 to 4 inches in diameter. One mounti
• Suitable For Cable Tie Width To: 4.8mm
• Type Of Fastening: Other
• Unspsc: 39121717 Cable tie mounts
• Weight Uom: 3.13 lbs. per 1000
• Department: Elecrtical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Electrical Panel Cable Management
• Industrial Control Cabinet Organization
• Commercial Building Wire Routing
• Telecommunications Equipment Installations
• Data Center Cable Management Systems
• Manufacturing Facility Wire Organization
• Professional Audio/Video Installations

Why Choose Ty-Rap Quality?

Ty-Rap mounting bases deliver proven reliability with polyamide PA construction and wide temperature rating from -40 to +185°F. The precision-engineered 5.2mm mounting holes and #10 screw compatibility ensure secure installation, while the compact profile and natural color finish provide professional results in demanding cable management applications.
