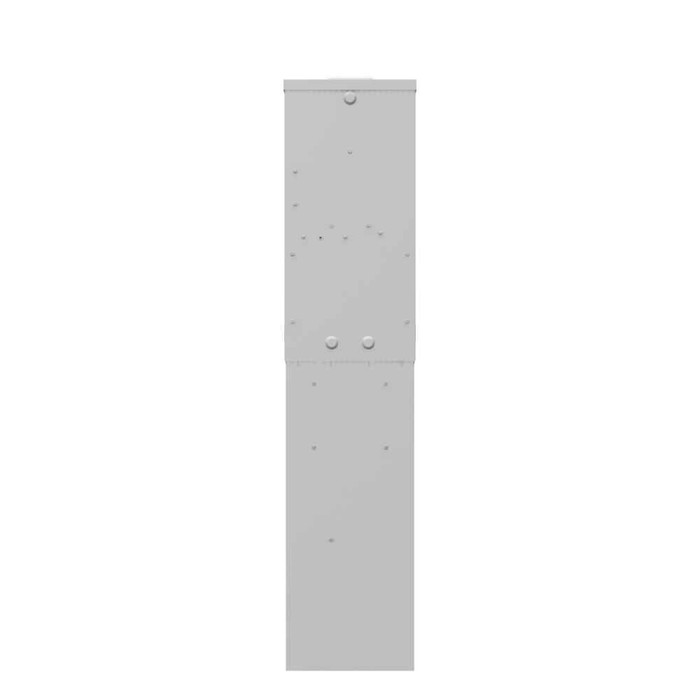

Unmetered Small Closing Plate TT30 1450 520GR Single Pedestal Pad Mount
Manufacturer Resources
Product Specs
- Amperage Rating:
- 100 Continuous Ampere
- Application:
- RV Power
- Brand Name:
- Milbank
- Bypass Provision:
- No Bypass
- Cable Entry:
- Underground
- Equipment Ground:
- 2 Barrel Ground Lug and Ground Bar
- Frequency Rating:
- 60 Hertz
- Height:
- 40.5 IN
- Hub Closing Plate:
- Small Closing Plate
- Insulation:
- Glass Polyester
- Line Side Wire Range:
- 6 AWG - 350 kcmil
- Main Breaker Size:
- One Single Pole 20 Ampere Breaker and One Single Pole 30 Ampere Breaker and One Double Pole 50 Ampere Breaker
- Material:
- G90 Galvanized Steel with Powder Coat Finish
- Mounting:
- Pedestal
- Number Branch Circuits:
- 2
- Number Of Jaws:
- 4 Terminal
- Number Of Main Breakers:
- 3
- Number Of Meter Positions:
- Single Power Head
- Number Of Receptacles:
- 3
- Phase:
- 1 Phase
- Product Family Code:
- RVUM
- Receptacle Configuration:
- One NEMA 14-50 and One NEMA TT30 and One NEMA 5-20 Ground Fault
- Special Features:
- Single Pole 20 Ampere Breaker and Single Pole 30 Ampere Breaker and Double Pole 50 Ampere Breaker
- Standard:
- UL Listed;Type 3R
- Terminal:
- Double Mechanical
- Unspsc Number:
- 39121102
- Voltage Rating:
- Up to 240 Volts Alternating Current
- Width:
- 8.656 IN
- Product Group:
- Power Distribution
- Department:
- Electrical
- Product Subgroup:
- Parts and Accessories
- Product Type:
- Unmetered Power Supply
- Product Size:
- 5.188L x 8.656W x40.5H
- Product Length:
- 5.188 IN
