Greenlee UT10 2-Speed Cable Puller Assembly with Mobile Versi Boom - 10,000 LB Capacity

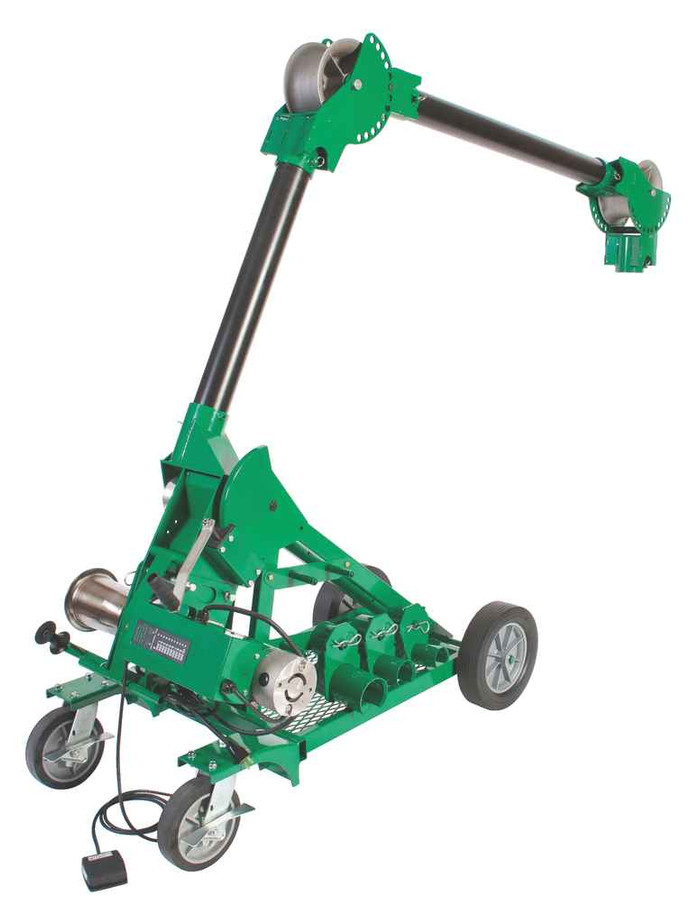

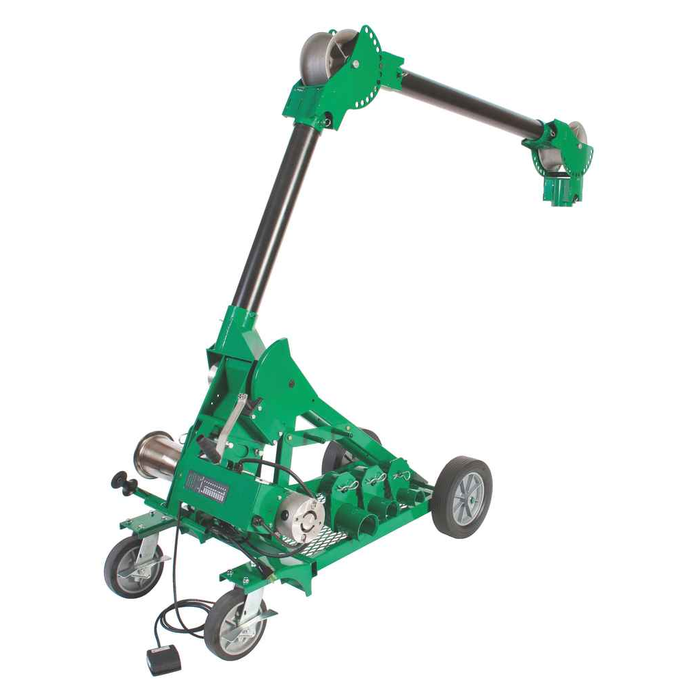

Greenlee UT10 2-Speed Cable Puller Assembly with Mobile Versi Boom

Professional 2-Speed Ultra Tugger for High-Capacity Electrical Cable Installation

The Greenlee UT10 2-Speed Cable Puller Assembly delivers professional-grade performance for electrical cable pulling applications up to 10,000 LB capacity. This versatile puller features dual-speed operation with mobile versi boom mounting, on-board force gauge for visual communication, and rugged motor design specifically engineered for both large and small cable pulling projects. Operating at 115 volts with 20 amp rating, this system provides the fastest pulling times across the widest load range for maximum productivity.

Professional Features & Benefits

• 10,000 LB Maximum Capacity: Handles momentary peak loads up to 10,000 LB with continuous operation ratings from 0-8,000 LB for versatile cable pulling applications.
• 2-Speed Motor Operation: Shifts from high speed/low load to low speed/high load pulling with simple double tap motion on foot pedal control switch for optimal efficiency.
• Mobile Versi Boom Mounting: Provides flexible positioning and mobility for various installation scenarios and job site requirements.
• On-Board Force Gauge: Delivers visual communication of pulling force and speed changes for enhanced control and safety monitoring.
• Dual Speed Performance: High speed operates at 16 FT/MIN (no-load) for loads up to 4,000 LB at 12 FT/MIN, low speed at 9 FT/MIN (no-load) for loads up to 8,000 LB at 6 FT/MIN.
• 115 Volt / 20 Amp Operation: Standard electrical requirements ensure compatibility with common power sources for professional installations.
• USA Manufacturing: Built in the United States with Greenlee quality standards for reliable performance and durability.

Technical Specifications

• Accessory: 00563 Adapter Weldment - 2.000 (UT8), 00565 Adapter Weldment - 3.000 (UT8), 00567 Adapter Weldment
• Amperage Rating: 20 Amp
• Cable Type: Electrical Cable
• Capacity: The no-load low speed is 9 FT/MINT and can be used on loads up to 8000 LB where the speed will be 6
• Country Of Origin: United States
• Load: 0 - 6500.000 LB (0 - 28.900 KN) Continuous Operation, 6500.000 - 8000.000 LB (28.900 - 35.600 KN) 1
• Mounting Method: Mobile versi Boom
• Product Type: Puller Assembly
• Voltage Rating: 115 Volts

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Electrical Installations
• Industrial Cable Pulling Projects
• Residential Multi-Unit Developments
• Utility Infrastructure Work
• Telecommunications Cable Installation
• Data Center Cabling Projects
• Construction Site Electrical Systems

Why Choose Greenlee Quality?

Greenlee delivers professional-grade reliability with USA manufacturing standards and rugged motor design specifically engineered for demanding cable pulling applications. The UT10 system provides the versatility and durability required for professional electrical contractors and installers who demand consistent performance across diverse project requirements.
