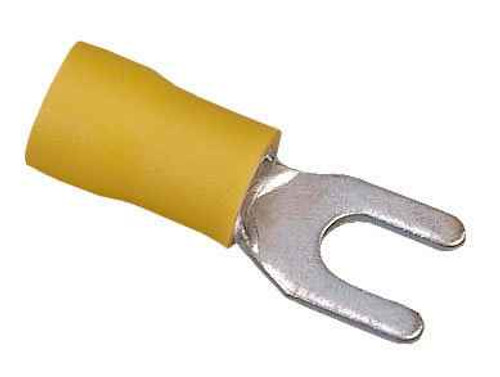

Ideal Industries Vinyl Insulated Spade Terminal 12-10 AWG #10 Stud Tin-Plated Brass Box of 25

Ideal Industries Vinyl Insulated Spade Terminal 12-10 AWG #10 Stud

Professional-Grade Electrical Terminal for Secure Wire Connections

The Ideal Industries Vinyl Insulated Spade Terminal delivers professional-grade electrical connection performance for 12-10 AWG wire applications. This tin-plated brass terminal features internal barrel serrations and expanded insulation entry designed for electricians, electrical contractors, and maintenance professionals, providing the reliable performance and industry-leading quality that electrical professionals demand.

Professional Features & Benefits

Superior Connection Technology

• Internal Barrel Serrations - Grip wires tightly to resist pull-out and reduce electrical resistance for long-lasting connections
• Tin-Plated Brass Construction - Provides excellent corrosion resistance and superior conductivity for reliable electrical performance
• Expanded Insulation Entry - Accommodates wide variety of insulation diameters while providing additional insulation support
• Shouldered Barrel Design - Quickly positions terminal for proper crimping and consistent professional results

Durability & Safety Features

• Butted-Seam Construction - Prevents splitting under maximum pressure for reliable long-term performance
• Vinyl Insulation - Provides electrical isolation and protection against accidental contact
• Professional Grade Materials - Engineered for demanding electrical applications and code compliance

Technical Specifications

Wire Range: 12-10 AWG, Stud Size: #10, Construction: Tin-plated brass with vinyl insulation, Package: Box of 25 terminals, Terminal Type: Spade/fork configuration, Insulation Color: Standard vinyl coating, Connection Method: Crimp termination, Temperature Rating: Standard electrical operating range

Installation & Setup

1. Strip wire to proper length ensuring clean copper exposure for optimal connection
2. Insert stripped wire fully into terminal barrel until insulation meets shouldered entry
3. Position terminal in appropriate crimp tool die for 12-10 AWG wire range
4. Apply firm, consistent pressure to create secure mechanical and electrical connection
5. Verify proper crimp by gently tugging wire to ensure no pull-out occurs
6. Install spade terminal onto #10 stud with appropriate torque specifications

Professional Applications

Ideal for:

• Electrical Panel Connections - Ground bars, neutral bars, and equipment terminations in electrical panels
• Motor Control Applications - Starter connections, contactor wiring, and control circuit terminations
• Industrial Wiring - Machine connections, junction boxes, and equipment grounding applications
• Commercial Construction - Lighting circuits, receptacle connections, and electrical distribution systems
• Residential Electrical - Service panel connections, subpanel wiring, and appliance terminations
• Maintenance & Repair - Equipment servicing, wire replacement, and electrical system upgrades
• Control Systems - PLC connections, relay wiring, and automation system terminations
• Grounding Applications - Equipment grounding, system bonding, and safety ground connections

Tin-Plated Brass Advantage

Ideal Industries tin-plated brass construction provides superior corrosion resistance and electrical conductivity compared to standard brass terminals. The internal barrel serrations create multiple contact points that grip wire strands securely, while the expanded insulation entry accommodates various wire insulation types for versatile electrical applications.

Why Choose Ideal Industries Quality?

Ideal Industries commitment to professional-grade electrical components ensures these spade terminals meet stringent quality standards for electrical installations. The butted-seam construction and precision manufacturing provide reliable performance in demanding electrical environments, supporting code-compliant installations and long-term electrical system reliability.
