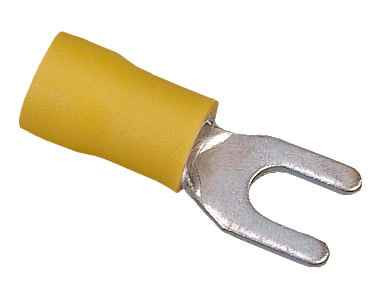

Ideal Industries Vinyl Insulated Spade Terminals 12-10 AWG 1/4" Stud with Tin-Plated Brass Construction

Ideal Industries Vinyl Insulated Spade Terminals 12-10 AWG 1/4" Stud with Tin-Plated Brass Construction

Professional-Grade Wire Termination Solutions

Ideal Industries delivers reliable wire termination with these vinyl insulated spade terminals, designed for 12-10 AWG wire applications with 1/4" stud connections. Featuring tin-plated brass construction for superior corrosion resistance and shouldered barrel insulation for precise crimping positioning, these terminals provide professional-grade electrical connections for demanding applications.

Professional Features & Benefits

• 12-10 AWG Wire Compatibility: Accommodates standard wire gauges for versatile electrical connection applications across residential and commercial installations.
• 1/4" Stud Connection: Standard stud size ensures compatibility with common electrical components and terminal blocks for reliable connections.
• Tin-Plated Brass Construction: Provides excellent corrosion resistance and conductivity for long-lasting electrical performance in various environments.
• Shouldered Barrel Insulation: Quickly positions terminal for proper crimping technique, ensuring consistent and reliable connections every time.
• Butted-Seam Construction: Prevents splitting under maximum pressure, maintaining terminal integrity during installation and operation.
• Internal Barrel Serrations: Grip wires tightly to resist pull-out forces while reducing electrical resistance for optimal current flow.
• Expanded Insulation Entry: Accommodates wide variety of insulation diameters while providing additional insulation support for enhanced safety.

Technical Specifications

• Deparetment: Electrical
• Product Group: Switches
• Product Subgroup: Switches & Receptacles

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Electrical Installations
• Commercial Wiring Projects
• Industrial Control Panels
• Electrical Panel Connections
• Motor Control Centers
• Lighting Control Systems
• HVAC System Connections

Why Choose Ideal Industries Quality?

Ideal Industries spade terminals deliver professional reliability through proven tin-plated brass construction and precision-engineered design features. The butted-seam construction and internal barrel serrations ensure lasting performance, while the shouldered barrel insulation and expanded entry design provide consistent installation results for electrical professionals.
