EiKO Volumetric LED Troffer 2x...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$360.40

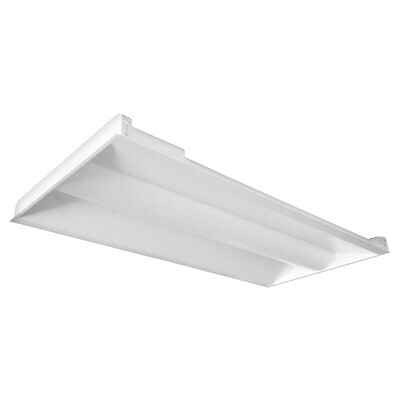

EiKO VOL24/PS50/FCCT/HD Volumetric Troffer 2x4 PowerSet 50/40/32W 80CRI FieldCCeT 35/40/5000K 120-347V 0-10V Dimming

EiKO Volumetric LED Troffer 2x4 PowerSet 50/40/32W FieldCCT 3500/4000/5000K 0-10V Dimming System

(No reviews yet) Write a Review

Model: VOL24/PS50/FCCT/HD
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$360.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

EiKO Volumetric LED Troffer 2x4 PowerSet 50/40/32W FieldCCT 3500/4000/5000K 0-10V Dimming System

Professional LED Lighting with Selectable Wattage & Color Temperature

The EiKO Volumetric LED Troffer 2x4 PowerSet delivers versatile commercial lighting performance with selectable 32/40/50W power settings and field-adjustable color temperatures of 3500/4000/5000K. This professional-grade 2' x 4' fixture features 0-10V dimming capability, 120-347V universal voltage operation, and >80 CRI for superior light quality in commercial applications.

Professional Features & Benefits

  • PowerSet Technology: Selectable 32/40/50W settings provide flexible light output from 4,000 to 6,250 lumens to match specific application requirements.
  • FieldCCT Capability: Field-adjustable color temperatures of 3500/4000/5000K allow customization for different environments and preferences.
  • 0-10V Dimming: Professional dimming control enables precise light level adjustment for energy savings and ambiance control.
  • Universal Voltage: 120-347V AC operation ensures compatibility with various electrical systems and installation flexibility.
  • High Efficacy: 130 lumens per watt efficiency delivers exceptional energy performance while reducing operating costs.
  • DLC Premium Listed: Qualifies for utility rebates and meets stringent energy efficiency standards for commercial applications.
  • Extended Life Rating: 50,000-hour rated life minimizes maintenance requirements and replacement costs.

Technical Specifications

  • Ambient Operating Temp Range: -20� C (-4� F) to 40� C (104� F)
  • Approvals: cULus, DLC-P, FCC, RoHS Compliant
  • California Title 20: Exempt
  • Cct: 3500/4000/5000
  • Cri: >80
  • Dimmable: TRUE
  • Dlc Premium: TRUE
  • Dlc Standard: FALSE
  • Energy Star: FALSE
  • Equivalent: 2x 32T8, 3x 32T8 Fluorescent
  • Fixture Size: 2' x 4'
  • Lumens: 4,000/5,000/6,250
  • Lumens Per Watt: 130
  • Product Watts: 32/40/50
  • Rated Life: 50,000
  • Voltage Rating: 120-347
  • Voltage Type: AC

Professional Applications

  • Office Buildings and Corporate Facilities
  • Retail Stores and Shopping Centers
  • Educational Institutions and Classrooms
  • Healthcare Facilities and Medical Offices
  • Government Buildings and Municipal Facilities
  • Hospitality and Restaurant Environments
  • Warehouse and Light Industrial Spaces

Why Choose EiKO Quality?

EiKO delivers reliable LED lighting solutions with comprehensive cULus, DLC Premium, and FCC approvals ensuring code compliance and utility rebate eligibility. The 50,000-hour rated life and wide -20�C to 40�C operating temperature range demonstrate the durability and performance standards expected from professional-grade commercial lighting systems.

Manufacturer Resources

Product Specs

Ambient Operating Temp Range:
-20° C (-4° F) to 40° C (104° F)
Approvals:
cULus, DLC-P, FCC, RoHS Compliant
California Title 20:
Exempt
Cri:
>80
Dimmable:
TRUE
Dlc Premium:
TRUE
Dlc Standard:
FALSE
Energy Star:
FALSE
Equivalent:
2x 32T8, 3x 32T8 Fluorescent
Fixture Size:
2' x 4'
Lumens:
4,000/5,000/6,250
Lumens Per Watt:
130
Rated Life:
50,000
Voltage Rating:
120-347
Voltage Type:
AC
Product Wattage:
32/40/50
Product CCT:
3500/4000/5000

EiKO VOL24/PS50/FCCT/HD – Frequently Asked Questions

1) Will the EiKO VOL24/PS50/FCCT/HD troffer drop into a standard 2x4 lay-in ceiling grid?
The fixture is built as a 2' x 4' volumetric troffer, so it sits in a standard 2x4 grid opening. It is the common replacement footprint for existing fluorescent troffers in a suspended acoustic ceiling, and EiKO rates it as an equivalent to 2x 32W T8 and 3x 32W T8 fluorescent fixtures.
2) Do I have to order separate wattages and color temperatures for different rooms, or is one EiKO PowerSet troffer good for all of them?
One part number covers it. The VOL24/PS50/FCCT/HD is field-selectable for both power and color: 32, 40 or 50 watts, and 3500K, 4000K or 5000K. That means a property manager or contractor can stock a single SKU for an entire building and set each fixture at install, 4000K at 40W in offices, 5000K at 50W in a warehouse bay, for example.
3) Can I run this EiKO troffer on 277V, or do I need a different model for 347V?
Same fixture either way. The driver accepts 120 through 347 volts AC, so it covers 120V, 208V, 240V, 277V and 347V circuits without a voltage-specific part number. That is useful on a mixed-voltage property where 277V is on the office floors and 347V shows up in a Canadian facility.
4) Does this EiKO LED troffer qualify for utility rebates?
It carries a DLC Premium listing, which is the tier most utility programs pay the higher rebate on. It is not on the DLC Standard list and it is not Energy Star qualified, so submit it under the Premium category. It is also exempt from California Title 20.
5) What dimming control do I need for the EiKO VOL24 PowerSet troffer?
It dims on a 0-10V control signal, so you need a 0-10V dimmer or a controls system with 0-10V output and the two low-voltage control conductors pulled to the fixture. A standard line-voltage incandescent or ELV dimmer will not work with it.
6) How many lumens does the EiKO 2x4 PowerSet troffer put out at each wattage setting?
Output tracks the PowerSet switch: 4,000 lumens at 32W, 5,000 at 40W, and 6,250 at 50W, working out to 130 lumens per watt. For a typical 9-foot office ceiling, the 32W/4,000 lumen setting is usually enough on a normal grid spacing, and the 50W setting is there for higher ceilings or task-heavy areas.
7) Is the EiKO 2x4 troffer OK in an unheated warehouse or a cold storage vestibule?
Rated for ambient temperatures from -20 C (-4 F) up to 40 C (104 F), so an unheated warehouse or loading area in most climates is within range. Anything running hotter than 104 F ambient, such as a poorly ventilated attic plenum or a kitchen hood area, is outside the rating.
8) Is the color quality good enough for retail and healthcare spaces?
CRI is greater than 80, which is the usual specification floor for offices, classrooms, retail sales floors and medical exam areas. If a project spec calls for 90 CRI for color-critical merchandising or fine visual inspection, this fixture does not meet that.
9) What approvals does the EiKO VOL24/PS50/FCCT/HD carry for a government or school project?
Listed cULus, DLC Premium, FCC, and RoHS compliant. The cULus listing is the one most inspectors and institutional specs ask for, and it covers both US and Canadian installations, which lines up with the 347V capability on the driver.
10) What is the exact EiKO part number for this 2x4 PowerSet FieldCCT troffer?
Order it as EiKO VOL24/PS50/FCCT/HD. That single model number carries all three wattage settings and all three color temperatures, so there is no separate suffix to specify for 32W versus 50W or for 3500K versus 5000K.
11) How long before I have to relamp these troffers?
There is no relamping, the LEDs and driver are integral to the fixture, and it is rated for 50,000 hours. On a 12-hour-a-day office schedule that is roughly 11 years of service, which is the maintenance case for swapping out T8 troffers that need lamps and ballasts on a cycle.
