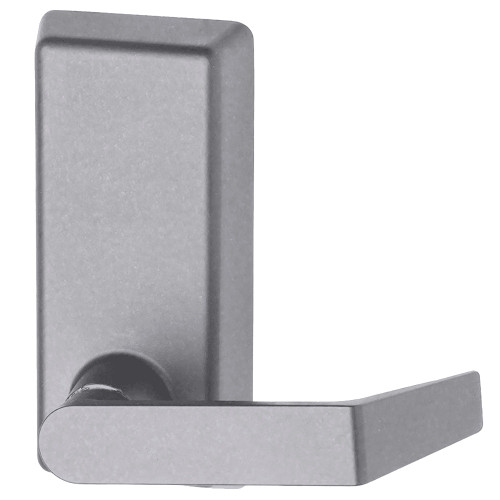

Von Duprin 230L-BE Lever, Blank Escutcheon Function, Trim for 22 Series Exit Devices
Model: VON-230L-BE
Von Duprin
Von Duprin 230TP-BE Thumbpiece, Blank Escutcheon Function, Trim for 22 Series Exit Devices
Model: VON-230TP-BE
Von Duprin
Von Duprin 880K-BE Passage Knob, Blank Escutcheon Function, Trim for 88 Series Exit Devices
Model: VON-880K-BE
Von Duprin
Von Duprin 606K-BE Passage Knob, Blank Escutcheon, Function, Trim for 88 Series Exit Devices
Model: VON-606K-BE
Von Duprin
210 Exit Trim for Von Duprin 22 Series Exit Devices
210K-BE Knob,Blank Escutcheon Function (Always operable, no cylinder)
210 Series trim
The 210DT and 210NL have a heavy 10 gauge (2.4mm) stainless steel escutcheon. Rim Cylinder must be ordered separately for the 210NL trim. The 210K knob trim has a 10 gauge (2.4mm) steel escutcheon and uses the Schlage “A” orbit knob with six pin “C” keyway.
Von Duprin protects your investment by empowering you to adapt with flexible solutions and modular options. The 22 Series features numerous trim options to serve your different needs. Designed with flexibility in mind, our solutions offer ease of adding new options as they are developed.
With Von Duprin, you can be confident that as the needs of your facility change, our products can be upgraded easily to meet your needs, especially as the mechanical and electronic technology converge. Von Duprin’s versatile design enables you to add functionality to existing devices in a cost-effective way, protecting your investment well into the future.
210DT Exit Trim
210DT
Dummy trim (DT)
Pull when dogged
Compatible with 22 Series Exit Devices
210 NL Exit Trim
210NL
Night latch (NL)
Key retracts latch bolt
Compatible with 22 Series Exit Devices
210 K Exit Trim
210K
Knob (K)
Key locks and unlocks
Compatible with 22 Series Exit Devices
210 K-BE Exit Trim
210K-BE
Knob, blank escutcheon (KBE)
Always operable, no cylinder
Compatible with 22 Series Exit Devices
FUNCTIONS & TRIM Many trims and configurations are available for the 22 Series. See the 22 Series catalogs for a complete list.Manufacturer Resources
Product Specs
- Category:
- Exit Devices and Trim
- Subcategory:
- Exit Device Trim
- Series:
- 210 Exit Trim
- Grade:
- Grade 1
- Duty Level:
- Heavy Duty
- Compatibilty:
- 22 Series Exit Devices
- Handing:
- Non-Handed
- Product Group:
- Exit Devices and Trim
- Product Subgroup:
- Exit Device Trim
- Product Type:
- Exit Device Trim
- Commercial/Residential:
- Commercial
- Model:
- 210K-BE
- Function:
- Knob, Blank Escutcheon
- Escutcheon:
- 3" x 4 25⁄32" x 3⁄32"
- Plate Size:
- 76 x 121 x 2 mm
- Projection:
- 2 15⁄16" (75 mm)
- Cylinder Type:
- 1 1 ⁄4" Mortise
