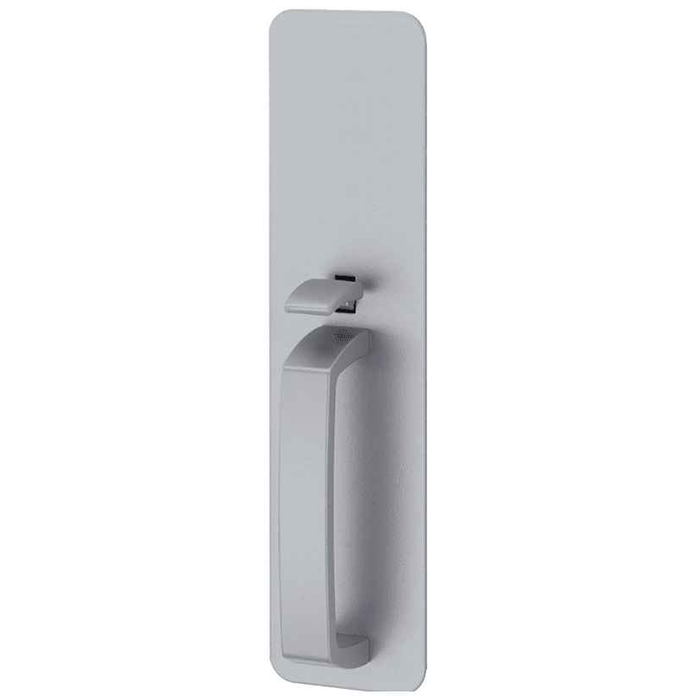

Von Duprin 230TP-BE Exit Device Trim Thumbpiece Blank Escutcheon for 22 Series

Von Duprin 230TP-BE Exit Device Trim Thumbpiece Blank Escutcheon for 22 Series

(No reviews yet) Write a Review

Model: 230TP-BE 622
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$361.00
$221.15
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Von Duprin 230TP-BE Exit Device Trim Thumbpiece Blank Escutcheon for 22 Series

Heavy-Duty Commercial Exit Trim with Always-Operable Thumbpiece Function

The Von Duprin 230TP-BE is a professional-grade exit device trim designed specifically for compatibility with Von Duprin 22 Series Exit Devices. Featuring a Thumbpiece, Blank Escutcheon function that is always operable with no cylinder required, this trim provides reliable, code-compliant egress in commercial applications. Constructed with a heavy 10 gauge (2.4 mm) steel escutcheon, the 230TP-BE delivers exceptional durability and a 2" (51 mm) projection with a 5 1⁄2" (140 mm) center-to-center measurement. As a non-handed trim, it offers installation flexibility across a wide range of door configurations.

Professional Features & Benefits

  • Heavy-Duty Steel Construction: Features a heavy 10 gauge (2.4 mm) steel escutcheon for exceptional durability and long-term performance in high-traffic commercial environments.
  • Always-Operable Thumbpiece Function: The Blank Escutcheon (BE) function is always operable with no cylinder required, ensuring reliable and unobstructed egress at all times.
  • Precise Dimensional Specifications: Offers a 2" (51 mm) product projection and a 5 1⁄2" (140 mm) center-to-center measurement for accurate, professional installation.
  • Non-Handed Design: Non-handed configuration simplifies ordering and installation, eliminating the need to specify door hand direction for most applications.
  • 22 Series Compatibility: Engineered specifically for use with Von Duprin 22 Series Exit Devices, ensuring seamless integration and reliable performance.
  • Flexible Lever Style Options: Number 06 lever style is furnished as standard, with number 03 and number 17 optional style levers available to suit various aesthetic requirements.
  • Modular & Upgradeable Design: Von Duprin's versatile modular platform allows functionality to be added to existing devices in a cost-effective way, protecting your investment as facility needs evolve.
  • Grade 1 Heavy-Duty Rating: Rated Grade 1 Heavy Duty for demanding commercial applications where dependable, long-lasting performance is essential.

Technical Specifications

  • Subcategory: Exit Device Trim
  • Series: 230 Exit Trim
  • Grade: Grade 1
  • Duty Level: Heavy Duty
  • Compatibilty: 22 Series Exit Devices
  • Product Group: Exit Devices and Trim
  • Product Subgroup: Exit Device Trim
  • Product Type: Exit Device Trim
  • Commercial/Residential: Commercial
  • Product Model: 230TP-BE
  • (CTC) Center-to-Center: 5 1⁄2" (140 mm)
  • Product Function: Thumbpiece, Blank Escutcheon
  • Door Hand Direction: Non-Handed
  • Product Projection: 2" (51 mm)
  • Product Category: Exit Devices and Trim
  • Department: Door Hardware

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Von Duprin Quality?

Von Duprin exit device trim products deliver professional-grade reliability with heavy 10 gauge (2.4 mm) steel escutcheon construction rated Grade 1 Heavy Duty for the most demanding commercial environments. The modular design of the 230 Series empowers facility managers and installers to adapt and upgrade existing 22 Series exit devices cost-effectively, protecting long-term investments. Engineered for demanding commercial applications where dependable performance and code-compliant egress are essential.

Product Specs

Subcategory:
Exit Device Trim
Series:
230 Exit Trim
Grade:
Grade 1
Duty Level:
Heavy Duty
Compatibility:
22 Series Exit Devices
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Device Trim
Product Type:
Exit Device Trims
Commercial/Residential:
Commercial
Product Model:
230TP-BE
(CTC) Center-to-Center:
5 1 ⁄2" (140 mm)
Product Function:
Thumbpiece, Blank Escutcheon
Door Hand Direction:
Non-Handed
Product Projection:
2" (51 mm)
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Von Duprin 230TP-BE 622 – Frequently Asked Questions

1) What does the Von Duprin 230TP-BE trim actually do on the outside of the door?
It's an outside thumbpiece trim with a blank escutcheon, meaning there is no cylinder and no keyhole. Press the thumbpiece from the outside and it retracts the latch, every time, with no locking. That makes it a free-entry (always operable) trim, so it suits doors where the outside stays unlocked during business hours and security is handled elsewhere. If you need the outside to lock, this is the wrong trim.
2) I need the outside of the door to lock with a key. What should I use instead of the 230TP-BE?
Not this one. The blank escutcheon version has no cylinder and stays operable at all times. For a keyed outside on an exit device, look at a nightlatch or storeroom trim instead: the Sargent 704ET is a Grade 1 heavy duty night latch lever trim, the Dexter ED1000T-CLRM-TP-NC is a Grade 1 classroom thumbpiece with pull plate prepped for a cylinder (less cylinder), and the Tell EDTHP53 is a keyed entry thumbpiece trim. Match the trim to your device family before ordering.
3) Is a dummy pull the same thing as this always-operable thumbpiece trim?
No, and confusing the two is a common ordering mistake. A dummy or exit-only trim, like the Detex 02BN dummy lever with blank escutcheon or the BEST 1700 Series exit only pull, is a fixed pull that does nothing to the latch. The 230TP-BE thumbpiece actually retracts the latch from outside, so people can get in. If the door should not open from outside at all, order a dummy pull instead.
4) Is there a lever version of the Von Duprin 230TP-BE blank escutcheon trim?
The 230TP-BE uses a thumbpiece with a blank escutcheon and is always operable with no cylinder required. For the same always-operable idea in a lever, the Falcon 212L is an escutcheon lever trim in a blank escutcheon function for 20 Series devices, and the Detex 02BN is a dummy S-lever trim with a blank escutcheon for Value Series devices. Note that both are built for their own device families, not the Von Duprin 22 Series the 230TP-BE is made for.
5) Can I use a Falcon 212L in place of the Von Duprin 230TP-BE?
They share the blank escutcheon idea but are not interchangeable. The Von Duprin 230TP-BE is built specifically for Von Duprin 22 Series exit devices and is rated heavy duty; the Falcon 212L is an escutcheon lever trim for Falcon 20 Series devices with shear pin protection and is rated medium duty. The 212L is also a lever rather than a thumbpiece. Match the trim to the device family already on the door.
6) Do I have to specify left or right hand when ordering this exit trim?
No handing to call out. The 230TP-BE is non-handed, so one part covers both left and right hand openings. For a property manager buying several at once, that means a single line item works across the building.
7) How far does this Von Duprin thumbpiece trim stick out from the door face?
Projection is 2 inches (51 mm) off the door face. Worth checking against adjacent walls, door stops, and pairs of doors in a vestibule where clearance is tight, since the thumbpiece housing sits proud of the door the full 2 inches.
8) Is this exit trim heavy duty enough for a school or hospital entrance?
It's rated Grade 1 Heavy Duty and built as a commercial trim, with a 10 gauge (2.4 mm) steel escutcheon behind the thumbpiece. That's the construction you want on high-traffic openings in schools, hospitals, offices and municipal buildings.
9) Can I get an electrified version of the Von Duprin 230 exit trim for access control?
The 230TP-BE itself is a mechanical thumbpiece with no electrical option. If you need the outside trim to be controlled by a card reader or access system, Command Access makes a 230L electrified trim for the Von Duprin V96/36/23 series that runs on 12V or 24V with fail safe or fail secure selectable. That is the route to keep the 22 Series device and add access control.
10) Can I get a lever instead of a thumbpiece on the Von Duprin 230 trim?
Yes, within the 230 family. Lever styles are available with number 06 furnished as standard and numbers 03 and 17 as optional styles. The TP-BE part is specifically the thumbpiece version, so if a lever is what the spec calls for you want the lever trim variant of the 230 rather than this one.
11) What is the lever-trim equivalent of the 230TP-BE for a classroom door that needs key control?
The 230TP-BE is always operable and takes no cylinder, so it is not a classroom solution. Classroom function lever trims include the Accentra 446F Grade 1 trim with Augusta lever, the Falcon 510L heavy duty trim for 24/25 Series devices, and the Falcon 179L for 1790 Series devices, which is rated medium duty. Each is matched to its own manufacturer's device.
12) Is there a keypad alternative to the 230TP-BE for coded access on an exit device?
The 230TP-BE is purely mechanical and always operable. For coded entry on an exit device, the Dormakaba E-Plex 201U is an electronic pushbutton exit trim in a wide stile configuration, and the Dormakaba PowerPlex P201U exit trim works with rim, mortise, and surface vertical rod devices. These control outside access in a way the 230TP-BE does not.
13) How does the 230TP-BE compare to passage function exit trims from Corbin Russwin?
Both are unlocked outside trims. The Von Duprin 230TP-BE uses a thumbpiece with a blank escutcheon and is non-handed, for 22 Series devices. Corbin Russwin's passage trims use levers and are matched by device series: the 3310AET for ED300 Series, the x810ET for ED4000 Series SecureBolt, rim, surface and concealed vertical rod devices, and the x910ET heavy duty trim for the ED5200S, ED5200, ED5400, and ED5800 Series. Pick by which device is on the door.
14) What finishes does the Von Duprin 230TP-BE thumbpiece trim come in?
Four: 526 powder coated chrome, 689 powder coated aluminum, 695/SP313 dark bronze, and 622 matte black. If you're matching existing openings, 689 aluminum and 695 dark bronze are the usual pairings with Von Duprin 22 Series device finishes; 622 matte black is the option for newer dark hardware packages.
