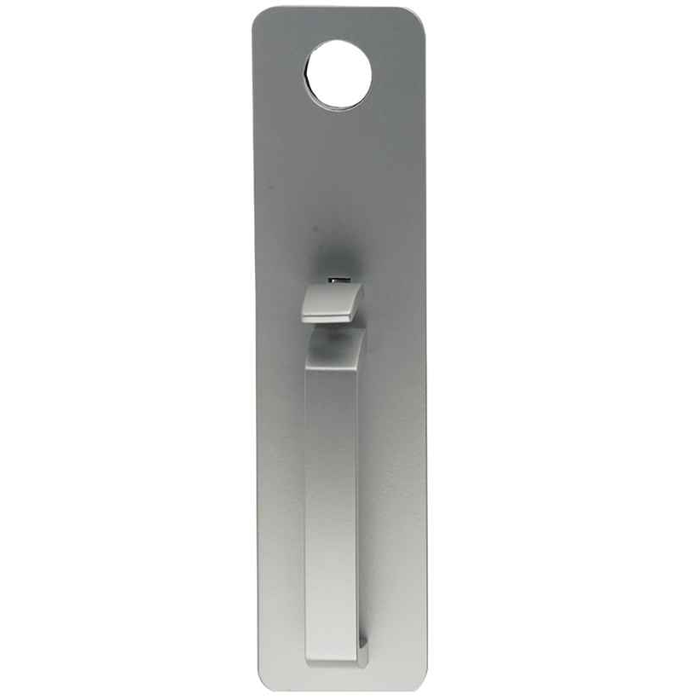

Von Duprin 230TP Thumbpiece Exit Device Trim for 22 Series with Heavy 10 Gauge Steel Escutcheon

Commercial-Grade Thumbpiece Trim Solution for 22 Series Exit Devices

The Von Duprin 230TP is a heavy-duty, commercial-grade thumbpiece exit device trim designed specifically for compatibility with Von Duprin 22 Series Exit Devices. Featuring a key locks and unlocks (thumbpiece) function, this trim is constructed with a heavy 10 gauge (2.4 mm) steel escutcheon for exceptional durability in demanding applications. The 230TP is non-handed for flexible installation, and the cylinder must be ordered separately. Number 06 lever style is furnished standard, with number 03 and number 17 optional style levers also available.

Professional Features & Benefits

  • Thumbpiece Function: Key locks and unlocks operation provides controlled access while maintaining emergency egress compliance for commercial facilities.
  • Heavy-Duty Steel Escutcheon: Constructed from heavy 10 gauge (2.4 mm) steel for superior strength and long-term durability in high-traffic commercial environments.
  • Escutcheon Plate Dimensions: Plate measures 3" x 12 1'/16" x 3/32" (76 x 306 x 2 mm) with a 2" (51 mm) product projection for a clean, professional appearance.
  • Center-to-Center Measurement: 5 1/2" (140 mm) center-to-center spacing ensures precise, code-compliant installation on compatible door preparations.
  • 22 Series Compatibility: Engineered exclusively for Von Duprin 22 Series Exit Devices, ensuring seamless integration and reliable performance within the 22 Series platform.
  • Non-Handed Design: Non-handed configuration simplifies ordering and installation, eliminating the need to specify door hand direction for most applications.
  • Flexible Lever Style Options: Number 06 lever style furnished standard; number 03 and number 17 optional style levers are available to match facility aesthetics.
  • Cylinder Ordered Separately: Accepts a 1 1/4" mortise pin cylinder (ordered separately), allowing specifiers to select the cylinder that best meets keying and security requirements.
  • Grade 1 Heavy Duty Rating: Rated Grade 1 Heavy Duty for the most demanding commercial applications where reliability and longevity are essential.
  • Modular & Upgradeable Platform: Von Duprin’s modular design philosophy enables easy addition of new options and upgrades as facility needs evolve, protecting your hardware investment.

Technical Specifications

  • Subcategory: Exit Device Trim
  • Series: 230 Exit Trim
  • Grade: Grade 1
    • Duty Level: Heavy Duty
  • Compatibilty: 22 Series Exit Devices
  • Product Group: Exit Devices and Trim
  • Product Subgroup: Exit Device Trim
  • Product Type: Exit Device Trim
  • Commercial/Residential: Commercial
  • Plate Size: 76 x 306 x 2 mm
  • Product Model: 230TP
  • (CTC) Center-to-Center: 5 1/2" (140 mm)
  • Product Function: Thumbpiece
  • Door Hand Direction: Non-Handed
  • Pin Cylinder: 1 1/4" Mortise
  • Escutcheon Plate: 3" x 12 1/16" x 3/32"
  • Product Projection: 2" (51 mm)
  • Product Category: Exit Devices and Trim
  • Department: Door Hardware

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Von Duprin Quality?

Von Duprin 230TP Exit Device Trim is built to Grade 1 Heavy Duty standards, featuring a robust 10 gauge (2.4 mm) steel escutcheon engineered for the rigors of high-traffic commercial environments. The modular 22 Series platform is designed with flexibility in mind, allowing facilities to adapt and upgrade hardware as needs evolve, protecting your investment well into the future. When dependable, professional-grade exit device trim performance is required, Von Duprin delivers the reliability and versatility that commercial applications demand.

Product Specs

Subcategory:
Exit Device Trim
Series:
230 Exit Trim
Grade:
Grade 1
Duty Level:
Heavy Duty
Compatibility:
22 Series Exit Devices
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Device Trim
Product Type:
Exit Device Trims
Commercial/Residential:
Commercial
Plate Size:
76 x 306 x 2 mm
Product Model:
230TP
(CTC) Center-to-Center:
5 1 ⁄2" (140 mm)
Product Function:
Thumbpiece
Door Hand Direction:
Non-Handed
Pin Cylinder:
1 1 ⁄4" Mortise
Escutcheon Plate:
3" x 12 1 ⁄16" x 3⁄32"
Product Projection:
2" (51 mm)
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Von Duprin 230TP 689 – Frequently Asked Questions

1) Will the Von Duprin 230TP trim work on any exit device, or only certain ones?
The 230TP thumbpiece trim is built for Von Duprin 22 Series exit devices only. It is not a universal exit trim, so if the device on the door is a 33A/35A, 98/99, or another manufacturer's rim device, the 230TP is the wrong part. Check the device stamp on the touchpad end cap before ordering.
2) Does the Von Duprin 230TP come with a cylinder?
No cylinder is included. The 230TP takes a 1-1/4 inch mortise pin cylinder, which you order separately in the keyway and keying your building uses. That is deliberate on this trim, since it lets you match an existing masterkey system rather than rekeying a supplied cylinder.
3) What door prep does the Von Duprin 230TP need, and will it cover my existing trim holes?
The escutcheon measures 3 x 12-1/16 x 3/32 inches with 5-1/2 inch center-to-center spacing between the cylinder and the thumbpiece hub. That 5-1/2 inch CTC is the number that decides whether it lands on an existing prep. Von Duprin publishes prep templates for both hollow metal and wood doors covering 22 Series trims and strikes, so match your prep against those before drilling.
4) What does the thumbpiece function on the 230TP actually do at the door?
Key locks and unlocks. Turn the key one way and the thumbpiece is live, so anyone outside can depress it and retract the latch. Turn it the other way and the thumbpiece is dead, so the door is locked from outside. The exit device inside always allows free egress regardless of which state the trim is in. That makes it a fit for a main entrance you unlock for business hours and secure at close, rather than a storeroom door you want permanently locked outside.
5) What is the thumbpiece equivalent to the Von Duprin 230TP from another manufacturer?
The Tell EDTHP53 is a thumbpiece exit device trim in keyed entry function, and it lists a door thickness range of 1-3/8" to 1-3/4". The Dexter ED1000T-CLRM-TP-NC is also a thumbpiece trim, supplied as thumbpiece with pull plate and less cylinder, and is rated Grade 1. The Von Duprin 230TP is a thumbpiece trim built for 22 Series exit devices and rated Grade 1 heavy duty, so device-side fit is the deciding factor: the 230TP prep follows the 22 Series trim templates, while the Tell and Dexter units follow their own device platforms.
6) Does a night latch exit trim do the same thing as the 230TP thumbpiece?
No. The 230TP is a key locks and unlocks thumbpiece: the key changes the state of the trim, so the thumbpiece stays operable until it is keyed back. A night latch trim retracts the latch only while the key is turned. The Sargent 704-ETL is a nightlatch lever trim with key retract function, the Corbin Russwin VT957ET is a nightlatch escutcheon trim in stamped or formed stainless steel, and the Accentra 121NL is a nightlatch trim. If the requirement is a door that can be left unlocked during business hours, the night latch trims do not deliver it.
7) Do I have to specify left or right hand for the 230TP exit trim?
Handing is not part of the order. The 230TP is non-handed, so one part number covers both left and right hand openings. Useful if you are stocking spares for a building where the doors swing both ways.
8) How much does the 230TP trim stick out from the door face?
Projection is 2 inches (51 mm) off the door face. Worth checking on openings in tight corridors, next to a wall return, or where a door swings past adjacent hardware, and it also tells you how much clearance the thumbpiece needs in a vestibule with a second door close behind.
9) Should I use a thumbpiece trim or a lever trim on my exit device?
A thumbpiece is a push-to-operate paddle above the pull, and it is the traditional look for storefront and main entry openings. Levers are what you use when the opening needs an ADA-style operable handle or you are matching lever hardware elsewhere in the building. If a lever is what you want on a 22 Series device, the 230TP is furnished standard with a number 06 lever style, with number 03 and number 17 levers available as options. Across other device platforms, comparable lever escutcheon trims include the Falcon 510L for 24/25 Series and the Sargent 704ET for 700 Series devices.
10) Is the Von Duprin 230TP tough enough for a high traffic entrance?
Grade 1, Heavy Duty, with a 10 gauge (2.4 mm) steel escutcheon. That gauge is the reason to pick it over a stamped trim on a school entry, a hospital corridor, or an apartment lobby where the door takes hundreds of cycles a day and the trim is what gets abused.
11) My exit door only needs to be pulled open from outside, never unlocked with a key. Do I still need the 230TP?
No. If the outside side is never meant to operate the latch, a pull or dummy trim is cheaper and simpler than a keyed thumbpiece. The BEST 1700 Series is a wide stile exit only pull trim for 2000 Series devices, and the BEST 2900 Series 2901 is the narrow stile exit only lever version. The Detex 02BN is a dummy S-lever trim with blank escutcheon for Value Series devices. Pick the 230TP only when you actually want key control over outside entry.
12) Can the 230TP be keyed into my building's existing master key system?
Yes, because the cylinder is not supplied with the trim. Specify a 1-1/4 inch mortise pin cylinder in your existing keyway and have it keyed to your system, and the trim accepts it. That is the practical advantage of a less-cylinder trim on a facility that already runs a masterkey.
13) Is the Falcon 212L a substitute for the Von Duprin 230TP?
They are not interchangeable. The Falcon 212L is a 20 Series escutcheon trim with a blank escutcheon function and is medium duty, so it provides no keyed outside operation. The Von Duprin 230TP is a Grade 1 heavy duty keyed thumbpiece trim for 22 Series devices. Within the Falcon line, the 510L is heavy duty in classroom function for 24/25 Series devices.
14) What exit trim should I use for a classroom or storeroom function instead of a keyed thumbpiece?
The 230TP is a thumbpiece trim with key locks and unlocks operation. For a storeroom function, where the outside trim stays locked and the key retracts the latch, the Design Hardware KIL storeroom trim uses a Schlage C keyway with a flat lever and is Grade 1, the Pamex E9000 is a Grade 1 storeroom L3 lever heavy duty trim covering 1-3/8" to 2" door thickness, and the Tell EDELT80 is a storeroom function escutcheon lever trim for 1-3/8" to 1-3/4" doors. For classroom function, the Falcon 510L is heavy duty and the Falcon 179L is medium duty on the 1790 Series.
15) Which exit trims are non-handed like the Von Duprin 230TP?
The 230TP is non-handed, so one part covers left and right hand openings. Among comparable trims, the Sargent 704ET is field reversible and the Command Access ET26 is a Grade 1 electrified trim with a field reversible design - reversible means the hand is set during installation rather than at order. For a fleet where hand varies door to door, a non-handed or field reversible trim keeps one part number on the shelf.
16) I need keypad or pushbutton entry on the exit device instead of a key - what replaces the 230TP?
The 230TP is a mechanical keyed thumbpiece trim that accepts a 1 1/4" mortise cylinder. For credential entry without a key, the Dormakaba E-Plex 201U is an electronic pushbutton exit trim for wide stile doors, and the Dormakaba PowerPlex P201U is an exit trim for rim, mortise, and surface vertical rod devices. These change how the user is admitted, so confirm the exit device family and any egress requirements for the opening before switching.
17) Is a passage function exit trim the same as the 230TP?
No. The Corbin Russwin 3310AET, x810ET, and x910ET are passage function trims for the ED300, ED4000, and ED5200/ED5400/ED5800 Grade 1 series respectively, and the Arrow SRX01 is a passage function Sierra lever trim with rose for ED910, S1150, and S1250 devices. Passage trim always operates the latch from outside with no key control. The 230TP is a keyed thumbpiece with key locks and unlocks operation, so it can secure the outside of the door where a passage trim cannot.
18) Which comparable exit trims list a door thickness range if my doors are thicker than standard?
The Pamex E9000 storeroom trim covers 1-3/8" to 2" door thickness. The Tell EDTHP53 thumbpiece trim, the Tell EDELT53 entry lever trim, the Tell EDELT80 storeroom lever trim, and the Tell pull trim with cylinder hole each cover 1-3/8" to 1-3/4". For doors at the thicker end, the Pamex E9000 range extends furthest of these.
19) What finishes does the Von Duprin 230TP thumbpiece trim come in?
Four finishes: 526 powder coated chrome, 622 matte black, 689 powder coated aluminum, and 695/SP313 dark bronze. For fleet work, 689 aluminum and 695 dark bronze are the two that most often match existing Von Duprin devices already hung in a building, so pull a door and read the finish stamp before you standardize.
20) What trim do I use on the inactive leaf or a door that only needs a dummy handle?
The Detex 02BN is a dummy S-lever trim with a blank escutcheon for Value Series exit devices, and the Dexter ED1500 dummy function trim uses a handle pull plate. Both are fixed and do not operate the exit device. The Von Duprin 230TP is a working keyed thumbpiece trim, so it is the wrong choice where only a matching handle appearance is needed.
