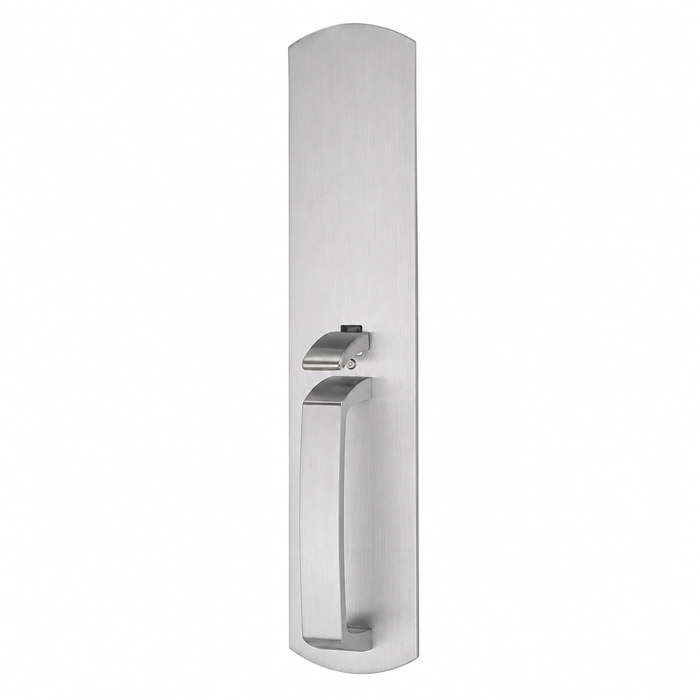

Von Duprin 880TP-BE Exit Device Trim Thumbpiece with Blank Escutcheon for 88 Series

Von Duprin 880TP-BE Exit Device Trim Thumbpiece with Blank Escutcheon for 88 Series

Heavy-Duty Commercial Exit Trim for 88 Series Wide-Style Cross Bar Devices

The Von Duprin 880TP-BE is a professional-grade exit device trim featuring a Thumbpiece with Blank Escutcheon function, engineered specifically for compatibility with Von Duprin 88 Series exit devices. The 88 Series accommodates Rim, Surface Mounted Vertical Rod, Concealed Vertical Rod, and Mortise configurations, making this trim a versatile solution for panic and fire rated applications. Constructed from heavy 10 gauge (2.4 mm) brass, bronze, or stainless steel, the 880 Series trim delivers exceptional durability with a non-handed design and a 2" (51 mm) product projection for reliable commercial performance.

Professional Features & Benefits

• Heavy-Duty Construction: Built from heavy 10 gauge (2.4 mm) brass, bronze, or stainless steel for long-lasting durability in demanding commercial environments.
• Non-Handed Design: Universal non-handed configuration simplifies ordering, inventory, and installation across a wide range of door applications.
• Product Projection: Features a 2" (51 mm) projection for proper ergonomic operation and consistent performance.
• Broad Configuration Compatibility: Designed for use with 88 Series Rim, Surface Mounted Vertical Rod, Concealed Vertical Rod, and Mortise exit device configurations for maximum installation flexibility.
• Thumbpiece, Blank Escutcheon Function: The 880TP-BE provides a clean, streamlined appearance with a blank escutcheon plate paired with a functional thumbpiece for controlled entry.
• Grade 1 Heavy Duty Rating: Rated Grade 1 Heavy Duty for commercial-grade reliability in high-traffic facilities.

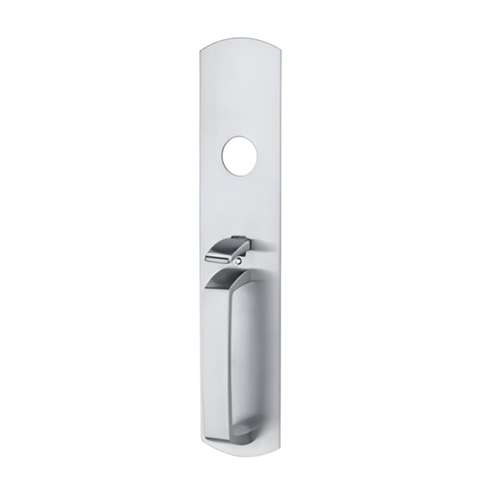

• 880 Series Trim Family: Part of the 880 Series trim line, which includes available functions 880DT, 880K, 880NL, and 880TP, as well as the optional 880EO exit only trim plate. To order with the exit device, specify 88EOx880EO.
• Flexible Field Sizing: The 88 Series features flexible field sizing to accommodate a variety of door widths and configurations on-site.

Technical Specifications

• Subcategory: Exit Device Trim
• Series: 88 Exit Trim
• Grade: Grade 1
• Duty Level: Heavy Duty
• Compatibilty: 88 Series Exit Devices
• Product Group: Exit Devices and Trim
• Product Subgroup: Exit Device Trim
• Product Type: Exit Device Trim
• Commercial/Residential: Commercial
• Rim Center Line: A 39 13/16 (1011 mm) B 33 11/32 (847mm)
• Mortise Lock Center Line: A 39 13/16 (1011 mm) B 33 1/2 (851 mm)
• Surface Mounted Vertical Rod Center Line: A 39 13/16 (1011 mm) B 33 1/2 (851 mm)
• Product Model: 880TP-BE
• Product Function: Thumbpiece, Blank Escutcheon
• Door Hand Direction: Non-Handed
• Product Projection: 2" (51 mm)
• Product Category: Exit Devices and Trim
• Department: Door Hardware

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Von Duprin Quality?

Von Duprin exit device trim products deliver professional-grade reliability through heavy 10 gauge (2.4 mm) brass, bronze, or stainless steel construction, ensuring long-term performance in the most demanding commercial environments. The 880TP-BE carries a Grade 1 Heavy Duty rating and is engineered as part of the trusted 880 Series trim family, offering non-handed flexibility and compatibility across the full range of 88 Series exit device configurations. Engineered for commercial applications where dependable, code-compliant performance is essential.
