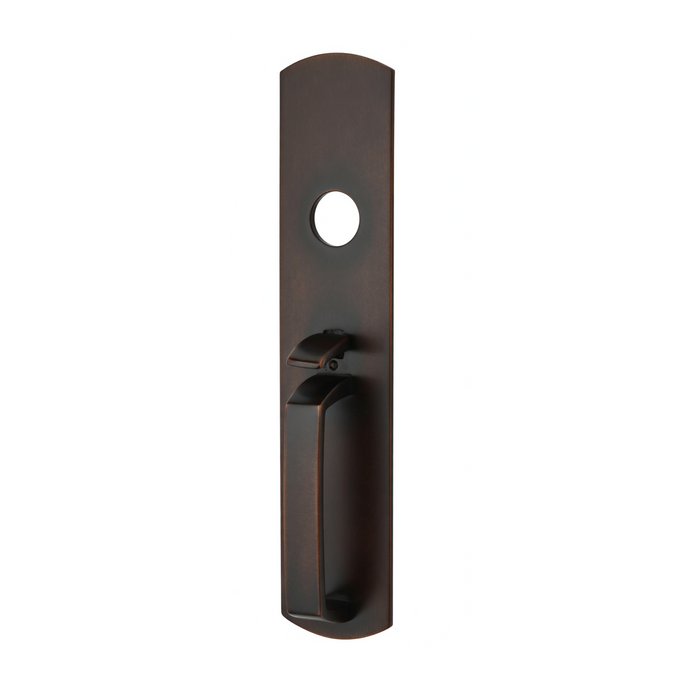

Von Duprin 880TP Thumbpiece Trim for 88 Series Exit Devices, 613 Oil Rubbed Bronze finish, front view

Von Duprin 880TP Thumbpiece Exit Device Trim for 88 Series, Heavy Duty Non-Handed Design

(No reviews yet) Write a Review

Model: 880TP-R 26D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$434.00
$300.96
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Von Duprin 880TP Thumbpiece Exit Device Trim for 88 Series, Heavy Duty Non-Handed Design

Commercial-Grade Thumbpiece Trim for Wide Style 88 Series Exit Devices

The Von Duprin 880TP is a heavy-duty thumbpiece function exit device trim engineered specifically for the 88 Series wide style cross bar exit devices. Constructed from heavy 10 gauge (2.4 mm) brass, bronze, or stainless steel, this trim delivers exceptional durability and a professional finish for commercial door applications. The 880TP features a non-handed design with a 2" (51 mm) projection, offering flexible field sizing and compatibility with Rim, Surface Mounted Vertical Rod, Concealed Vertical Rod, and Mortise configurations for both panic and fire rated applications.

Professional Features & Benefits

  • Heavy-Duty Construction: Built from heavy 10 gauge (2.4 mm) brass, bronze, or stainless steel for exceptional strength and long-term durability in demanding commercial environments.
  • Non-Handed Design: Universal non-handed configuration eliminates the need to specify handing, simplifying ordering and installation across a wide range of door applications.
  • Thumbpiece Function: 880TP thumbpiece operation provides smooth, intuitive entry control as part of the 880 Series trim line, which also includes 880DT, 880K, and 880NL function options.
  • Broad Configuration Compatibility: Compatible with 88 Series exit devices in Rim, Surface Mounted Vertical Rod, Concealed Vertical Rod, and Mortise configurations for maximum installation flexibility.
  • Panic and Fire Rated Applications: Designed for use in both panic and fire rated door applications, supporting code-compliant installations in commercial facilities.
  • Flexible Field Sizing: The 88 Series features flexible field sizing, allowing the trim to be adapted to a variety of door widths and configurations on-site.
  • Optional Exit Only Trim Plate: The optional 880EO exit only trim plate is available; to order with the exit device, specify 88EOx880EO for a complete, coordinated assembly.
  • Precise Centerline Dimensions: Rim centerline: A 39 13/16" (1011 mm) / B 33 11/32" (847 mm); Mortise Lock and Surface Mounted Vertical Rod centerline: A 39 13/16" (1011 mm) / B 33 1/2" (851 mm) for accurate, repeatable installation.

Technical Specifications

  • Subcategory: Exit Device Trim
  • Series: 88 Exit Trim
  • Grade: Grade 1
  • Duty Level: Heavy Duty
  • Compatibilty: 88 Series Exit Devices
  • Product Group: Exit Devices and Trim
  • Product Subgroup: Exit Device Trim
  • Product Type: Exit Device Trim
  • Commercial/Residential: Commercial
  • Rim Center Line: A 39 13/16 (1011 mm) B 33 11/32 (847mm)
  • Mortise Lock Center Line: A 39 13/16 (1011 mm) B 33 1/2 (851 mm)
  • Surface Mounted Vertical Rod Center Line: A 39 13/16 (1011 mm) B 33 1/2 (851 mm)
  • Product Model: 880TP
  • Product Function: Thumbpiece
  • Door Hand Direction: Non-Handed
  • Product Projection: 2" (51 mm)
  • Product Category: Exit Devices and Trim
  • Department: Door Hardware

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Von Duprin Quality?

Von Duprin exit device trim products deliver professional-grade reliability through heavy 10 gauge (2.4 mm) brass, bronze, or stainless steel construction, achieving Grade 1 heavy duty performance ratings for the most demanding commercial applications. The 880TP's non-handed design and flexible field sizing reduce installation complexity while ensuring consistent, code-compliant results across Rim, Mortise, Surface Mounted Vertical Rod, and Concealed Vertical Rod configurations. Engineered for commercial environments where dependable performance and long-term durability are essential, Von Duprin's 88 Series trim is a trusted choice for security professionals and facility managers alike.

Manufacturer Resources

Von Duprin 88 Series Catalog

Product Specs

Subcategory:
Exit Device Trim
Series:
88 Exit Trim
Grade:
Grade 1
Duty Level:
Heavy Duty
Compatibility:
88 Series Exit Devices - Rim, Mortise, Surface Mounted Vertical Rod, Concealed Vertical Rod
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Device Trim
Product Type:
Exit Device Trims
Commercial/Residential:
Commercial
Rim Center Line:
A 39 13/16 (1011 mm) B 33 11/32 (847mm)
Mortise Lock Center Line:
A 39 13/16 (1011 mm) B 33 1/2 (851 mm)
Surface Mounted Vertical Rod Center Line:
A 39 13/16 (1011 mm) B 33 1/2 (851 mm)
Product Model:
880TP
Product Function:
Thumbpiece
Door Hand Direction:
Non-Handed
Product Projection:
2" (51 mm)
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Von Duprin 880TP-R 26D – Frequently Asked Questions

1) Will the Von Duprin 880TP trim work on my 88 Series vertical rod device, or is it rim only?
The 880TP thumbpiece trim covers all four 88 Series configurations: Rim, Mortise, Surface Mounted Vertical Rod, and Concealed Vertical Rod. What you do have to match is the prep. The trim is ordered as Rim Prep, Mortise Prep, or Vertical Rod Prep, so a concealed or surface vertical rod device takes the Vertical Rod Prep version. Ordering the rim prep for a CVR opening leaves you with the wrong back plate.
2) Do I have to specify handing for the 880TP exit trim?
No handing to call out. The 880TP is non-handed, so one part covers left and right hand openings, and inswing or outswing. For a property manager buying several at once that means a single line item across a run of doors rather than tracking hands door by door.
3) What centerline do I lay out for the 880TP trim on a rim device versus a mortise device?
They are not the same, and this is the number that decides whether the prep lines up. On a rim device the centerlines are A 39-13/16 inches (1011 mm) and B 33-11/32 inches (847 mm). On a mortise lock device, and on a surface mounted vertical rod device, A stays at 39-13/16 inches (1011 mm) but B moves to 33-1/2 inches (851 mm). Drill to the wrong B and the thumbpiece will not line up with the device.
4) Can I use the 880TP trim on a fire rated door assembly?
The 880TP is made for both panic and fire rated door applications on 88 Series devices. Grade 1, heavy duty. The fire rating on the opening comes from the device and door assembly labels, so match the trim to the labeled 88 Series device you already have on the door.
5) What should I use instead of the 880TP if the opening needs access control or electric release?
Thumbpiece trim is mechanical, so an access controlled opening moves to electrified or credential trim. Command Access offers the ET15, ET25 and ET26 electrified exit trims with 12V/24V operation and fail safe or fail secure options, with the ET26 built Grade 1 and field reversible, plus the 230L electrified trim for V96/36/23 Series devices. Falcon's 510L-FSA/FSE is heavy duty electrified lever trim for 25 Series devices. For standalone credential entry without wiring back to a panel, Dormakaba's E-Plex 201U is an electronic pushbutton exit trim in wide stile and the PowerPlex P201U covers rim, mortise and SVR devices. The 880TP stays the choice where key or thumbpiece operation alone is acceptable.
6) What is the thumbpiece equivalent to the Von Duprin 880TP from another manufacturer?
The closest thumbpiece-function peers are the Dexter ED1000T-CLRM-TP-NC, a Grade 1 exit device trim in classroom function with thumbpiece x pull plate x cylinder supplied less cylinder, and the Tell EDTHP53, a thumbpiece exit device trim in keyed entry function fitting doors 1-3/8 inch to 1-3/4 inch. Both give you thumbpiece actuation rather than a lever, which is what most people are matching when they ask for an 880TP substitute. The difference to plan around is the device: the 880TP is built for 88 Series exit devices in rim, mortise, surface mounted vertical rod and concealed vertical rod configurations, while the Dexter is trim for its ED1000 Series and the Tell is a general exit device thumbpiece trim, so the mounting prep and centerlines are not interchangeable with an 88 Series device.
7) I need keyed lever trim instead of a thumbpiece on an exit device - what are my options?
If the opening calls for a lever rather than a thumbpiece, look at function first. For storeroom function there is the Design Hardware KIL Storeroom trim for 1000 and 2000 Series exit devices with a Schlage C keyway and flat lever, the Pamex E9000 with an L3 lever for doors 1-3/8 inch to 2 inch, and the Tell EDELT80 escutcheon lever trim for doors 1-3/8 inch to 1-3/4 inch. For keyed entry, the Design Hardware KIL Entry and the Tell EDELT53 cover the same ground with entry function. For classroom function, the Falcon 510L is a heavy duty lever trim for 24/25 Series devices. The 880TP itself is thumbpiece function trim for 88 Series devices, so a lever swap means moving to the peer's own device family.
8) Is a nightlatch trim the same thing as the 880TP thumbpiece trim?
No, and this is the substitution that most often gets ordered by mistake. Nightlatch trim retracts the latch only when the key is turned, with no free outside operation between key uses. Peers in that function include the Sargent 704ET, a heavy duty Grade 1 night latch lever trim with field reversible operation, the Sargent 704-ETL with key retract function for PE Series devices, the Sargent 744 for 8700 and 8900 Series surface vertical rod and mortise devices, the Corbin Russwin VT957ET nightlatch escutcheon trim for ED5000 Series, the Dorma YR03R wide stile lever trim in nightlatch function less cylinder, and the Accentra 121NL. The 880TP is thumbpiece function trim for 88 Series devices, so on a door where you want thumbpiece operation, a nightlatch trim will not behave the same way.
9) Can I put the Von Duprin 880TP on a Sargent or Corbin Russwin exit device?
No. The 880TP is built for 88 Series exit devices and its rim centerline of A 39 13/16 inch and B 33 11/32 inch, and mortise and surface vertical rod centerline of A 39 13/16 inch and B 33 1/2 inch, are cut to that device family. Other manufacturers publish trim for their own devices: Sargent 744 is for 8700 and 8900 Series surface vertical rod and mortise devices, Corbin Russwin x910ET covers the ED5200S, ED5200, ED5400 and ED5800 Grade 1 series, the x810ET covers ED4000 Series, and the 3310AET covers the ED300 Series. Match the trim to the device family already in the door rather than to the finish.
10) How far does the 880TP thumbpiece trim stick out from the door face?
Projection is 2 inches (51 mm) off the door. That matters on a pair of doors with an astragal, next to a jamb-mounted card reader, or anywhere a door swings back against a wall or an adjacent leaf. Measure your clearance to the nearest obstruction before you set the trim.
11) Should I use a thumbpiece trim or a lever trim on the outside of my exit device?
A thumbpiece like the 880TP gives you a pull with a thumb-actuated lift, which holds up well on high-traffic exterior openings and is harder to hang a load on than a lever. A lever trim is what you want where an accessible operable-hardware shape is required, or where users expect a lever. Within the same 880 trim line the alternatives are 880DT, 880K, and 880NL. If you want lever trim for a different device family, the Sargent 704ET night latch lever trim and the Falcon 510L classroom lever trim are heavy duty Grade 1 options.
12) What is the Von Duprin 880TP trim actually made of, and will it hold up on a school or hospital exterior door?
Heavy 10 gauge (2.4 mm) brass, bronze, or stainless steel, depending on the finish you pick. That is Grade 1, heavy duty material, and it is the reason this trim goes on commercial exteriors in schools, hospitals, government buildings, and multi-tenant residential rather than light commercial interior use.
13) Is there another thumbpiece exit device trim if my device is not a Von Duprin 88?
Two we carry. The Dexter ED1000T-CLRM-TP-NC is Grade 1 classroom function thumbpiece with pull plate and cylinder, supplied less cylinder, for ED1000 Series devices. The Tell EDTHP53 is a thumbpiece trim in keyed entry function that fits doors 1-3/8 to 1-3/4 inches thick. Neither is a drop-in for an 88 Series device, so pick by the device family you already have on the door.
14) I need an unlocked always-free outside trim rather than the keyed thumbpiece - what is the alternative?
Passage function trim gives you outside operation with no key control at all, which suits vestibule and interior cross corridor doors. The Corbin Russwin 3310AET is passage function for ED300 Series rim, surface vertical rod and mortise devices, the x810ET is passage for ED4000 Series including SecureBolt, rim, surface and concealed vertical rod, and the x910ET is heavy duty passage for the ED5200 through ED5800 series. The Arrow SRX01 is passage function with a Sierra lever and rose for ED910, S1150 and S1250 devices, and the Detex 02BN is a dummy S-lever trim with blank escutcheon for Value Series devices where the outside handle should not operate anything. The 880TP is thumbpiece function, so it belongs on doors where you want positive outside control.
15) Which exit device trims match the Grade 1 heavy duty rating of the 880TP?
The 880TP is Grade 1 heavy duty. Peers carrying both a Grade 1 rating and a heavy duty designation include the Sargent 704ET night latch lever trim for 700 Series devices and the Sargent 704-ETL with key retract for PE Series devices. Falcon's 510L is heavy duty classroom lever trim for 24/25 Series devices, and the Pamex E9000 is a Grade 1 heavy duty storeroom trim fitting doors 1-3/8 inch to 2 inch. Others rated Grade 1 include the Sargent 744, the Dexter ED1500T and ED1000T-CLRM-TP-NC, the Command Access ET26, and the Design Hardware KIL and LE08 trims. For a facility standardizing on one grade across openings, those are the trims to keep on the list.
16) What finishes does the Von Duprin 880TP thumbpiece trim come in?
Eleven finishes, and every one of them is available in all three preps (rim, mortise, vertical rod): 605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 629/US32 Bright Stainless Steel, 643E Aged Bronze, and 693/SPBLK Black Painted. For matching a run of existing openings, 626 satin chrome and 613 oil rubbed bronze are the two you will most often be replacing.
17) My 88 Series device is on an odd width door. Does the 880TP still work?
Door width is not a constraint on the trim. The 88 Series is field sizable, and the 880TP is non-handed with fixed centerline dimensions, so the trim sets to the same A and B layout regardless of how the device was sized to the leaf. Layout is driven by the prep type, not the door width.
