Von Duprin Von Duprin 990TP-BE Thumbpiece - Blank Escutcheon Trim for 98/99 Series Exit Devices VON-990TP-BE

Von Duprin 990TP-BE Thumbpiece Blank Escutcheon Exit Device Trim for 98/99 Series

(No reviews yet) Write a Review

Model: 990TP-BE-R/V 26D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$544.00
$380.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Von Duprin 990TP-BE Thumbpiece Blank Escutcheon Exit Device Trim for 98/99 Series

Modular Passage Trim Solution for 98/99 Series Exit Devices

The Von Duprin 990TP-BE is a Thumbpiece Blank Escutcheon trim designed specifically for compatibility with the 98 & 99 Series exit devices, providing a clean Passage function that keeps the thumbpiece always active. Engineered with a non-handed design and a 5-1/2" center-to-center measurement, this heavy-duty commercial-grade trim integrates seamlessly into Von Duprin's modular 990 pull trim platform. Certified to ANSI/BHMA A156.3 2014 Grade 1 standards and listed under ANSI/UL 10C (fire-rated configurations) and ANSI/UL 305, the 990TP-BE delivers the reliability and code compliance demanded by professional commercial applications.

Professional Features & Benefits

  • Passage Function Operation: The Thumbpiece Blank Escutcheon (TP-BE) configuration keeps the lever or thumbpiece always active, providing unrestricted passage for high-traffic commercial environments.
  • Non-Handed Design: The 990TP-BE is non-handed, simplifying specification and installation by eliminating the need to determine door handing before ordering.
  • Center-to-Center Measurement: Features a 5-1/2" center-to-center dimension for precise, consistent mounting alignment on compatible 98/99 Series exit devices.
  • ANSI/BHMA Grade 1 Certified: Certified to ANSI/BHMA A156.3 2014 Grade 1, the highest commercial hardware performance standard, ensuring heavy-duty durability for demanding applications.
  • Fire-Rated Compliance: Listed under ANSI/UL 10C and CAN/ULC-S104 for fire-rated configurations, as well as ANSI/UL 305 and CAN/ULC-S132, supporting code-compliant installations in fire-rated openings.

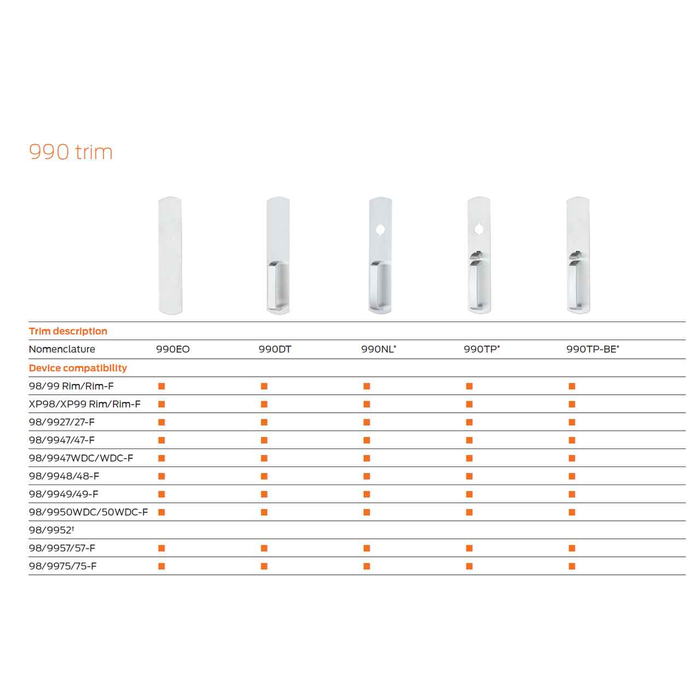

  • Modular 990 Pull Trim Platform: Part of the versatile 990 pull trim family, which supports five standard functions—Classroom (TP), Storeroom (NL), Dummy Trim (DT), Passage (TP-BE), and Exit Only (EO)—allowing facilities to adapt trim configurations as needs evolve.
  • Investment Protection Through Flexibility: Von Duprin's modular design philosophy allows new trim options to be added to existing 98/99 Series devices cost-effectively, protecting long-term facility investments as mechanical and electronic technology converge.
  • Heavy-Duty Commercial Grade: Rated Heavy Duty and designated for commercial use, this trim is built to withstand the rigors of high-traffic institutional and commercial door openings.

Technical Specifications

  • Series: 98 & 99 Series
  • Grade: Grade 1
  • Duty Level: Heavy Duty
  • Product Group: Exit Devices and Trim
  • Product Subgroup: Exit Device Trim
  • Product Type: Exit Device Trim
  • Subcategory: Exit Device Trim
  • Commercial/Residential: Commercial
  • Product Model: 990TP-BE
  • (CTC) Center-to-Center: 5-1/2"
  • Product Function: Thumbpiece, Blank Escutcheon
  • Door Hand Direction: Non-Handed
  • Trim Hardware: Thumbpiece Blank Escutcheon
  • Product Category: Exit Devices and Trim
  • Department: Door Hardware

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Von Duprin Quality?

Von Duprin exit device trim products deliver professional-grade reliability backed by ANSI/BHMA A156.3 2014 Grade 1 certification and compliance with ANSI/UL 10C, ANSI/UL 305, CAN/ULC-S104, and CAN/ULC-S132 for fire-rated applications. The heavy-duty commercial construction and modular design of the 98/99 Series platform ensure that facilities can upgrade and adapt trim configurations cost-effectively over time. Engineered for demanding commercial applications where dependable performance and code compliance are essential.

Manufacturer Resources

Von Duprin 98/99 Series Catalog

Product Specs

Series:
98 & 99 Series
Grade:
Grade 1
Duty Level:
Heavy Duty
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Device Trim
Product Type:
Exit Device Trims
Subcategory:
Exit Device Trim
Commercial/Residential:
Commercial
Product Model:
990TP-BE
(CTC) Center-to-Center:
5-1/2"
Product Function:
Thumbpiece, Blank Escutcheon
Door Hand Direction:
Non-Handed
Trim Hardware:
Thumbpiece Blank Escutcheon
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Von Duprin 990TP-BE-R/V 26D – Frequently Asked Questions

1) What is the Von Duprin 990TP BE thumbpiece blank escutcheon trim used for?
This trim provides blank escutcheon coverage for Von Duprin 98 and 99 series exit devices. The thumbpiece allows manual operation from the secure side while maintaining a clean, professional appearance without visible keying preparation.
2) Is this trim compatible with all 98 and 99 series exit devices?
Yes, the 990TP BE is designed specifically for Von Duprin 98 and 99 series rim and mortise exit devices. Verify your device series number before ordering to ensure proper fit and function.
3) Does this trim require specific door handing?
The 990TP BE trim is field-reversible for both left and right hand doors. The thumbpiece mechanism can be adjusted during installation to match your door's swing direction and handing requirements.
4) What finish options are available for this trim?
Von Duprin offers this trim in standard architectural finishes including satin chrome, dark bronze, and bright brass. Check the specific finish code when ordering to match your existing door hardware.
5) What grade rating does this trim provide?
This trim maintains the Grade 1 rating of the underlying Von Duprin exit device when properly installed. It meets ANSI/BHMA standards for commercial door hardware applications.
6) Does this trim meet fire door code requirements?
When used with listed Von Duprin 98/99 series devices, this trim is suitable for fire-rated door applications. Verify local code requirements and ensure all components maintain the door's fire rating.
7) What mounting hardware comes with this trim?
The trim includes mounting screws and thumbpiece linkage components. The escutcheon mounts to the door surface using the provided fasteners. Installation templates are included for proper positioning.
8) How do you install this thumbpiece trim?
Mount the escutcheon to the door using the template for hole locations. Connect the thumbpiece linkage to the exit device's trim actuator. Adjust the thumbpiece throw to ensure full device activation when pressed.
9) How do you maintain and adjust this trim?
Clean with mild soap and water. Check thumbpiece operation monthly to ensure smooth activation. If the thumbpiece becomes stiff, lubricate the pivot points with graphite or approved door hardware lubricant.
10) Are there keyed versions of this trim available?
Yes, Von Duprin offers keyed cylinder versions of this trim series. The blank escutcheon version provides thumbpiece-only operation without key override capability from the secure side.
11) What door thickness range does this trim accommodate?
This trim works with standard commercial door thicknesses from 1-3/4" to 2-1/4". For doors outside this range, verify compatibility and check if additional spacers or extended components are needed.
12) Can this trim be used in high-traffic applications?
Yes, this trim is built for heavy commercial use and high-cycle applications. The thumbpiece mechanism is designed to withstand frequent operation typical in schools, hospitals, and office buildings.
