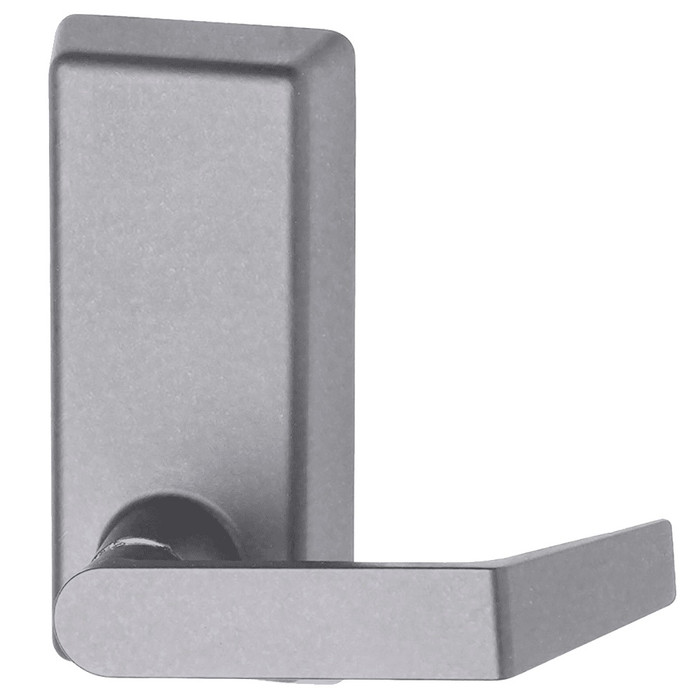

Von Duprin Von Duprin 230L-BE Lever, Blank Escutcheon Function, Trim for 22 Series Exit Devices VON-230L-BE

Von Duprin 230L-BE Exit Device Trim Lever with Blank Escutcheon for 22 Series

(No reviews yet) Write a Review

Model: 230L-BE-06 689 RHR
$340.00
$189.99
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$340.00
$189.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Von Duprin 230L-BE Exit Device Trim Lever with Blank Escutcheon for 22 Series

Always-Operable Lever Trim with Blank Escutcheon for 22 Series Exit Devices

The Von Duprin 230L-BE is a Grade 1, Heavy Duty exit device trim lever featuring a blank escutcheon function — always operable with no cylinder required. Designed as part of the 230 Series Exit Trim line, this trim is engineered specifically for compatibility with Von Duprin 22 Series Exit Devices. The 230L features a cast zinc 3⁄4" (19 mm) depth escutcheon with a plate size of 3" x 6 3⁄8" x 15⁄16" and a product projection of 2 5⁄8" (67 mm). Number 06 lever style is furnished standard, with number 03 and number 17 optional style levers also available. The 230L is furnished right-hand reverse (RHR) if handing is not specified, and the cylinder must be ordered separately if required for other trim configurations.

Professional Features & Benefits

  • Always-Operable Blank Escutcheon Function: The 230L-BE lever trim operates without a cylinder, providing unrestricted egress at all times — ideal for applications requiring constant free passage.
  • Cast Zinc Escutcheon Construction: Features a cast zinc 3⁄4" (19 mm) depth escutcheon, delivering durable, commercial-grade performance in demanding environments.
  • Escutcheon Plate Dimensions: Plate size of 3" x 6 3⁄8" x 15⁄16" (76 x 162 x 24 mm) with a product projection of 2 5⁄8" (67 mm) for precise, professional installation.
  • Multiple Lever Style Options: Number 06 lever style furnished as standard; number 03 and number 17 optional style levers are available to suit aesthetic and functional requirements.
  • 22 Series Exit Device Compatibility: Engineered exclusively for use with Von Duprin 22 Series Exit Devices, ensuring seamless integration and reliable performance.
  • Grade 1 Heavy Duty Rating: Rated Grade 1 Heavy Duty for commercial applications where long-term durability and dependable operation are essential.
  • Modular & Upgradeable Design: Von Duprin's flexible, modular platform allows functionality to be added or upgraded cost-effectively as facility needs evolve, protecting your hardware investment.
  • Non-Handed Configuration: Supplied RHR if handing is not specified, with flexible handing options available to accommodate a variety of door configurations.

Technical Specifications

  • Subcategory: Exit Device Trim
  • Series: 230 Exit Trim
  • Grade: Grade 1
  • Duty Level: Heavy Duty
  • Compatibilty: 22 Series Exit Devices
  • Product Group: Exit Devices and Trim
  • Product Subgroup: Exit Device Trim
  • Product Type: Exit Device Trim
  • Commercial/Residential: Commercial
  • Plate Size: 76 x 162 x 24 mm
  • Product Model: 230L-BE
  • Product Function: Lever
  • Door Hand Direction: Non-Handed
  • Escutcheon Plate: 3" x 6 3⁄8" x 15⁄16"
  • Product Projection: 2 5⁄8" (67 mm)
  • Product Category: Exit Devices and Trim
  • Department: Door Hardware

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Von Duprin Quality?

Von Duprin exit device trim products deliver professional-grade reliability with cast zinc escutcheon construction and Grade 1 Heavy Duty ratings designed for demanding commercial applications. The 230 Series' modular, upgradeable platform protects your investment by enabling cost-effective adaptation as facility needs and technology requirements evolve. Engineered for seamless compatibility with the 22 Series Exit Device line, Von Duprin trim solutions provide dependable, long-term performance where consistent egress function is critical.

Product Specs

Subcategory:
Exit Device Trim
Series:
230 Exit Trim
Grade:
Grade 1
Duty Level:
Heavy Duty
Compatibility:
22 Series Exit Devices
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Device Trim
Product Type:
Exit Device Trims
Commercial/Residential:
Commercial
Plate Size:
76 x 162 x 24 mm
Product Model:
230L-BE
Product Function:
Lever
Door Hand Direction:
Non-Handed
Escutcheon Plate:
3" x 6 3⁄8" x 15⁄16"
Product Projection:
2 5⁄8" (67 mm)
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Von Duprin 230L-BE-06 689 RHR – Frequently Asked Questions

1) Will the Von Duprin 230L-BE lever trim work on my 22 Series exit device?
The 230L-BE is built for Von Duprin 22 Series exit devices and nothing else. If your device is a 33A/35A, 98/99, or another Von Duprin family, this trim won't mount to it. Check the device chassis marking before ordering, because the 230 trim line is matched to the 22 Series prep.
2) What does the blank escutcheon (BE) function on the Von Duprin 230L mean for security?
Blank escutcheon means always operable, no cylinder and no key. The outside lever retracts the latch at all times, so the opening is never locked from the outside. Use it where you want free passage in both directions and the exit device is only there for panic egress. If you need the outside to lock, this is the wrong trim, you want a keyed nightlatch or storeroom trim instead.
3) How do I specify handing on the Von Duprin 230L exit trim?
Handing matters here. The 230L-BE is offered LHR (left hand reverse) and RHR (right hand reverse), and if you don't state a hand on the order, Von Duprin ships RHR. Exit devices are always reverse-bevel openings, so the hand is taken from the outside pull side, which is the side this trim mounts on.
4) I need the outside lever to lock, not free passage. What should I use instead of the 230L-BE?
Blank escutcheon is always operable, so it will never secure the outside of the door. For a keyed function you want a storeroom or nightlatch trim: the Sargent 704ET is a night latch lever trim with field reversible operation, and the Marks USA M195F is a storeroom function lever and rose trim. Both are different device families, so confirm the trim matches your exit device before ordering.
5) Can I get the Von Duprin 230L trim electrified for access control?
Yes, by way of a different part. The Command Access 230L is an electrified version of the Von Duprin 230L exit trim with 12V/24V operation and fail safe or fail secure options, covering V96/36/23 Series devices. The mechanical 230L-BE is always operable with no cylinder and no electrical function, so if the door needs to be locked and released by a card reader or credential, the electrified trim is the part to specify. Falcon also offers the 510L-FSA/FSE, an electrified Heavy Duty lever trim, but it is built for 25 Series devices rather than Von Duprin 22 Series.
6) What is the equivalent of the Von Duprin 230L-BE blank escutcheon lever trim from another manufacturer?
The closest match in function is the Falcon 212L, an escutcheon lever exit device trim with a blank escutcheon function for 20 Series devices. Both give you a lever on the outside with no cylinder in the trim. The difference to weigh is duty: the Von Duprin 230L-BE is Grade 1 Heavy Duty, while the Falcon 212L is Medium Duty. The Detex 02BN is also a lever with a blank escutcheon, but it is a dummy S-lever trim for Value Series devices, meaning the lever is fixed rather than operating the device.
7) I need a keyed lever on the outside instead of an always-operable one. What should I order?
The 230L-BE is a blank escutcheon lever with no cylinder, so it stays operable at all times. If the opening needs to lock from outside, look at a keyed lever trim instead: the Design Hardware KIL Storeroom trim is a Grade 1 storeroom function lever with a Schlage C keyway for 1000 and 2000 Series devices, the Tell EDELT80 is a storeroom function escutcheon lever trim, and the Tell EDELT53 is a keyed entry function escutcheon lever trim. For night latch operation where the key retracts the latch, the Sargent 704ET is a Grade 1 Heavy Duty night latch lever trim with field reversible operation.
8) Do I need to order a cylinder with the 230L-BE?
No cylinder, no keyway, no keying to specify. The blank escutcheon version has no cylinder hole to fill, so ordering is just handing, lever style, and finish. Other 230L trim configurations do take a cylinder, and on those it is ordered separately.
9) What lever styles and finishes does the Von Duprin 230L-BE come in?
Three lever styles: the 06 lever is standard, with the 03 and 17 as options. Four finishes: 526 powder coated chrome, 622 matte black, 689 powder coated aluminum, and 695/SP313 dark bronze. Every lever style is offered in all four finishes and in both LHR and RHR, so matching a mixed set of openings across a building is straightforward.
10) Is the Von Duprin 230L-BE trim strong enough for a school or hospital corridor?
Grade 1, heavy duty, and commercial rated, with a cast zinc escutcheon. That is the top ANSI/BHMA durability tier and the level a facility spec normally calls for on high-traffic egress openings in schools, hospitals, and government buildings.
11) Which Grade 1 lever trims are alternatives to the Von Duprin 230L-BE for a school or hospital spec?
The 230L-BE is Grade 1 Heavy Duty. Other Grade 1 lever trims in the same class include the Pamex E9000, a Grade 1 Heavy Duty storeroom L3 lever trim that fits doors 1-3/8 inch to 2 inch thick, the Design Hardware LE08, a Grade 1 entry function flat lever trim with escutcheon for 1000R and 2000R devices, the Dexter ED1500T Grade 1 trim with regular lever, and the Sargent 744, a Grade 1 freewheeling trim where the key retracts the latch, built for 8700 and 8900 Series surface vertical rod and mortise devices. The functional split matters for a facility spec: the 230L-BE is always operable with no cylinder, while those four are keyed or locking functions.
12) We are adding pushbutton access to an exit door. Does the 230L-BE work for that?
No, that is a different family of trim. The 230L-BE is a mechanical lever with a blank escutcheon and no cylinder. For credential or code entry on an exit device, the Dormakaba E-Plex 201U is an electronic pushbutton exit trim for wide stile applications, the PowerPlex P201U covers rim, mortise and surface vertical rod devices, and the Command Access ET15, ET25 and ET26 are electrified exit trims with 12V/24V operation and fail safe or fail secure options, the ET26 with Grade 1 construction and a field reversible design.
13) What is the difference between the 230L-BE and a classroom function lever trim?
Function is the whole difference. The 230L-BE has a blank escutcheon and stays operable at all times with no cylinder. A classroom function trim locks and unlocks by key from outside: the Falcon 510L is a Heavy Duty classroom function lever trim for 24/25 Series devices, the Falcon 179L is a Medium Duty classroom lever control trim for 1790 Series, and the Accentra 446F is a classroom function Augusta lever trim, Grade 1. Choose the classroom function when the outside lever needs to be locked off during a lockdown, and the 230L-BE when the door must never restrict entry.
14) Do I need door prep templates for the Von Duprin 230L trim on a wood door versus a hollow metal door?
Yes, and the prep differs by door material. Von Duprin publishes separate 22 Series template indexes for hollow metal doors and for wood doors, plus dedicated trims and strikes template indexes for each. Pull the trims and strikes template that matches your door material before drilling, because the trim mounting holes are covered there rather than in the device template.
15) What can I use instead of a lever trim if the door gets heavy traffic or we need a pull instead?
Where a lever is not wanted, pull trims cover the same opening. The Tell exit device pull trim has a cylinder hole and ships less cylinder, the Design Hardware 2P-03NL is a Grade 1 pull trim with cylinder hole in night latch function for 1000R and 2000R devices, and the Dexter ED1500T-PULL-NC is a Grade 1 nightlatch pull trim with a raised lip plate. Against these, the Von Duprin 230L-BE is a lever that is always operable with no cylinder, so choosing a pull trim also changes the door from free passage to keyed access.
