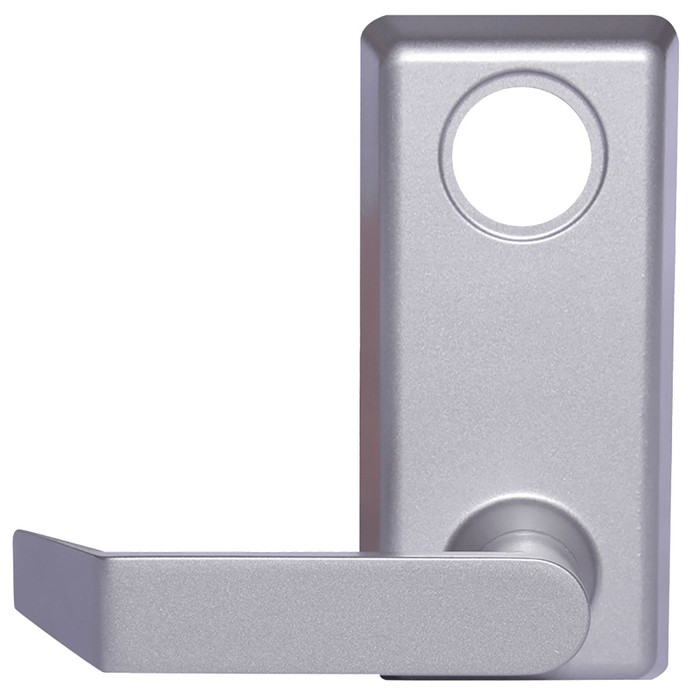

Von Duprin 230L Lever Trim for 22 Series Exit Devices - 06 Lever, 689 Powder Coated Aluminum, RHR

Von Duprin 230L Lever Trim for 22 Series Exit Devices with Key Locks and Unlocks Function

(No reviews yet) Write a Review

Model: 230L-06 689 RHR
$340.00
$181.00
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$340.00
$181.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Von Duprin 230L Lever Trim for 22 Series Exit Devices with Key Locks and Unlocks Function

Heavy-Duty Commercial Exit Device Trim with Flexible Lever Options

The Von Duprin 230L is a Grade 1, heavy-duty lever-function exit device trim designed specifically for compatibility with Von Duprin 22 Series Exit Devices. Featuring a cast zinc 3⁄4" (19 mm) depth escutcheon and a key locks and unlocks lever function, the 230L delivers reliable, adaptable security for demanding commercial applications. The Number 06 lever style is furnished as standard, with Number 03 and Number 17 optional lever styles also available. Note that a cylinder must be ordered separately for the 230L trim, and the unit is furnished Right Hand Reverse (RHR) if handing is not specified.

Professional Features & Benefits

  • Key Locks and Unlocks Function: The 230L lever function provides controlled access by allowing the lever to lock and unlock via key, supporting flexible security management for commercial facilities.
  • Cast Zinc Escutcheon: Features a cast zinc 3⁄4" (19 mm) depth escutcheon plate measuring 3" x 6 3⁄8" x 15⁄16" for a durable, professional-grade finish and robust construction.
  • Multiple Lever Style Options: Number 06 lever style is furnished standard; Number 03 and Number 17 optional style levers are available to suit varied aesthetic and functional requirements.
  • 22 Series Exit Device Compatibility: Engineered exclusively for use with Von Duprin 22 Series Exit Devices, ensuring seamless integration and reliable performance within the 22 Series platform.
  • Modular and Upgradeable Design: Von Duprin's versatile modular design enables easy addition of new options and functionality to existing devices in a cost-effective way, protecting your investment as facility needs evolve.
  • Grade 1 Heavy-Duty Performance: Rated Grade 1 and classified as Heavy Duty for commercial applications where dependable, long-term performance is essential.
  • Non-Handed Configuration: The 230L trim is non-handed (furnished RHR if handing is not specified), simplifying specification and inventory management for installers and facility managers.
  • Cylinder Sold Separately: A 1 1⁄4" Mortise pin cylinder must be ordered separately, allowing flexibility in cylinder selection to match existing keying systems.

Technical Specifications

  • Subcategory: Exit Device Trim
  • Series: 230 Exit Trim
  • Grade: Grade 1
  • Duty Level: Heavy Duty
  • Compatibilty: 22 Series Exit Devices
  • Product Group: Exit Devices and Trim
  • Product Subgroup: Exit Device Trim
  • Product Type: Exit Device Trim
  • Commercial/Residential: Commercial
  • Plate Size: 76 x 162 x 24 mm
  • Product Model: 230L
  • Product Function: Lever
  • Door Hand Direction: Non-Handed
  • Pin Cylinder: 1 1⁄4" Mortise
  • Escutcheon Plate: 3" x 6 3⁄8" x 15⁄16"
  • Product Projection: 2 5⁄8" (67 mm)
  • Product Category: Exit Devices and Trim
  • Department: Door Hardware

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Von Duprin Quality?

Von Duprin exit device trim products deliver professional-grade reliability with Grade 1, heavy-duty construction rated for the most demanding commercial environments. The 230L's cast zinc escutcheon and modular design reflect Von Duprin's commitment to flexible, investment-protecting solutions that adapt as facility needs and technology evolve. Engineered for seamless integration with the 22 Series platform, Von Duprin trim ensures dependable performance wherever reliable access control is required.

Product Specs

Subcategory:
Exit Device Trim
Series:
230 Exit Trim
Grade:
Grade 1
Duty Level:
Heavy Duty
Compatibility:
22 Series Exit Devices
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Device Trim
Product Type:
Exit Device Trims
Commercial/Residential:
Commercial
Plate Size:
76 x 162 x 24 mm
Product Model:
230L
Product Function:
Lever
Door Hand Direction:
Non-Handed
Pin Cylinder:
1 1/4" Mortise
Escutcheon Plate:
3" x 6 3⁄8" x 15⁄16"
Product Projection:
2 5⁄8" (67 mm)
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Von Duprin 230L-06 689 RHR – Frequently Asked Questions

1) Can I add lever trim to a 22 Series exit device that was installed as exit only?
Yes, that is what the 230L is for. Von Duprin builds the 22 Series modular, so trim can be added to a device already hanging on the door instead of replacing the whole device. You will need the door prepped for the trim, and Von Duprin publishes separate trim and strike template indexes for hollow metal and for wood doors so the installer can verify the existing prep before cutting.
2) Does the 230L come with a cylinder, and what cylinder do I need to order with it?
No cylinder is included. The 230L takes a 1-1/4 inch mortise pin cylinder, ordered separately, so you can key it into whatever system the building already runs. Budget for the cylinder, cam and keying on the same order or the trim shows up unable to operate.
3) Do I have to specify handing on the Von Duprin 230L exit trim?
The trim itself is non-handed, but it ships configured, and it is furnished Right Hand Reverse if you do not state a hand. Both LHR and RHR are orderable across all three lever styles and all four finishes, so specify the hand of your opening on the order rather than relying on the default.
4) What does the key locks and unlocks function on the 230L actually do day to day?
Turn the key one way and the outside lever is locked, turn it back and the lever stays unlocked until you key it again. That is a lock/unlock toggle, not a momentary retract. It suits a storefront or office entrance you open in the morning and secure at night. If you want the lever dead at all times and the key to only pull the latch on entry, you want a nightlatch trim such as the Sargent 704ET instead. Free egress from inside is always there through the 22 Series push pad regardless of how the outside lever is set.
5) I need the exterior lever on my 22 Series device to unlock from an access control system. Can the 230L do that?
The 230L is mechanical, keyed only, with no electrification. For card reader or REX control on the same 22 Series device, Command Access builds an electrified 230L that runs 12V or 24V with fail safe or fail secure selectable. That is the part to order when the lever has to release from a panel rather than a key.
6) Is a storeroom function lever trim the same as the Von Duprin 230L?
No, and this is a common substitution mistake. The Von Duprin 230L is a key locks and unlocks lever, so the lever can be keyed to a free state and stay that way. A storeroom trim such as the Pamex E9000, the Design Hardware KIL storeroom trim, or the Tell EDELT80 keeps the lever locked at all times, with the key required for every entry. Both are lever trims with an escutcheon and both look similar on the door, but the storeroom versions will not give a facility the unlocked daytime condition the 230L provides.
7) What is the closest equivalent to the Von Duprin 230L if I need the lever to be electrified for access control?
Command Access makes a 230L electrified exit trim built to the Von Duprin 230L pattern, with 12V/24V operation and fail safe or fail secure options, covering the V96/36/23 series. The Von Duprin 230L itself is a mechanical key locks and unlocks lever trim with a 1 1/4 inch mortise pin cylinder ordered separately. If the opening needs to be released from a card reader or a remote button rather than a key, the Command Access 230L is the direct swap; if the key is the only credential, the Von Duprin 230L covers it.
8) I need a keyed lever trim for an exit device but the door is not a Von Duprin 22 Series. What should I use instead of the 230L?
The Von Duprin 230L is built for 22 Series exit devices, so it should not be forced onto another manufacturer's device. For a Sargent 700 Series device, the Sargent 704ET is a night latch lever trim with field reversible operation, Grade 1 and heavy duty. For a Falcon 24/25 Series device, the Falcon 510L is a heavy duty classroom function lever trim. For Design Hardware 1000 and 2000 Series devices, the KIL storeroom function trim is a Grade 1 flat lever trim in Schlage C keyway. Match the trim to the device family first, then pick the function.
9) What is the difference between the Von Duprin 230L and a nightlatch trim like the Sargent 704ET?
They behave differently at the door. The Von Duprin 230L is a key locks and unlocks lever function: turning the key changes the state of the lever, so the trim can be left unlocked for a business day and relocked at close. The Sargent 704ET is a night latch function trim, where the key retracts the latch for that entry only and the trim returns to locked. If the facility wants an opening that stays free during hours, the 230L function is the one; if every entry must be a keyed entry, a night latch trim such as the 704ET or the Sargent 704-ETL is the correct function.
10) What lever styles and finishes can I get on the Von Duprin 230L?
Three lever styles: the 06 lever standard, plus the 03 and the 17. Four finishes: 526 powder coated chrome, 622 matte black, 689 powder coated aluminum, and 695/SP313 dark bronze. Every lever style is offered in every one of those four finishes, in both LHR and RHR, so you can match the 03 lever your building already uses without giving up a finish.
11) Is the 230L rated for a high traffic commercial entrance?
Grade 1 and classified heavy duty, which is the top tier for commercial door hardware and the level a school corridor, hospital entrance or municipal building normally specs. Cast zinc escutcheon rather than a stamped plate. It is a commercial trim, not a residential one.
12) What are the closest alternatives to the Von Duprin 230L lever exit trim from other brands?
Nothing else drops onto a Von Duprin 22 Series device, so cross-brand trim means changing the device too. If you are specifying a whole opening fresh, comparable heavy duty Grade 1 lever trims include the Falcon 510L for 24/25 Series devices, the Sargent 704-ETL for PE Series, and the Pamex E9000 in storeroom function. Each is tied to its own device family. If you want the electrified version of this exact trim, the Command Access 230L is the direct match.
13) Is the Falcon 212L or 179L an alternative to the Von Duprin 230L?
They are not equivalent. The Von Duprin 230L is heavy duty with a key locks and unlocks lever function; the Falcon 212L and 179L are both medium duty, the 212L being a 20 Series blank escutcheon trim and the 179L a 1790 Series classroom function lever trim. On a high traffic commercial opening specified heavy duty, the Falcon match is the 510L, which is heavy duty for 24/25 Series devices. The 212L and 179L belong on their own Falcon device families and at a lighter duty level.
14) What should I put on the door instead of a Von Duprin 230L if I want to get rid of keys entirely?
The Von Duprin 230L is a keyed lever trim taking a 1 1/4 inch mortise pin cylinder. To remove keys from the opening, Dormakaba offers pushbutton exit trim: the E-Plex 201U electronic pushbutton exit trim in the E-Plex 2000 Series for wide stile doors, and the PowerPlex P201U exit trim for rim, mortise and SVR devices. Both replace the key credential with a code at the door. If the goal is to keep the key but add remote release, the electrified route is a better fit than a standalone pushbutton trim.
15) Is a dummy trim an acceptable substitute for the Von Duprin 230L?
No. A dummy trim such as the Detex 02BN dummy S-lever with blank escutcheon, or the Dexter ED1500T dummy function trim with handle pull plate, has no working latch retraction at all; it is a fixed pull for the outside of an egress only door. The Von Duprin 230L is a functioning key locks and unlocks lever that operates the 22 Series device from the outside. If entry through the door is ever required, a dummy trim will not do it. Falcon's 212L blank escutcheon trim falls into the same non-operating category.
16) We standardize on one exit trim across a campus. What is the Corbin Russwin or Accentra counterpart to the Von Duprin 230L?
Corbin Russwin's escutcheon trims run by device family: the x910ET covers the ED5200S, ED5200, ED5400 and ED5800 Grade 1 series in passage function, the x810ET covers ED4000 Grade 1 series in passage, and the VT957ET is a nightlatch escutcheon trim in stamped or formed stainless for the ED5000 Series. Accentra's Augusta lever escutcheon trims include the 426F for 6000 and 1800 Series devices and the 446F in classroom function, Grade 1. None are interchangeable with the Von Duprin 230L, which is built to the 22 Series; standardizing means choosing one device family first and then its matching trim.
17) Which electrified exit trims exist besides the Command Access 230L version?
Command Access builds several electrified exit trims with 12V/24V operation and fail safe or fail secure options: the ET15, ET25 and ET26 series alongside the 230L pattern that follows the Von Duprin 230L. Falcon also offers the 510L-FSA/FSE, an electrified heavy duty lever trim for 25 Series devices. The mechanical Von Duprin 230L keys locked and unlocked at the door; the electrified trims add fail safe or fail secure behavior tied to power, which is the deciding difference when the opening is on an access control system or a fire alarm release.
