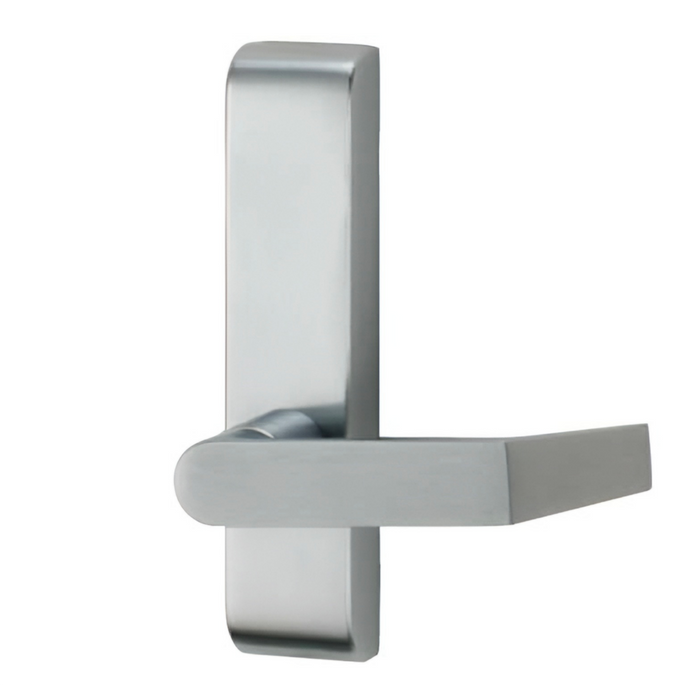

Von Duprin 371L-BE Lever - Blank Escutcheon Trim for 55 Series and 88 Series Exit Devices

Von Duprin 371L-BE Lever Trim with Blank Escutcheon for 55 Series and 88 Series Exit Devices

(No reviews yet) Write a Review

Model: VON-371L-BE-626
$1,005.00
$796.29
Selected Finish is
  • Von Duprin ADDER-VON-370-[LEVER]=06 Lever ADDER-VON-370-[LEVER]=06 Lever
  • Von Duprin ADDER-VON-370-[LEVER]=01 Lever ADDER-VON-370-[LEVER]=01 Lever
  • Von Duprin ADDER-VON-370-[LEVER]=02 Lever ADDER-VON-370-[LEVER]=02 Lever
  • Von Duprin ADDER-VON-370-[LEVER]=03 Lever ADDER-VON-370-[LEVER]=03 Lever
  • Von Duprin ADDER-VON-370-[LEVER]=07 Lever ADDER-VON-370-[LEVER]=07 Lever
  • Von Duprin ADDER-VON-370-[LEVER]=12 Lever ADDER-VON-370-[LEVER]=12 Lever
  • Von Duprin ADDER-VON-370-[LEVER]=16 Lever ADDER-VON-370-[LEVER]=16 Lever

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,005.00
$796.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Von Duprin 371L-BE Lever Trim with Blank Escutcheon for 55 Series and 88 Series Exit Devices

370 Series Control Trim — Field-Reversible Lever Solution for Commercial Exit Devices

The Von Duprin 371L-BE is a Grade 1, heavy-duty lever trim with blank escutcheon, engineered as part of the 370 Series Control Trims for use with Von Duprin 55 Series and 88 Series exit devices. Designed for commercial applications, this trim features an Always Operable (No Cylinder) function, meaning the lever operates freely without the need for a cylinder, providing straightforward and reliable egress. The field-reversible door hand direction allows a single trim to adapt to left- or right-handed door configurations, protecting your hardware investment and simplifying inventory management. Certified to ANSI/BHMA A156.3 2014 Grade 1 standards, this trim delivers the performance and compliance demanded by professional door hardware installations.

Professional Features & Benefits

  • ANSI/BHMA Grade 1 Certified: Meets ANSI/BHMA A156.3 2014 Grade 1 requirements, ensuring heavy-duty performance and compliance for demanding commercial applications.
  • Fire-Rated Compliance: Listed to ANSI/UL 10C (fire-rated configurations) and CAN/ULC-S104 (fire-rated configurations), supporting use on fire-rated door assemblies where required.
  • Additional Certifications: Also certified to ANSI/UL 305 and CAN/ULC-S132, providing broad compliance coverage across a range of commercial and institutional applications.
  • Always Operable Function (No Cylinder): The blank escutcheon trim operates without a cylinder, allowing unrestricted lever operation for straightforward egress without key control on the trim itself.
  • Field-Reversible Handing: Door hand direction is field reversible, enabling the trim to be configured for left- or right-hand doors on-site without requiring separate SKUs or additional parts.
  • 55 Series and 88 Series Compatibility: Specifically designed for Von Duprin 55 Series and 88 Series exit devices, ensuring seamless integration and consistent performance within these product families.
  • Modular and Upgradeable Design: Part of Von Duprin’s flexible 370 Series platform, this trim supports future upgrades and the addition of new options as facility needs evolve, protecting your long-term investment.
  • Heavy-Duty Construction: Rated at Heavy Duty level, this trim is built to withstand the rigors of high-traffic commercial environments, delivering long-term reliability.

Technical Specifications

  • Subcategory: Exit Device Trim
  • Series: 370 Series
  • Grade: Grade 1
  • Duty Level: Heavy Duty
  • Function Description: Always Operable (No Cylinder)
  • Product Group: Exit Devices and Trim
  • Product Subgroup: Exit Device Trim
  • Product Type: Exit Device Trim
  • Commercial/Residential: Commercial
  • Handle Type: Lever
  • Product Model: 371L-BE
  • Door Hand Direction: Field Reversible
  • Product Category: Exit Devices and Trim
  • Department: Door Hardware

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Von Duprin Quality?

Von Duprin 370 Series Control Trims are engineered to deliver professional-grade reliability, backed by ANSI/BHMA A156.3 2014 Grade 1 certification and heavy-duty construction suited for the most demanding commercial environments. The modular, upgradeable design of the 55 and 88 Series platform ensures that your hardware investment remains adaptable as facility needs change and technology evolves. When dependable egress performance and code compliance are essential, Von Duprin delivers the trusted quality that commercial door hardware professionals rely on.

Manufacturer Resources

Von Duprin 55 Series Catalog

Product Specs

Subcategory:
Exit Device Trim
Series:
370 Series
Grade:
Grade 1
Duty Level:
Heavy Duty
Function Description:
Always Operable (No Cylinder)
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Device Trim
Product Type:
Exit Device Trims
Commercial/Residential:
Commercial
Handle Type:
Lever
Product Model:
371L-BE
Door Hand Direction:
Field Reversible
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Von Duprin VON-371L-BE-626 – Frequently Asked Questions

1) Does the 371L-BE lever trim take a cylinder or unlock with a key?
No cylinder, and no keyed control. The 371L-BE uses a blank escutcheon with an Always Operable function, which means the outside lever always retracts the latch and the door is never locked from the outside by the trim. If you need the outside lever to be locked and released by key, you want a nightlatch or classroom trim instead, not the blank escutcheon version.
2) Do I have to order the Von Duprin 371L-BE by handing, or can one part do both doors?
Handing is a required selection when you order (RHR or LHR), but the trim itself is field reversible, so the hand can be changed on site if you get to the door and find the opening swings the other way. For a property manager stocking spares across a building, that means one trim covers both hands rather than carrying two part numbers.
3) What do I need to specify when ordering a Von Duprin 371L-BE lever trim?
Three choices: handing (RHR or LHR), lever design, and finish. The lever comes in 06, 01, 02, 03, 07, 12 and 16 designs. Finishes are 605 bright brass, 606 satin brass, 612 satin bronze, 613 oil rubbed bronze, 625 bright chrome, 626 satin chrome, 643E aged bronze, and 693/SPBLK black painted. No cylinder is ordered with it, since the blank escutcheon trim runs without one.
4) Is the Von Duprin 371L-BE trim OK on a fire rated door?
Yes. The 371L-BE is listed to ANSI/UL 10C and CAN/ULC-S104 in fire rated configurations, and it also carries ANSI/UL 305 and CAN/ULC-S132 listings. Note the function: because the outside lever is always operable, the trim provides no outside locking, which is fine on a fire door assembly for egress but is not a security trim.
5) I need a keyed lever trim, not an always-open one. What should I buy instead?
Since the 371L-BE lever never locks from the outside, look at a keyed function trim. Comparable options include the Sargent 704ET night latch lever trim, which is Grade 1 heavy duty and also field reversible, or the Design Hardware KIL storeroom function trim with a Schlage C keyway and flat lever. The Pamex E9000 is another Grade 1 storeroom lever trim, listed for 1-3/8 inch to 2 inch doors. Each of those keys the outside lever; the trim must still match the exit device family you are working with.
6) Is a dummy trim the same thing as the always-operable 371L-BE blank escutcheon trim?
No, and the two are easy to confuse because both are cylinder-free. The Von Duprin 371L-BE is Always Operable (No Cylinder), so the lever actually retracts the latch from the outside. The Detex 02BN is a dummy S-lever trim with blank escutcheon for Value Series devices, and dummy means the lever is fixed and does nothing but pull the door. Same for the BEST exit only trims: the 2901 narrow stile lever trim and the 4901 wide stile lever trim, both for 2000 Series devices, are exit only function, meaning the outside lever does not operate the device at all. If the requirement is that anyone can walk in through the door from the outside, the exit only and dummy trims will not do it.
7) What is the equivalent of a Von Duprin 371L-BE if the door has a Sargent exit device instead?
The 371L-BE is a lever trim with blank escutcheon built for Von Duprin 55 Series and 88 Series devices, with an Always Operable (No Cylinder) function and field reversible door hand direction. On a Sargent 700 Series device, the corresponding lever trim is the Sargent 704ET, which is also field reversible but runs a night latch function, so the key retracts the latch rather than the lever operating free at all times. If the device is a Sargent PE Series, the 704-ETL is the night latch lever trim for that family. Both Sargent trims are Grade 1 and heavy duty, matching the 371L-BE on grade and duty level, but neither is a no-cylinder trim.
8) Which exit device trim gives the same always-operable lever without a cylinder, but on a Falcon device?
On Falcon 20 Series devices the closest counterpart to the Von Duprin 371L-BE is the Falcon 212L, an escutcheon lever trim whose function is blank escutcheon, the same no-cylinder arrangement as the 371L-BE Always Operable (No Cylinder) trim. The difference to weigh is duty: the 212L is rated medium duty, while the 371L-BE is heavy duty Grade 1. On Falcon 24/25 Series devices the lever trim is the 510L, but that one is a classroom function, so it takes a cylinder and the lever is not always free.
9) The outside lever needs to be locked and released by key, not always operable. What trim should be specified instead of the 371L-BE?
The 371L-BE lever is Always Operable (No Cylinder), so it cannot be locked from the outside. For a keyed outside lever on a comparable Grade 1 trim, the Design Hardware KIL Storeroom trim is a storeroom function lever trim for 1000 and 2000 Series exit devices in a Schlage C keyway with a flat lever, and the Design Hardware KIL Entry trim is the entry function version of the same. The Pamex E9000 is another Grade 1 storeroom lever trim, on the E9000 series, and fits doors 1-3/8 inch to 2 inch thick. Marks USA M195F is a storeroom function lever and rose trim for M9900 touchbar devices if the opening uses a rose rather than an escutcheon.
10) What is the closest passage-function lever trim to the Von Duprin 371L-BE for Corbin Russwin exit devices?
Corbin Russwin builds passage function trims across its Grade 1 exit device families, and passage is the functional match to the 371L-BE Always Operable (No Cylinder) lever, since the outside lever always retracts the latch. The 3310AET is the passage trim for ED3000 Series devices, the x810ET covers ED4000 Series SecureBolt, rim, surface and concealed vertical rod devices, and the x910ET is the heavy-duty passage trim for ED5200S, ED5200, ED5400 and ED5800 Series devices. Which one applies is decided entirely by the device already on the door, the same way the 371L-BE is tied to Von Duprin 55 and 88 Series.
11) We want card reader control on the outside lever instead of a mechanical trim. What replaces a 371L-BE?
An electrified trim replaces the mechanical lever entirely. Command Access builds the ET26 electrified exit trim with Grade 1 construction and a field reversible design, matching the 371L-BE on Grade 1 and field reversible handing while adding access control, and the ET15 and ET25 series cover other device platforms. All three run 12V or 24V with fail safe and fail secure options, so the lever can be set to unlock or lock on power loss. Command Access also lists a 230L electrified trim for Von Duprin V96, 36 and 23 Series devices. On the Falcon side, the 510L-FSA/FSE is the electrified heavy duty lever trim for 25 Series devices.
12) The opening is on a fire-rated door. Which lever trims are cleared for that?
The Von Duprin 371L-BE is listed to ANSI/UL 10C and CAN/ULC-S104 in fire-rated configurations, along with ANSI/UL 305 and CAN/ULC-S132, so it can go on a fire-rated assembly where the device and door are rated to match. Among comparable escutcheon lever trims, the Accentra 426F Augusta lever trim, the 446F classroom function trim, and the 441F night latch keyed lever trim all carry a fire rating of No, which rules them out for a rated opening.
13) What is the difference between the 371L-BE and a nightlatch lever trim?
On a nightlatch trim the lever is rigid until a key retracts the latch, so the outside stays secure by default. The Corbin Russwin VT957ET is a nightlatch escutcheon trim for ED5000 Series devices in stamped or formed stainless steel, the Dorma YR03R is a wide stile escutcheon trim with R lever in nightlatch function supplied less cylinder, and the Sargent 744 is a Grade 1 freewheeling nightlatch trim for 8700 and 8900 Series surface vertical rod and mortise devices. The Von Duprin 371L-BE runs the opposite way: Always Operable with no cylinder, so the outside lever always releases the latch and there is no key control at the trim.
14) Is a blank escutcheon lever trim heavy duty enough for a school or hospital corridor?
The 371L-BE is certified to ANSI/BHMA A156.3 2014 Grade 1 and rated Heavy Duty for commercial use, which is the level specified for high traffic institutional openings. For a facility standardizing across doors, that Grade 1 rating is the same tier written into most school and healthcare hardware schedules.
15) Can I put an electrified lever trim on a Von Duprin exit device instead of this blank escutcheon trim?
The 371L-BE is purely mechanical with no cylinder and no electrical option. For access control on a Von Duprin device, Command Access makes the 230L electrified exit trim for V96/36/23 Series devices, with 12V/24V operation and fail safe or fail secure configuration. That is the path if you need the outside lever controlled by a card reader rather than always free.
16) Can an Accentra or Arrow lever trim be used on a Von Duprin 55 or 88 Series exit device?
No. Exit device trims are matched to the device family, not shared across brands. The Von Duprin 371L-BE is built for 55 Series and 88 Series devices. The Arrow SRX01 is a passage function Sierra lever trim with rose for ED910, S1150 and S1250 devices, and the Accentra 426F Augusta lever escutcheon trim is for 6000 and 1800 Series devices. Those trims will not mount to a Von Duprin 55 or 88 chassis. If the goal is one lever look across a building, the 371L-BE is offered in seven lever designs and eight finishes, from 605 bright brass through 626 satin chrome and 693/SPBLK black painted.
17) What is a simpler trim than the 371L-BE if the outside only needs a handle to pull the door open?
When the outside handle only has to pull, a pull trim does the job without a lever mechanism. The Tell EDPT is an exit device pull trim with a cylinder hole, shipped less cylinder, for doors 1-3/8 inch to 1-3/4 inch thick. The Dexter ED1500T pull trim with raised lip pull plate is a Grade 1 night latch function trim, and the ED1500T dummy function trim uses a handle pull plate on the ED1500 Series. Note the functional gap: the 371L-BE lever is Always Operable and retracts the latch from outside, which a dummy or exit only pull trim will not do.
18) Which trim should be used instead of the 371L-BE if the door needs classroom function?
Classroom function keeps the outside lever locked or unlocked by key, which the 371L-BE does not do since it is Always Operable with no cylinder. The Accentra 446F is a Grade 1 classroom function exit device trim with the Augusta lever. Falcon offers the 510L, a heavy duty classroom function lever trim for 24/25 Series devices, and the 179L classroom lever control trim for 1790 Series devices, which is medium duty. Dexter lists the ED1000T-CLRM-TP-NC, a Grade 1 classroom trim using a thumbpiece and pull plate with cylinder, supplied less cylinder, if a thumbpiece is acceptable in place of a lever.
19) Do I have to order separate left hand and right hand trims the way some exit device trims require?
The Von Duprin 371L-BE is field reversible, so one trim covers left hand reverse and right hand reverse openings and a facility can stock a single part across both swings. Sargent's 704ET night latch lever trim is also field reversible in the 700 Series. Handing is still called out at order time on the 371L-BE as RHR or LHR, and it carries the same Grade 1 heavy duty commercial rating either way.
20) Is there a trim with a keypad instead of a lever for an exit device?
Yes. Dormakaba builds pushbutton exit trims that replace a mechanical lever trim entirely: the E-Plex 201U is an electronic pushbutton exit trim in the E-Plex 2000 Series for wide stile doors, and the PowerPlex P201U covers rim, mortise and surface vertical rod devices in the PowerPlex 2000 Series. The E-Plex 5067 is a mechanical pushbutton mortise lock in the E-Plex 5000 Series for wide stile applications. The Von Duprin 371L-BE takes the other approach, an Always Operable lever with no cylinder and no credential at the door.
21) Does the door thickness matter when swapping a 371L-BE for another brand's escutcheon lever trim?
It does, because the through-bolt length is set by the door. The Tell EDELT80 storeroom escutcheon lever trim and the EDELT53 keyed entry escutcheon lever trim both cover doors 1-3/8 inch to 1-3/4 inch. The Pamex E9000 Grade 1 storeroom lever trim covers 1-3/8 inch to 2 inch, so it reaches a thicker leaf. Measure the door before ordering a cross-brand replacement rather than assuming the range carries over.
22) We are standardizing exit trim across a campus. What separates the 371L-BE from an entrance-function lever trim?
Entrance function trims lock and unlock the outside lever, typically by key or by a button, while the 371L-BE is Always Operable with no cylinder and stays free at all times. Delaney lists the 500L in three lever styles for entrance function work, the CT lever, the MD lever and the SD lever, and Design Hardware offers the LE08 entry function trim for 1000R and 2000R devices with a flat lever and escutcheon at Grade 1. For a campus standard, the split is usually functional: always-operable trim on doors that stay open to traffic, keyed or entrance trim on doors that need to be secured after hours.
23) Will the Von Duprin 371L-BE match the levers already on my other doors?
Lever look is a choice, not a fixed shape: the 371L-BE is offered in 06, 01, 02, 03, 07, 12 and 16 lever designs, so you can pick the one that matches existing Von Duprin trim on the rest of the building. Eight finishes are available, from 626 satin chrome and 613 oil rubbed bronze through to 693/SPBLK black painted, so it can be run out to match the standing finish schedule.
