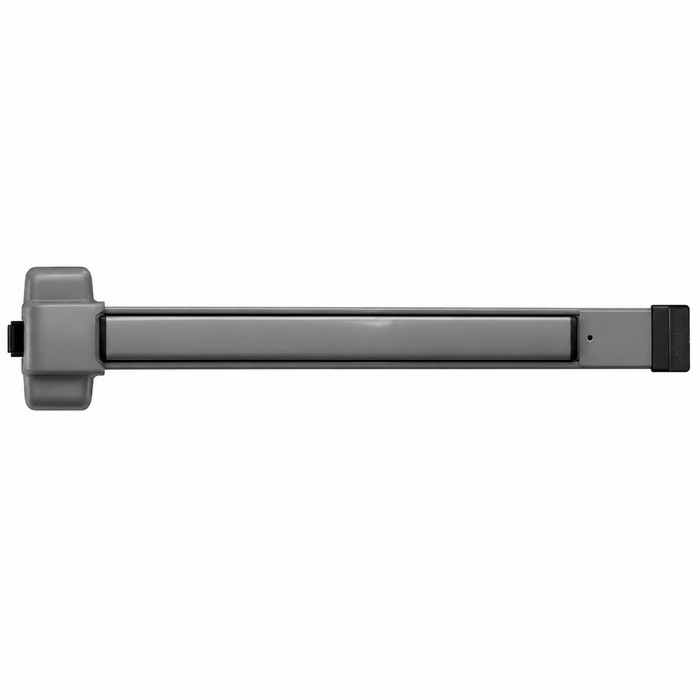

Von Duprin 22 Series - 3 ft Wide Stile Pushpad Rim Exit Device

Von Duprin 22-3FT Wide Stile Pushpad Rim Exit Device, 36" Non-Handed, Grade 1

(No reviews yet) Write a Review

Model: 22EO 3 689
$677.00
$320.48
Selected Finish is
Selected Trim Function is
Selected Lever (For "L" Lever Option Only) is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$677.00
$320.48
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Von Duprin 22-3FT Wide Stile Pushpad Rim Exit Device, 36" Non-Handed, Grade 1

Commercial-Grade Rim Exit Device for Single and Double Door Applications

The Von Duprin 22-3FT Wide Stile Pushpad Rim Exit Device is a professional-grade panic exit solution engineered for single and double doors with mullions. Sized at 36" (3 ft) and featuring a non-handed design, this device fits door stiles as narrow as 3-13/16" (97mm) and accommodates a door thickness of 1-3/4". It is UL listed for Panic Exit Hardware, certified to ANSI/BHMA A156.3-2008 Grade 1, and designed and manufactured in accordance with the ISO 9001 Quality Management System, making it a trusted choice for demanding commercial environments.

Professional Features & Benefits

  • Wide Stile Compatibility: Fits door stiles as narrow as 3-13/16" (97mm), providing reliable coverage for most standard wide stile commercial door applications.
  • 36" Product Size: Available in a 3 ft length for single and double door applications, with a center case dimension of 4-1/4" x 1-3/8" x 2-3/8" and a product projection of 3-3/4".
  • Non-Handed Design: Universal non-handed configuration simplifies specification, ordering, and installation across a wide variety of door configurations.
  • Latch and Door Specs: Features a 3/4" latch throw and is designed for doors with a 1-3/4" thickness, covering stock hollow metal doors with 161 cutouts.
  • ANSI/BHMA Grade 1 Certified: Certified to ANSI/BHMA A156.3-2008 Grade 1, UL listed under ANSI/UL 305 and ANSI/UL 10C (fire rated configurations), CAN/ULC-S104 (fire rated), and CAN/ULC-S132 for comprehensive code compliance.
  • Hex Key Dogging Configuration: Equipped with hex key dogging for convenient hold-open functionality in appropriate applications.
  • Versatile Trim and Function Options: Supports multiple functions including Classroom, Dummy, Exit Only, Passage, and Storeroom. Compatible with 210 knob trim and 230 lever or thumbpiece trim for flexible access control configurations.
  • Electronic and Mechanical Options: Supports RX push pad monitor, CON common connectors for power supply or power transfer integration, and AX accessible device option certified to meet 5 lb. operating force requirements per 2010 ADA (Chapters 404.2.7 and 309.4) and 2013 California Building Code (Chapter 11B-309.4).
  • ISO 9001 Quality Manufacturing: Designed and manufactured in accordance with the ISO 9001 Quality Management System for consistent, high-quality production standards.

Technical Specifications

  • Series: 22 Series
  • Grade: Grade 1
  • Product Group: Exit Devices and Trim
  • Product Subgroup: Exit Devices - Rim
  • Product Type: Exit Devices - Rim
  • Subcategory: Rim Exit Devices
  • Latch Throw: 3/4"
  • Commercial/Residential: Commercial
  • Stile Type: Wide Stile
  • Center Case Dimensions: 4-1/4" x 1-3/8" x 2-3/8"
  • Wood Door Compatible: No
  • Door Hand Direction: Non-Handed
  • Door Thickness Range: 1-3/4"
  • Product Size: 36"
  • Dogging Configuration: Hex Key Dogging
  • Fire Rating: No
  • Product Projection: 3-3/4"
  • Product Style: Push Pads
  • Product Category: Exit Devices and Trim
  • Department: Door Hardware

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Von Duprin Quality?

Von Duprin rim exit devices deliver professional-grade reliability backed by ANSI/BHMA A156.3-2008 Grade 1 certification, UL listings under ANSI/UL 305 and ANSI/UL 10C, and manufacturing in accordance with the ISO 9001 Quality Management System. The 22-3FT Wide Stile Pushpad Rim Exit Device is engineered to accommodate stiles as narrow as 3-13/16" (97mm) with a non-handed design that simplifies installation across diverse commercial door configurations. Trusted by facility managers and security professionals, Von Duprin exit devices are built for demanding commercial applications where dependable panic hardware performance is essential.

Product Specs

Series:
22 Series
Grade:
Grade 1
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Subcategory:
Rim Exit Devices
Latch Throw:
3/4"
Commercial/Residential:
Commercial
Stile Type:
Wide Stile
Center Case Dimensions:
4-1/4" x 1-3/8" x 2-3/8"
Wood Door Compatible:
No
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/4"
Product Size:
36"
Dogging Configuration:
Hex Key Dogging
Fire Rating:
No
Product Projection:
3-3/4"
Product Style:
Push Pads
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Von Duprin 22EO 3 689 – Frequently Asked Questions

1) Do I have to order the Von Duprin 22 exit device left hand or right hand?
The device itself is non-handed, so one part covers either swing. Handing is still selected on the order, RHR or LHR, because the trim and cylinder side have to match the door. If you are standardizing across a building, the non-handed chassis means the same device works on every opening regardless of swing.
2) Will a Von Duprin 22 rim device latch into my existing strike on a pair of doors?
The 22 has a 3/4 inch latch throw and latches into a strike on the frame or on a mullion, not at the head and threshold. On a pair of doors that means you need a removable mullion between the leaves for the rim latch to catch. No mullion in the opening means a rim device won't work there, and you want vertical rod hardware instead, such as the Hager 4501 Series concealed vertical rod device.
3) Does the Von Duprin 22 meet ADA operating force requirements?
Only in the AX version. The AX accessible device option is certified to the 5 lb operating force requirement under 2010 ADA chapters 404.2.7 and 309.4 and the 2013 California Building Code chapter 11B-309.4. The standard non-AX device is not the accessible one, so if the opening is on an accessible route, specify AX when you order.
4) What outside trim can I get on a Von Duprin 22 rim device, and what do I order for a classroom door?
Trim runs from exit only with nothing outside, through night latch and night latch with optional pull, knob, lever, thumbpiece, each also available with a blank escutcheon, plus dummy trim. Functions include Classroom, Storeroom, Passage, Dummy and Exit Only. A classroom door normally takes lever trim in the classroom function, using the 230 lever trim; knob applications use the 210 knob trim. If you pick the L lever, you also choose the lever style: 06, 03 or 17.
5) Can I tie a Von Duprin 22 exit device into an access control or alarm system?
Yes, and the options are ordered on the device. RX gives a request to exit signal off the push pad, RX2 doubles it, LX monitors the latch bolt, and LX-RX combines both, each with an LC low current variant. ALK adds an alarm exit kit. QEL retracts the latch electrically and quietly, in HD-QEL with hex dogging, and QELX or HD-QELX for AX devices. CON common connectors handle the power supply or power transfer link.
6) The 22-3FT will not fit a narrow stile aluminum storefront door. What rim device fits instead?
The 22 Series is a wide stile device sized for stiles as narrow as 3-13/16 inches, so an aluminum storefront with a narrower stile needs a narrow stile rim device. Narrow stile Grade 1 options include the Corbin Russwin ED4200 in 36 inch for 1-3/4 inch doors, the Falcon 19-R exit only in 36 inch for 1-3/4 inch doors, and the Detex 40 Advantex, an extra heavy duty narrow stile rim device. The Adams Rite 8800 in 30 inch is a narrow stile Grade 1 rim device covering 1-3/4 to 2-1/4 inch doors, and the Adams Rite 8700 in 30 inch is a narrow stile Grade 1 device that is also wood door compatible.
7) Which rim exit device should I use on a wood door instead of the Von Duprin 22-3FT?
The 22-3FT is listed as not wood door compatible. Among rim exit devices that are wood door compatible, the Adams Rite 8700 in 30 inch is a Grade 1 narrow stile interlocking rim device with no fire rating, and the Adams Rite 3700 in 30 inch is the fire rated Grade 1 narrow stile version. Both are narrow stile designs, so confirm the door stile width before ordering.
8) The 22-3FT is not fire rated. What rim exit device covers a fire rated opening?
The 22-3FT carries a fire rating of no, so a labeled fire door opening needs a fire rated device. Fire rated rim options include the Adams Rite 3700 in 30 inch, a Grade 1 fire rated narrow stile rim device that is wood door compatible, the Dexter ED1000-R-F, a Grade 1 fire rated rim device, the Marks USA M9900F in 36 inch and 48 inch exit only, the Orca OED85 in 36 inch exit only, the Arrow FS1250 in 32 inch, and the Sargent 12-8810 with L trim, a fire rated Grade 1 wide stile rim device.
9) What is the closest cross-brand equivalent to the Von Duprin 22-3FT rim exit device?
The Von Duprin 22-3FT is a 36-inch wide stile pushpad rim exit device certified to ANSI/BHMA Grade 1 for 1-3/4 inch doors. The nearest peers by the same three attributes are the Corbin Russwin ED5200, a Grade 1 wide stile rim device in 36 inch for 1-3/4 inch doors, the TownSteel ED1100 in 36 inch, a heavy duty Grade 1 wide stile rim device, and the BEST Precision 2101 in 36 inch, a wide stile rim device. The Detex 10 Advantex in 36 inch is also a Grade 1 wide stile rim device, rated extra heavy duty. All are for metal doors rather than wood.
10) Is a concealed vertical rod device the same thing as the Von Duprin 22-3FT?
No. The 22-3FT is a rim exit device, which latches to a strike on the frame or a mullion on a pair. The Hager 4501 in 36 inch is a Grade 1 concealed vertical rod device with a wide stile pushpad, and the Hager 4601 in 36 inch is the Grade 1 narrow stile concealed vertical rod version. Vertical rod devices latch top and bottom into the frame and floor, so the door prep, the strikes and the pair configuration are different from a rim installation.
11) My door is 48 inches wide. What takes the place of the 36 inch Von Duprin 22-3FT?
The 22-3FT is sized at 36 inches. For a 48 inch leaf, the Dexter ED1000-R-EO in 4FT is a Grade 1 rim exit device, the Marks USA M9900F in 48 inch is fire rated exit only, the DORMA 9300A is a 48 inch Grade 1 heavy duty wide stile exit only device covering 1-3/4 to 2-1/4 inch doors, the Corbin Russwin ED3200 is a Grade 1 wide stile crossbar device in 48 inch, and the Sargent 2828 is a Grade 1 reversible rim device for a 48 inch minimum door width.
12) My door is thicker than 1-3/4 inches. Which rim exit device covers that instead of the Von Duprin 22-3FT?
The 22-3FT is built for a 1-3/4 inch door thickness. For thicker leaves, the Adams Rite 8800 in 30 inch is a Grade 1 narrow stile rim device covering 1-3/4 to 2-1/4 inch, and the DORMA 9300A in 48 inch is a Grade 1 heavy duty wide stile exit only device covering the same 1-3/4 to 2-1/4 inch range. The SDC S6136 is a 36 inch electrified wide stile rim device with a 4 inch stile covering 1-3/4 to 2 inch doors.
13) Is a pressure sense bar or switch bar an alternative to the Von Duprin 22-3FT?
They solve a different problem. The 22-3FT is a mechanical rim exit device with a 3/4 inch latch throw that latches into a strike. The SDC MSB550 in 36 inch is a mechanical switch bar that releases an electromagnetic lock, and the SDC SureExit PSB560 in 36 inch is a pressure sense bar with tri-failsafe technology; both fit narrow or wide stile doors. Those bars signal a maglock to release rather than throwing a latch, so they only work on an opening secured electrically. The Securitron EMB is an electromechanical exit bar for 2-1/4 inch doors.
14) I need an electrified rim exit device with latch retraction and monitoring. What competes with the Von Duprin 22 Series?
The 22 Series offers QEL quiet electric latch retraction, RX request to exit, LX latch bolt monitoring and combinations of the two. Comparable electrified rim devices include the Sargent 12-8810 with L trim, a fire rated Grade 1 wide stile device with RX and MELR, the Dormakaba E2103 with 4908A trim, a 36 inch electrified rim device in classroom function, and the SDC S6136, a 36 inch electrified architectural wide stile rim device for 1-3/4 to 2 inch doors.
15) I need to meet the 5 lb ADA operating force. Which rim devices address that alongside the Von Duprin 22?
The 22 Series offers the AX accessible device option, certified to meet the 5 lb operating force requirement per 2010 ADA chapters 404.2.7 and 309.4 and the 2013 California Building Code chapter 11B-309.4, and it is ordered as a yes or no selection. Among rim devices from other brands, the SDC SureExit PSB560 in 36 inch is a pressure sense bar, which actuates on pressure rather than a mechanical push pad, and fits narrow or wide stile doors.
16) Can the Von Duprin 22 be dogged down to hold the door unlocked during business hours?
Yes, with hex key dogging. Turn the hex key and the push pad stays depressed so the latch is held retracted and the door pushes open freely. Order HD for hex key dogging or LD for less dogging. If you want the latch pulled electrically instead of by hand, the QEL quiet electric latch retraction option does the same job on a schedule or an access control signal.
17) How far does the Von Duprin 22 exit device stick out from the door face?
3-3/4 inches of projection, with a center case of 4-1/4 x 1-3/8 x 2-3/8 inches. That projection is what to check against a door in a tight corridor, an adjacent wall, or a leaf that swings back against a stop.
18) What is the difference between the Von Duprin 22 and other Grade 1 wide stile rim exit devices?
The 22 is a Grade 1 wide stile push pad rim device, non-handed, 1-3/4 inch door, hex key dogging, with a deep electrified option list. Close wide stile Grade 1 alternatives include the Corbin Russwin ED5200 in 36 inch, the TownSteel ED1100 36 inch heavy duty, the DORMA 8300 Series, and the Detex Advantex 10 Series 36 inch, which is extra heavy duty. The Corbin Russwin ED2200 and the TownSteel are exit only or heavy duty configurations; the Detex 40 and Sargent 8504 are narrow stile and won't cover a wide stile prep.
19) Is the Von Duprin 22 rim device Grade 1 and UL listed for panic hardware?
Certified to ANSI/BHMA A156.3-2008 Grade 1 and UL listed for panic exit hardware under ANSI/UL 305, with CAN/ULC-S132 for the Canadian side. Grade 1 is the highest ANSI/BHMA durability tier and is what most institutional and government specs call for on egress doors.
20) I only need a push bar that lets people out, no trim or dogging. What is simpler than the Von Duprin 22-3FT?
The 22 Series supports trim functions from exit only through knob, lever, thumbpiece and night latch, plus hex key dogging, so a plain egress-only opening does not use most of what it offers. Exit only rim devices sized at 36 inch include the Corbin Russwin ED2200, a Grade 1 wide stile exit only device, the Imperial USA ED-501, a Grade 1 wide stile exit only rim device, the Marks USA M9900 exit only, the Orca OED55 exit only, and the Arrow 4800 exit only for 1-3/4 inch doors. The Cal-Royal 5000 in 36 inch is a heavy duty touch bar rim device with a Grade 2 chassis.
21) What is the difference between the Von Duprin 22-3FT pushpad and a crossbar exit device?
The 22-3FT uses a push pad style actuator. Crossbar devices use a horizontal bar spanning the door instead. The Corbin Russwin ED3200 is a Grade 1 wide stile crossbar rim device in 48 inch for 1-3/4 inch doors, and the CRL Jackson 1095 is a 48 inch crossbar rim panic device, wide stile, exit only. The Sargent 3828 is a Grade 1 reversible standard push bar rim device for 48 inch doors. Actuator style changes the look and the projection off the door face, and the 22-3FT projects 3-3/4 inches.
22) I need a night latch rim device. Does the Von Duprin 22 Series do that, and what else does?
The 22 Series covers night latch as a trim function, including a night latch cylinder assembly with optional pull. Cross-brand, the Sargent 8504 is a Grade 1 narrow stile rim exit device in night latch function, and the Detex V4003A/03AN is a Grade 1 wide stile rim device with night latch trim. Stile type differs across the three, so match it to the door.
23) I need a dummy device on the inactive leaf to match the Von Duprin 22-3FT. What are the options?
The 22 Series includes DT dummy trim among its trim functions, so a matching dummy is available within the same series. Cross-brand, the Detex Advantex 00 Series is a Grade 1 super-heavy-duty dummy exit device with a wide stile design, and the Sargent 12-8810 with L trim is a fire rated Grade 1 wide stile device in dummy function. A dummy device has no latching mechanism, so it provides the matching push pad appearance only.
24) How does a Grade 2 rim device compare with the Von Duprin 22-3FT for a high traffic entrance?
The 22-3FT is certified to ANSI/BHMA A156.3-2008 Grade 1. The Cal-Royal 5000 in 36 inch is a heavy duty touch bar rim device with a Grade 2 chassis, and the Cal-Royal 5500 in 48 inch is a heavy duty Grade 2 push bar device. The Cal-Royal A9800 in 36 inch and A9820 in 48 inch are heavy duty exit only devices carrying a Grade 2 rating. Grade 1 and Grade 2 are different ANSI cycle and strength classes, so match the grade to what the specification calls for.
25) Which other rim exit devices offer hex key dogging like the Von Duprin 22-3FT?
The 22-3FT is configured with hex key dogging, and the ordering options also include LD less dogging. Cross-brand devices with hex key dogging include the Design Hardware 1000R in 33 inch, a heavy duty rim device, the Design Hardware 2000R in 33 inch, a standard duty wide stile rim device, and the Stanley Security QED200 series device, a Grade 1 heavy duty narrow stile rim device with hex-key dogging. The Dormakaba QED200 is a Grade 1 heavy duty narrow 36 inch device in the same series.
26) Are the Falcon 18 and 19 Series rim devices interchangeable with the Von Duprin 22-3FT?
They are separate devices with their own door preps. The Falcon Monarch 18 Series rim exit device in 36 inch is Grade 1, and the Falcon 19-R in 36 inch is a Grade 1 narrow stile exit only rim device for 1-3/4 inch doors. The 22-3FT is a wide stile pushpad device for 1-3/4 inch doors with a 4-1/4 by 1-3/8 by 2-3/8 inch center case, so on a retrofit the existing prep and strike location decide whether a swap is direct.
27) What is a non-handed rim exit device and which peers are also non-handed?
The 22-3FT has a non-handed door hand direction, meaning one device covers both hands of door. Among peers, the BEST 2401 Series narrow stile rim device is exit only and non-handed, the BEST Precision 5101 Series is a non-handed universal design rim device, and the CRL Jackson 1295 Series is a non-handed push pad rim panic device, wide stile, exit only, for 1-3/4 inch doors. Handed devices instead require the hand to be called out at order time.
28) Is a paddle rim device a substitute for the Von Duprin 22-3FT push pad?
They actuate differently. The 22-3FT uses a full-width push pad. The CRL Jackson 1095P is a paddle rim panic exit device, wide stile and exit only, where the actuator is a paddle rather than a pad spanning the device. The CRL Jackson 1295 in the same wide stile family is a non-handed push pad rim panic device, exit only, for 1-3/4 inch doors, which is the closer match to the 22-3FT actuator style.
29) Which rim exit devices from other brands accept lever or knob trim like the Von Duprin 22-3FT?
The 22 Series accepts knob, lever, thumbpiece and blank escutcheon trims, with 06, 03 and 17 lever styles. Cross-brand devices that accept trim rather than being exit only include the Corbin Russwin ED5200, a Grade 1 wide stile rim device for 1-3/4 inch doors listed as exit only or accepts trim, and the Corbin Russwin ED4200, the Grade 1 narrow stile version with the same exit only or accepts trim function. The Detex V4003A/03AN is a Grade 1 wide stile device supplied with night latch trim.
30) What finishes does the Von Duprin 22 exit device come in?
Four: 526 chrome, 622 matte black, 689 aluminum and 695 dark bronze. For matching existing hardware across a building, 689 aluminum and 695 dark bronze are the two that most commonly line up with existing commercial door hardware, and 622 matte black is the option for newer dark-trim storefronts.
31) I need a push pad, not a crossbar. Which rim exit devices are push pad style?
The Von Duprin 22 is a push pad device, which is the flush, low profile style most commercial specs now call for. If a crossbar is what matches the rest of the building, the CRL Jackson 1095 Series in 48 inch and the Corbin Russwin ED3000 Series in 48 inch are crossbar rim devices. The CRL Jackson 1295 Series is another non-handed push pad rim device for 1-3/4 inch doors.
