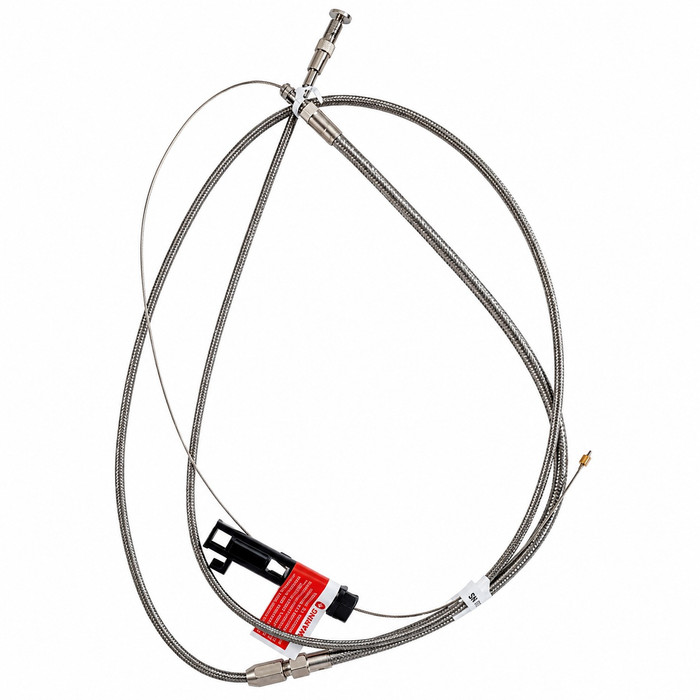

Von Duprin 47250180 33/35/98/9949 Series Bottom Cable Assembly Replacement Part

Von Duprin 47250180 33/35/98/9949 Series Bottom Cable Assembly Replacement Part

(No reviews yet) Write a Review

Model: 47250403

In Stock (leaves warehouse same day if ordered before 3pm ET)

$334.00
$220.77
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Von Duprin 47250180 33/35/98/9949 Series Bottom Cable Assembly Replacement Part

Commercial-Grade Exit Device Replacement Component for 33/35/98/9949 Series

The Von Duprin 47250180 Bottom Cable Assembly is a genuine replacement part engineered for compatibility with Von Duprin's 33, 35, 98, and 9949 Series exit devices. Designed to restore proper vertical rod operation, this bottom cable assembly ensures continued reliable performance in commercial door hardware applications. Rated Grade 1 for commercial use, this component meets the demanding standards expected of Von Duprin exit device parts and accessories.

Professional Features & Benefits

  • Series Compatibility: Designed specifically for Von Duprin 33/35/98/9949 Series exit devices, ensuring a precise fit and reliable integration with existing hardware.
  • Grade 1 Rated: Meets Grade 1 commercial standards, delivering the durability and performance required for high-traffic commercial door applications.
  • Genuine Replacement Part: Serves as an authentic replacement component to restore exit device function and maintain code-compliant egress performance.
  • Commercial Application Ready: Engineered for commercial environments where dependable exit device operation is essential for life safety and building code compliance.
  • Exit Device Parts & Accessories Category: Classified as an exit device part within the Von Duprin parts and accessories product line, supporting long-term serviceability of installed exit devices.

Technical Specifications

  • Product Group: Exit Devices and Trim
  • Series: 33/35/98/9949 Series
  • Grade: Grade 1
  • Product Subgroup: Parts and Accessories
  • Subcategory: Parts and Accessories
  • Product Type: Exit Devices Parts
  • Commercial/Residential: Commercial
  • Parts and Accessories Type: Replacement Parts
  • Product Attribute: Parts and Accessories
  • Fire Rating: No
  • Product Category: Exit Devices and Trim
  • Department: Door Hardware

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Von Duprin Quality?

Von Duprin exit device parts and accessories are manufactured to Grade 1 commercial standards, ensuring reliable performance and long-term serviceability in demanding commercial applications. The 47250180 Bottom Cable Assembly is a genuine Von Duprin replacement component, providing confidence that your 33/35/98/9949 Series exit device will continue to operate as intended. Engineered for commercial door hardware environments where dependable egress performance is non-negotiable.

Manufacturer Resources

Von Duprin 98/99 Series Catalog

Product Specs

Product Group:
Exit Devices and Trim
Series:
33/35/98/9949 Series
Grade:
Grade 1
Product Subgroup:
Parts and Accessories
Subcategory:
Parts and Accessories
Product Type:
Exit Devices Parts
Commercial/Residential:
Commercial
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Fire Rating:
No
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Von Duprin 47250403 – Frequently Asked Questions

1) How do I know which size Von Duprin 47250180 bottom cable assembly to order for my door?
Order the 47250180 bottom cable assembly by door height. It comes in four ranges: 6'0" to 6'10", 6'10" to 8'0", over 8'0" to 9'2", and over 9'2" to 10'4". Measure the actual door leaf the exit device is mounted on, not the frame opening, and pick the range that contains it. The cable runs from the device down to the bottom latch, so a cable cut for a standard 7-foot door will not reach on a 9-foot leaf.
2) My exit device bottom latch is not retracting. Is the bottom cable the part I need?
On a cable-operated Von Duprin 33/35/98/9949 vertical rod device, the bottom cable assembly is what carries the pushbar motion down to the bottom latch. If the top latch still pulls and the bottom one drags or stays down, a stretched or broken bottom cable is the usual culprit and the 47250180 is the replacement. Order it to the door leaf height. If the top latch is the one failing, that is a different component, not this cable.
3) Is the Falcon 610061 concealed vertical top rod an alternative to the Von Duprin 47250180 bottom cable assembly?
No. The Falcon 610061 is a 24 Series Monarch concealed vertical top rod for F-25-C and F-25-CWDC exit devices, so it works the top half of a Falcon device. The Von Duprin 47250180 is a bottom cable assembly for Von Duprin 33, 35, 98 and 9949 Series devices. Different brand, different device family, and opposite ends of the door: the 610061 drives the top latch, while the 47250180 carries the pushbar action down to the bottom. A Falcon rod will not restore a Von Duprin bottom on a 98 or 9949 device.
4) Can I use a Von Duprin bottom cable assembly to repair an Accentra or Falcon exit device?
No. The 47250180 is a Von Duprin part cut for the 33/35/98/9949 Series and nothing else. For an Accentra 7110 or 7120 device the equivalent service parts are that brand's own, such as the Accentra 7110/7120 top latch component, and Falcon T Series devices take Falcon parts like the T Series 2-3/8 inch square corner deadlatch. Exit device internals are not cross-brand.
5) What is the difference between a bottom cable assembly and a vertical rod, and which one do I order?
They are two different pieces of the same linkage. The Von Duprin 47250180 is the cable assembly for 33/35/98/9949 devices, sized to the door height. A vertical rod is the rigid rod itself, like the Falcon 610061 concealed vertical top rod for F-25-C and F-25-CWDC devices. If your Von Duprin device uses cable actuation, replacing the rod will not fix a cable failure, and vice versa. Open the device cover and look at what runs to the bottom latch before you order.
6) I have a pair of doors with vertical rod exit devices. Do I need one cable assembly or two?
One 47250180 bottom cable assembly serves one door leaf. A pair of doors running vertical rod devices on both leaves needs two, and each is sized to its own leaf height. If your pair uses a removable mullion with rim devices instead, there is no bottom cable at all, and the parts to look at are the mullion and its stabilizers, like the Falcon 4023 steel mullion or the Falcon 525 aluminum mullion stabilizers.
7) Can I stock one Von Duprin bottom cable assembly to cover every exit device in my building?
Only if the doors are the same height and the devices are all 33, 35, 98 or 9949 Series. The cable is cut to a door height band, so a building with 7-foot corridor doors and 8-foot lobby doors needs two different part sizes off the same 47250180 number. For a facility standardizing spares, count leaves by height range first, then order against those four bands.
8) What is the difference between the Accentra 7110/7120 top latch component and the Von Duprin 47250180 bottom cable assembly?
They serve opposite ends of a vertical rod exit device and different manufacturers. The Accentra 60-7010-0049-999 is a top latch replacement component for Accentra 7110 and 7120 exit devices; there is also a 60-7010-0050-999 top latch for the 7110F. The Von Duprin 47250180 is the bottom cable assembly for Von Duprin 33, 35, 98 and 9949 Series devices, ordered by door height in four ranges from 6 feet 0 inches up to 10 feet 4 inches. If the top latch is not catching, the Accentra parts address an Accentra device; if a Von Duprin device is not throwing at the bottom, the 47250180 is the Von Duprin part.
9) We have a pair of doors with a vertical rod device that keeps binding. Do we need the Von Duprin 47250180 or a mullion?
Those solve different problems. The Falcon 4023 is a steel mullion for double door exit device applications, and the Falcon 525 aluminum mullion stabilizers are exit device accessories that steady a mullion in the opening. A mullion changes how the pair of doors is secured. The Von Duprin 47250180 bottom cable assembly is an internal component of a Von Duprin 33, 35, 98 or 9949 Series device that transfers pushbar motion to the bottom latch. If the device itself is not actuating at the bottom, the cable assembly is the repair; the mullion parts do not affect device internals.
10) Is the Von Duprin 47250180 cable a Grade 1 commercial part?
Grade 1, and commercial rated, which is what you want in a school corridor, a hospital wing, or any high-traffic office egress door where the device gets cycled hard all day. It restores the vertical rod operation on the device rather than being a light-duty aftermarket substitute.
11) Do I need to change anything else on the exit device when I replace the bottom cable?
The 47250180 is a single service component, so a straight cable swap needs only the matching height range for the leaf. What it will not do is compensate for a worn bottom latch, a sagging door, or a strike that has shifted, so if the bottom latch was not seating before the cable failed, sort the door and the strike alignment at the same time. Otherwise the new cable gets stretched by the same problem.
12) Can a Falcon T Series deadlatch replacement part be used in place of the Von Duprin 47250180?
No. The Falcon 23981160 is a 2-3/8 inch square corner deadlatch replacement part for Falcon T Series locks, which is a latch body that fits a bored lock prep in the door edge. The Von Duprin 47250180 is a bottom cable assembly for Von Duprin 33, 35, 98 and 9949 Series exit devices, a Grade 1 commercial part that lives inside the device chassis rather than in a door edge prep. Neither part fits where the other goes.
13) Is the Arrow 16RCR-27 rim housing related to the Von Duprin 47250180?
No. The Arrow 16RCR-27 is an SFIC rim housing for 6 and 7 pin cores in the Arrow 24/25 Series, a cylinder component that a locksmith uses to key an opening. The Von Duprin 47250180 bottom cable assembly is a mechanical linkage inside a Von Duprin 33, 35, 98 or 9949 Series exit device and has nothing to do with keying. A device that latches but will not key needs the cylinder side; a device that will not throw the bottom latch when the pushbar is pressed needs the cable assembly, sized to the door height.
