Von Duprin 47250398 33/35/98/9...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$334.00
$243.75

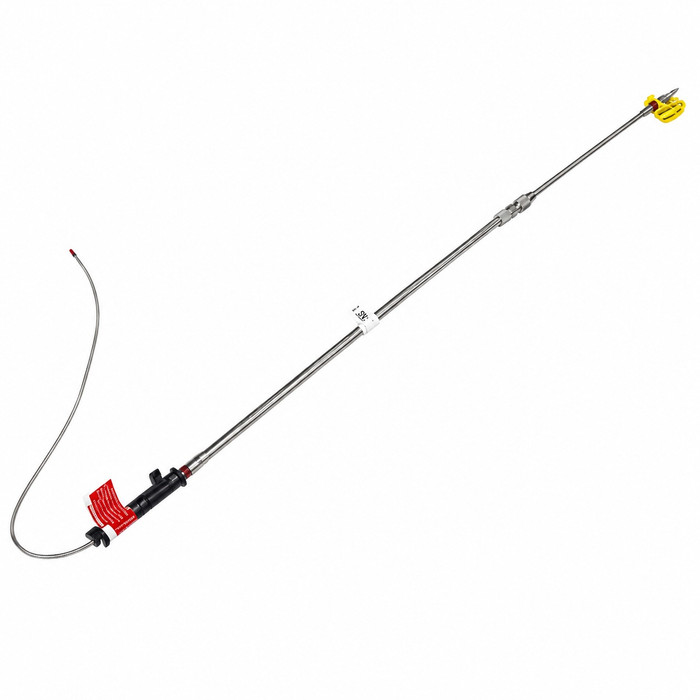

Von Duprin 47250398 33/35/98/9949 Series Top Cable Assembly Replacement Part, 6'0" to 6'10" Size

Von Duprin 47250398 33/35/98/9949 Series Top Cable Assembly Replacement Part

(No reviews yet) Write a Review

Model: 47250398

In Stock (leaves warehouse same day if ordered before 3pm ET)

$334.00
$243.75
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Von Duprin 47250398 Top Cable Assembly — 33/35/98/9949 Series Replacement Part

The top cable assembly is the tensioned cable that runs from the crossbar actuator to the top rod latch in a Von Duprin vertical-rod or cable-actuated exit device. When this cable stretches, frays, or breaks, the top latch stops retracting on push — the door won't release cleanly, creating a life-safety and code-compliance issue. This genuine Von Duprin replacement restores factory-specified cable tension and top-latch operation without replacing the entire device.

Compatibility

  • Von Duprin 33 Series exit devices
  • Von Duprin 35 Series exit devices
  • Von Duprin 98 Series exit devices
  • Von Duprin 9949 Series exit devices

How to Select the Right Size

Cable assembly length is determined by door height. Measure from finished floor to top of door (not frame) and match to the range below:

  • 6'0" to 6'10" — SKU 47250398
  • 6'10" to 8'0" — SKU 47250175
  • 8'0" to 9'2" — SKU 47250176
  • 9'2" to 10'4" — SKU 47250177

Select the size on this page that matches your door height. If your door height falls exactly on a boundary, use the next size up.

Technical Specifications

  • Part Number: 47250398 (6'0" to 6'10" door height)
  • Series: 33/35/98/9949
  • Grade: Grade 1 (ANSI/BHMA)
  • Component Type: Top Cable Assembly
  • Application: Commercial
  • Fire Rating: No
  • OEM Replacement: Yes — genuine Von Duprin component

Professional Applications

  • Commercial office buildings and tenant fit-outs
  • Educational facilities and K–12 campuses
  • Healthcare institutions and medical office buildings
  • Government and municipal buildings
  • Industrial, warehouse, and distribution facilities
  • Multi-family and mixed-use residential properties
  • Retail and hospitality establishments

Why Von Duprin OEM Parts?

Aftermarket cable assemblies may not match the original cable diameter, end-fitting geometry, or tension spec — leading to premature failure or improper latch retraction. Genuine Von Duprin parts are manufactured to the same tolerances as the original device, ensuring the repair holds and the device remains code-compliant. Grade 1 rated for the highest-demand commercial environments.

Manufacturer Resources

Von Duprin 98/99 Series Catalog

Product Specs

Product Group:
Exit Devices and Trim
Series:
33/35/98/9949 Series
Grade:
Grade 1
Product Subgroup:
Parts and Accessories
Subcategory:
Parts and Accessories
Product Type:
Exit Devices Parts
Commercial/Residential:
Commercial
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Fire Rating:
No
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Von Duprin 47250398 – Frequently Asked Questions

1) What is the Von Duprin 33/35/98/9949 series top cable assembly used for?
This cable assembly connects the door top to the electric strike or magnetic lock in Von Duprin electric exit device systems. It carries power and control signals for remote operation of the locking mechanism.
2) Which Von Duprin exit device models is this cable compatible with?
Compatible with Von Duprin 33, 35, 98, and 9949 series electric exit devices. Verify your specific model number before ordering to ensure proper fit and electrical specifications.
3) Does door handing affect cable assembly installation?
Yes, cable routing differs between left and right hand doors. Check your door handing and frame configuration to ensure proper cable path and length requirements.
4) What finish options are available for this cable assembly?
Cable assemblies typically come in standard configurations. The cable itself is usually black or gray jacketed wire. Connector finishes match the exit device series specifications.
5) What power requirements does this cable handle?
Designed for low voltage DC applications typical in access control systems. Verify voltage and amperage requirements with your specific exit device and control system before installation.
6) Are there fire code considerations for cable installation?
Cable must not interfere with fire door operation or egress requirements. Route through approved pathways and ensure connections maintain door's fire rating. Consult local fire marshal for specific requirements.
7) What additional parts are needed for cable installation?
May require door cord protectors, junction boxes, or mounting hardware depending on door and frame configuration. Check Von Duprin accessories for complete installation components.
8) How is the top cable assembly installed?
Connect to exit device per manufacturer template. Route through door top and frame header using appropriate cord protection. Make electrical connections following wiring diagrams. Test operation before final installation.
9) How do you maintain cable assembly connections?
Inspect connections annually for corrosion or looseness. Check cable for wear at bend points. Verify electrical continuity if device malfunctions. Keep connections clean and dry.
10) What are compatible alternatives to this cable assembly?
Must use Von Duprin specified cables for proper operation and warranty compliance. Different series may have unique connector types and wiring configurations that are not interchangeable.
11) What door and frame conditions affect cable installation?
Hollow metal frames require different routing than wood frames. Door thickness affects cable path. Exterior applications need weatherproofing considerations. Verify clearances before drilling.
12) What are the standard cable length specifications?
Cable length varies by door height and frame configuration. Standard lengths accommodate most commercial door applications. Measure your specific installation requirements and consult manufacturer specifications for exact dimensions.
