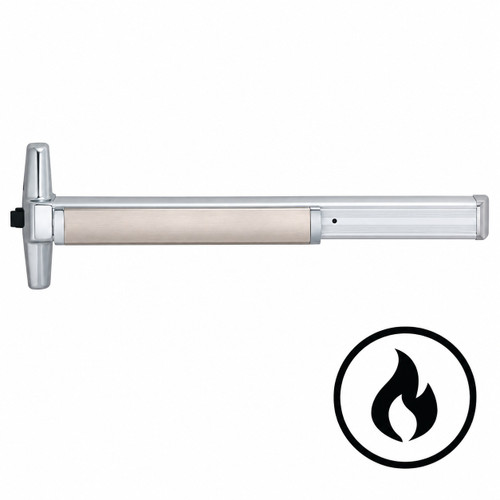

Von Duprin 33AF-4ft Fire Rated Grooved Case Narrow Stile Rim Exit Device, Less Dogging, 48"

Von Duprin 33AF-4ft Fire Rated Grooved Case Narrow Stile Rim Exit Device, Less Dogging, 48"

(No reviews yet) Write a Review
New Parts & Accessories Available!

Model: 33AEO-F 4 US26D
$2,629.00
$1,975.34
Selected Finish is
Selected Trim Function is
Selected Lever (For “L” Lever Trims Only) is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,629.00
$1,975.34
Adding to cart… The item has been added
New Parts & Accessories
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Von Duprin 33AF-4ft Fire Rated Grooved Case Narrow Stile Rim Exit Device, Less Dogging, 48"

Heavy-Duty Narrow Stile Rim Exit Device for Commercial and Institutional Applications

The Von Duprin 33AF-4ft is a fire-rated, grooved case narrow stile rim exit device engineered for demanding institutional environments including schools, hospitals, and government buildings. Designed to fit door stiles as narrow as 1-3/4" (44mm), this 48" device features a one-piece center case cover and is certified to ANSI/BHMA A156.3 2014 Grade 1 standards. It is UL listed for panic exit hardware under ANSI/UL 10C (fire-rated) and ANSI/UL 305, and also carries CAN/ULC-S104 (fire-rated) and CAN/ULC-S132 certifications. The device is non-handed, offering flexible installation across single and double door configurations with mullion, and includes 1-3/4" and 2-1/4" wood/metal door fasteners with SNB included.

Professional Features & Benefits

  • Narrow Stile Compatibility: Fits door stiles as narrow as 1-3/4" (44mm), making it ideal for aluminum-framed and narrow stile door applications in commercial settings.
  • 48" Device Size: Product size of 48" with overall dimensions of 8-3/16" x 1-9/16" x 2-13/32" and a product projection of 3-13/16" for precise installation planning.
  • Fire-Rated Construction: Certified to ANSI/UL 10C and CAN/ULC-S104 for fire-rated applications, ensuring compliance with fire and life safety codes where required.
  • ANSI/BHMA Grade 1 Certified: Meets ANSI/BHMA A156.3 2014 Grade 1 standards, the highest industry certification for exit hardware durability and performance.
  • Non-Handed Design: The rim device is non-handed (except when the SS signal switch option is used), simplifying specification and reducing inventory requirements.
  • Grooved Mechanism Case: The 33A Series features a distinctive grooved mechanism case with a newly designed one-piece center case cover for a refined architectural appearance.
  • Field-Configurable Options: A variety of field-configurable options are available, including retrofit kits (CDSI/HDSI dogging indicators, QEL electronic latch retraction, RX request-to-exit, and LX latchbolt monitoring switches) to keep pace with evolving technology.
  • Included Fasteners: Includes 1-3/4" and 2-1/4" wood/metal door fasteners with SNB included for versatile mounting configurations.
  • ADA-Accessible Upgrade Available: The AX option is certified to meet the 5 lb. force requirements of the 2010 Americans with Disabilities Act (ADA) Chapters 404.2.7 and 30934, and the 2013 California Building Code Chapter 11B-309.4.
  • Delayed Egress Option: The CX (CHEXIT) upgrade meets NFPA and IBC requirements for delayed egress, securing doors for 15 seconds after a request to exit while a nuisance alarm sounds.

Technical Specifications

  • Product Group: Exit Devices and Trim
  • Series: 33 & 35 Series
  • Grade: Grade 1
  • Fasteners: Includes 1-3/4" and 2-1/4" wood/metal door fasteners, SNB included
  • Product Subgroup: Exit Devices - Rim
  • Subcategory: Rim Exit Devices
  • Latch Throw: 3/4"
  • Product Type: Exit Devices - Rim
  • Commercial/Residential: Commercial
  • Device Centerline from Finished Floor: 39-13/16"
  • Stile Type: Narrow Stile
  • Wood Door Compatible: No
  • MAP Policy: Yes
  • Door Hand Direction: Non-Handed
  • Door Thickness Range: 1-3/4"
  • Product Size: 48"
  • Product Dimension: 8-3/16" x 1-9/16" x 2-13/32"
  • Fire Rating: Yes
  • Product Projection: 3-13/16"
  • Product Style: Push Pads
  • Product Category: Exit Devices and Trim
  • Department: Door Hardware

Professional Applications

  • Public and Private Educational Facilities (Schools and Universities)
  • Healthcare Institutions and Hospitals
  • Government and Municipal Buildings
  • Commercial Office Buildings
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential and Mixed-Use Properties
  • Retail Establishments Requiring Fire-Rated Egress Compliance

Delayed Egress Compliance

The Von Duprin 33A Series supports the CX (CHEXIT) delayed egress upgrade option, which meets NFPA and IBC requirements for delayed egress applications. When activated, the device keeps doors secure for 15 seconds after a request to exit while a nuisance alarm sounds, providing code-compliant delayed egress functionality for facilities requiring controlled egress management.

Why Choose Von Duprin Quality?

Von Duprin rim exit device products deliver professional-grade reliability backed by ANSI/BHMA A156.3 2014 Grade 1 certification — the highest standard in the industry — along with UL listings under ANSI/UL 10C, ANSI/UL 305, CAN/ULC-S104, and CAN/ULC-S132 for comprehensive code compliance. The 33A Series grooved case design with one-piece center case cover reflects Von Duprin's commitment to both architectural quality and institutional durability. Engineered for demanding commercial applications in schools, hospitals, and government facilities where dependable, fire-rated egress performance is essential.

Product Specs

Product Group:
Exit Devices and Trim
Series:
33/35 Series
Grade:
Grade 1
Fasteners:
Includes 1-3/4" and 2-1/4" wood/metal door fasteners, SNB included
Product Subgroup:
Exit Devices - Rim
Subcategory:
Rim Exit Devices
Latch Throw:
3/4"
Product Type:
Exit Devices - Rim
Commercial/Residential:
Commercial
Device Centerline from Finished Floor:
39-13/16"
Stile Type:
Narrow Stile
Wood Door Compatible:
No
MAP Policy:
Yes
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/4"
Product Size:
48"
Product Dimension:
8-3/16" x 1-9/16" x 2-13/32"
Fire Rating:
Yes
Product Projection:
3-13/16"
Product Style:
Push Pads
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Parts & Accessories

    Von Duprin 33AEO-F 4 US26D – Frequently Asked Questions

    1) Will the Von Duprin 33AF-4ft fit a narrow stile aluminum storefront door?
    Yes. The 33AF is a narrow stile rim device and mounts on stiles as narrow as 1-3/4 inches (44mm), which is what puts it on aluminum storefront and other narrow stile openings. Door thickness is 1-3/4 inches. It is not for wood doors.
    2) Is the Von Duprin 33AF fire rated for a fire door assembly?
    It is fire rated, UL listed under ANSI/UL 10C for fire doors and ANSI/UL 305 for panic hardware, plus CAN/ULC-S104 and CAN/ULC-S132 for Canadian projects. It is also ANSI/BHMA A156.3 2014 Grade 1. Note the F device is supplied less dogging, which is how fire rated exit hardware has to be.
    3) Why can't I dog down a fire rated 33AF exit device?
    The 33AF ships less dogging because it is a fire rated device, and fire doors must latch on every closing. If you need to hold a door in push-pull during business hours, you need a non fire rated device with dogging, such as the Adams Rite 8700 or 8800 Series narrow stile rim devices, or a Design Hardware 1000R with hex key dogging. If you want the door to look dogged but stay latched, look at electric latch retraction instead (EL or QEL), which is offered on the 33A.
    4) Will the 33AF latch into the strike that's already on my frame?
    Latchbolt throw is 3/4 inch on the 33A rim device. A rim device latches into a surface mounted strike on the frame stop, not into an ANSI mortise strike pocket, so if the old device was a rim device of the same make the strike location usually carries over; if you are coming off a mortise or vertical rod device, plan on a new strike and new prep.
    5) Do I need to specify a hand when ordering the Von Duprin 33AF?
    No hand to specify. The 33A rim device is non-handed and works on either swing, single doors or pairs with a mullion. The one exception the catalog calls out is the SS signal switch option, which does make the device handed.
    6) Can I use a rim exit device like the 33AF on a pair of doors?
    On a pair, a rim device needs a removable mullion between the leaves to latch into, since a rim latch throws into a strike on the frame. The 33A is specified for single doors and for double doors with mullion. If the opening has to stay clear with no mullion, a rim device is the wrong choice and you want a vertical rod device instead, such as the Hager 4601 concealed vertical rod narrow stile device.
    7) What outside trim options come with the Von Duprin 33A, and how do I pick one?
    Ten trim functions are offered: exit only (EO), night latch (NL), night latch with optional pull (NL-OP), lever (L), lever with blank escutcheon (L-BE), thumbturn (T), thumbturn with blank escutcheon (T-BE), thumbturn and unlocks (TL), TL-BE, and dummy trim (DT). Exit only means no outside operation at all. Night latch gives key retraction of the latch from outside, which is the usual pick for a service or back door. Lever trim is what you want when staff need routine keyed entry. If you choose an L function, the lever design is a separate selection: 06 is the default, with 01, 02, 03, 05, 07, 17 and 18 also available.
    8) What do I have to order with a 33AF to add access control or monitoring?
    Switching and electrification are ordering options on the 33A, not afterthoughts. For monitoring, choose RX request to exit, LX latchbolt monitor, LX-RX combined, RX2 double switch, or WP-RX waterproof. For local alarm, ALK is the alarm exit kit less switch, with RX-ALK and LXRX-ALK adding switches. For remote unlocking, latch retraction comes as EL electric, QEL quiet electric, or PN pneumatic. Electrified options on a swinging door also need power across the hinge edge, which is what an EPT2 electric power transfer handles.
    9) Do I need the AX accessible option on my exit device for ADA compliance?
    The AX option on the 33A is certified to the 5 lb operating force requirements of the 2010 ADA, Chapters 404.2.7 and 30934, and the 2013 California Building Code Chapter 11B-309.4. If the opening is on an accessible route and the project is enforcing that operating force, order the device with AX. AX is a required selection at order time, so it is a yes or no decision on every 33A order.
    10) What is the difference between the Von Duprin 33A and a wide stile rim device like the 98/99?
    Stile width is the deciding factor. The 33A is the narrow stile device, sized down to fit a 1-3/4 inch stile on aluminum storefront and similar doors. Wide stile devices need a much broader rail to land on and are the normal pick for hollow metal and flush doors. If your opening is a wide stile door, comparable Grade 1 wide stile rim devices include the Corbin Russwin ED5200 and the BEST Precision 2101. Other Grade 1 narrow stile rim devices we carry include the Corbin Russwin ED4200 and the Falcon 19-R, both rated for 1-3/4 inch doors.
    11) I need a narrow stile exit bar for a 2-1/4 inch thick door. Will the 33AF work?
    No. The 33AF is built for 1-3/4 inch doors only, so a 2-1/4 inch leaf is out of range. The Adams Rite 8800 Series narrow stile rim device covers 1-3/4 to 2-1/4 inches, and the Securitron EMB electromechanical exit bar is listed at 2-1/4 inches. Neither of those is listed as fire rated, so if the opening is a fire door that thickness needs to be resolved with the door supplier before hardware is picked.
    12) What is the closest fire-rated narrow stile rim exit device to the Von Duprin 33AF if I need a different brand on the same aluminum door?
    The Adams Rite 3700 Series is the nearest match in a different brand: it is a fire-rated narrow stile rim exit device carrying Grade 1, the same fire rating and stile class as the 33AF. The one behavioral difference that matters on a spec is wood door use - the Adams Rite 3700 is listed as wood door compatible, while the 33AF is a metal and aluminum door device only. The Adams Rite 3700 in the 30 inch size covers narrower openings than the 48 inch 33AF, so match the device length to the door width you are actually hanging it on.
    13) Can I substitute the Adams Rite 8800 for a Von Duprin 33AF on a fire rated opening?
    No. The Adams Rite 8800 Series is a narrow stile Grade 1 rim exit device for metal doors with a 1-3/4 inch to 2-1/4 inch door thickness range, but it is not fire rated. The Von Duprin 33AF is fire rated, so on any opening in a fire rated assembly the 8800 is not an equivalent regardless of how closely the stile geometry lines up. The 8800 fits non-rated narrow stile openings, and its thickness range extends past the 1-3/4 inch doors the 33AF is built for. For a fire rated narrow stile substitute, look at the Adams Rite 3700 Series instead.
    14) Which narrow stile rim exit devices from other manufacturers accept lever trim like the Von Duprin 33A?
    The Corbin Russwin ED4200 is a Grade 1 narrow stile rim exit device for 1-3/4 inch metal doors whose function is stated as exit only, accepts trim - so it can be ordered to take outside trim rather than as a pure exit only bar. The Sargent 8504 is a narrow stile Grade 1 rim device configured in the night latch function, which is the outside key retracts latch arrangement. The Von Duprin 33A covers both directions on one platform, with trim functions spanning lever, lever with blank escutcheon, night latch, night latch with optional pull, thumbturn and dummy trim.
    15) Is the SDC MSB550 switch bar or PSB560 pressure sense bar a replacement for a Von Duprin 33AF panic device?
    They are not interchangeable. The SDC MSB550 is a mechanical switch bar that releases an electromagnetic lock, and the SDC PSB560 SureExit is a pressure sense bar; both fit narrow or wide stile doors but neither is fire rated. They signal a lock to release rather than retracting a latch in the door itself. The Von Duprin 33AF is a fire rated mechanical rim exit device with a 3/4 inch latch throw that throws into a strike on the frame. On a rated opening, or anywhere egress must not depend on a powered lock, the 33AF is the device that belongs there.
    16) I have a 48 inch opening and Grade 1 is on the drawing - what other 48 inch rim devices meet that?
    For 48 inch rim devices at Grade 1, the Corbin Russwin ED3200 is a crossbar rim exit device for 1-3/4 inch wide stile metal doors, and the DORMA 9300 Series is a heavy duty wide stile push rim device in exit only with a 1-3/4 inch to 2-1/4 inch door thickness range. Both are wide stile and neither is fire rated. The Von Duprin 33AF-4ft is the 48 inch Grade 1 device that is both narrow stile and fire rated, with a push pad rather than a crossbar. If the drawing calls for a fire rated 48 inch device, the Marks USA M9900F in 48 inch is the other rated option in that width.
    17) If the door is wood, what rim exit device do I use instead of the Von Duprin 33A?
    The Von Duprin 33A is a metal and aluminum door device and is not wood door compatible. Among the alternatives, the Adams Rite 3700 Series is a fire rated Grade 1 narrow stile rim exit device that is listed as wood door compatible, and the Adams Rite 8700 Series is the non-rated Grade 1 narrow stile equivalent, also wood door compatible. Pick the 3700 for a rated wood opening and the 8700 where no fire rating is required.
    18) How far does the 33AF stick out into the opening once it's mounted?
    Projection off the door face is 3-13/16 inches, and the mechanism case measures 8-3/16 x 1-9/16 x 2-13/32 inches. That projection is the number to check against a door swing into a corridor, a wall stop, or an adjacent leaf on a pair.
    19) What height do I mount a Von Duprin 33A exit device at?
    Device centerline is 39-13/16 inches from finished floor. Use that number for the template layout and for matching the height of devices already installed on the other openings in the building.
    20) What finish should I order to match the rest of my aluminum storefront hardware?
    The 33A is offered in ten finishes: 605 bright brass, 606 satin brass, 612 satin bronze, 613 oil rubbed bronze, 625 bright chrome, 626 satin chrome, 628 aluminum, 643E aged bronze, 710 dark bronze anodized and 711 flat black. For clear anodized aluminum storefront, 628 is the match; for dark bronze anodized storefront, 710.
    21) Can I add delayed egress to a Von Duprin 33A exit device?
    The CX (CHEXIT) upgrade gives the 33A 15 second delayed egress, holding the door secure after a request to exit while a nuisance alarm sounds, and it meets NFPA and IBC delayed egress requirements. The Chexit PCB kits (Von Duprin 040086 and 050228) cover the 33/35/98/99 Series if you are converting a device already in the field.
    22) What fasteners come with the Von Duprin 33AF and do I need anything else to mount it?
    Both 1-3/4 inch and 2-1/4 inch wood/metal door fasteners are in the box, with SNB (sex nut and bolt) included, so through-bolting a 1-3/4 inch metal door is covered out of the carton. What is not in the box is the outside trim, the cylinder for any keyed function, and a mullion if you are doing a pair.
    23) What is the difference between the Adams Rite 8700 and 8800 narrow stile rim devices when neither opening is fire rated?
    Both are Grade 1 narrow stile rim exit devices with starwheel interlocking and neither is fire rated. The split is door material: the 8700 Series is listed as wood door compatible, while the 8800 Series is not and carries a stated door thickness range of 1-3/4 inch to 2-1/4 inch. Pick the 8700 when the leaf is wood, the 8800 when it is metal or aluminum and the leaf runs thicker than 1-3/4 inch.
    24) Is there a simpler fire rated rim exit device than the Von Duprin 33AF for a back of house door that only needs to push open?
    Two hold up. The Dexter ED1000 Series fire rated rim exit device is Grade 1 and, like the 33AF, is a metal door device. The Orca Hardware OED85 Series is a fire rated rim exit device in a 36 inch size configured exit only. Both cover a door that only needs egress, without the trim function range - lever, night latch, thumbturn, dummy - and the field options such as electric latch retraction and request to exit switching that the 33A Series carries. Where the door is part of an access control scheme or takes outside trim, the 33AF is the one that accepts it.
    25) Cal-Royal A9800 and A9820 are described as ANSI Grade 1 - do they substitute for a Von Duprin 33AF?
    Not on a rated opening. The Cal-Royal A9800 is a 36 inch exit only rim device and the A9820 is a 48 inch exit only rim device, both heavy duty and both carrying a Grade 2 rating in their spec data, and neither is fire rated or wood door compatible. The Von Duprin 33AF is Grade 1 and fire rated. Where the specification calls for a Grade 1 fire rated device, the Cal-Royal units do not meet it; where the opening is non-rated back of house and only needs a heavy duty push bar, the A9820 covers the same 48 inch width.
    26) What narrow stile rim device should I look at for an opening that takes heavy abuse?
    The Detex 40 Advantex Series is a narrow stile rim exit device rated extra heavy duty at Grade 1 for metal doors, and the Stanley Security QED200 Series is a Grade 1 heavy duty narrow stile rim device with hex key dogging. The Von Duprin 33AF is Grade 1 narrow stile as well and is supplied less dogging, which is what a fire rated opening requires since the latch cannot be held retracted. If the door is rated, the dogging on the Detex and Stanley units is the detail to confirm before ordering.
    27) Is the Securitron EMB exit bar an alternative to a Von Duprin 33A rim device?
    They solve different problems. The Securitron EMB is an electromechanical exit bar specified for 2-1/4 inch doors, so it is neither a mechanical latching rim device nor sized for the 1-3/4 inch doors the Von Duprin 33A fits. The 33AF latches mechanically with a 3/4 inch throw and is fire rated for use in a rated assembly. Where you want electrified operation on the Von Duprin platform, the 33A takes electric latch retraction and quiet electric latch retraction options along with request to exit and latchbolt monitor switching, rather than swapping to a different bar type.
    28) Are Von Duprin 33/35 Series latches and springs available as replacement parts?
    Yes, the 33/35 Series is supported down to component level. Latch retrofit kits (050047, 050048), top and bottom latch kits (050494, 050495), latch mounting brackets (112868, 109324), the 900980 latch mounting package, rod connectors, springs, baseplate screws (090037) and the 050014 impact resistant end cap kit all cover 33 Series devices. That matters for a property manager keeping a fleet of doors running instead of replacing whole devices.
