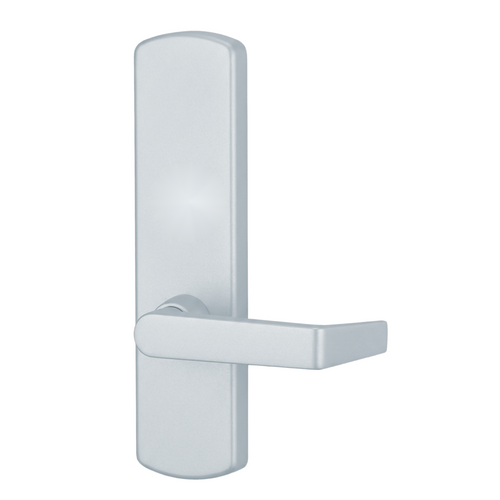

Von Duprin 996L-DT Lever Dummy Trim for 98/99 Series Exit Devices
Model: VON-996L-DT
Von Duprin 996L-DT Lever Dummy Trim for 98/99 Series Exit DevicesCommercial-Grade Lever Dummy Trim for 98/99 Series Exit Device CompatibilityThe Von Duprin 996L-DT is a heavy-duty commercial lever...
Von Duprin
Starting at
$693.00
$485.10
Von Duprin 375L-DT Lever Dummy Trim for 55 Series Exit Device
370 Series Commercial-Grade Exit Device Trim Solution
The Von Duprin 375L-DT is a professional-grade lever dummy trim designed for use with the 55 Series exit device, part of the trusted 370 Series Control Trims lineup. This non-keyed, dummy-function lever trim delivers the flexibility and modular adaptability that Von Duprin is known for, allowing facilities to upgrade and expand their door hardware configurations cost-effectively. Certified to ANSI/BHMA A156.3 2014 Grade 1 standards and compliant with ANSI/UL 10C (fire-rated configurations), ANSI/UL 305, CAN/ULC-S104 (fire-rated configurations), and CAN/ULC-S132, this trim is engineered to meet the demands of heavy-duty commercial applications.
Professional Features & Benefits
- ANSI/BHMA Grade 1 Certified: Meets ANSI/BHMA A156.3 2014 Grade 1 standards, ensuring heavy-duty performance and reliability in high-traffic commercial environments.
- Fire-Rated Compliance: Compliant with ANSI/UL 10C and CAN/ULC-S104 for fire-rated configurations, supporting code-compliant installations where fire-rated openings are required.
- Multi-Standard Certification: Also listed to ANSI/UL 305 and CAN/ULC-S132, providing broad compliance coverage for diverse commercial and institutional applications.
- Dummy Function Design: Non-keyed lever dummy trim provides a clean, professional appearance on the inactive side of paired door openings without requiring a keyed or latching mechanism.
- 370 Series Modular Platform: Part of Von Duprin's 370 Series Control Trims, designed with flexibility and modularity to accommodate evolving facility needs and future upgrades.
- 55 Series Compatibility: Specifically engineered for use with the Von Duprin 55 Series exit device, ensuring seamless integration and consistent performance across the door assembly.
- Heavy-Duty Commercial Rating: Rated for heavy-duty commercial use, making it suitable for demanding environments including offices, schools, healthcare facilities, and institutional buildings.
- Investment Protection: Von Duprin's modular design philosophy allows new options and functionality to be added as needs change, protecting your hardware investment well into the future.
Technical Specifications
- Subcategory: Exit Device Trim
- Series: 370 Series
- Grade: Grade 1
- Duty Level: Heavy Duty
- Product Group: Exit Devices and Trim
- Product Subgroup: Exit Device Trim
- Product Type: Exit Device Trim
- Commercial/Residential: Commercial
- Keyed Function: Non-Keyed
- Keyed: No
- Handle Type: Lever
- Lock Function: Dummy
- Product Model: 373L-DT
- Product Function: Dummy
- Door Hand Direction: Yes
- Product Category: Exit Devices and Trim
- Department: Door Hardware
Professional Applications
- Commercial Office Buildings
- Educational Facilities and Schools
- Healthcare Institutions and Hospitals
- Retail and Hospitality Establishments
- Industrial and Warehouse Facilities
- Multi-Tenant Residential and Mixed-Use Properties
- Government and Municipal Buildings
Why Choose Von Duprin Quality?
Von Duprin exit device trim products deliver professional-grade reliability backed by ANSI/BHMA A156.3 2014 Grade 1 certification and compliance with UL and ULC fire-rated standards. The 370 Series modular platform is engineered for heavy-duty commercial applications, offering the flexibility to adapt and upgrade as facility needs evolve. When dependable performance and long-term investment protection matter, Von Duprin delivers the trusted quality that commercial door hardware professionals rely on.
Manufacturer Resources
Von Duprin 55 Series Catalog
Product Specs
- Subcategory:
- Exit Device Trim
- Series:
- 370 Series
- Grade:
- Grade 1
- Duty Level:
- Heavy Duty
- Product Group:
- Exit Devices and Trim
- Product Subgroup:
- Exit Device Trim
- Product Type:
- Exit Device Trims
- Commercial/Residential:
- Commercial
- Keyed Function:
- Non-Keyed
- Keyed:
- No
- Handle Type:
- Lever
- Lock Function:
- Dummy
- Product Model:
- 373L-DT
- Product Function:
- Dummy
- Door Hand Direction:
- Yes
- Product Category:
- Exit Devices and Trim
- Department:
- Door Hardware
Von Duprin VON-375L-DT-626 – Frequently Asked Questions
1) What does a dummy lever trim like the Von Duprin 375L-DT actually do on an exit device door?
The 375L-DT is a fixed lever on the outside of a door fitted with a Von Duprin 55 Series exit device. It does not retract the latch and takes no cylinder, it is non-keyed. You pull or push on it for appearance and grip, and the door only opens from the outside if it is unlocked some other way (or is the inactive leaf of a pair). If people need to get in from the outside with a key, a dummy trim is the wrong choice.
2) Do I have to specify handing when I order the Von Duprin 375L-DT lever dummy trim?
Yes, handing is required. The 375L-DT is handed and ordered as either RHR (right hand reverse) or LHR (left hand reverse). Stand outside the opening: if the door pulls toward you and the hinges are on your right, it is RHR. Get this wrong and the lever points the wrong way.
3) Will this Von Duprin trim work on a 99 or 33A exit device?
No. The 375L-DT is built for the Von Duprin 55 Series exit device. Other Von Duprin families use their own trim, so match the trim to the device series already on the door.
4) Can I use the Von Duprin 375L-DT lever trim on a fire rated opening?
Yes. The trim is compliant with ANSI/UL 10C and CAN/ULC-S104 for fire rated configurations, and is also listed to ANSI/UL 305 and CAN/ULC-S132. The device itself still has to be the correct fire rated 55 Series configuration for the opening.
5) What is the closest equivalent to the Von Duprin 375L-DT dummy lever trim from another brand?
The Detex 02BN is the nearest match in intent: it is a dummy-function S-lever trim with a blank escutcheon for Value Series exit devices, where the 375L-DT is a non-keyed dummy lever trim for the Von Duprin 55 Series. Both give a lever that does not retract a latch. The difference is the device platform each is built to mount on, so the choice follows the exit device already on the door.
6) If I need the outside trim to actually open the door instead of a dummy lever, what should I order?
A dummy lever like the 375L-DT is non-keyed and does not operate the latch, so for an opening that needs outside entry you want a keyed or operating trim. Options include the Design Hardware KIL storeroom-function trim with Schlage C keyway and flat lever, the Tell EDELT53 keyed entry escutcheon lever trim, or the Sargent 704ET night latch lever trim with field reversible operation. Each is matched to its own exit device series, so confirm the device on the door first.
7) Is a passage-function exit trim the same thing as the 375L-DT dummy trim?
No. The 375L-DT is a dummy: the lever is fixed and does nothing mechanically. A passage trim such as the Arrow SRX01 Sierra lever with rose, or the Corbin Russwin 3310AET for ED300 Series devices, has a lever that retracts the latch from the outside with no key. If the opening needs free outside entry rather than a decorative pull, passage is the function to specify.
8) Is this Von Duprin dummy trim strong enough for a school or hospital entrance?
It is certified to ANSI/BHMA A156.3 2014 Grade 1 and rated heavy duty commercial, which is the top grade for exit devices and their trim. That covers high traffic openings in schools, healthcare, offices and government buildings.
9) What lever designs and finishes can I get on the Von Duprin 375L-DT dummy trim?
Seven lever designs are offered: 01, 02, 03, 06, 07, 12 and 16. Finishes are 605 bright brass, 606 satin brass, 612 satin bronze, 613 oil rubbed bronze, 625 bright chrome, 626 satin chrome, 643E aged bronze and 693/SPBLK black painted. Pick the lever style and finish that match the other trim in the building, since the lever design is a required selection on the order.
10) I want a keyed lever on the outside instead of a dummy. What should I look at?
A dummy trim never retracts the latch, so for key access you need a keyed function trim. Within comparable exit trim, the Sargent 704ET is a Grade 1 heavy duty night latch lever trim, the Design Hardware KIL storeroom trim is a Grade 1 storeroom function lever, and the Falcon 510L is a heavy duty classroom function lever trim. Match whichever one to the exit device series already on your door.
11) Is there another brand's dummy exit device trim if I am not running Von Duprin devices?
The Detex 02BN is a dummy function S-lever trim with a blank escutcheon for Detex Value Series devices. Dexter also offers the ED1500T-DUMM-PULL, a dummy function trim with a handle pull plate rather than a lever, for ED1500 Series devices. Both are device-specific like the 375L-DT, so choose by the device series on your door.
12) Can I put the 375L-DT on the inactive leaf of a pair of doors?
That is one of its normal uses. Because it is a dummy lever with no latch retraction and no cylinder, it gives the inactive leaf a lever that matches the active leaf without adding a working lock. Order it in the same lever design and finish as the active door trim so the pair looks the same.
13) Is the Falcon 212L blank escutcheon trim an alternative to the Von Duprin 375L-DT?
They serve related but different purposes. The Falcon 212L is a 20 Series escutcheon lever trim with shear pin protection, rated medium duty and catalogued as blank escutcheon. The 375L-DT is a heavy duty, Grade 1 dummy lever trim for the 55 Series. If the requirement is a heavy duty Grade 1 assembly on a Von Duprin 55 Series device, the 375L-DT is the match; the 212L belongs on Falcon 20 Series devices.
14) For a classroom door, is the 375L-DT the right exit trim?
No. A dummy lever does not control the latch, so classroom security cannot be achieved with the 375L-DT. Classroom-function trims include the Falcon 510L heavy duty lever trim for 24/25 Series devices, the Accentra 446F Grade 1 Augusta lever trim, and the Dexter ED1000T classroom thumbpiece with pull plate supplied less cylinder. Use the 375L-DT on the inactive leaf and a classroom trim on the active one.
15) Does the 375L-DT require handing like other exit trims?
Yes, the 375L-DT is handed and is ordered RHR or LHR. Some peer trims are instead built to be handed in the field, including the Sargent 704ET night latch lever trim with field reversible operation and the Command Access ET26, described as field reversible. If you stock trim for mixed openings, that reversibility is the practical difference to weigh.
16) For a night latch application, what replaces the 375L-DT?
A dummy lever cannot retract a latch by key, so a night latch trim is the correct specification. Peers include the Sargent 704-ETL with key retract function for PE Series devices, the Sargent 744 freewheeling Grade 1 trim where the key retracts the latch for 8700 and 8900 Series surface vertical rod and mortise devices, the Corbin Russwin VT957ET nightlatch escutcheon in stamped or formed stainless steel for ED5000 Series, and the Dorma YR03R wide stile lever trim supplied less cylinder.
17) Which alternatives to the 375L-DT publish a door thickness range?
If door thickness is the deciding constraint, the Pamex E9000 storeroom L3 lever heavy duty trim covers 1-3/8 inch to 2 inch, and the Tell EDELT53 entry, EDELT80 storeroom, and EDPT pull trims each cover 1-3/8 inch to 1-3/4 inch. Note these are operating or keyed functions rather than the dummy function the 375L-DT provides.
