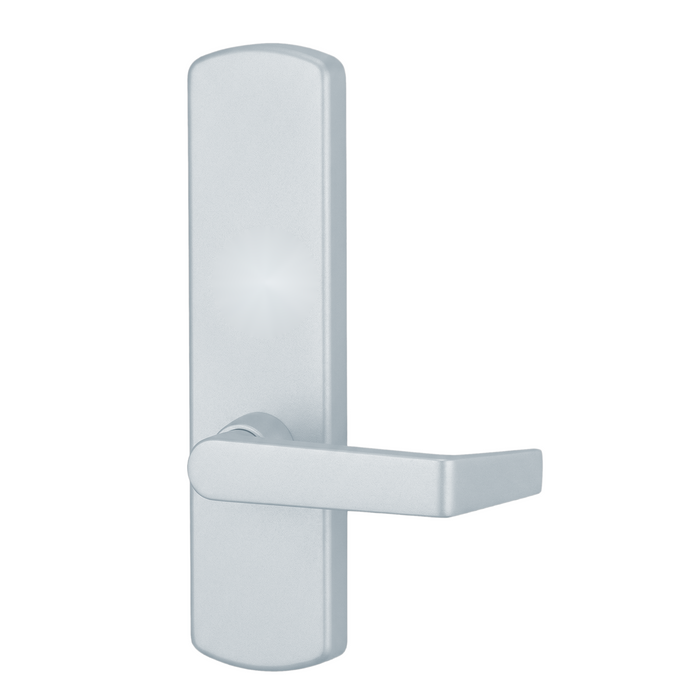

Von Duprin 996L-DT Lever Dummy Trim for 98/99 Series Exit Devices

Von Duprin 996L-DT Lever Dummy Trim for 98/99 Series Exit Devices

Commercial-Grade Lever Dummy Trim for 98/99 Series Exit Device Compatibility

The Von Duprin 996L-DT is a heavy-duty commercial lever dummy trim designed for use with the 98/99 Series exit devices. Functioning as rigid mechanical trim for pull operation, this non-keyed dummy trim provides a clean, professional lever handle solution where active latch operation is not required. Certified to ANSI/BHMA A156.3 2014 Grade 1 standards and compliant with ANSI/UL 305 and CAN/ULC-S132, the 996L-DT delivers the reliability and flexibility that Von Duprin's modular 98/99 Series platform is known for. The trim is handed and reversible, with a center-to-center measurement of 2-7/8" and a product projection of 2 7⅛" (73mm).

Professional Features & Benefits

• Dummy Trim Function: Provides rigid mechanical lever trim for pull operation only — ideal for applications where a matching lever handle is needed without active latch or lock functionality.
• Handed and Reversible Design: The 996L-DT features handed/reversible trim construction, allowing flexible installation to accommodate various door configurations and handing requirements.
• Precise Dimensional Specifications: Center-to-center measurement of 2-7/8" and a product projection of 2 7⅛" (73mm) ensure accurate fit and professional appearance on compatible 98/99 Series devices.
• ANSI/BHMA Grade 1 Certified: Certified to ANSI/BHMA A156.3 2014 Grade 1 standards, confirming heavy-duty performance suitable for demanding commercial applications.
• Multi-Standard Compliance: Meets ANSI/UL 305, CAN/ULC-S132, and — for fire-rated configurations — ANSI/UL 10C and CAN/ULC-S104, supporting a wide range of code-compliant installations.
• 98/99 Series Modular Compatibility: Engineered specifically for Von Duprin's 98/99 Series exit devices, this trim integrates seamlessly within the modular platform, enabling cost-effective upgrades and configuration changes as facility needs evolve.
• Flexible Trim Ecosystem: The 98/99 Series supports numerous trim functions — including Classroom, Storeroom, Passage, Exit Only, and Dummy — allowing facilities to standardize on one platform while meeting diverse door function requirements.
• Heavy-Duty Commercial Grade: Rated for heavy-duty commercial use, the 996L-DT is built to withstand the rigors of high-traffic institutional and commercial environments.

Technical Specifications

• Series: 98 & 99 Series
• Grade: Grade 1
• Duty Level: Heavy Duty
• Product Group: Exit Devices and Trim
• Product Subgroup: Exit Device Trim
• Product Type: Exit Device Trim
• Subcategory: Exit Device Trim
• Commercial/Residential: Commercial
• Keyed Function: Non-Keyed
• Keyed: No
• Handle Type: Lever
• Lock Function: Dummy
• Product Model: 996L-DT
• (CTC) Center-to-Center: 2-7/8"
• Product Function: Lever, Dummy
• Door Hand Direction: Handed, Reversible
• Product Projection: 2 7⅛" (73mm)
• Trim Hardware: Handed/ Reversible Trim
• Product Category: Exit Devices and Trim
• Department: Door Hardware

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Von Duprin Quality?

Von Duprin exit device trim products deliver professional-grade reliability backed by ANSI/BHMA A156.3 2014 Grade 1 certification and compliance with ANSI/UL 305 and CAN/ULC-S132 standards. The 996L-DT is part of Von Duprin's versatile 98/99 Series modular platform, engineered to protect your investment by enabling easy upgrades and configuration changes as facility needs evolve. Built to heavy-duty commercial standards, this trim is a dependable choice for high-traffic institutional and commercial door hardware applications.
