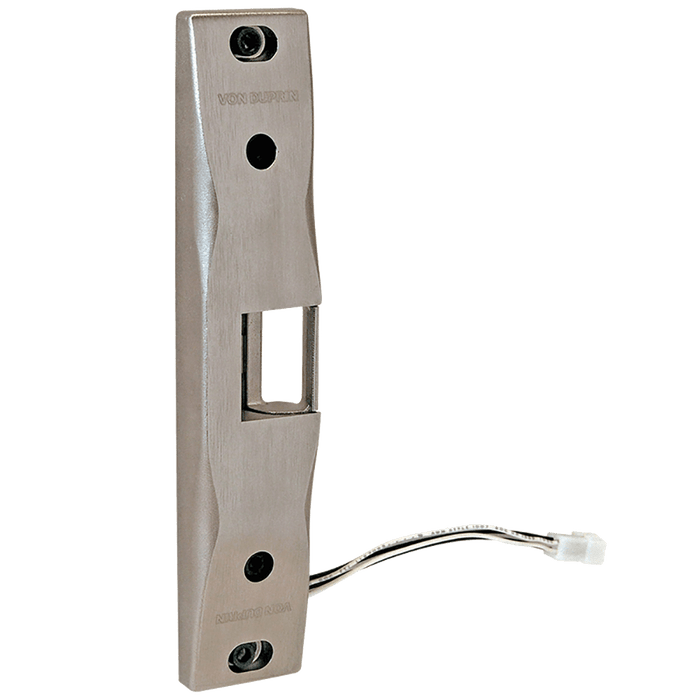

Von Duprin 6300 Surface Mounted Electric Strike for Rim Exit Devices

6300 Series

The 6300 Series electric door strike is designed for installation speed and convenience. It can be used with most Rim Exit Devices as a no-cut solution for storefronts and other challenging applications. 6300 Series is Grade 1, fire-rated and suitable for single or pair doors with a mullion. Standard features include plug-in voltage connectors and internal solenoid for a "no-cut" quick installation, indoors or out.

Features and Benefits

Application

• Designed for use with Rim Exit Devices
• For interior or exterior doors with hollow metal, aluminum, or wood frames

Simplicity

• Surface Mounted
• Requires no alteration or cutting to existing frame
• Field-selectable voltage 12VDC or 24VDC
• Non-handed, internal solenoid design
• Plug-in voltage connectors included for easy installation and removal during strike servicing

Strength and durability

• Heavy-duty stainless steel construction
• 1500 lbs. static strength
• 70 ft-lbs. dynamic strength
• 2,000,000 cycles endurance tested
• 5-year limited warranty

CERTIFICATIONS

• Meets ANSI BHMA A156.31 Grade 1 endurance & dynamic strength
• Meets ANSI/BHMA 156.31 Grade 1 static strength
• UL 1034 listed for burglary-resistant electric door strikes
• UL 10C 3-hour fire-rated (fail secure only)
• UL 294 listed for access control system
• CSFM California State Fire Marshal listed

Specifications

Opening

• Single doors or pair with mullion on wood, hollow metal or aluminum frames
• Lockset: Rim Exit Devices
• Throw: 3/4"

Power

• 24 VDC standard with 12 VDC and rectifier kit conversion to VAC optional
• 12 VDC continuous duty at 0.5 Amp
• 24 VDC continuous duty at 0.24 Amp

Dimensions

• See 6300 Series data sheet for dimension and wiring diagrams.
• 9" L x 1-3/4"W x 3/4"D

Available finishes

• BHMA 630 / US32D Satin stainless steel

Options

• 12 VAC to 12 VDC rectifier kit (SO12)
• 24 VAC to 24 VDC rectifier kit (SO24)
• Entry buzzer
• NOTE: "SO" rectifier kit is intended for fail secure / momentary use only.

Included with strike: two plug-in voltage connectors, mounting template, spacer plate, mounting screws, and hex wrench.

COMPATIBILITY

The 6300 Series is designed for use with the Von Duprin 98/99 Series, but can be used with Falcon and most other manufacturers' Rim Exit Devices.

WARRANTY

Subject to the terms and conditions of this warranty, Schlage Lock Company LLC extends a warranty against defects in material and workmanship to the original user (defined below) of the products manufactured by Schlage (the “Products”) beginning from the date of purchase by the original user. Please see below for specific warranty periods and details:

• Warranty period for Mechanical Components: 60 months from date of placing in operation or 66 months from the date of shipment from Company’s factory.
• Warranty period for Electronic Components: 12 months from date of placing in operation or 18 months from the date of shipment from Company’s factory.
