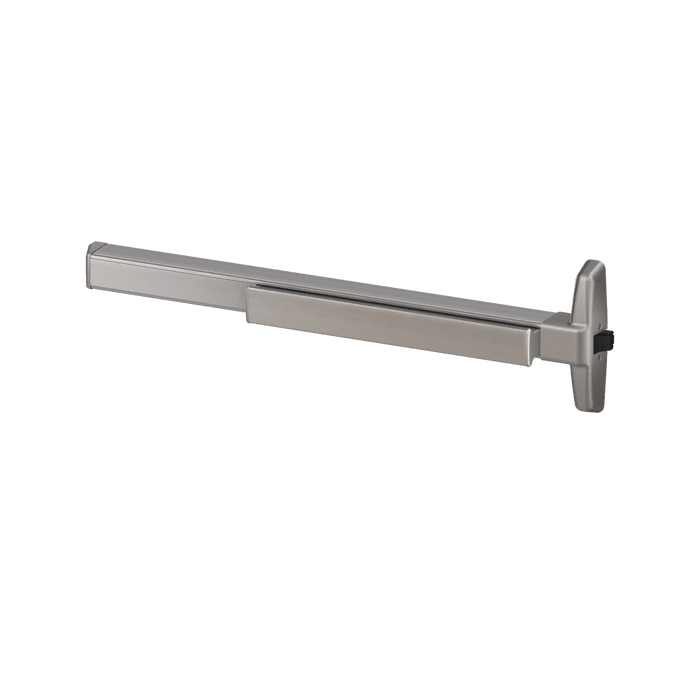

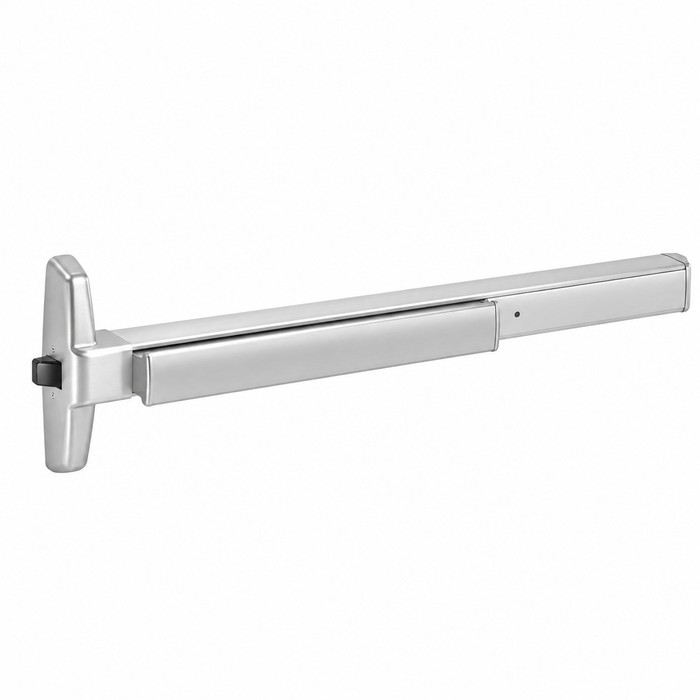

Von Duprin 75 Series - 4 ft Grade 1 Narrow Stile Pushpad Rim Exit Device

Von Duprin 75-4ft Grade 1 Narrow Stile Pushpad Rim Exit Device, 48" for Commercial Applications

(No reviews yet) Write a Review

Model: 75EO 4 626
$2,277.00
$1,294.26
Selected Finish is
Selected Trim Function is
Selected Lever (For “L” Lever Trims Only) is
  • Von Duprin ADDER-VON-33A/35A-STRIKES=1439 Roller Strike (Default Strike) ADDER-VON-33A/35A-STRIKES=1439 Roller Strike (Default Strike)
  • Von Duprin ADDER-VON-33A/35A-STRIKES=299 Strike - Select for Hollow Metal and Wood Doors ADDER-VON-33A/35A-STRIKES=299 Strike - Select for Hollow Metal and Wood Doors

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,277.00
$1,294.26
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Von Duprin 75-4ft Grade 1 Narrow Stile Pushpad Rim Exit Device, 48" for Commercial Applications

Mid-Price Commercial-Grade Rim Exit Device with ANSI/BHMA Grade 1 Certification

The Von Duprin 75-4ft is a 48" narrow stile pushpad rim exit device engineered to deliver reliable, Grade 1 performance across a wide range of commercial environments. Certified to ANSI/BHMA A156.3 2014 Grade 1 standards, this device features a 3/4" latch throw, a door thickness compatibility of 1-3/4", and a device centerline from finished floor of 39-13⁄16". Available in 3' and 4' lengths that are field sizeable for single and double door applications, the 75 Series offers a versatile, mid-price solution backed by Allegion services and support.

Professional Features & Benefits

  • ANSI/BHMA Grade 1 Certified: Meets ANSI/BHMA A156.3 2014 Grade 1 standards, ensuring heavy-duty commercial performance and long-term reliability in high-traffic applications.
  • 48" Narrow Stile Design: The 48" (4 ft) pushpad is engineered for narrow stile doors, with a product projection of 3-13⁄16" and a device centerline from finished floor of 39-13⁄16" for precise, code-compliant placement.
  • 3/4" Latch Throw: Provides secure latching engagement with a 3/4" latch throw, compatible with 1-3/4" door thickness for standard commercial door applications.
  • Field-Sizeable Lengths: Available in 3' and 4' lengths that are field sizeable, accommodating single and double door applications with installation flexibility.
  • Multiple Device Types: Offered in Rim (no suffix), 27 Surface-Mounted Vertical Rods (SVR), and 47 Concealed Vertical Rods (CVR) configurations to address most single, double, and double egress door applications.
  • Wide Range of Functions: Supports Exit Only (EO), Dummy Trim (DT), Lever (L), Lever Blank Escutcheon (LBE), Lever Dummy Trim (LDT), Night Latch Key Retracts (NL), Night Latch Optional Pull (NLOP), Turn Lever (TL), and Turn Lever Blank Escutcheon (TLBE) functions.
  • Hex Key Dogging Configuration: Features hex key dogging for convenient hold-open functionality in appropriate non-fire-rated applications.
  • Quiet Electric Latch Retraction (QEL) Option: The 70 Series platform supports the QEL option for electronic control of the exit device where limited operational noise is desired, ideal for noise-sensitive environments.
  • Fire-Rated Option Available: Devices can be ordered fire-rated by adding "-F" to the suffix, with compliance to ANSI/UL 10C and CAN/ULC-S104 for fire-rated applications.
  • Multiple Certifications: Certified to ANSI/BHMA A156.3 2014 Grade 1, ANSI/UL 10C (fire rated only), ANSI/UL 305, CAN/ULC-S104 (fire rated only), and CAN/ULC-S132 for broad code compliance.

Technical Specifications

  • Product Group: Exit Devices and Trim
  • Series: 75 Series
  • Grade: Grade 1
  • Product Subgroup: Exit Devices - Rim
  • Subcategory: Rim Exit Devices
  • Latch Throw: 3/4"
  • Product Type: Exit Devices - Rim
  • Commercial/Residential: Commercial
  • Device Centerline from Finished Floor: 39-13⁄16"
  • Stile Type: Narrow Stile
  • Wood Door Compatible: No
  • MAP Policy: Yes
  • Product Model: 75
  • Door Thickness Range: 1-3/4"
  • Product Size: 48"
  • Dogging Configuration: Hex Key Dogging
  • Fire Rating: No
  • Product Projection: 3-13⁄16"
  • Product Style: Push Pads
  • Product Category: Exit Devices and Trim
  • Department: Door Hardware

Professional Applications

  • Commercial Office Buildings
  • Warehouse and Industrial Facilities
  • Multifamily Residential Properties
  • Retail Establishments
  • Hospitality Properties
  • Educational Facilities
  • Healthcare Institutions

Why Choose Von Duprin Quality?

Von Duprin 75 Series exit devices deliver professional-grade reliability with ANSI/BHMA A156.3 2014 Grade 1 certification and compliance with ANSI/UL 305, CAN/ULC-S132, and additional fire-rated standards including ANSI/UL 10C and CAN/ULC-S104. Backed by Allegion services and support, the 75 Series is engineered for demanding commercial applications in warehouse, industrial, office, multifamily, retail, and hospitality environments where dependable egress performance is essential.

Manufacturer Resources

Von Duprin 78/75 Series Catalog

Product Specs

Product Group:
Exit Devices and Trim
Series:
75 Series
Grade:
Grade 1
Product Subgroup:
Exit Devices - Rim
Subcategory:
Rim Exit Devices
Latch Throw:
3/4"
Product Type:
Exit Devices - Rim
Commercial/Residential:
Commercial
Device Centerline from Finished Floor:
39-13/16"
Stile Type:
Narrow Stile
Wood Door Compatible:
No
MAP Policy:
Yes
Product Model:
75
Door Thickness Range:
1-3/4"
Product Size:
48"
Dogging Configuration:
Hex Key Dogging
Fire Rating:
No
Product Projection:
3-13/16"
Product Style:
Push Pads
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Von Duprin 75EO 4 626 – Frequently Asked Questions

1) What door thickness does the Von Duprin 75 exit device work on?
One thickness only: 1-3/4 inches, which is the standard commercial door. It is not a range device, so a 2-inch or 2-1/4-inch leaf is out. For thicker doors, the Adams Rite 8800 Series covers 1-3/4 to 2-1/4 inches and the DORMA 9300 Series covers the same span in a wide stile device.
2) Is the Von Duprin 75-4ft fire rated?
As catalogued at 48 inches, the 75-4ft is a panic device, not fire rated. Fire rated versions of the 75 Series are ordered by adding the -F suffix, which brings ANSI/UL 10C and CAN/ULC-S104 compliance. Note that fire rated devices cannot be dogged, so the hex key dogging on the standard build goes away on an -F order. If you need a fire label out of the box, the Marks USA M9900F is offered fire rated in both 36 and 48 inch sizes.
3) Will a 48 inch exit device fit my 36 inch door, or do I need the 3 foot version?
The 75 Series comes in 3 foot and 4 foot lengths and both are field sizeable, so the 48 inch device can be cut down on site to suit a narrower leaf. Standard practice is to buy the size closest above your door width rather than oversizing by a foot. The 4 foot is the one to order for wide leaves and for the active leaf on pairs.
4) Which strike do I order with the Von Duprin 75 rim device?
Two choices. The 1439 roller strike is the default and is what goes on aluminum storefront framing. The 299 strike is the one to pick for hollow metal frames and wood doors. Latchbolt throw is 3/4 inch, so whichever strike you specify has to be prepped for that engagement, and an existing strike cut for a shallower throw will not hold the latch reliably.
5) Can you dog the Von Duprin 75 exit device open during business hours?
Yes. Hex key dogging is the standard configuration, so you hold the pad depressed with an allen wrench and the door pushes free. If you want the maintenance staff to dog it with a key instead of a hex wrench, order CD cylinder dogging. LD less dogging removes the feature entirely, which is what you specify when the opening will be fire rated or when you do not want the door dogged at all.
6) What is the difference between rim, surface vertical rod, and concealed vertical rod on the Von Duprin 70 platform?
The rim device, which is the 75 with no suffix, latches into a strike on the frame at the door edge. That is the right pick for a single door or the active leaf of a pair with a mullion. If you have a pair of doors with no center mullion, you need the vertical rod version: 27 for surface mounted rods or 47 for concealed rods, which latch at the head and the threshold instead of at a mullion. Concealed rods keep the hardware out of sight and out of the way of abuse; surface rods are cheaper to service.
7) How do I order the Von Duprin 75 so it locks from outside but always lets people out?
Specify the NL night latch function, where the outside key retracts the latch, or NL-OP if you want an optional pull with it. For a lever on the outside, L is the plain lever trim, L-BE puts the lever on a blank escutcheon, and L-DT is a lever dummy trim that does not operate the latch. DT is dummy trim only and EO is exit only with nothing on the outside. Whichever way it is specified, the push pad always releases from the inside.
8) Can the Von Duprin 75 be tied into an access control system?
Yes, several ways. QEL quiet electric latch retraction pulls the latch electrically with very little noise, which is what you want over a library, a classroom corridor, or a hotel lobby. HD-QEL adds hex dogging to it on panic devices, and QELX and HD-QELX are the same options for AX accessible devices. For monitoring rather than control, order RX for a request to exit switch, LX for latchbolt monitoring, LX-RX for both, RX2 for a double RX switch, or WP-RX where the opening gets weather. ALK adds a local alarm exit kit and can be combined with RX or LX-RX.
9) What is the closest narrow stile Grade 1 rim exit device to a Von Duprin 75 if I need a fire-rated opening?
The Von Duprin 75 as configured is not fire rated, so for a fire-rated narrow stile opening the Adams Rite 3700 Series is the direct counterpart: it is a Grade 1 narrow stile rim exit device with a fire rating, and it is listed as wood door compatible, which the 75 is not. The Adams Rite 3700 uses starwheel interlocking on the latch. If the opening is a hollow metal or aluminum door and you want to stay with a rim device that carries a fire rating without narrow stile construction, the Dexter ED1000 Series fire rated rim device is Grade 1 as well.
10) Which narrow stile rim exit devices are equivalent to the Von Duprin 75 in grade and stile?
Several narrow stile rim devices share the Von Duprin 75's Grade 1 rating and narrow stile construction. The Corbin Russwin ED4200 is a Grade 1 narrow stile rim device rated for 1-3/4 inch doors, the same door thickness the 75 covers, and it is offered exit only or accepting trim. The Falcon 19-R is Grade 1 narrow stile, exit only, also 1-3/4 inch. The Falcon 1590EO and 1790EO are Grade 1 narrow stile exit only devices for 1-3/4 inch doors. The Detex 40 Advantex is Grade 1 narrow stile and rated extra heavy duty. The 75 differs from the exit only peers in that it is offered across trim functions including EO, DT, L, L-BE, L-DT, NL and NL-OP.
11) I need a 48 inch rim exit device but the door is a wide stile aluminum or hollow metal leaf. What should I use instead of the Von Duprin 75-4ft?
The Von Duprin 75 is built for narrow stile doors, so on a wide stile leaf a wide stile device fits the rail better. At the same 48 inch size, the Corbin Russwin ED3200 is a Grade 1 wide stile crossbar rim device for 1-3/4 inch doors, the DORMA 9300 Series is a Grade 1 heavy duty wide stile push rim device for 1-3/4 inch to 2-1/4 inch doors, and the Cal-Royal 5500 is a 48 inch wide rim device with a push bar. The CRL Jackson 1095 Series is a 48 inch wide stile crossbar exit only device. Choose between crossbar and push pad based on what the rest of the building already runs.
12) What looks like a substitute for a Von Duprin 75 rim exit device but is not one?
A few narrow stile bars mount in a similar place on the door but do a different job. The SDC MSB550 Series is a mechanical switch bar that releases an electromagnetic lock, and the SDC SureExit PSB560 Series is a pressure sense bar with tri-failsafe technology; both suit narrow or wide stile doors but they signal a lock rather than throw a rim latch, which is what the 75 does with its 3/4 inch latch throw. The Securitron EMB is an electromechanical exit bar for 2-1/4 inch doors. The Detex Advantex 00 Series is a dummy exit device, so it provides the look and push feel with no latching at all. The Hager 4601 and Hager 4501 are narrow and wide stile concealed vertical rod devices, which prep the door top and bottom instead of at the rim.
13) The door is wood. What rim exit device should I specify instead of a Von Duprin 75?
The Von Duprin 75 is not wood door compatible. For a narrow stile wood door, the Adams Rite 8700 Series is a Grade 1 narrow stile rim exit device that is wood door compatible, and the Adams Rite 3700 Series is the fire-rated Grade 1 narrow stile equivalent that is also wood door compatible. Both use starwheel interlocking. Most of the other Grade 1 rim devices in this class, including the Corbin Russwin ED4200 and ED5200 and the Falcon 19-R, are specified as not wood door compatible.
14) I need electric latch retraction on a rim exit device. How does the Von Duprin 75 compare to other electrified options?
The Von Duprin 75 platform supports Quiet Electric Latch Retraction, offered as QEL, HD-QEL with hex dogging, and the QELX and HD-QELX versions for AX accessible devices. Among comparable electrified rim devices, the SDC S6136 Spectra S6000 Series is an electrified architectural rim exit device on a 4 inch wide stile for 1-3/4 inch to 2 inch doors, and the Dormakaba E2103 is an electrified 36 inch rim device supplied with 4908A classroom-function trim. The Sargent 12-8810 is a fire rated Grade 1 wide stile rim device with RX and motorized electric latch retraction. The distinction for a narrow stile aluminum opening is that the 75 is the narrow stile device of the group.
15) What 48 inch fire rated rim exit device can I use where a Von Duprin 75-4ft would otherwise fit?
For a 48 inch opening that has to be fire rated, the Marks USA M9900F in 48 inch is a fire rated rim panic device, exit only, with a panic protector end cap, and it is not wood door compatible. The 36 inch M9900F covers the same function on a narrower leaf. The Von Duprin 75 in the standard configuration is a non fire rated device with hex key dogging, and dogging is not used on fire-rated openings, which is the practical difference when moving from one to the other.
16) How far off the door face does the Von Duprin 75 push pad stick out, and where does it mount?
Projection is 3-13/16 inches from the door face, and the device centerline sits 39-13/16 inches above finished floor. Those two numbers are what you need for clearance checks against a door pull, a vestibule wall, or a swing path, and for laying out the prep so the pad lands at code height.
17) Does the Von Duprin 75 meet Grade 1 for a heavy traffic commercial opening?
It is certified to ANSI/BHMA A156.3 2014 Grade 1, and also to ANSI/UL 305 and CAN/ULC-S132 for panic hardware. That is the top ANSI grade and the level a spec on a school, hospital, or office egress door normally calls for. It is a commercial device throughout, not a residential one.
18) What does the AX option on the Von Duprin 75 do and should I order it?
AX is the accessible device build, ordered as a yes or no on the device. Pick it where the opening has to meet reduced operating force for accessibility. If you also want electric latch retraction on an AX device, the matching option is QELX rather than plain QEL, or HD-QELX if you want hex dogging with it.
19) My door has a wide stile, not a narrow one. Is the Von Duprin 75 still the right device?
It will physically go on, but a narrow stile device on a wide stile door leaves you with a shorter pad than the opening wants and no benefit from the narrow chassis. Wide stile Grade 1 rim devices worth looking at instead include the Corbin Russwin ED5200, the DORMA 8300 Series, the BEST Precision 2101 at 36 inches, and the Detex 10 Advantex extra heavy duty. Where the door is aluminum storefront with a slim vertical rail, the narrow stile 75 is the correct pick.
20) What is a simpler alternative to a Von Duprin 75 when the door only needs free egress and no outside trim?
The Von Duprin 75 is offered with lever, night latch and dummy trim functions, so if the opening only needs push-to-exit with nothing on the outside, a device sold exit only covers it with fewer parts to specify. The Dexter ED1000 Series is a Grade 1 rim exit device available in a 4FT size to match the 48 inch length of the 75. The Marks USA M9900 in 36 inch and the Corbin Russwin ED2200 in 36 inch are both exit only rim devices for shorter leaves. The tradeoff is that an exit only device cannot later be given keyed outside entry the way an NL trim function on the 75 can.
21) Can I use an Adams Rite 8800 in place of a Von Duprin 75 rim exit device?
The Adams Rite 8800 Series is a Grade 1 narrow stile rim exit device, matching the Von Duprin 75 on grade and stile, and it uses starwheel interlocking. It covers a door thickness range of 1-3/4 inch to 2-1/4 inch, where the 75 is specified for 1-3/4 inch doors, so the 8800 is the one to reach for on a thicker leaf. Neither is wood door compatible. The Adams Rite 8700 Series is the closely related narrow stile Grade 1 device that is wood door compatible.
22) Which other rim exit devices use hex key dogging like the Von Duprin 75?
The Von Duprin 75 ships with hex key dogging as its standard dogging configuration. Among comparable rim devices, the Design Hardware 1000R is a 33 inch heavy duty rim device with hex key dogging, the Design Hardware 2000R is a 33 inch standard duty wide stile rim device with hex key dogging, and the Stanley Security QED200 Series is a Grade 1 heavy duty narrow stile rim device with hex key dogging, as is the Dormakaba QED200. Hex key dogging matters when the facility wants doors held in a latch-retracted state during business hours on non-fire-rated openings.
23) If the opening needs a keyed night latch rather than a lever, what compares to a Von Duprin 75?
The Von Duprin 75 covers night latch two ways in its trim functions, NL for key retracts and NL-OP for night latch with optional pull. For a narrow stile device built specifically around that function, the Sargent 8504 is a Grade 1 narrow stile rim device in the night latch function. On wide stile leaves the Detex V4003A/03AN is a Grade 1 wide stile rim device supplied with night latch trim. Both are alternatives when the door is entry-controlled by cylinder rather than by lever trim.
24) What is the difference between a Von Duprin 75 and the Grade 2 Cal-Royal rim exit devices?
The Von Duprin 75 is certified Grade 1 and built for narrow stile commercial doors. The Cal-Royal 5000 is a 36 inch wide rim device with a touch bar and a Grade 2 chassis, and the Cal-Royal 5500 is a 48 inch wide rim device with a push bar, also Grade 2; both are described as heavy duty and neither is wood door compatible. The Cal-Royal A9800 and A9820 are Grade 2 heavy duty exit only rim devices in 36 inch and 48 inch. Facilities standardizing to a Grade 1 specification on the drawing will want the Grade 1 devices; the Cal-Royal units answer a Grade 2 spec.
25) Is a non-handed rim exit device available as an alternative to the Von Duprin 75?
If handing is a concern on the order, several comparable rim devices are built non-handed. The BEST Precision 5101 Series is a rim exit device with a non-handed universal design, and the BEST 2401 Series is a narrow stile rim device that is exit only and non-handed. The CRL Jackson 1295 Series is a non-handed push pad rim panic device for 1-3/4 inch wide stile doors. The Sargent 2828 and 3828 are Grade 1 reversible rim devices for 48 inch minimum door width, matching the 48 inch length the Von Duprin 75-4ft covers.
26) Which lever styles can I get on the Von Duprin 75 lever trim?
Ten lever designs are offered on L trims: 06 (the default), 01, 02, 03, 05, 07, 12, 16, 17, and 18. That choice only applies when you have picked an L function; on EO, DT, or night latch functions you select the no-lever option. If you are matching levers already hung elsewhere in the building, the number is what to match on.
27) What finishes does the Von Duprin 75 exit device come in for matching existing hardware?
Ten finishes: 605 bright brass, 606 satin brass, 612 satin bronze, 619 satin nickel, 625 bright chrome, 626 satin chrome, 628 aluminum, 643E aged bronze, 710 dark bronze anodized, and 711 flat black. For matching aluminum storefront the usual picks are 628 aluminum and 710 dark bronze anodized; 626 satin chrome is the common match on hollow metal openings.
28) I need a push pad, not a crossbar. Is the Von Duprin 75 a push pad device?
Yes, the 75 is a push pad device, which is the flush touchpad style rather than the older horizontal crossbar. Crossbar rim devices in the same size class include the CRL Jackson 1095 Series at 48 inches and the Corbin Russwin ED3200 at 48 inches. Push pads are generally specified on new commercial work; crossbars usually turn up when matching existing hardware in an older building.
