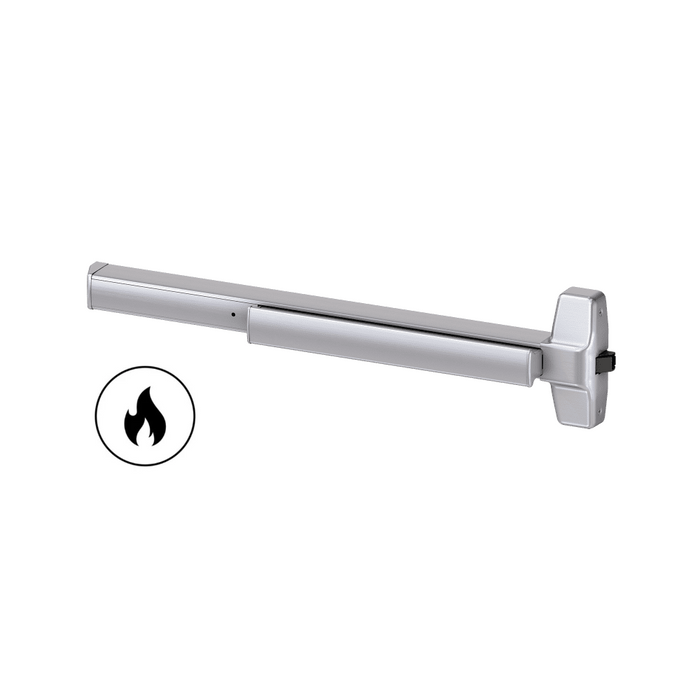

Von Duprin 78F-4ft Fire Rated Wide Stile Pushpad Rim Exit Device, Grade 1, 48"

Von Duprin 78F-4ft Fire Rated Wide Stile Pushpad Rim Exit Device, Grade 1, 48"

(No reviews yet) Write a Review

Model: 78EO-F 4 626
$2,115.00
$1,206.73
Selected Finish is
Selected Trim Function is
Selected Lever (For “L” Lever Trims Only) is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,115.00
$1,206.73
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Von Duprin 78F-4ft Fire Rated Wide Stile Pushpad Rim Exit Device, Grade 1, 48"

Commercial-Grade Wide Stile Rim Exit Device with Fire Rating for Demanding Applications

The Von Duprin 78F-4ft is a fire-rated, wide stile pushpad rim exit device engineered for heavy-duty commercial applications including warehouse, industrial, office, multifamily, retail, and commercial real estate spaces. Sized at 48" (4 ft) and ANSI/BHMA A156.3-2014 Grade 1 certified, this device delivers dependable egress performance on metal doors with a door thickness of 1-3/4". The 78 Series is available in 3' and 4' lengths that are field sizeable for single and double door applications, offering exceptional installation flexibility. Certified to ANSI/UL 10C and CAN/ULC-S104 for fire-rated applications, this rim exit device meets the most stringent code requirements for life-safety hardware.

Professional Features & Benefits

  • Fire-Rated Certification: Certified to ANSI/UL 10C and CAN/ULC-S104 (fire rated), ensuring full compliance with fire-rated door assembly requirements in commercial environments.
  • ANSI/BHMA Grade 1 Performance: Certified to ANSI/BHMA A156.3-2014 Grade 1 and ANSI/UL 305 and CAN/ULC-S132, delivering the highest level of durability and reliability for high-traffic commercial applications.
  • Wide Stile Design: Engineered specifically for wide stile doors, making it ideal for heavy-duty warehouse, industrial, office, multifamily, retail, and commercial real estate applications.
  • Field-Sizable Lengths: Available in 3' and 4' lengths that are field sizeable, accommodating single and double door applications with installation flexibility on-site.
  • Latch & Projection Specifications: Features a 3/4" latch throw and a product projection of 3-13⁄16", with device centerline positioned at 39-13⁄16" from finished floor for code-compliant placement.
  • Hex Key Dogging: Equipped with hex key dogging configuration for convenient hold-open functionality in non-fire-rated applications.
  • Fastener Compatibility: Includes screw pack for 1-3/4" (4mm) and 2-1/4" (57mm) thick metal or wood doors; optional 425 SNB sex nut and bolt kit also available for additional mounting configurations.
  • Quiet Electric Latch Retraction (QEL) Option: The 70 Series platform supports the QEL option, providing electronic control of the exit device where limited operational noise is desired, available as a configurable upgrade.
  • Multiple Device Types Available: The 78 Series supports Rim (no suffix), Surface Mounted Vertical Rod (27/SVR), and Concealed Vertical Rod (47/CVR) configurations to address most single, double, and double egress door applications.

Technical Specifications

  • Product Group: Exit Devices and Trim
  • Series: 78 Series
  • Grade: Grade 1
  • Product Subgroup: Exit Devices - Rim
  • Subcategory: Rim Exit Devices
  • Latch Throw: 3/4"
  • Product Type: Exit Devices - Rim
  • Commercial/Residential: Commercial
  • Device Centerline from Finished Floor: 39-13⁄16"
  • Stile Type: Wide Stile
  • Wood Door Compatible: No
  • MAP Policy: Yes
  • Fasteners and sex bolts: Includes screw pack for 1-3/4" (4mm) and 2-1/4" (57mm) thick metal or wood doors (Optional 425 SNB available)
  • Product Model: 78F
  • Door Thickness Range: 1-3/4"
  • Product Size: 48"
  • Dogging Configuration: Hex Key Dogging
  • Fire Rating: Yes
  • Product Projection: 3-13⁄16"
  • Product Style: Push Pads
  • Product Category: Exit Devices and Trim
  • Department: Door Hardware

Professional Applications

  • Commercial Office Buildings
  • Warehouse and Industrial Facilities
  • Retail Establishments
  • Multi-Tenant Residential Properties
  • Educational Facilities
  • Healthcare Institutions
  • Government and Municipal Buildings

Why Choose Von Duprin Quality?

Von Duprin 78 Series exit devices are built to the highest commercial standards, certified to ANSI/BHMA A156.3-2014 Grade 1, ANSI/UL 10C, ANSI/UL 305, CAN/ULC-S104, and CAN/ULC-S132 for comprehensive code compliance and life-safety assurance. The 78F-4ft wide stile pushpad rim exit device is backed by Allegion services and support, providing confidence for demanding commercial installations. Engineered for heavy-duty applications where reliable egress performance and fire-rated integrity are essential, Von Duprin delivers the professional-grade quality that architects, contractors, and facility managers trust.

Manufacturer Resources

Von Duprin 78/75 Series Catalog

Product Specs

Product Group:
Exit Devices and Trim
Series:
78 Series
Grade:
Grade 1
Product Subgroup:
Exit Devices - Rim
Subcategory:
Rim Exit Devices
Latch Throw:
3/4"
Product Type:
Exit Devices - Rim
Commercial/Residential:
Commercial
Device Centerline from Finished Floor:
39-13/16"
Stile Type:
Wide Stile
Wood Door Compatible:
No
MAP Policy:
Yes
Fasteners and sex bolts:
Includes screw pack for 1-3/4" (4mm) and 2-1/4" (57mm) thick metal or wood doors (Optional 425 SNB available)
Product Model:
78F
Door Thickness Range:
1-3/4"
Product Size:
48"
Dogging Configuration:
Hex Key Dogging
Fire Rating:
Yes
Product Projection:
3-13/16"
Product Style:
Push Pads
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Von Duprin 78EO-F 4 626 – Frequently Asked Questions

1) Can I use the 78F on a fire rated door assembly?
Yes, that is what the F suffix means. The Von Duprin 78F is fire rated and certified to ANSI/UL 10C and CAN/ULC-S104. Note that fire rated devices cannot be dogged down open, so the hex key dogging is only usable on non-fire applications. On a true fire door, order the LD (less dogging) option.
2) Which strike do I order with the 78F for a pair of doors?
Strike choice is a required selection. The 299 strike is the one for hollow metal and wood door frames on a single opening. For double door applications, take the 499F strike. Pick this before you order, since the wrong strike means the latch has nothing to catch.
3) Will the 78F fit a narrow stile aluminum storefront door?
No. The 78 Series is a wide stile pushpad device and needs the stile width of a hollow metal or heavy commercial door. For narrow stile aluminum storefront, look at a narrow stile rim device such as the Adams Rite 8800 Series or the Corbin Russwin ED4200.
4) Can the 78F be set up so an access control system retracts the latch?
Yes. The 70 Series platform supports QEL quiet electric latch retraction, and it is offered several ways: plain QEL, HD-QEL with hex dogging (panic only), and QELX or HD-QELX for AX accessible devices. Pair it with an RX request-to-exit or LX latchbolt monitor switch if the access control panel needs door status.
5) What is the difference between a rim device like the 78F and a vertical rod device?
A rim device latches into a strike on the frame or on the mullion, so it suits a single door or a pair with a mullion between them. The 78 Series also comes as 27/SVR surface vertical rod and 47/CVR concealed vertical rod, which latch at the head and threshold instead and are what you want on a pair with no mullion or on double egress openings.
6) Is the 78F ANSI Grade 1, and what standards does it hold for a spec submittal?
Grade 1 under ANSI/BHMA A156.3-2014, plus ANSI/UL 305 and CAN/ULC-S132 for panic hardware and ANSI/UL 10C with CAN/ULC-S104 for fire. That set covers the usual submittal requirements on institutional and government work.
7) Which Grade 1 fire rated rim exit devices work on a wood door, since the 78F does not?
The Von Duprin 78F is listed as not wood door compatible. For a fire rated Grade 1 rim device on wood, the Adams Rite 3700 Series is fire rated, Grade 1, and wood door compatible, though it is a narrow stile device with starwheel interlocking rather than the wide stile pushpad format of the 78F.
8) What is a fire rated 48 inch rim exit device I can use instead of the Von Duprin 78F-4ft?
The Marks USA M9900F-48 is a 48 inch fire rated rim panic exit device supplied exit only with a panic protector end cap, and it is not wood door compatible. The Von Duprin 78F is also fire rated at 48 inches, is Grade 1, and is offered in trim functions from exit only through lever, night latch and dummy trim, so the Marks device covers the exit only opening while the 78F covers openings that need outside trim.
9) My door has a narrow stile - what rim device should I use instead of the Von Duprin 78F?
The 78F is a wide stile device and needs the stile width to suit. For narrow stile aluminum and similar doors, the Falcon 19-R is a Grade 1 narrow stile rim device in exit only for 1-3/4 inch doors, and the Corbin Russwin ED4200 is a Grade 1 narrow stile rim device for 1-3/4 inch doors available exit only or accepting trim. The Sargent 8504 is a narrow stile Grade 1 rim device in night latch function if outside key access is required.
10) Is the Cal-Royal 5500 a direct substitute for the Von Duprin 78F-4ft?
They are both 48 inch wide rim exit devices, but they are not equivalent on the two specs that usually govern the order. The Cal-Royal 5500 is a heavy duty push bar device with a Grade 2 rating and is not fire rated. The Von Duprin 78F is Grade 1 and fire rated, so on a rated assembly or a Grade 1 spec the 5500 will not substitute.
11) How high off the floor does the 78 Series exit device mount?
The device centerline sits at 39-13/16 inches from finished floor, which keeps the pushpad inside the code band for panic hardware. Projection off the door face is 3-13/16 inches, so account for that clearance where the door swings past a wall or a second leaf.
12) What mounting hardware comes with the Von Duprin 78F, and do I need sex bolts?
A screw pack for 1-3/4 inch and 2-1/4 inch thick metal or wood doors ships with the device. If the door construction calls for through-bolting, the 425 SNB sex nut and bolt kit is a separate order.
13) What trim functions can I get on the 78 Series rim device?
Eight trim functions are offered: exit only, night latch, night latch with optional pull, dummy trim, lever, lever with blank escutcheon, lever with dummy trim, and lever with night latch. If you pick an L trim, you also choose the lever style, with the 06 lever as the default and 01, 02, 03, 05, 07, 12, 16, 17 and 18 also available.
14) Does the 3/4 inch latch throw on the 78F work with my existing rim strike?
The 78F latchbolt throws 3/4 inch, which is the standard rim device throw, but Von Duprin rim latches are keyed to their own strike geometry. If you are replacing a different brand, plan on installing the 299 strike (single door) or 499F (pairs) that goes with the device rather than reusing the old one.
15) Do I need cylinder dogging instead of hex key dogging?
Hex key dogging is the default and is fine where only staff hold the door open. CD cylinder dogging lets you dog and undog with a key instead of an allen wrench, which property managers usually prefer on doors the public can reach. LD is less dogging, and that is the one to take on fire rated openings where dogging is not permitted.
16) When should I order the AX accessible version of the 78 Series?
AX is the accessible device option and is selected yes or no at order. If the opening has to meet accessibility requirements for operating force, take AX. Note that the electric latch retraction option changes with it: AX devices use QELX or HD-QELX rather than plain QEL.
17) If the opening is not fire rated, what wide stile 48 inch rim device compares to the Von Duprin 78F-4ft?
For a non-rated opening, the DORMA 9300 Series is a 48 inch wide stile panic rim exit device in exit only, Grade 1 heavy duty, for 1-3/4 inch to 2-1/4 inch doors. The Corbin Russwin ED3200 is a Grade 1 48 inch wide stile crossbar rim device for 1-3/4 inch doors, a crossbar rather than the push pad style of the 78F. The Von Duprin 78F carries the fire rating, so it is the one to keep where the assembly is rated.
18) Von Duprin 78F versus Sargent 8800 fire rated wide stile - what is the difference?
The Sargent 12-8810-LTRIM is a fire rated Grade 1 wide stile rim exit device in dummy function, supplied with RX and motorized electric latch retraction. The Von Duprin 78F is also fire rated Grade 1 wide stile and can be configured with RX, LX, LX-RX and alarm kit switches and with QEL quiet electric latch retraction, plus trim functions from exit only through lever and night latch rather than dummy alone.
19) Is an SDC exit bar an alternative to the Von Duprin 78F?
They solve different problems. The SDC MSB550 is a mechanical switch bar that releases an electromagnetic lock, and the SDC PSB560 SureExit is a pressure sense bar with tri-failsafe technology; both suit narrow or wide stile and neither is fire rated. The Von Duprin 78F is a mechanical latching rim exit device with a 3/4 inch latch throw and a fire rating, so on a rated latched opening the switch bars are not a substitute.
20) I need hex key dogging on a rim device - which products besides the Von Duprin 78F offer it?
The Von Duprin 78F comes with hex key dogging as standard and can also be ordered CD cylinder dogging or LD less dogging. The Design Hardware 1000R is a 33 inch heavy duty rim device with hex key dogging, the 2000R is the 33 inch standard duty wide stile version with hex key dogging, and the Stanley QED200 is a Grade 1 heavy duty narrow stile rim device with hex key dogging. None of those three are fire rated devices on the same basis as the 78F, which carries a fire rating.
21) What finishes does the Von Duprin 78F come in for matching existing hardware?
Ten finishes: 605 bright brass, 606 satin brass, 612 satin bronze, 619 satin nickel, 625 bright chrome, 626 satin chrome, 628 aluminum, 643E aged bronze, 710 dark bronze anodized and 711 flat black. For a building already standardized on 626 satin chrome, that is the common commercial match.
