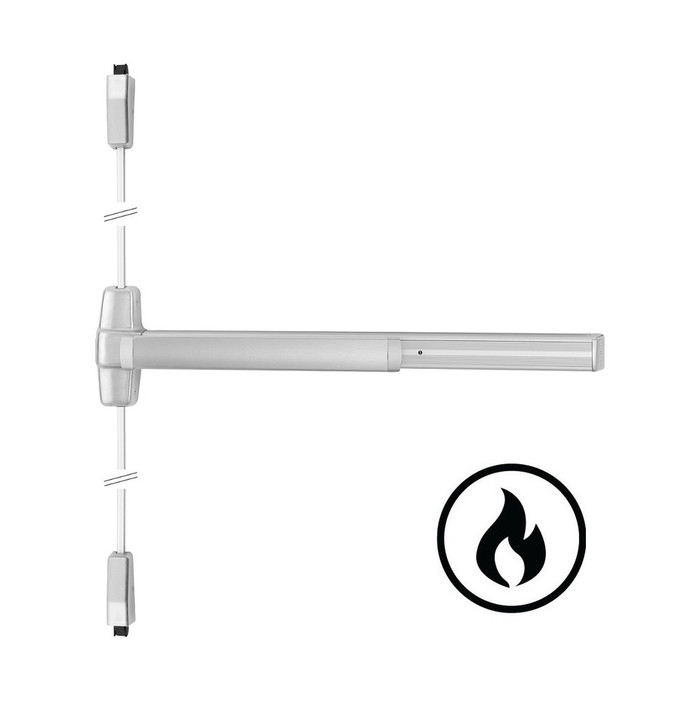

Von Duprin 9847WDC-F-3ft Fire Rated Concealed Vertical Rod Exit Device for Wood Doors, Wide Stile, Less Dogging, 36"

Von Duprin 9847WDC-F-3ft Fire Rated Concealed Vertical Rod Exit Device for Wood Doors, Wide Stile, Less Dogging, 36"

Heavy-Duty Fire Exit Hardware for Institutional Wood Door Applications

The Von Duprin 9847WDC-F-3ft is a commercial-grade, fire-rated concealed vertical rod exit device engineered specifically for wood doors in demanding institutional environments. Part of the renowned 98/99 Series, this wide stile push pad device features a smooth mechanism case and is certified to ANSI/BHMA A156.3 2014 Grade 1 standards and UL listed for fire exit hardware per ANSI/UL 10C. Designed for a 36" door width with a 1-3/4" door thickness, the device delivers a 3/4" latch throw and a center case measuring 8" x 2-3/4" x 2-3/8", making it a precise fit for wide stile wood door assemblies. The non-handed configuration simplifies installation across a variety of openings, and fasteners are included for wood or metal doors 1-3/4" and 2-1/4" thick.

Professional Features & Benefits

• Fire-Rated Certification: Certified to ANSI/BHMA A156.3 2014 Grade 1 and UL listed per ANSI/UL 10C and CAN/ULC-S104 for fire exit hardware, ensuring full compliance in fire-rated door assemblies.
• Wood Door Concealed Vertical Rod Design (47WDC): The 9847WDC-F configuration is purpose-built for wood door concealed vertical rod applications, providing a clean, concealed hardware profile suited to architectural requirements.
• Smooth Mechanism Case: The 98 Series smooth case design (8" x 2-3/4" x 2-3/8" center case dimensions) offers a refined aesthetic while maintaining heavy-duty structural integrity for high-traffic use.
• Precise Latch & Projection Specifications: Features a 3/4" latch throw and a product projection of 3-13/16", engineered for reliable latching performance on 36" wide stile wood doors.
• Non-Handed Configuration: The device is non-handed, simplifying specification and installation across single, double, and double egress door openings, except when the SS (signal switch) option is used.
• Included Fasteners: Fasteners are included for wood or metal doors 1-3/4" and 2-1/4" thick, reducing additional hardware requirements and streamlining installation.
• Less Dogging Configuration: Supplied in a less dogging configuration, appropriate for fire-rated openings where dogging is not permitted per code requirements.
• Field-Configurable Options & Retrofit Capability: A broad range of field-configurable options and retrofit kits are available, including CDSI/HDSI security dogging indicators, QEL electronic latch retraction, and electronic switches (RX request-to-exit, LX latchbolt monitoring) for access control integration.
• ADA & Delayed Egress Upgrade Paths: Optional AX upgrade meets 5 lb. force requirements per the 2010 ADA (Chapters 404.2.7 and 30934) and 2013 California Building Code (Chapter 11B-309.4); optional CX (CHEXIT) meets NFPA and IBC requirements for delayed egress with a 15-second hold and nuisance alarm.
• Multiple Certifications: Compliant with ANSI/BHMA A156.3 2014 Grade 1, ANSI/UL 10C, ANSI/UL 305, CAN/ULC-S104, and CAN/ULC-S132 for broad code compliance across jurisdictions.

Technical Specifications

• Series: 98 & 99 Series
• Grade: Grade 1
• Fasteners: Included for wood or metal doors 1-3/4" and 2-1/4" thick
• Product Group: Exit Devices and Trim
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Concealed Vertical Rod
• Subcategory: Concealed Vertical Rod Exit Devices
• Latch Throw: 3/4"
• Commercial/Residential: Commercial
• Stile Type: Wide Stile
• Center Case Dimensions: 8" x 2-3/4" x 2-3/8"
• MAP Policy: Yes
• Product Model: 9847WDC-F-3ft
• Door Hand Direction: Non-Handed
• Door Thickness Range: 1-3/4"
• Product Size: 36"
• Dogging Configuration: Less Dogging
• Fire Rating: Yes
• Product Projection: 3-13/16"
• Product Style: Push Pads
• Product Category: Exit Devices and Trim
• Department: Door Hardware

Professional Applications

• Public and Private Educational Facilities (Schools and Universities)
• Healthcare Institutions and Hospitals
• Government and Municipal Buildings
• Commercial Office Buildings
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Retail Establishments Requiring Fire-Rated Exit Compliance

Delayed Egress Compliance

The 9847WDC-F-3ft is upgrade-compatible with the optional CX (CHEXIT) delayed egress configuration, which meets NFPA and IBC requirements for delayed egress applications. In this configuration, a standard device keeps doors secure for 15 seconds after a request to exit while a nuisance alarm sounds, providing code-compliant delayed egress functionality for facilities requiring controlled egress management.

Why Choose Von Duprin Quality?

Von Duprin concealed vertical rod exit devices are engineered to the highest industry standards, with the 98/99 Series certified to ANSI/BHMA A156.3 2014 Grade 1 and UL listed per ANSI/UL 10C, ANSI/UL 305, CAN/ULC-S104, and CAN/ULC-S132 for comprehensive code compliance. The 9847WDC-F-3ft is purpose-built for institutional applications in schools, hospitals, and government facilities where heavy-duty performance and fire-rated reliability are non-negotiable. With a broad range of field-configurable options, retrofit kits, and upgrade paths, Von Duprin delivers a future-ready exit hardware solution engineered for demanding commercial applications where dependable performance is essential.
