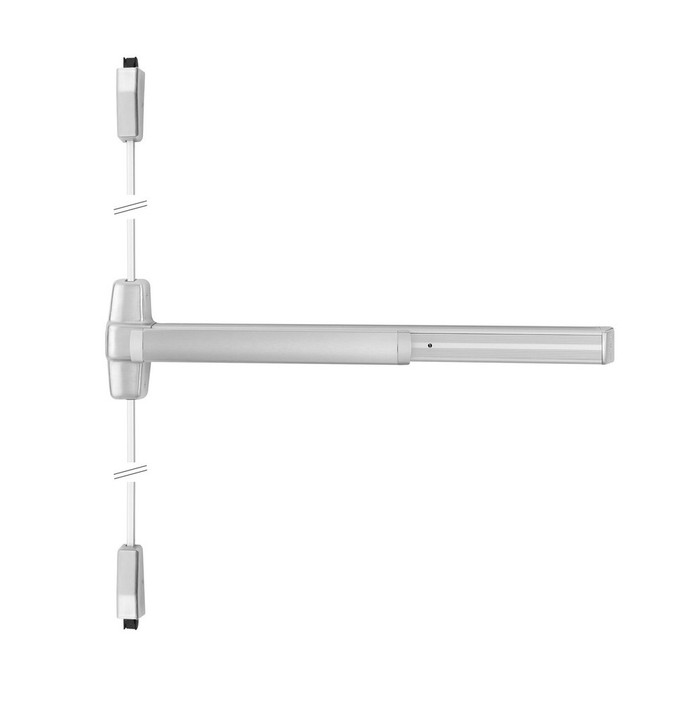

Von Duprin 9847WDC-3ft Wide Stile Concealed Vertical Rod Exit Device for Wood Doors, 36" Smooth Case

Von Duprin 9847WDC-3ft Wide Stile Concealed Vertical Rod Exit Device for Wood Doors, 36" Smooth Case

(No reviews yet) Write a Review
New Parts & Accessories Available!

Model: 9847WDC EO 3 US26D
$3,880.00
$2,716.00
Selected Finish is
Selected Trim Function is
Selected Lever (for "L" Lever Trim Options Only) is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,880.00
$2,716.00
Adding to cart… The item has been added
New Parts & Accessories
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Von Duprin 9847WDC-3ft Wide Stile Concealed Vertical Rod Exit Device for Wood Doors, 36" Smooth Case

Heavy-Duty Concealed Vertical Rod Panic Hardware for Single and Double Wood Doors

The Von Duprin 9847WDC-3ft is a professional-grade, wide stile concealed vertical rod exit device engineered specifically for use on single or double wood doors. Featuring a smooth mechanism case and a 36" product size, this device is UL listed for panic exit hardware and certified to ANSI/BHMA A156.3 2014 Grade 1 standards, making it a trusted choice for institutional applications including schools, hospitals, and government buildings. The non-handed design offers installation flexibility, and the device accommodates door thicknesses of 1-3/4" with a 3/4" latch throw and a center case measuring 8" x 2-3/4" x 2-3/8".

Professional Features & Benefits

  • Wide Stile, 36" Door Coverage: Designed for 36" wide stile wood doors, providing reliable concealed vertical rod operation across the full door width for high-traffic commercial applications.
  • Smooth Mechanism Case: The 9847WDC features a smooth mechanism case (8" x 2-3/4" x 2-3/8") with a 3-13/16" product projection, offering a clean architectural profile suited for institutional and commercial environments.
  • Door Thickness & Fastener Compatibility: Includes fasteners for wood or metal doors 1-3/4" and 2-1/4" thick, ensuring broad compatibility and simplified installation across common door configurations.
  • Non-Handed Design: The concealed vertical rod device is non-handed, simplifying specification and installation. Handed configurations are only required when optional SD (special dogging) or SS (signal switch) options are selected.
  • ANSI/BHMA Grade 1 Certified: Certified to ANSI/BHMA A156.3 2014 Grade 1, the highest industry standard for exit devices, ensuring long-term reliability in demanding institutional environments.
  • Comprehensive Certification Suite: Meets ANSI/UL 10C (fire-rated configurations), ANSI/UL 305, CAN/ULC-S104 (fire-rated configurations), and CAN/ULC-S132, supporting a wide range of code-compliant installations.
  • Hex Key Dogging Configuration: Equipped with hex key dogging for convenient hold-open functionality, ideal for high-traffic facilities requiring flexible access management.
  • Field-Configurable Options & Retrofit Kits: A broad range of field-configurable options and retrofit kits are available, including CDSI/HDSI security dogging indicators, QEL electronic latch retraction, and electronic switches (Request to Exit and Latchbolt Monitoring) for integration with access control systems.
  • Advanced Upgrade Options: Compatible with AX (ADA-compliant, certified to 5 lb. force requirements per 2010 ADA Chapters 404.2.7 and 30934 and 2013 California Building Code Chapter 11B-309.4), CX (CHEXIT delayed egress meeting NFPA and IBC requirements with 15-second delay and nuisance alarm), and XP (patented 2-piece latchbolt design) upgrade options.

Technical Specifications

  • Series: 98 & 99 Series
  • Grade: Grade 1
  • Fasteners: Included for wood or metal doors 1-3/4" and 2-1/4" thick
  • Product Group: Exit Devices and Trim
  • Product Subgroup: Exit Devices - Vertical Rod
  • Product Type: Exit Devices - Concealed Vertical Rod
  • Subcategory: Concealed Vertical Rod Exit Devices
  • Latch Throw: 3/4"
  • Commercial/Residential: Commercial
  • Stile Type: Wide Stile
  • Center Case Dimensions: 8" x 2-3/4" x 2-3/8"
  • MAP Policy: Yes
  • Product Model: 9847WDC-3ft
  • Door Hand Direction: Non-Handed
  • Door Thickness Range: 1-3/4"
  • Product Size: 36"
  • Dogging Configuration: Hex Key Dogging
  • Fire Rating: No
  • Product Projection: 3-13/16"
  • Product Style: Push Pads
  • Product Category: Exit Devices and Trim
  • Department: Door Hardware

Professional Applications

  • Public and Private Educational Facilities (Schools and Universities)
  • Healthcare Institutions and Hospitals
  • Government and Municipal Buildings
  • Commercial Office Buildings
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Retail Establishments Requiring Panic Exit Compliance

Why Choose Von Duprin Quality?

Von Duprin concealed vertical rod exit devices are engineered to the highest industry standards, with the 9847WDC-3ft certified to ANSI/BHMA A156.3 2014 Grade 1 and compliant with ANSI/UL 10C, ANSI/UL 305, CAN/ULC-S104, and CAN/ULC-S132 for broad code coverage. The wide stile push pad design, smooth mechanism case, and field-configurable options make this device a dependable solution for demanding institutional environments such as schools, hospitals, and government facilities. Engineered for commercial applications where reliable panic exit performance and long-term durability are essential.

Manufacturer Resources

Von Duprin 98/99 Series Catalog

Product Specs

Series:
98 & 99 Series
Grade:
Grade 1
Fasteners:
Included for wood or metal doors 1-3/4" and 2-1/4" thick
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Vertical Rod
Product Type:
Exit Devices - Concealed Vertical Rod
Subcategory:
Concealed Vertical Rod Exit Devices
Latch Throw:
3/4"
Commercial/Residential:
Commercial
Stile Type:
Wide Stile
Center Case Dimensions:
8" x 2-3/4" x 2-3/8"
MAP Policy:
Yes
Product Model:
9847WDC-3ft
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/4"
Product Size:
36"
Dogging Configuration:
Hex Key Dogging
Fire Rating:
No
Product Projection:
3-13/16"
Product Style:
Push Pads
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Parts & Accessories

    Von Duprin 9847WDC EO 3 US26D – Frequently Asked Questions

    1) Will the Von Duprin 9847WDC concealed vertical rod device work on a wood door, or is it only for hollow metal?
    Wood doors are what the 9847WDC is built for. It's a wide stile concealed vertical rod device for single or double wood doors, 36 inches wide, and the fasteners in the box cover wood or metal doors 1-3/4 and 2-1/4 inches thick. The device itself is specified for 1-3/4 inch door thickness. If your opening is hollow metal, the Adams Rite 8500 Series is a wide stile concealed vertical rod device made for hollow metal doors.
    2) Do I have to specify a hand when ordering the Von Duprin 9847WDC?
    The 9847WDC is non-handed, so the base device goes on either a left or right hand reverse opening without a separate part number. Handing only becomes a real order decision when you add SD (special dogging) or SS (signal switch), which are handed options. Everything else, including the standard hex key dogging, is hand-neutral.
    3) Is the Von Duprin 9847WDC fire rated?
    No. The 9847WDC is a non-fire-rated concealed vertical rod device, and it ships with hex key dogging, which is itself a giveaway since dogging is not permitted on fire doors. It is certified to ANSI/BHMA A156.3 2014 Grade 1 and meets ANSI/UL 305 and CAN/ULC-S132 for panic hardware. If the opening is a labeled fire door, look at a rated concealed vertical rod device instead, such as the Adams Rite 3600 Series or the Adams Rite 3900 Series with its 1-1/2 hour rating.
    4) Concealed vertical rod or rim device for a pair of doors without a mullion?
    A concealed vertical rod device like the 9847WDC latches into a top strike at the head and a bottom strike at the threshold, so a pair of doors secures against each other with no center mullion in the opening and nothing to remove when you move equipment through. The rods run inside the door, so nothing is exposed on the face. Rim devices need a mullion between the leaves for a pair, and Von Duprin's 4954 removable steel mullion is what handles that arrangement. If you'd rather not cut a wood door for concealed rods, that mullion-and-rim route is the alternative.
    5) Will the Von Duprin 9847WDC latch into my existing top and bottom strikes?
    The device throws a 3/4 inch latch top and bottom, so the existing strike pockets have to accept that depth and line up with the rod positions. On a 98/99 concealed vertical rod opening the matching hardware is the Von Duprin 338 vertical rod top strike and the 385A vertical rod bottom strike. If what's in your frame and threshold now is from another device family, plan on replacing both strikes rather than trying to make the old prep work.
    6) What trim do I need to order with the Von Duprin 9847WDC for outside entry?
    Trim is a separate choice on the order and it sets what happens from the pull side. The options run from EO (exit only, no outside operation) through knob and lever functions (K, K-NL, L, L-NL, L-KC), night latch (NL, NL-OP), thumbturn (TL), thumbpiece (TP), dummy trim (DT) and blank escutcheon versions. If you pick an L lever function you also pick the lever design: 06 is the default, with 01, 02, 03, 05, 07, 17 and 18 also available. For a door that stays locked outside and is opened by key, NL or L-NL is the usual pick.
    7) Can the Von Duprin 9847WDC be tied into an access control system?
    Yes, and there are two halves to that decision. For remote unlocking, specify electric latch retraction: EL, QEL (quiet electric latch retraction) or PN pneumatic. For monitoring, add a switch: RX request to exit, LX latchbolt monitor, LX-RX for both, plus RX-LC low current, RX-2, WP-RX waterproof and SS signal switch. Alarm kits (ALK, RX-ALK, LXRX-ALK) are also on the list. Devices already installed can be converted later, since Von Duprin sells the 040061 QEL modular conversion kit for 98/99 Series 3-foot and 4-foot devices and the 040063 QEL baseplate conversion kit for 3-foot devices. SS is a handed option.
    8) Does the Von Duprin 9847WDC meet ADA opening force requirements?
    Only if you order the AX option. AX is the accessible version, certified to the 5 lb force requirement under 2010 ADA Chapters 404.2.7 and 30934 and 2013 California Building Code Chapter 11B-309.4. It's a yes/no selection made at order time, so on an accessible route you have to call it out rather than assume the standard device covers it.
    9) What's the difference between a wide stile and a narrow stile concealed vertical rod exit device?
    Stile width is about how much door face there is to mount the device and how deep the rods and latch case can sit. The 9847WDC is a wide stile device, which is what wood and hollow metal doors normally give you. Aluminum storefront doors have narrow stiles and need a device built for them, such as the Adams Rite 8600 Series narrow stile concealed vertical rod for aluminum doors, the Corbin Russwin ED4800, or the Falcon 24-C. Fitting a wide stile device to a narrow stile door is not a trim-and-fit situation; the case will not land.
    10) What concealed vertical rod exit device works on a wood door if the opening needs a fire label?
    The Von Duprin 9847WDC-3ft is not fire rated, so a labeled opening needs a different device. The Adams Rite 3900 Series concealed vertical rod exit device is fire rated with a 1-1/2 hour rating, and the Adams Rite 3600 Series is a fire-rated concealed vertical rod device for hollow metal doors. On the Sargent side, the MD8613 concealed vertical rod device is fire rated and comes in a classroom function. All three are Grade 1, the same certification level as the 9847WDC-3ft.
    11) How far does the Von Duprin 9847WDC stick out from the door, and how big is the center case?
    Projection is 3-13/16 inches from the door face, and the smooth center case measures 8 x 2-3/4 x 2-3/8 inches. That projection is the number that matters where the door swings toward a wall, a corridor with a clear-width requirement, or another leaf. Push pad style, so the whole bar sits within that projection when at rest.
    12) Can the Von Duprin 9847WDC be dogged down to hold the door in push-pull during business hours?
    Hex key dogging is standard, so the latches hold retracted with an allen wrench for free push-pull traffic. If you'd rather staff not carry a hex key, order CD for cylinder dogging. There are also indicator versions that show at a glance whether the device is dogged: CDSI (cylinder dogging with security indicator), HDSI (hex dogging with security indicator), DI and CI. SD is special center case dogging, and LD deletes dogging entirely. Note that SD is a handed option.
    13) What's a comparable wide stile concealed vertical rod exit device from another brand?
    Two close equivalents. The Corbin Russwin ED5800 is a Grade 1 wide stile concealed vertical rod device rated for 1-3/4 inch doors, available exit only or accepting trim. The DORMA 9100 Series is a Grade 1 wide stile pushpad concealed vertical rod device, heavy duty, non-fire-rated, and covers a 1-3/4 to 2-1/4 inch door thickness range, which is broader than the 9847WDC's 1-3/4 inch. BEST Precision also makes wide stile concealed vertical rod devices in the 2701 (reversible, for wood doors) and 2801 Series.
    14) Is there a quieter version of the Von Duprin 9847WDC for a hospital or dorm corridor?
    Two options address noise. QM (quiet mechanical) is a yes/no selection on the device itself and cuts the mechanical racket of the latching. If you're also electrifying it, QEL quiet electric latch retraction is the quiet alternative to standard EL. Both are worth specifying on patient floors, residence halls and anywhere the opening sits near occupied rooms.
    15) Can the Von Duprin 9847WDC be set up as delayed egress?
    Yes, through the CX upgrade. CX is Von Duprin's CHEXIT delayed egress, meeting NFPA and IBC requirements with a 15 second delay and a nuisance alarm. That's the configuration used where you need to slow an unauthorized exit at a memory care unit, a retail back door or a secured school wing while still releasing under the code-required conditions.
    16) Can I order the Von Duprin 9847WDC less bottom rod, and what changes if I do?
    Less bottom rod is supported, and it changes the latch hardware you order. With both rods, you take PL top and PL bottom pullman latches. On a less bottom rod configuration, the PL top and bottom pairing does not apply; you specify ES, the top pullman latch built for electric strike applications. Less bottom rod is common where you want to keep the threshold clear of a bottom strike, on carpet or uneven floors.
    17) Is the Von Duprin 9847WDC rated for high-traffic commercial and institutional use?
    Certified to ANSI/BHMA A156.3 2014 Grade 1, the top grade for exit devices, and classified commercial rather than residential. It's specified into schools and universities, hospitals, government and municipal buildings, commercial offices, industrial and warehouse facilities, multi-tenant residential and retail. For a property manager standardizing a fleet of wood corridor doors, Grade 1 is the durability level to hold to.
    18) If the opening only needs push-to-exit with no outside trim, is there a simpler alternative to the 9847WDC?
    Yes. The 9847WDC-3ft is ordered across seventeen trim functions from exit only through lever night latch and thumbpiece, so it covers trimmed openings as well. If the door never needs outside operation, the Falcon 1690EO and Falcon 24-C are Grade 1 concealed vertical rod devices built as exit only in a 36 inch size, and the CRL Jackson 1085 Series is a non-handed exit only concealed vertical rod panic device. The Falcon devices are narrow stile, so confirm the stile before substituting on a wide stile wood door.
    19) Does a Falcon 1491DT substitute for a Von Duprin 9847WDC on an inactive leaf?
    No. The Falcon 1491DT is a dummy trim device with a 9970 pull, function dummy, so it does not latch or provide panic egress. The 9847WDC-3ft is a working Grade 1 panic device, though it can be ordered in DT dummy trim and L-DT or K-DT configurations if a matching dummy appearance is what the inactive leaf needs. The 1491DT is also narrow stile and 42 inches, against the 9847WDC-3ft's wide stile 36 inch size.
    20) Is there a crossbar concealed vertical rod device instead of a push pad like the 9847WDC?
    The 9847WDC-3ft is a push pad device. If the building standard is a crossbar, the Corbin Russwin ED7800 is a Grade 1 narrow stile crossbar concealed vertical rod exit device for 1-3/4 inch doors that accepts operator trim. Note the stile difference: the ED7800 is narrow stile where the 9847WDC-3ft is wide stile, so it is a style match rather than a drop-in on the same door.
    21) For a standardized 36 inch metal door opening with hex dogging, what is comparable to the 9847WDC-3ft?
    The Sargent MD8613F-LTRIM is a Grade 1 heavy duty concealed vertical rod exit device for metal doors at 36 inches by 84 inches with hex dogging, which matches the 9847WDC-3ft's 36 inch size and hex key dogging standard. The Von Duprin device can also be ordered with cylinder dogging, dogging indicators, or less dogging if the facility standard calls for it.
    22) Will the Von Duprin 9847WDC match the finishes on the rest of my building's hardware?
    Twelve finishes are offered: 605 bright brass, 606 satin brass, 612 satin bronze, 613 oil rubbed bronze, 619 satin nickel, 625 bright chrome, 626 satin chrome, 628 aluminum, 630 satin stainless steel, 643E aged bronze, 710 dark bronze anodized and 711 flat black. For institutional corridors 626 and 630 are the usual standards; 628 aluminum matches most storefront. Pick the finish code that's already on your other openings and the device will read the same across the fleet.
    23) What push bar options are available on the Von Duprin 9847WDC for accessibility or low-light egress?
    Five bar choices. Standard bar is the default. BR is a Braille pushbar, KN is knurled (the tactile warning texture used to flag a door as hazardous or restricted), SG is a safety glow pushbar that stays visible when the lights drop, and RSS is the emergency exit push bar. On egress paths in schools and healthcare, SG and BR are the two that usually come up in the spec.
    24) What is the XP option on the Von Duprin 98/99 Series, and do I need it?
    XP is the patented 2-piece latchbolt design, offered as an upgrade on the 9847WDC. It's the choice on openings that take abuse or attack pressure on the latch. Standard latchbolt configuration is fine for ordinary corridor and classroom traffic; XP is what you specify where the door is a target.
    25) Can a BEST Precision 2601 replace a 9847WDC-3ft on a wide stile wood door?
    The BEST Precision 2601 is a narrow stile exit only concealed vertical rod device, so it is not a match for a wide stile wood door and it offers no outside trim. Within the same BEST line, the Precision 2701 Series is the wide stile reversible wood door device, and it lines up much more closely with the non-handed wide stile 9847WDC-3ft.
    26) I need a concealed vertical rod device wider than 36 inches - what are the options?
    The Von Duprin 9847WDC-3ft covers a 36 inch door. For wider leaves, the Falcon 1990EO is a Grade 1 narrow stile concealed vertical rod exit device at 44 inches, exit only, and the CRL Jackson 1085 Series is a 48 inch non-handed wide stile concealed vertical rod panic device. The Falcon 1491DT covers 42 inches in a dummy configuration.
