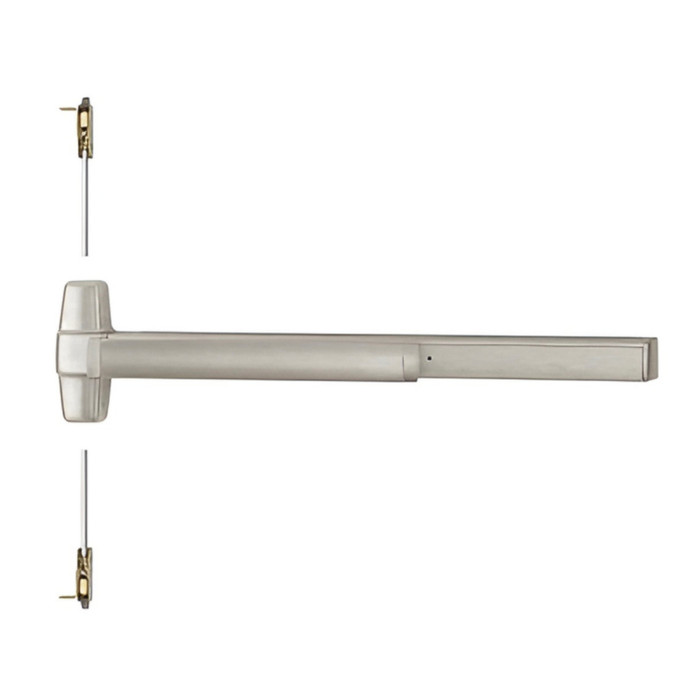

Von Duprin 9947WDC-3ft Concealed Vertical Rod Exit Device for Wide Stile Wood Doors, 36" ANSI/BHMA Grade 1

Von Duprin 9947WDC-3ft Concealed Vertical Rod Exit Device for Wide Stile Wood Doors, 36" ANSI/BHMA Grade 1

Heavy-Duty Grooved Case Concealed Vertical Rod Solution for Single and Double Wood Doors

The Von Duprin 9947WDC-3ft is a 36" wide stile concealed vertical rod exit device engineered specifically for single or double wood door applications. Featuring the distinctive grooved mechanism case of the 99 Series, this device is certified to ANSI/BHMA A156.3 2014 Grade 1 standards and UL listed for panic exit hardware, making it a trusted choice for schools, hospitals, and government facilities. The device accommodates doors 1-3/4" thick and is non-handed in standard configuration, offering installation flexibility across a wide range of commercial openings. With a center case measuring 8" x 2-3/4" x 2-3/8" and a 3/4" latch throw, the 9947WDC-3ft delivers the precision engineering and institutional-grade durability that the 98/99 Series is known for.

Professional Features & Benefits

• Wide Stile Grooved Case Design: The 99 Series grooved mechanism case provides a distinctive architectural profile suited for wide stile wood doors, differentiating it from the smooth-case 98 Series for design-conscious applications.
• 36" Door Coverage: Sized at 36" (Product Size) to provide full concealed vertical rod coverage across standard commercial door widths in single or double door configurations.
• Precise Latch and Case Dimensions: Features a 3/4" latch throw and a center case measuring 8" x 2-3/4" x 2-3/8", with a product projection of 3-13/16" for consistent, reliable latching performance.
• Door Thickness Compatibility: Designed for 1-3/4" thick doors; fasteners are included for wood or metal doors 1-3/4" and 2-1/4" thick, supporting a range of commercial door constructions.
• ANSI/BHMA Grade 1 Certified: Certified to ANSI/BHMA A156.3 2014 Grade 1, the highest industry standard for exit devices, ensuring long-term reliability in high-traffic institutional environments.
• Comprehensive Code Compliance: Listed and certified to ANSI/UL 10C (fire-rated configurations), ANSI/UL 305, CAN/ULC-S104 (fire-rated configurations), and CAN/ULC-S132 for broad code compliance across North American jurisdictions.
• Non-Handed Configuration: Standard device is non-handed for simplified specification and installation; handing is only required when SD (special dogging) or SS (signal switch) options are selected.
• Hex Key Dogging: Equipped with hex key dogging for convenient hold-open functionality in appropriate applications.
• Field-Configurable Options and Retrofit Capability: Supports a wide breadth of field-configurable options including CDSI/HDSI security dogging indicators, QEL electronic latch retraction, and electronic switches (Request to Exit RX, Latchbolt Monitoring LX) for integration with access control systems.
• Upgrade Options Available: Compatible with AX (ADA-compliant, certified to 5 lb. force requirements per 2010 ADA Chapters 404.2.7 and 30934 and 2013 California Building Code Chapter 11B-309.4), CX CHEXIT delayed egress (15-second delay per NFPA and IBC requirements), and XP patented 2-piece latchbolt design.

Technical Specifications

• Series: 98 & 99 Series
• Grade: Grade 1
• Fasteners: Included for wood or metal doors 1-3/4" and 2-1/4" thick
• Product Group: Exit Devices and Trim
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Concealed Vertical Rod
• Subcategory: Concealed Vertical Rod Exit Devices
• Latch Throw: 3/4"
• Commercial/Residential: Commercial
• Stile Type: Wide Stile
• Center Case Dimensions: 8" x 2-3/4" x 2-3/8"
• MAP Policy: Yes
• Product Model: 9947WDC-3ft
• Door Hand Direction: Non-Handed
• Door Thickness Range: 1-3/4"
• Product Size: 36"
• Dogging Configuration: Hex Key Dogging
• Fire Rating: No
• Product Projection: 3-13/16"
• Product Style: Push Pads
• Product Category: Exit Devices and Trim
• Department: Door Hardware

Professional Applications

• Public and Private Educational Facilities (Schools and Universities)
• Healthcare Institutions (Hospitals and Medical Centers)
• Government and Municipal Buildings
• Commercial Office Buildings
• Industrial and Warehouse Facilities
• Multi-Tenant Residential and Mixed-Use Properties
• Institutional Facilities Requiring Panic Exit Hardware Compliance

Delayed Egress Compliance

The 9947WDC-3ft is compatible with the CX CHEXIT delayed egress upgrade option, which meets NFPA and IBC requirements for delayed egress applications. In this configuration, a standard device keeps doors secure for 15 seconds after a request to exit while a nuisance alarm sounds, providing code-compliant delayed egress functionality for facilities requiring controlled egress management.

Why Choose Von Duprin Quality?

Von Duprin concealed vertical rod exit devices are engineered to the highest industry standards, with the 9947WDC-3ft certified to ANSI/BHMA A156.3 2014 Grade 1 and listed to ANSI/UL 10C, ANSI/UL 305, CAN/ULC-S104, and CAN/ULC-S132 for comprehensive code compliance. The 98/99 Series is purpose-built for demanding institutional applications including schools, hospitals, and government buildings, with a broad range of field-configurable and retrofit options to keep pace with evolving facility needs. When dependable panic exit performance and long-term reliability are essential, Von Duprin delivers the professional-grade quality commercial installers and facility managers trust.
