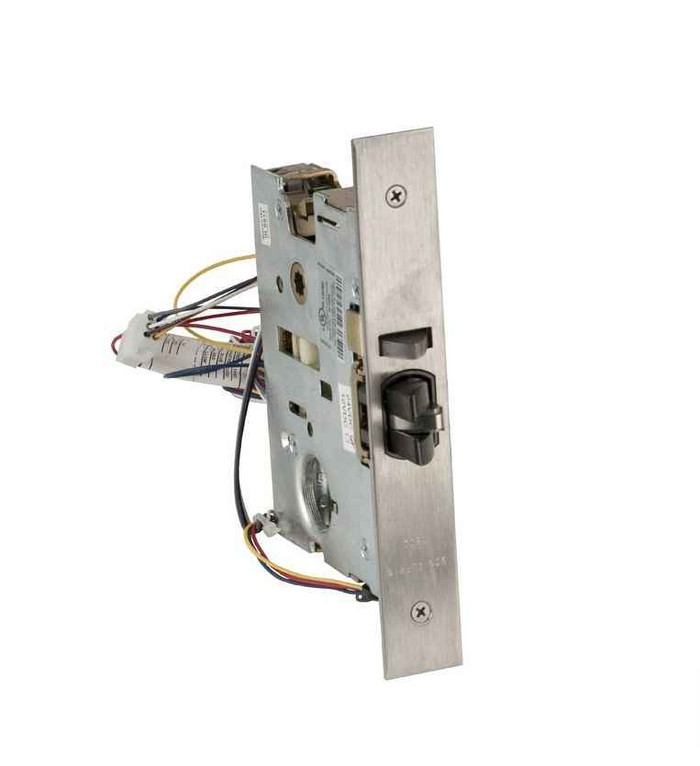

Von Duprin E7500 Electric Unlocking Mortise Lock Exit Device for 98/99 Series
Electrically Controlled Mortise Lock with Remote Switching and Fire Alarm Integration
The Von Duprin E7500 Electric Unlocking Mortise Lock Exit Device delivers all the versatility and advantages of the standard mortise lock exit device, enhanced with the capability of being electrically controlled by a remote switching device, an access control system, or an automatic fire alarm system. Designed exclusively for use with Von Duprin 98/99 Series devices, the E7500 controls the locking of the outside trim while keeping the door latched at all times, preserving the fire rating of the door. This makes it particularly valuable in applications where codes permit locking but require unlocking during a fire emergency.
Professional Features & Benefits
- Electrical Locking and Unlocking Control: The E7500 locks and unlocks electrically and cannot be locked or unlocked mechanically, providing secure, remotely managed access control for commercial applications.
- Fire Rating Preservation: When unlocked, the door remains latched at all times, preserving the fire rating of the door and ensuring code compliance in fire-rated openings.
- Mechanical Override via Outside Trim Cylinder: The outside trim cylinder retracts the latch bolt for mechanical override and night latch function, providing a reliable backup access method.
- Dual SPDT Signal Switch Monitoring: An SPDT signal switch monitors the outside trim condition (locked or unlocked), and a second SPDT signal switch monitors the latch bolt position, enabling real-time status feedback to access control or alarm systems.
- Remote System Integration: Compatible with remote switching devices, access control systems, and automatic fire alarm systems for flexible, code-compliant security configurations.
- 98/99 Series Compatibility: Engineered specifically for use with Von Duprin 98/99 Series exit devices, ensuring seamless integration and reliable performance.
- Grade 1 Heavy-Duty Performance: Rated Grade 1 and Heavy Duty for demanding commercial environments requiring long-term, dependable operation.
- Commercial-Grade Construction: Built to meet the rigorous demands of high-traffic commercial openings, delivering consistent performance in institutional and commercial settings.
Technical Specifications
- Product Group: Exit Devices and Trim
- Grade: Grade 1
- Duty Level: Heavy Duty
- Keyed Function: Single Cylinder
- Subcategory: Exit Devices - Mortise
- Product Type: Mortise Lock for Exit Devices
- Lock Type: Mortise
- Electronic: Yes
- Product Subgroup: Exit Devices - Mortise
- Commercial/Residential: Commercial
- Compatibilty: 98/99 (75)
- Product Model: E7500
- Product Category: Exit Devices and Trim
- Department: Door Hardware
Professional Applications
- Commercial Office Buildings
- Healthcare Institutions
- Educational Facilities
- Government and Municipal Buildings
- Industrial and Warehouse Facilities
- Retail Establishments with Access Control Requirements
- Multi-Tenant Residential and Mixed-Use Properties
Why Choose Von Duprin Quality?
Von Duprin E7500 Electric Unlocking Mortise Lock Exit Device products are engineered to Grade 1, Heavy Duty standards, delivering professional-grade reliability for the most demanding commercial openings. The E7500's dual SPDT signal switch monitoring and compatibility with remote switching, access control, and automatic fire alarm systems reflect Von Duprin's commitment to versatile, code-compliant security solutions. Trusted by security professionals and facility managers, Von Duprin exit device hardware is built to perform consistently in high-traffic commercial environments where dependable operation is essential.
Manufacturer Resources
Von Duprin 98/99 Series Catalog
Product Specs
- Product Group:
- Exit Devices and Trim
- Grade:
- Grade 1
- Duty Level:
- Heavy Duty
- Keyed Function:
- Single Cylinder
- Subcategory:
- Exit Devices - Mortise
- Product Type:
- Mortise Lock for Exit Devices
- Lock Type:
- Mortise
- Electronic:
- Yes
- Product Subgroup:
- Exit Devices - Mortise
- Commercial/Residential:
- Commercial
- Compatibility:
- 98/99 (75)
- Product Model:
- E7500
- Product Category:
- Exit Devices and Trim
- Department:
- Door Hardware
Von Duprin E7500 24V 32D FSE – Frequently Asked Questions
1) Will the Von Duprin E7500 work with any exit device, or only certain ones?
The E7500 electric unlocking mortise lock is built for Von Duprin 98/99 Series devices only. It is the mortise lock case that goes inside a 98/99 mortise exit device, not a standalone lock and not a retrofit for rim or vertical rod devices. If your opening has a 98 or 99 rim device, a surface vertical rod, or another manufacturer's exit device, the E7500 is the wrong part.
2) Should I order the E7500 fail safe or fail secure?
Both are offered, and the choice comes down to what you want the outside trim to do when power drops. FS (fail safe) unlocks the outside trim on power loss, which is what an opening on a fire alarm release or a free-egress-plus-free-entry requirement usually needs. FSE (fail secure) keeps the outside trim locked when power drops, so the door stays secure and entry is by key. Either way the latch bolt stays projected and the door remains latched, so the door's fire rating is preserved in both modes. Egress from the inside is always free through the push bar.
3) What voltage does the Von Duprin E7500 electric mortise lock need?
12VDC and 24VDC are both available, and you pick one when you order. Match it to the power supply and access control panel already feeding the opening. Both voltages are offered in fail safe and fail secure, so the voltage choice does not limit your function choice.
4) Can you unlock the E7500 by hand if the access control system is down?
No. The E7500 locks and unlocks electrically and cannot be locked or unlocked mechanically, so there is no thumbturn or manual toggle for the trim. Your backup is the cylinder in the outside trim, which retracts the latch bolt for mechanical override and night latch function. That means you need a cylinder in the trim to get in when the system is down, and it is keyed as a single cylinder function.
5) Does the E7500 provide door status feedback to an access control panel?
Two SPDT signal switches are built in. One monitors the outside trim condition, so the panel knows whether the trim is locked or unlocked. The second monitors latch bolt position, so you can tell whether the door is actually latched. That gives you both lock status and secure-status reporting from one lock without adding a separate door position switch to the frame for latch confirmation. Wire both back to your access control or alarm system.
6) Can I use an electric mortise exit device lock on a fire rated door?
The E7500 was made for exactly that case. When it unlocks, it releases the outside trim only, and the latch bolt stays projected so the door stays latched at all times. That is what preserves the fire rating of the opening. Compare that with an electric latch retraction device, which pulls the latch back and leaves the door free-swinging, which is not permitted on a fire rated opening. The E7500 also ties to an automatic fire alarm system so the trim can unlock on alarm where codes permit locking but require unlocking during a fire emergency.
7) Is the E7500 rated for a high traffic commercial entrance?
Grade 1 and heavy duty, commercial rated. That is the top ANSI/BHMA durability tier for lock hardware, which is what you want on a school corridor, a hospital entry, or a multi-tenant lobby that sees traffic all day. It is not a residential part.
8) Do I still need outside trim if I order the E7500?
Yes, and it is a separate order. The E7500 controls the locking of the outside trim, so the trim itself, with a cylinder in it, has to come with the device. Without a cylinder you lose the mechanical override and night latch path entirely, which is your only way in when power is out. The E7500 is the electrified mortise lock case, not a complete device, so it goes into a 98/99 mortise exit device.
9) What is the difference between an electric mortise lock exit device and an electric strike for controlling entry?
They control different halves of the opening. The E7500 sits in the door as the mortise lock of a 98/99 exit device and electrically locks or unlocks the outside trim while the latch bolt stays projected. An electric strike goes in the frame and releases the latch to let the door swing free. On a fire rated opening the distinction matters, because keeping the door latched at all times is what preserves the fire rating. The tradeoff with the E7500 is that you have to get power into the door leaf, through a hinge or a door loop, rather than wiring only the frame.
10) What finish does the Von Duprin E7500 come in?
630, satin stainless, across all four configurations. It is the standard commercial stainless finish, so it matches the 630 trim and pulls already on most institutional openings. There is no other finish option on the E7500, so if the rest of your building is in a dark bronze or a brass, plan on the trim carrying the visible finish rather than the lock case.
