Von Duprin 9847NL-3 Concealed ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$3,609.00
$2,782.01

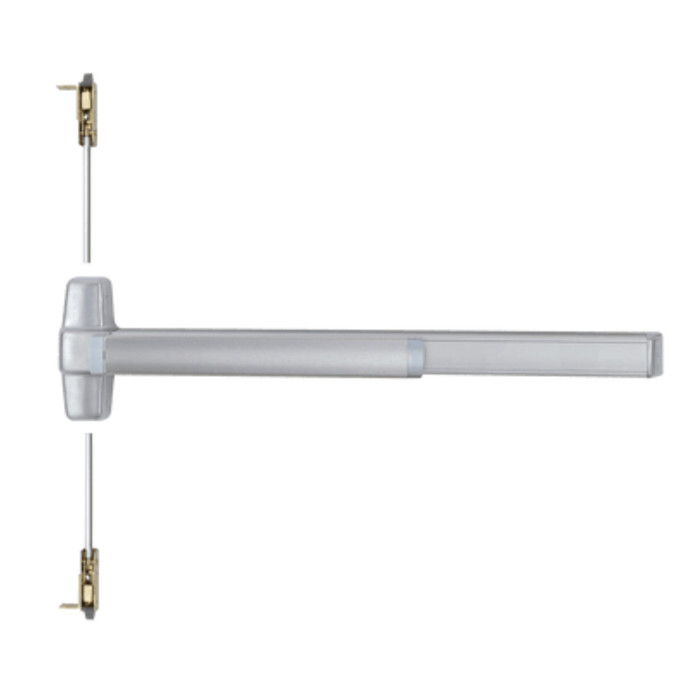

Von Duprin Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 36" Device, 80" to 100" Door Height, Nightlatch Function, Escutcheon Pull, Hex Key Dogging

Von Duprin 9847NL-3 Concealed Vertical Rod Exit Device Wide Stile Pushpad with Nightlatch Function and Hex Key Dogging

(No reviews yet) Write a Review

Model: VON-9847NL 3 26D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,609.00
$2,782.01
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Von Duprin 9847NL-3 Concealed Vertical Rod Exit Device Wide Stile Pushpad with Nightlatch Function and Hex Key Dogging

Grade 1 Commercial Exit Security with Nightlatch Function and Escutcheon Pull

The Von Duprin 9847NL-3 is a Grade 1 Concealed Vertical Rod Exit Device engineered for demanding commercial door applications. Designed for 36" door widths and accommodating door heights from 80" to 100", this wide stile pushpad exit bar delivers reliable egress performance with a Nightlatch function for controlled entry. The device features an Escutcheon Pull and Hex Key Dogging for versatile operational configurations suited to high-traffic commercial environments.

Professional Features & Benefits

  • Door Width Compatibility: Designed specifically for 36" door widths, ensuring a precise fit for standard commercial door openings.
  • Door Height Range: Accommodates door heights from 80" to 100", providing flexibility across a wide range of commercial door configurations.
  • Wide Stile Pushpad Design: Wide stile pushpad construction offers a broad, ergonomic activation surface for smooth and reliable egress in high-traffic applications.
  • Nightlatch Function: Integrated Nightlatch function enables controlled entry from the exterior while maintaining free egress from the interior, ideal for after-hours security management.
  • Escutcheon Pull: Included Escutcheon Pull provides a finished, professional appearance on the exterior side of the door while facilitating controlled access.
  • Hex Key Dogging: Hex Key Dogging capability allows the latchbolt to be held in the retracted position for hands-free passage during business hours, improving operational convenience.
  • Concealed Vertical Rod Mechanism: Concealed vertical rod design provides top and bottom latching points while maintaining a clean, unobtrusive appearance on the door face.
  • Grade 1 Performance: Rated Grade 1 for the highest level of commercial door hardware performance, ensuring long-term reliability in demanding applications.

Technical Specifications

  • Subcategory: Parts and Accessories
  • Product Group: Exit Device Trims
  • Product Subgroup: Parts and Accessories
  • Product Category: Exit Device
  • Department: Door Hardware

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Von Duprin Quality?

Von Duprin concealed vertical rod exit devices are built to Grade 1 commercial standards, delivering the highest level of performance and durability for demanding door hardware applications. The 9847NL-3 combines a wide stile pushpad, Nightlatch function, and Hex Key Dogging in a single, professionally engineered solution designed for reliable long-term service. Engineered for commercial environments where dependable egress performance and controlled access are essential requirements.

Manufacturer Resources

Von Duprin 98/99 Series Catalog

Product Specs

Subcategory:
Parts and Accessories
Product Group:
Exit Device Trims
Product Subgroup:
Parts and Accessories
Product Category:
Exit Device
Department:
Door Hardware

Von Duprin VON-9847NL 3 26D – Frequently Asked Questions

1) Will the Von Duprin 9847NL-3 work on a 36 inch wide door?
Yes. The 9847NL-3 is sized for 36 inch door widths, and it covers door heights from 80 inches up to 100 inches. If your opening is narrower than 36 inches or taller than 100 inches, you need a different device size rather than this one.
2) What does the NL in Von Duprin 9847NL-3 mean for outside entry?
NL is the nightlatch function. Egress from the inside is always free through the pushpad, and from the outside a key retracts the latch for controlled entry. The 9847NL-3 ships with an escutcheon pull on the outside, so the door can be pulled open once the key releases the latch. There is no outside lever or thumbpiece with this trim.
3) Is the 9847NL-3 a wide stile or narrow stile exit device?
Wide stile. The pushpad is built for the wider stiles found on hollow metal and wide-stile aluminum doors. On a narrow stile storefront door there is not enough face width for a wide stile chassis, so measure your stile before ordering and go to a narrow stile device if it comes up short.
4) Can a pair of doors be secured with the 9847NL-3 without a center mullion?
Yes. Because it latches into the frame head and the floor or threshold rather than a strike jamb, a concealed vertical rod device works on a pair of doors with no center mullion. Each leaf gets its own device.
5) Why choose a concealed vertical rod exit device instead of a surface vertical rod or a rim device?
Concealed vertical rod, like the 9847 arrangement, latches at the head and the sill with the rods hidden inside the door, so the door face stays clean. That means the door has to be prepped for concealed rods, usually a hollow metal or aluminum door built for it. A surface vertical rod device mounts the rods on the door face and can be retrofit to a door with no internal prep. A rim device latches only at the strike jamb and is the simpler choice on a single door or a pair with a mullion.
6) Can I hold the 9847NL-3 pushpad down during business hours?
Yes, it has hex key dogging. A hex key holds the latch retracted so the door pushes open freely while the building is open, then you undog it for after-hours security. Hex key dogging is mechanical, so on a fire rated opening dogging is not permitted and you would need the cylinder dogging or non-dogging arrangement instead.
7) Is the Von Duprin 9847NL-3 strong enough for a high traffic entrance?
It is a Grade 1 device, the top performance class for commercial exit hardware, and the wide stile pushpad gives a broad activation surface for constant use. Typical placements are school and office main doors, healthcare corridors, retail, warehouse, and government buildings.
8) What finishes does the Von Duprin 9847NL-3 exit device come in?
Twelve finishes, so you can match existing hardware across a building: 626/US26D satin chrome, 625/US26 bright chrome, 630/US32D stainless steel, 628/US28 satin aluminum clear anodized, 313/710 dark bronze anodized aluminum, 315/335 black anodized aluminum, 643E/US11E aged bronze, 612/US10 satin bronze clear coated, 613/US10B dark oxidized satin bronze oil rubbed, 619/US15 satin nickel plated clear coated, 605/US3 bright brass, and 606/US4 satin brass. For aluminum storefront, 313 and 315 are the usual matches; 626 is the standard commercial choice on hollow metal.
