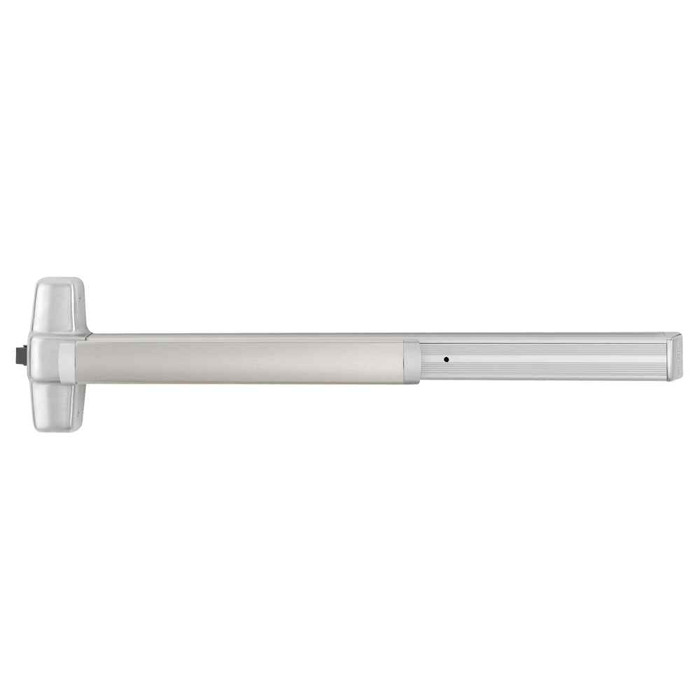

Von Duprin PAAX99EO 3 26D Rim Exit Device, Wide Stile, 36", Exit Only, Satin Chrome

Von Duprin PAAX99EO 3 26D Rim Exit Device, Wide Stile, 36", Exit Only, Satin Chrome

(No reviews yet) Write a Review

Model: VON-PAAX99EO

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,594.43
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

The Von Duprin PAAX99EO 3 26D is a heavy-duty Grade 1 rim exit device designed for high-traffic commercial applications. It features a wide stile pushpad and is suitable for metal or wood doors with widths ranging from 28" to 36". This 36" exit-only device is non-handed, making it flexible for universal applications. It includes hex key dogging, a satin chrome (626/US26D) finish, and complies with ADA standards. The unit does not include exterior trim or cylinder, offering a clean exit-only configuration. Made in the USA and BAA qualified, it is UL 305 listed for safety.

- Product Specs

  • Manufacturer: Von Duprin

  • Vendor: Allegion

  • SKU: PAAX99EO 3 26D

  • UID: VONAXPA99EO326D

  • Grade: Grade 1

  • ANSI/BHMA: A156.3

  • Country of Origin: USA

  • BAA Qualified: Yes

  • Limited Warranty: 3 Years

  • UL Listing: UL 305

  • Fire Rating: No

  • ADA Compliance: Yes

  • Finish: 626 / US26D (Satin Chrome)

  • Finish Family: Matte Silver

Technical Specs

  • Device Type: Rim Exit

  • Door Material: Metal or Wood

  • Door Width: 28" – 36"

  • Device Length: 36"

  • Door Thickness: 1-3/4" – 2-1/4"

  • Handing: Non-handed

  • Dogging Options: Hex Key Dogging

  • Includes Trim: No (Less Trim)

  • Cylinder Type: Non-Keyed

  • Mechanical Function: Exit Only, Accepts Various Trim

  • Trim Design: Less Trim

  • Minimum Stile Size: 3-5/8"

  • Accessibility Features: Accessible

  • Installation Type: Commercial

Dimensions

  • Product Width: 3.75"

  • Product Height: 8"

  • Product Length: 33"

  • Ship Weight: 14 lbs.

  • Pack Qty: 1

  • Pack Dimensions: 37" x 5" x 10.5" (1942.5 in³)

  • Alt. Pack Dimensions: 41" x 16" x 11.75" (7708 in³)

Additional Details

  • Center Case Dimensions: 8" x 2-3/4" x 2-3/8"

  • Mechanism Case Dimensions: 2-1/4" x 2-1/4"

  • Pushbar Projection: Neutral – 3-13/16", Depressed – 3-1/16"

  • Latch Bolt: 3/4" Deadlocking Throw

  • Mounting: Screw pack included for standard door thicknesses

Manufacturer Resources

Product Specs

Von Duprin VON-PAAX99EO – Frequently Asked Questions

1) What is the Von Duprin PAAX99EO-3 26D exit device designed for?
This is a rim-style exit device for wide stile doors up to 36 inches wide. It provides exit-only functionality with satin chrome finish. Designed for commercial applications requiring panic hardware compliance.
2) What door widths are compatible with this exit device?
This unit fits doors up to 36 inches wide. It's specifically engineered for wide stile door applications. Verify your door width and stile dimensions before ordering to ensure proper fit.
3) What does "exit only" mean for this panic hardware?
Exit only means the device allows egress from inside but prevents entry from outside. There's no outside trim or key operation. This configuration is common for emergency exits and secure perimeter doors.
4) What is the finish specification for the 26D designation?
26D indicates satin chrome finish per BHMA standards. This provides a brushed chrome appearance that resists fingerprints and maintains consistent appearance in high-traffic areas.
5) What are the power and grade ratings for this exit device?
Von Duprin exit devices typically meet Grade 1 ANSI/BHMA standards for heavy-duty commercial use. Verify specific power requirements and cycle ratings with manufacturer specifications for your application.
6) Does this device meet building code requirements?
Von Duprin exit devices are designed to meet IBC and NFPA code requirements for panic hardware. Always verify local code compliance and ADA requirements with your authority having jurisdiction.
7) What mounting hardware is included with this exit device?
Standard mounting hardware for rim installation is typically included. Check manufacturer packaging for complete contents list. Additional strike plates or door prep hardware may be required based on door configuration.
8) How is this rim exit device installed?
Rim devices mount to the inside face of the door. Follow manufacturer templates for precise hole locations and door prep. Professional installation recommended to ensure proper alignment and code compliance.
9) What maintenance does this exit device require?
Regular cleaning and lubrication of moving parts. Check pushbar operation and latch engagement monthly. Adjust strike alignment if needed. Follow manufacturer maintenance schedule for optimal performance.
10) Are there related Von Duprin models available?
Von Duprin offers various exit device configurations including mortise versions, different finishes, and outside trim options. Browse our Von Duprin collection for compatible alternatives.
11) What field conditions affect exit device performance?
Temperature extremes, humidity, and door alignment impact operation. Ensure proper door clearances and weatherstripping. Consider environmental factors when selecting exit hardware for exterior applications.
