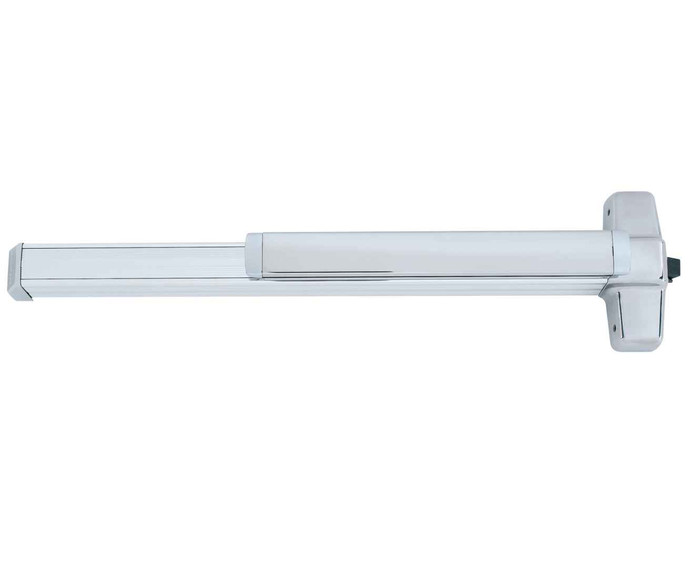

Von Duprin XP98-F/XP99-F-3 Wide Stile Rim Fire Exit Device with Patented Smart Latch

Von Duprin XP98-F/XP99-F-3 Wide Stile Rim Fire Exit Device with Patented Smart Latch

Heavy-Duty Institutional Rim Fire Exit Hardware for Single and Double Doors

The Von Duprin XP98-F/XP99-F-3 is a wide stile, heavy-duty rim fire exit device engineered for demanding institutional environments including schools, hospitals, and government buildings. Certified to ANSI/BHMA A156.3 2014 Grade 1 and UL listed for fire exit hardware (ANSI/UL 10C), this 36" device features Von Duprin’s patented 2-piece “smart” latch bolt design that changes shape under external force, enabling the door to withstand attack and remain secure. Designed for single and double doors—including configurations with the 9954-XP mullion—and compatible with wood or metal doors 1-3/4" thick, this device delivers the highest level of security and code compliance for fire-rated openings.

Professional Features & Benefits

• Patented Smart Latch Technology: The XP 2-piece latch bolt design changes shape when subjected to external forces, enabling the exit door to withstand external attack and remain secure. The patented design also provides greater, longer-lasting latch bolt-to-strike contact that resists the twisting motion of a weakened frame.
• Fire-Rated Certification: Certified to ANSI/BHMA A156.3 2014 Grade 1 and UL listed under ANSI/UL 10C for fire exit hardware, as well as ANSI/UL 305, CAN/ULC-S104, and CAN/ULC-S132, ensuring full code compliance for fire-rated openings.
• Wide Stile Heavy-Duty Push Pad Construction: The 98/99 Series features wide stile push pads with a center case measuring 8" x 2-3/4" x 2-3/8" and a latch throw of 3/4", built for high-use and high-abuse institutional applications.
• Door Size & Thickness Compatibility: Sized for 36" doors with a door thickness of 1-3/4" and a product projection of 3-13/16". Fasteners are included for wood or metal doors 1-3/4" and 2-1/4" thick.
• Non-Handed Design: The rim device is non-handed, simplifying specification and installation across a wide range of door configurations (except when the -2 Double Cylinder option is used).
• Field-Selectable Functions: Product function is field selectable among EO (Exit Only), DT (Dummy Trim), and NL (No Lever) configurations. For TP, K, or L functions, simply remove the NL drive screw from the device.
• Broad Device Type & Trim Options: The 98/99 Series supports rim, surface-mounted vertical rod (27), concealed vertical rod (47, 48), concealed vertical cable (49, 52), wood door concealed vertical rod/cable (47WDC, 50WDC), 3-point latching (57), and mortise lock (75) configurations. Popular trim options include the 990 pull trim and 996 lever/knob trim with multiple standard functions.
• Retrofit & Upgrade Ready: Compatible with CDSI/HDSI security dogging indicators, QEL electronic latch retraction, RX (request to exit) and LX (latchbolt monitoring) electronic switches, AX accessible device option (certified to 5 lb. force ADA requirements), and CX CHEXIT delayed egress option meeting NFPA and IBC requirements.
• Covers Standard Door Cutouts: Covers stock hollow metal doors with 86 or 161 cutouts on single doors and may cover cutouts on pairs (consult template for pairs).

Technical Specifications

• Product Group: Exit Devices and Trim
• Series: 98 & 99 Series
• Grade: Grade 1
• Fasteners: Included for wood or metal doors 1-3/4" and 2-1/4" thick
• Product Subgroup: Exit Devices - Rim
• Subcategory: Rim Exit Devices
• Latch Throw: 3/4"
• Product Type: Exit Devices - Rim
• Commercial/Residential: Commercial
• Stile Type: Wide Stile
• Center Case Dimensions: 8" x 2-3/4" x 2-3/8"
• Wood Door Compatible: No
• MAP Policy: Yes
• Product Model: XP98-F/XP99-F-3
• Product Function: EO/DT/NL (field selectable). For TP, K or L remove NL drive screw from device.
• Door Hand Direction: Non-Handed
• Door Thickness Range: 1-3/4"
• Product Size: 36"
• Fire Rating: Yes
• Product Projection: 3-13/16"
• Product Style: Push Pads
• Product Category: Exit Devices and Trim
• Department: Door Hardware

Professional Applications

• Public and Private Educational Facilities (Schools and Universities)
• Healthcare Institutions (Hospitals and Medical Centers)
• Government and Municipal Buildings
• Commercial Office Buildings
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Retail Establishments Requiring Fire-Rated Exit Compliance

Why Choose Von Duprin Quality?

Von Duprin rim fire exit devices are engineered to the highest industry standards, with the XP98-F/XP99-F-3 certified to ANSI/BHMA A156.3 2014 Grade 1 and UL listed under ANSI/UL 10C, ANSI/UL 305, CAN/ULC-S104, and CAN/ULC-S132 for complete fire-rated compliance. The patented 2-piece smart latch bolt design delivers superior resistance to external attack and frame distortion, making this device the trusted choice for schools, hospitals, and government facilities where dependable, code-compliant performance is non-negotiable. With a wide range of field-configurable functions, retrofit options, and trim choices, Von Duprin’s 98/99 Series provides the flexibility and durability demanded by the most challenging commercial applications.
