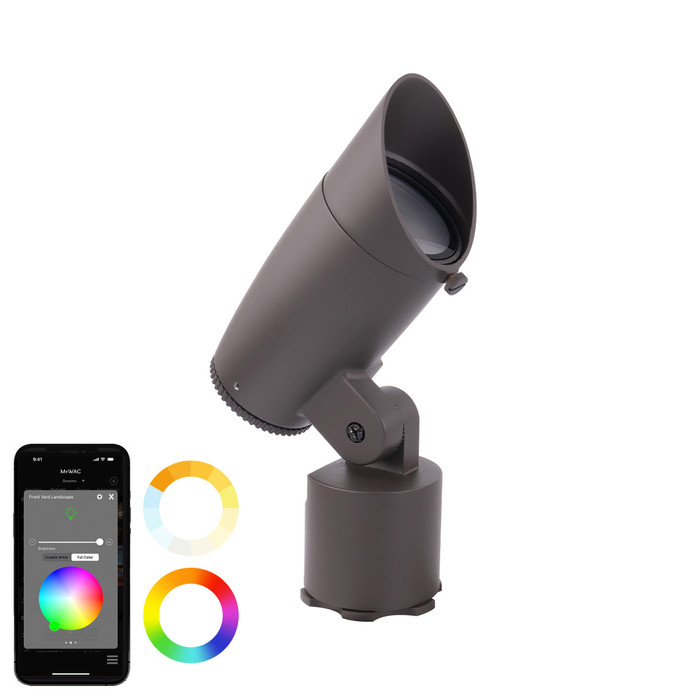

WAC Lighting 5811-CS Colorscaping 12V LED RGBWW Accent Spot Light
The WAC Lighting 5811-CS Colorscaping Accent Spot Light is a fully tunable 12V LED landscape luminaire built in solid brass with a corrosion-resistant bronze (-BBR) finish, ideal for coastal or marine environments. Each fixture delivers RGBWW color tuning from 2700K to 6500K plus millions of vibrant colors, individually controlled or grouped through the myWAC iOS/Android app. Rated IP66 for wet locations and UL & cUL 1598 Listed, it pairs with a patented WAC Colorscaping power supply for simple retrofit installation onto new or existing 12V landscape lighting systems.
Key Features
- Durable Construction: Solid brass coated in a bronze (-BBR) finish for enhanced protection against corrosive elements, recommended for coastal or marine environments.
- Adjustable Beam Angle: A simple twist of the dial at indexed intervals (20, 30, 45, 60 degree indexes) allows continuous beam angle adjustment from flood to spot.
- Color Tunable Output: Every Colorscaping fixture adjusts from 2700K to 6500K plus millions of bright, vibrant colors, individually controlled or grouped via the myWAC app.
- Electrical Rating: High-powered LED with 9-15V AC input, 15W (16VA) draw, up to 570Lm output, 85 CRI, and smooth continuous dimming to 10% with the Colorscaping Power Supply.
- Long Rated Life: Rated for 50,000 hours of operation, reducing maintenance and relamping needs in landscape installations.
- Smart System Integration: Connects to the patented WAC Colorscaping Power Supply (150W or 300W) via standard 12-2 landscape wire using Power Line Communication, eliminating secondary control wiring.
- Wet Location Rating: IP66 rated for outdoor, wet-location landscape use.
- Finish: Bronze (-BBR) finish with frosted glass lens.
Certifications & Compliance
- UL Listed
- cUL Listed
- UL & cUL 1598 Standard Compliant
- IP66 Rated for Wet Locations
Technical Specifications
- Bulb Base: LED Module - Transformer
- Bulb Shape: LED
- Bulbs Included: Yes
- Dimmable: MLV;APP
- Energy Star: No
- Lumens: 700
- Number of Bulbs: 1
- Product Type: Spot and Flood Lighting
- Safety Rating: UL;cUL;IP66
- Shade/Glass Description: Frosted Glass Lens
- Subcategory: Low Voltage Accent Light
- Avg Rated Hours: 50000
- Beam Spread: 20-60
- Voltage: 12
- Country of Origin: China
- Location Rating: Wet
- Total Wattage: 15
- Color Temperature: 2700-6500
- Style: Modern
Typical Applications
- Tree Trunk and Branch Uplighting
- Hedgerow and Garden Accent Lighting
- Facade and Wall Washing
- Coastal and Marine Landscape Installations
- Smart, App-Controlled Color-Tunable Landscape Systems
- Wet-Location Outdoor Accent Lighting
Why WAC Lighting?
WAC Lighting builds the Colorscaping 5811-CS with solid brass construction and a corrosion-resistant bronze finish for long-term outdoor performance. Backed by UL & cUL 1598 listing and an IP66 wet-location rating, it delivers dependable, code-compliant color-tunable illumination for professional landscape lighting installations.
Manufacturer Resources
Specification Sheet
Product Specs
- Bulb Base:
- LED Module - Transformer
- Bulb Shape:
- LED
- Bulbs Included:
- Yes
- Collection:
- Colorscaping
- Dimmable:
- MLV;APP
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Lumens:
- 700
- Number of Bulbs:
- 1
- Product Type:
- Spot and Flood Lighting
- Safety Rating:
- UL;cUL;IP66
- Shade/Glass Description:
- Frosted Glass Lens
- Subcategory:
- Low Voltage Accent Light
- Avg Rated Hours:
- 50000
- Beam Spread Angle:
- 20-60
- Product Voltage:
- 12
- Location Rating:
- Wet
- Total Wattage:
- 15
- Light Temperature:
- 2700-6500
- Product Style:
- Modern
WAC Lighting 5811-CSBK – Frequently Asked Questions
1) Can the WAC Colorscaping 5811-CS run off my existing 12V landscape transformer?
No. The 5811-CS needs WAC's patented Colorscaping power supply (150W or 300W) to work. Control signal rides the existing 12-2 landscape wire using Power Line Communication, so you don't pull any secondary control cable, but a standard magnetic transformer won't give you color tuning or the smooth dimming to 10 percent. The fixture itself accepts 9-15V AC and draws 15W (16VA), so the existing wire runs and stakes usually stay put and you swap the transformer.
2) Can one fixture do both tree uplighting and a tighter accent beam, or do I need different optics?
One fixture covers both. The beam adjusts continuously from 20 to 60 degrees with a twist of the dial, with detents at 20, 30, 45 and 60 degrees. That means you can stock a single SKU for a job and set flood on hedgerows and wall washes, then dial down to spot for a trunk or a column on site instead of ordering separate lenses.
3) Is the 5811-CS OK in irrigation spray and standing water?
It's rated for wet locations and carries IP66, so direct sprinkler spray and driving rain are within spec. It is also UL and cUL Listed to the 1598 standard, which is what an inspector or a spec-driven institutional job will ask for. IP66 covers powerful water jets, not submersion, so don't use it as an in-grade or fountain fixture.
4) How is the color and dimming actually controlled, and does each fixture get addressed separately?
Control is through the myWAC app on iOS or Android. Fixtures can be driven individually or in groups, tuning white from 2700K to 6500K plus millions of colors. Dimming is app-based and MLV, down to 10 percent through the Colorscaping power supply. There is no wall dimmer or DMX path stated for it, so plan on the app as the control layer.
5) How many of these can I load on a 300W Colorscaping power supply?
Each 5811-CS draws 15W, or 16VA. Against a 300W Colorscaping supply that is 20 fixtures at nameplate before you allow any headroom for voltage drop on long runs; the 150W supply carries half that. Input range is 9-15V AC, so on long branch runs check the far-end voltage stays in that window.
6) What finishes does the Colorscaping 5811 accent spot come in?
Three: solid brass coated in bronze, black, and bronze. The brass-with-bronze coating version (-BBR) is the one WAC recommends for coastal and marine sites where salt air attacks lesser housings.
7) How bright is the WAC 5811 accent light and is the lamp replaceable?
Output runs up to 570 lumens in color-tuned operation with an integral LED module rated 50,000 hours at 15W and 85 CRI. The LED is built in and comes with the fixture, so there is no relamping. When it reaches end of life you replace the luminaire, which is why the 50,000 hour figure matters on a large property where a lift or a crew callout is the real cost.
8) Is this a hardwired fixture or does it plug in?
Hardwired. The 5811-CS lands on 12-2 low-voltage landscape cable off the Colorscaping power supply, which is the piece that plugs in or gets wired at the panel. There is no cord and plug on the fixture.
9) Will the RGBWW spot give me even color on a wall wash, or will I see LED dots?
The lens is frosted glass, which blends the separate red, green, blue and warm-white emitters instead of throwing individual colored dots. That matters most on facade and wall-washing work at close throw, and on hedgerows where you are grazing foliage.
10) Does the Colorscaping 5811 qualify as an Energy Star fixture for a rebate or green spec?
No, it is not Energy Star listed. If a rebate program or a sustainability spec requires Energy Star, this fixture won't satisfy that line item. What it does carry is UL and cUL Listing to 1598 and an IP66 wet-location rating.
