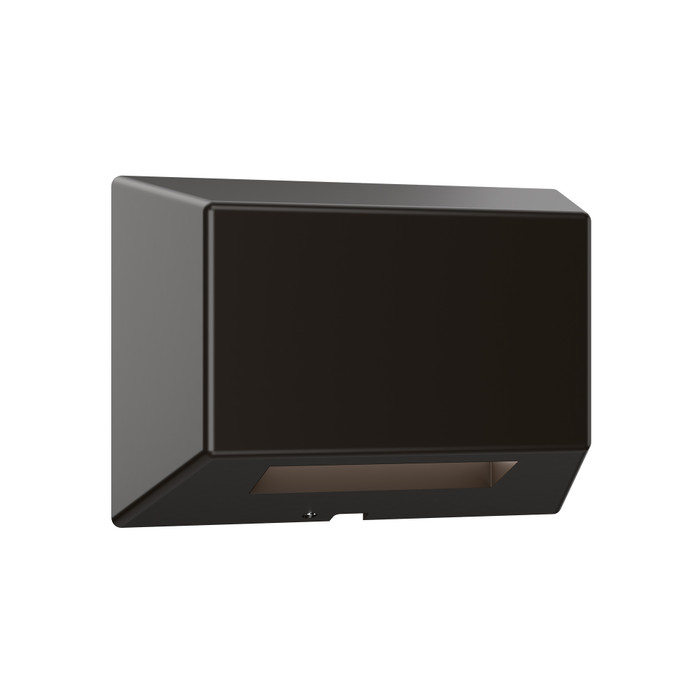

WAC Lighting 3051-CS Colorscaping LED Deck Light
The WAC Lighting 3051-CS Colorscaping LED Deck Light delivers awe-inspiring way-finding illumination for stairways, patios, decks, balcony areas, walkways, and building perimeters. Built from solid brass coated in a bronze (BBR) finish and factory sealed to an IP66 rating, this rectangle deck light is engineered for long-lasting outdoor performance, including coastal and marine environments. As part of the Colorscaping platform, each luminaire can be individually controlled or grouped from the myWAC iOS or Android App, and the fixture is UL & cUL 1838 Listed for wet locations.
Key Features
- Durable Construction: Solid brass coated in a bronze (BBR) finish for enhanced protection against corrosive elements, recommended for coastal or marine environments.
- Wet Location Protection: Factory sealed watertight and IP66 rated for protection against high-pressure water jets and outdoor elements.
- Colorscaping Control: Fully tunable landscape lighting system where each luminaire can be individually controlled or grouped from the myWAC iOS or Android App.
- High-Powered LED: Input 9-15V AC, Power 2.7W (3.6VA), Brightness up to 75Lm, CRI 85, Rated Hours 50,000.
- Power Supply Requirement: Requires a Magnetic or Electronic 12V power supply; recommended transformer (150W) 8150CS-TRN-SS or (300W) 8300CS-TRN-SS.
- Frosted Glass Lens: Diffuses light output for an attractive, romantic impression at night.
- Tunable Color Temperature: 2700-6500K range for flexible landscape lighting design.
- Beam Spread: 80° distribution for broad way-finding coverage.
Certifications & Compliance
- UL & cUL 1838 Listed
- IP66 Rated for Wet Locations
Technical Specifications
- Bulb Base: LED Module - Transformer
- Bulb Shape: LED
- Bulbs Included: Yes
- Collection: WAC Deck and Patio Lights
- Dimmable: MLV
- Energy Star: No
- Hardwired or Portable: Hardwired
- Number of Bulbs: 1
- Product Type: Deck and Patio Lighting
- Safety Rating: UL;cUL;IP66
- Shade/Glass Description: Frosted Glass Lens
- Subcategory: Deck and Patio Light
- Avg Rated Hours: 50000
- Beam Spread: 80
- Voltage: 12
- Country of Origin: Thailand
- Location Rating: Wet
- Total Wattage: 2.7
- Color Temperature: 2700-6500
- Style: Modern
Typical Applications
- Stairways and Steps
- Patios and Decks
- Balcony Areas and Walkways
- Building Perimeters
- Coastal and Marine Wet-Location Installations
Why WAC Lighting?
WAC Lighting builds the 3051-CS Colorscaping LED Deck Light from solid brass with a corrosion-resistant bronze (BBR) finish, backing it with an IP66 watertight seal and UL & cUL 1838 listing for wet-location reliability. With a 50,000-hour rated LED and myWAC app-based Colorscaping control, it delivers durable, code-compliant performance for professional outdoor lighting installations.
Manufacturer Resources
Specification Sheet
Product Specs
- Bulb Base:
- LED Module - Transformer
- Bulb Shape:
- LED
- Bulbs Included:
- Yes
- Collection:
- WAC Deck and Patio Lights
- Dimmable:
- MLV
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Number of Bulbs:
- 1
- Product Type:
- Deck and Patio Lighting
- Safety Rating:
- UL;cUL;IP66
- Shade/Glass Description:
- Frosted Glass Lens
- Subcategory:
- Deck and Patio Light
- Avg Rated Hours:
- 50000
- Beam Spread Angle:
- 80
- Product Voltage:
- 12
- Location Rating:
- Wet
- Total Wattage:
- 2.7
- Light Temperature:
- 2700-6500
- Product Style:
- Modern
WAC Lighting 3051-CSBK – Frequently Asked Questions
1) What transformer do I need to run the WAC 3051-CS Colorscaping deck light?
The 3051-CS runs on a 12V low voltage system and needs a magnetic or electronic 12V power supply. WAC calls out the 8150CS-TRN-SS (150W) or the 8300CS-TRN-SS (300W) Colorscaping transformer. Input range on the fixture is 9-15V AC, so a standard 12V landscape transformer with proper voltage drop calculation keeps it in spec. Each head draws 2.7W (3.6VA), so a 150W supply carries a large run of them.
2) Can the 3051-CS deck light be installed on a coastal or oceanfront property?
Yes. The brass version is solid brass with a bronze (BBR) coating, which WAC recommends specifically for coastal and marine environments where salt air chews through cheaper housings. It is factory sealed watertight to IP66 and carries a wet location rating, so direct rain and washdown are not an issue.
3) How is the color and brightness controlled on a Colorscaping deck light?
Control is through the myWAC app on iOS or Android. Every luminaire can be addressed individually or assigned to a group, and color temperature tunes anywhere from 2700K warm to 6500K daylight. That lets you run warm on a patio zone and cooler on a path zone off the same transformer without swapping fixtures.
4) Is 75 lumens enough for stair and path lighting?
For way-finding, yes. The 3051-CS puts out up to 75 lumens through a frosted glass lens at an 80 degree beam spread, which is a wide wash meant to mark the edge of a tread, deck board, or walkway rather than light the whole area. The frosted lens keeps glare down at eye level on stair risers. If you need to actually illuminate a surface for task use, this is the wrong fixture type.
5) Will this deck light pass inspection for an exterior wet location?
The 3051-CS is UL and cUL 1838 Listed, which is the low voltage landscape lighting standard, and it is IP66 rated for wet locations. IP66 covers high pressure water jets, so it holds up to hose-down cleaning and driving rain. It is not Energy Star certified, if that matters to your specification.
6) Do I need to buy bulbs for the WAC 3051-CS?
No. It is a single integrated LED module rated for 50,000 hours, supplied with the fixture. There is no lamp to relamp later, so plan on replacing the fixture at end of life rather than stocking spares.
7) Is the 3051-CS deck light hardwired or does it plug in?
Hardwired to a 12V low voltage feed off the transformer. There is no cord and plug, so an electrician or landscape lighting installer lands it on the low voltage run. Dimming is MLV type.
8) Can I mix these with my existing standard 12V landscape lights on one transformer?
Electrically they share the same 12V low voltage platform, but the Colorscaping color and grouping control runs through the myWAC app and WAC's Colorscaping transformers, the 150W 8150CS-TRN-SS or 300W 8300CS-TRN-SS. Fixed-output fixtures on that same run will just burn steady; they will not tune or group. If app control across the whole system matters, keep the Colorscaping heads on their own Colorscaping supply.
