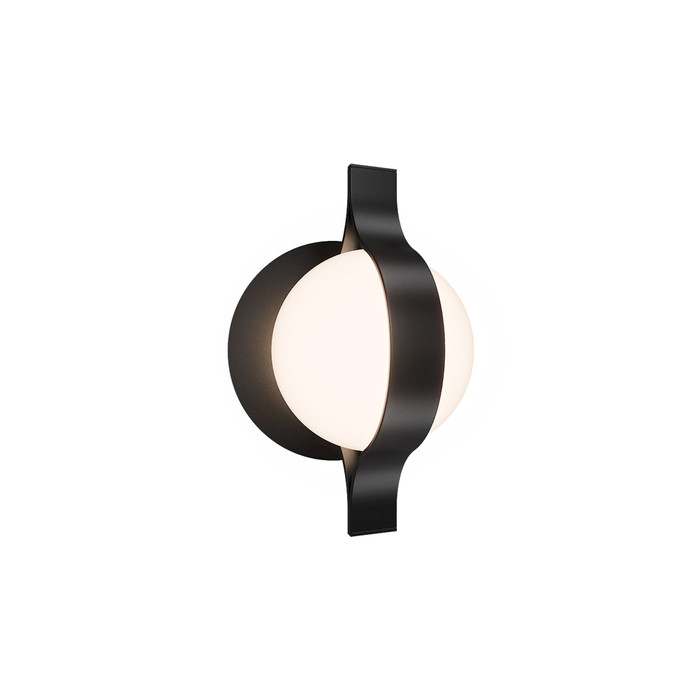

WAC Lighting 104609 Ellaria LED Wall Sconce, Aluminum & Opal Glass
The WAC Lighting 104609 Ellaria LED Wall Sconce pairs a glowing, mouth-blown Opal Glass sphere with a bold Aluminum band for a compact yet eye-catching wall light that suits both modern and transitional interiors. A high-powered, replaceable LED engine delivers 1133 lumens at 3000K with a 90 CRI, while the Universal Voltage driver (120V-220V-277V) is concealed in the backplate. This fixture is ETL & cETL listed for Damp locations and is CEC, Title 24, and Title 20 compliant, making it a reliable choice for hardwired wall installations.
Key Features
- Sculptural Construction: Aluminum body wrapped around a mouth-blown Opal Glass diffuser for a refined, balanced silhouette.
- Universal Voltage Driver: Concealed 120V-220V-277V driver in the backplate simplifies installation across a range of line voltages.
- Smooth Dimming: Compatible with ELV or TRIAC dimmers for continuous, flicker-free light control.
- High-Powered LED Engine: Replaceable LED module rated for 50000 hours at 3000K color temperature with 90 CRI for accurate color rendering.
- Light Output: 1133 lumens at 10.5W total wattage delivers efficient, glare-free illumination with a Flood beam spread.
- Hardwired Installation: Designed for wall mounting in indoor wall lighting applications.
- Companion Fixture: Pairs with the Ellaria 3-Light Bath Bar (SKU WS104625) for a coordinated bath lighting look.
Certifications & Compliance
- ETL & cETL Listed for Damp Locations
- CEC Compliant
- Title 24 Compliant
- Title 20 Compliant
Technical Specifications
- ADA Compliant: No
- Bulb Base: LED Module - Universal Driver
- Bulb Shape: LED Module
- Bulbs Included: Yes
- Dimmable: ELV;TRIAC
- Energy Star: No
- Hardwired or Portable: Hardwired
- Lumens: 1133
- Product Type: Indoor Wall Lighting
- Safety Rating: ETL;cETL
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: Wall Sconce
- CRI: 90
- Beam Spread: Flood
- Voltage: 120-240-277
- Country of Origin: Thailand
- Total Wattage: 10.5
- Style: Modern;Transitional
- Mounting: Wall;Any
Typical Applications
- Bathroom Vanity and Bath Lighting
- Hallway and Corridor Wall Lighting
- Entryway and Foyer Accent Lighting
- Bedroom and Living Area Wall Sconces
- Damp-Location Indoor Wall Lighting
Why WAC Lighting?
WAC Lighting builds the Ellaria collection around a durable Aluminum body, a mouth-blown Opal Glass diffuser, and a high-powered replaceable LED engine, backed by ETL & cETL Damp-location listing and CEC, Title 24, and Title 20 compliance. With a 5-Year Functional and 2-Year Finish warranty, the Ellaria wall sconce delivers dependable, code-compliant lighting for professional installations.
Manufacturer Resources
Installation Guide
Product Specs
- ADA Compliant:
- No
- Bulb Base:
- LED Module - Universal Driver
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- Ellaria
- Dimmable:
- ELV;TRIAC
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Lumens:
- 1133
- Product Type:
- Indoor Wall Lighting
- Safety Rating:
- ETL;cETL
- Shade/Glass Description:
- Mouth-blown Opal Glass Diffuser
- Subcategory:
- Wall Sconce
- Avg Rated Hours:
- 50000
- CRI:
- 90
- Beam Spread Angle:
- Flood
- Product Voltage:
- 120-240-277
- Product Material:
- Aluminum
- Location Rating:
- Damp
- Total Wattage:
- 10.5
- Light Temperature:
- 3000
- Product Style:
- Modern;Transitional
- Mounting Method:
- Wall;Any
WAC Lighting WS104609-TWA-BK – Frequently Asked Questions
1) Can the WAC Lighting Ellaria WS104609 sconce be used in a bathroom near a shower?
The Ellaria WS104609 wall sconce is ETL and cETL listed for Damp locations, so it is fine for a bathroom vanity or a bath area that sees humidity. It is not wet-location rated, so keep it out of direct spray inside a shower or tub enclosure. For a matching bath application WAC offers the Ellaria 3-Light Bath Bar, WS104625.
2) Will the Ellaria WS104609 sconce run on 277V commercial lighting circuits?
Yes. The driver is universal voltage, 120-240-277V, and it is concealed in the backplate, so the same fixture can go on 120V residential circuits or a 277V commercial branch without ordering a different version. Total draw is 10.5W.
3) What dimmer works with the WAC Ellaria LED wall sconce?
Use an ELV or TRIAC dimmer. The Ellaria WS104609 is not rated for 0-10V control, so on a commercial job spec'd for 0-10V you would need a different fixture. At 10.5W per sconce, check the dimmer's minimum load if you are running only one or two on a circuit.
4) Is the Ellaria WS104609 sconce ADA compliant for a corridor?
No. The Ellaria WS104609 is not ADA compliant, so it should not be used in a corridor or circulation path where projection from the wall is restricted by ADA requirements. Pick an ADA-rated sconce for those locations and keep the Ellaria for vanities, entries, bedrooms and other non-path walls.
5) Does the Ellaria sconce meet California Title 24 and Title 20 for a multifamily project?
Yes. The Ellaria WS104609 is CEC listed and compliant with both Title 24 and Title 20, which is what California permitting asks for on residential and multifamily wall lighting. It is not Energy Star certified, so if a rebate program requires Energy Star specifically this one will not qualify.
6) Does the Ellaria sconce come in a finish that matches existing brushed nickel fixtures?
The Ellaria sconce is offered in two finishes, Black and Brushed Nickel, both with an aluminum body and a mouth-blown opal glass diffuser. If you are standardizing a floor of units, either finish carries across the collection so the sconces and the Ellaria bath bar read the same.
7) Do I have to replace the whole Ellaria sconce when the LED burns out?
No. The LED engine is a replaceable module rather than a sealed board, and it is rated for 50,000 hours. The module ships installed, so nothing extra is needed at install. There is no screw-base lamp in this fixture, it is an LED module on a universal driver.
8) Is the light output from the Ellaria sconce enough for a vanity?
Each Ellaria WS104609 puts out 1133 lumens at 3000K with a flood distribution through the opal glass, which is a soft warm-white spread rather than a tight beam. For a vanity, a pair flanking the mirror gives even face lighting; 90 CRI means skin tones and finishes read accurately.
9) Does the Ellaria WS104609 sconce plug in, or does it need to be hardwired?
Hardwired only. There is no cord or plug, so it needs a wall box and an electrician. The driver sits inside the backplate, which keeps the box clean, and WAC publishes an installation guide for the rough-in and mounting sequence: https://zensupply.com/content/pdf/wac-lighting/installation-guide-13772c.pdf
10) Can the Ellaria wall sconce be mounted facing up or down?
Mounting is listed as wall, any orientation, so the sconce can be installed with the glass sphere up or down depending on whether you want more wash on the ceiling or on the counter below. That flexibility also lets you keep orientation consistent across a run of openings.
